Lot 3: Innse Rotary Piercing Mill

Back to auction
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.

Item description

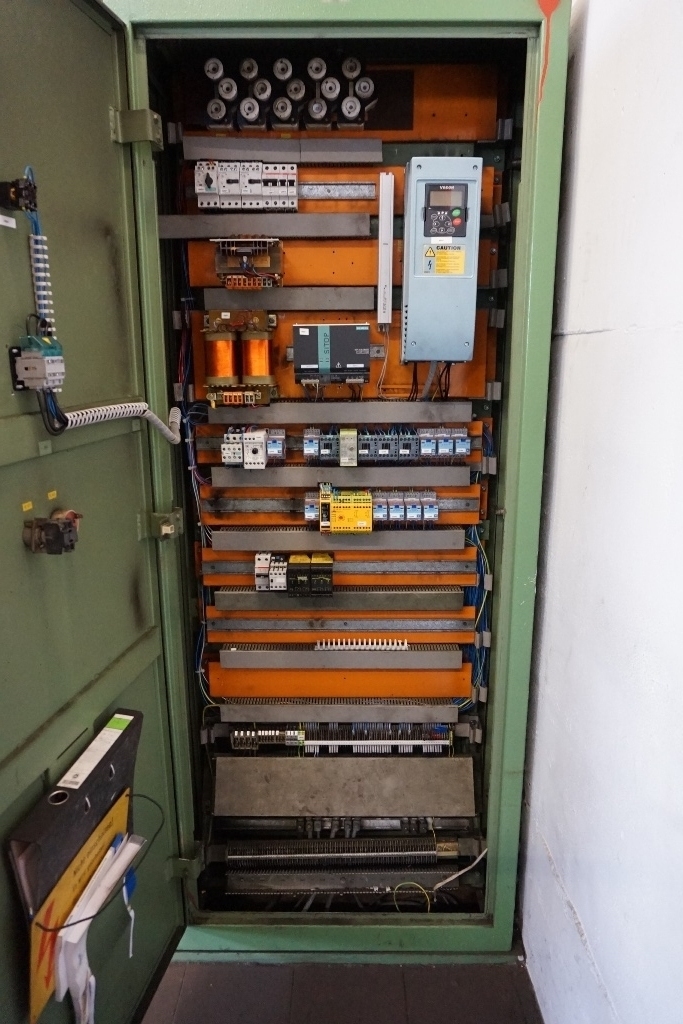

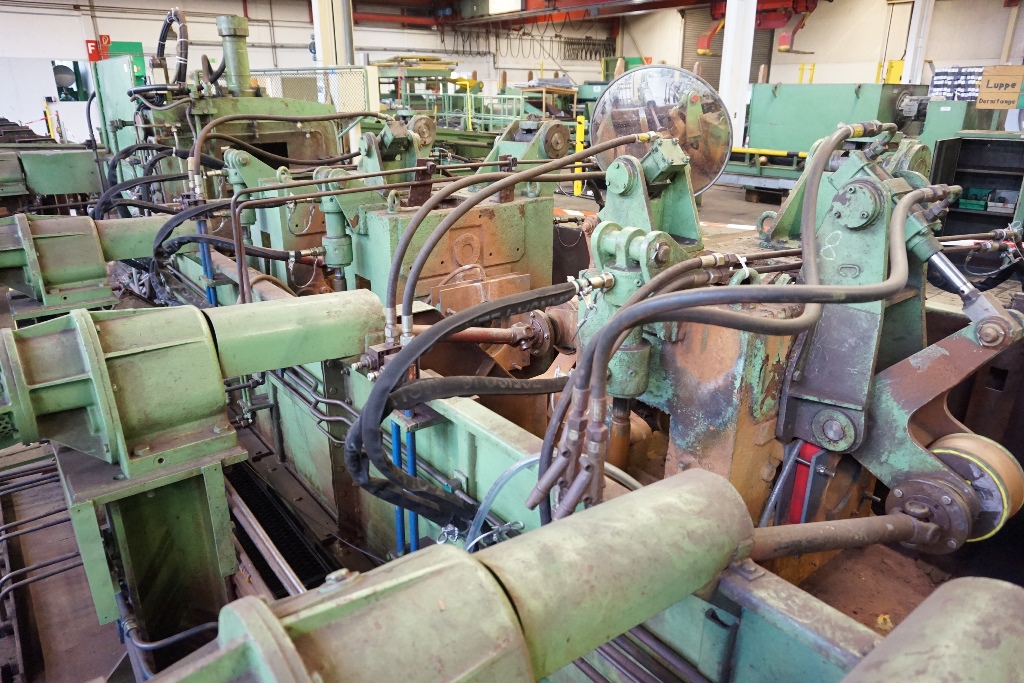

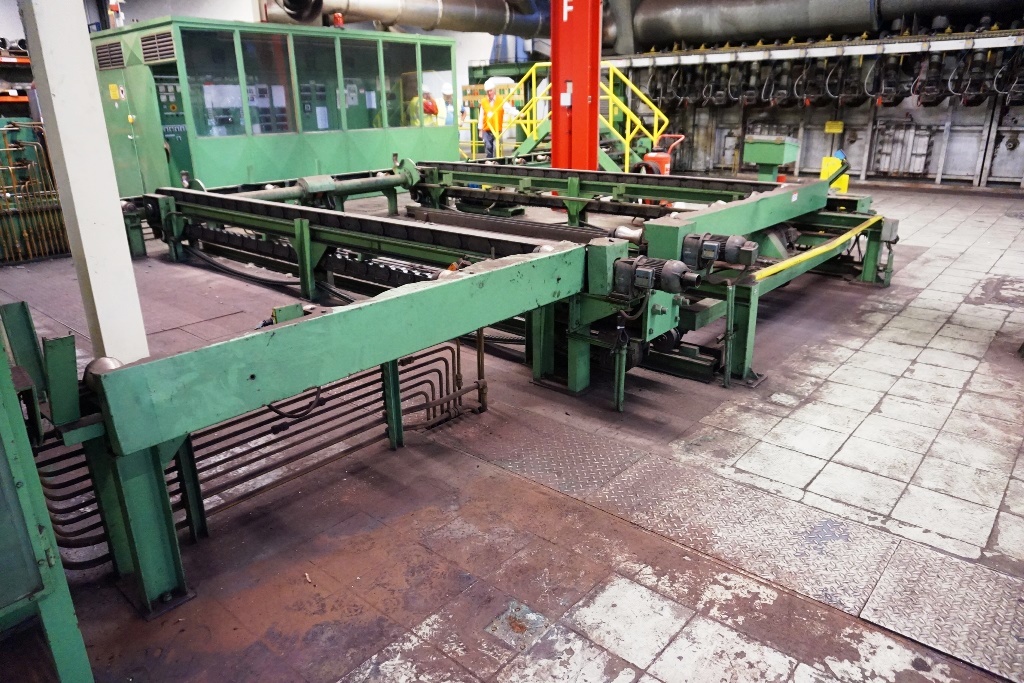

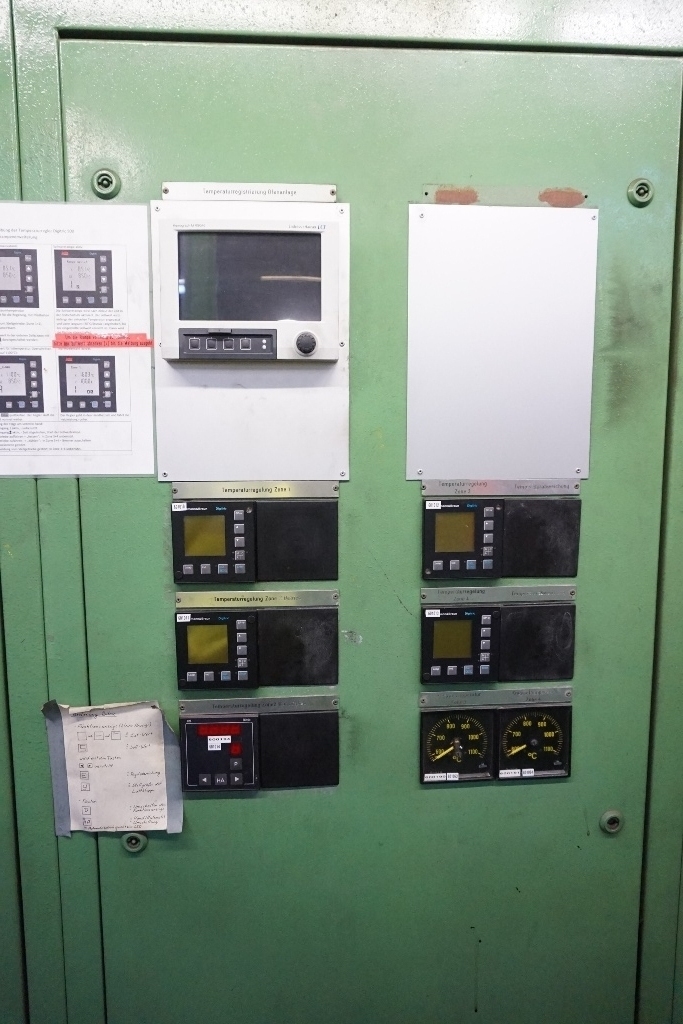

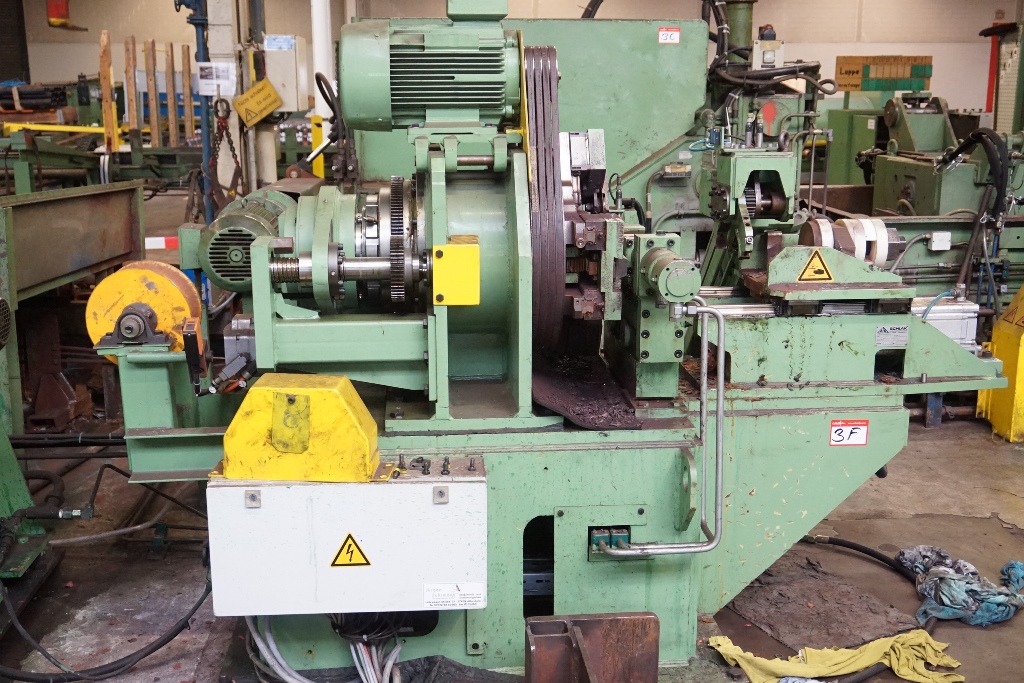

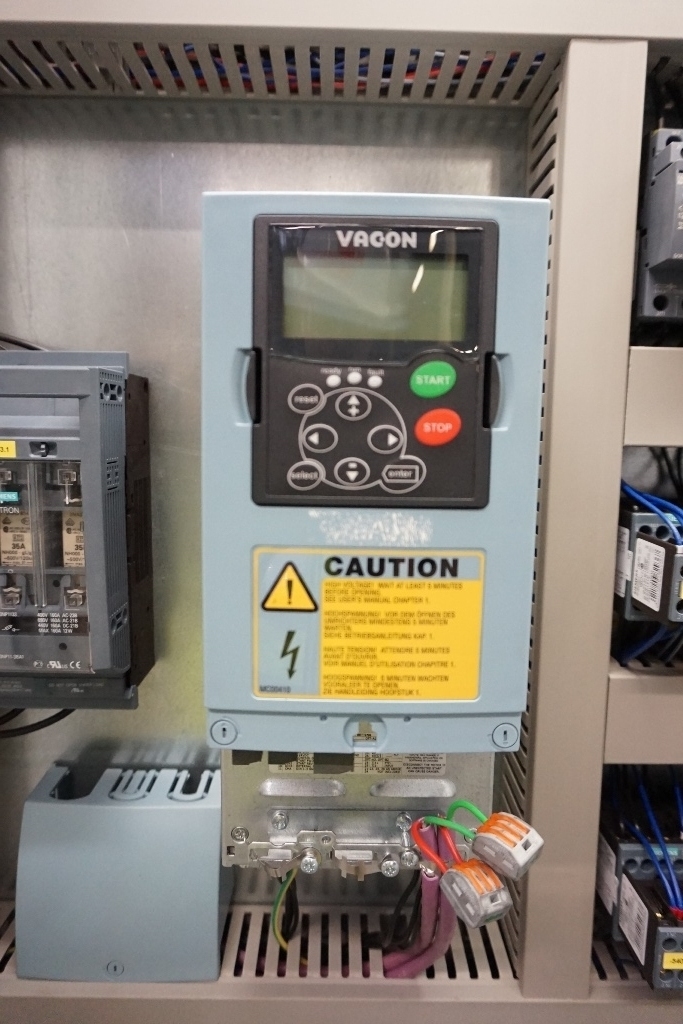

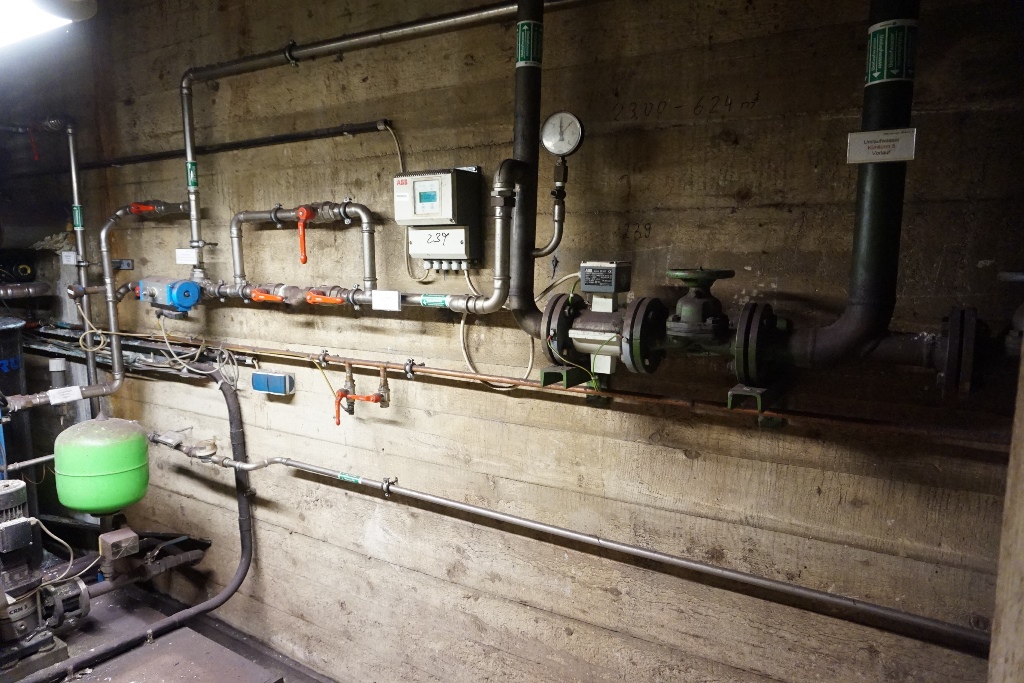

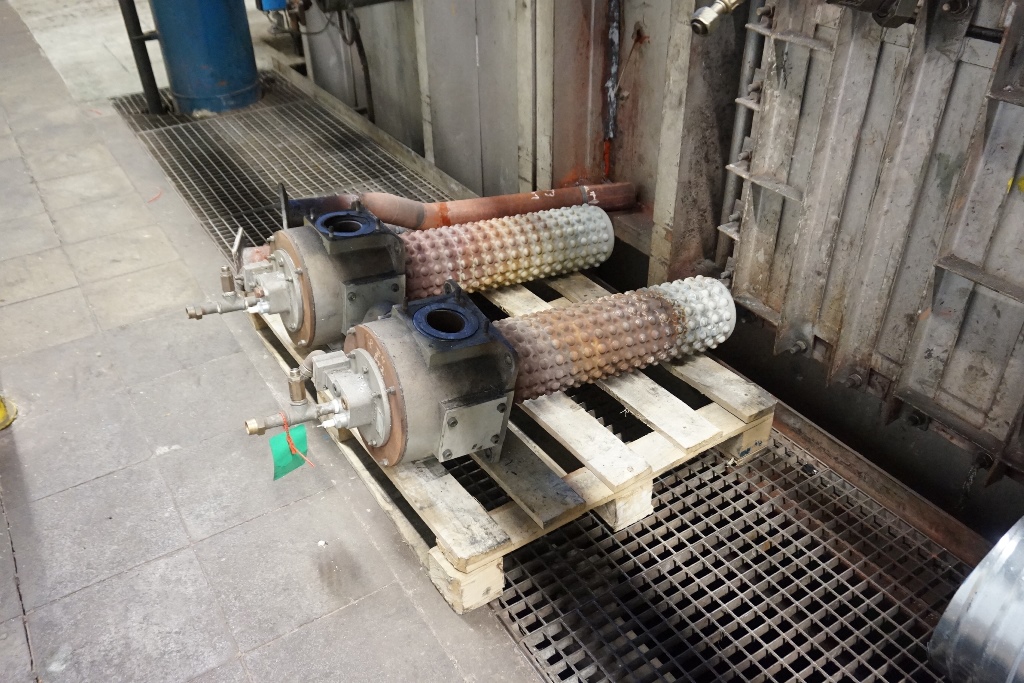

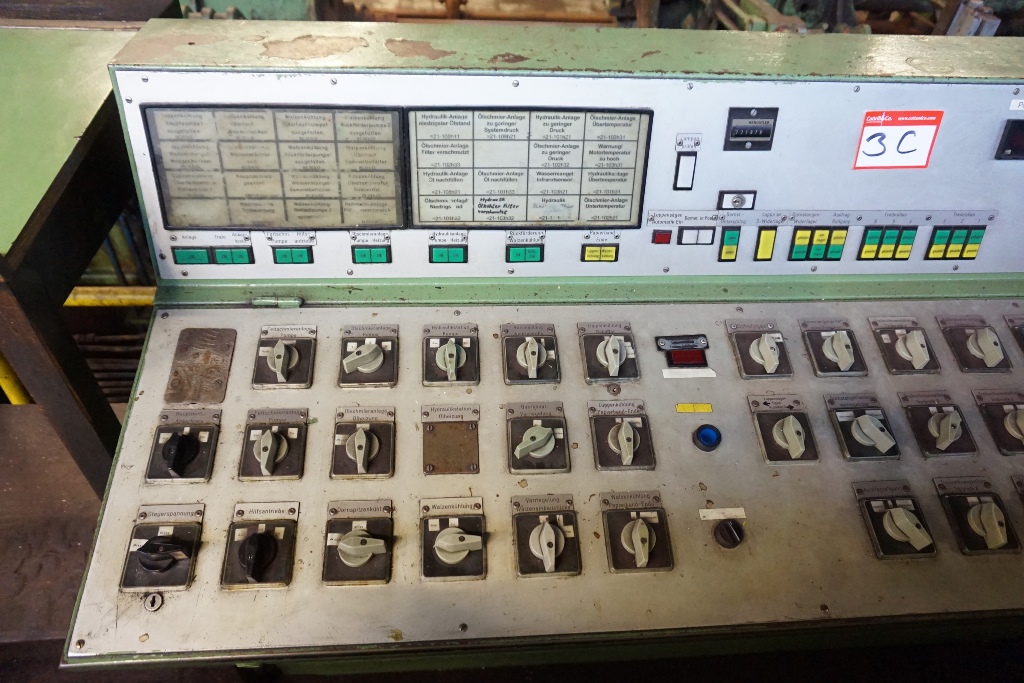

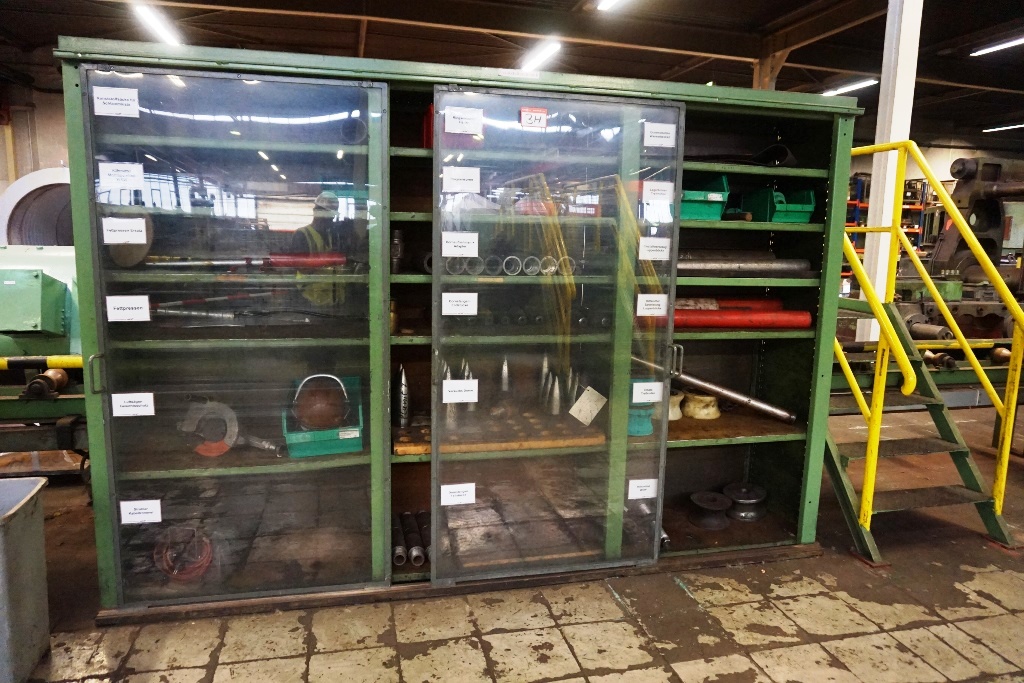

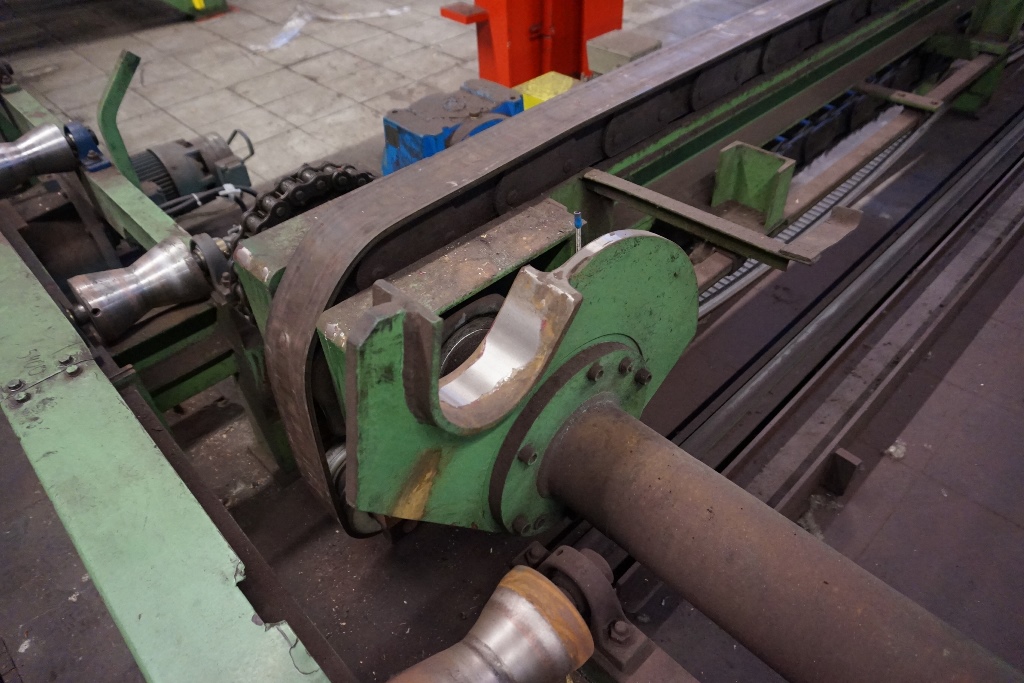

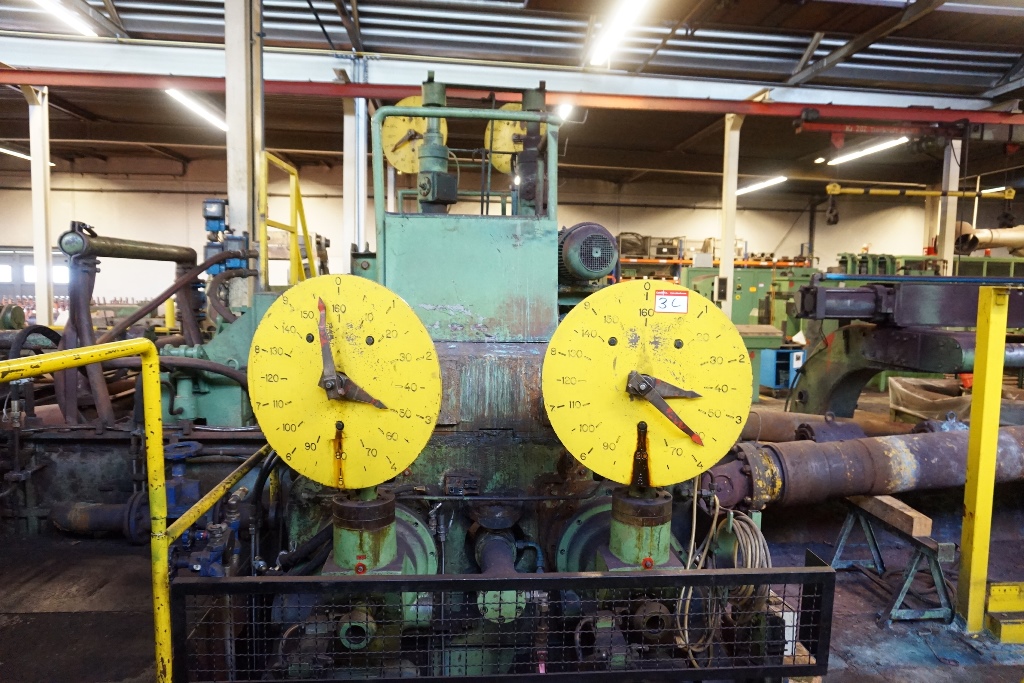

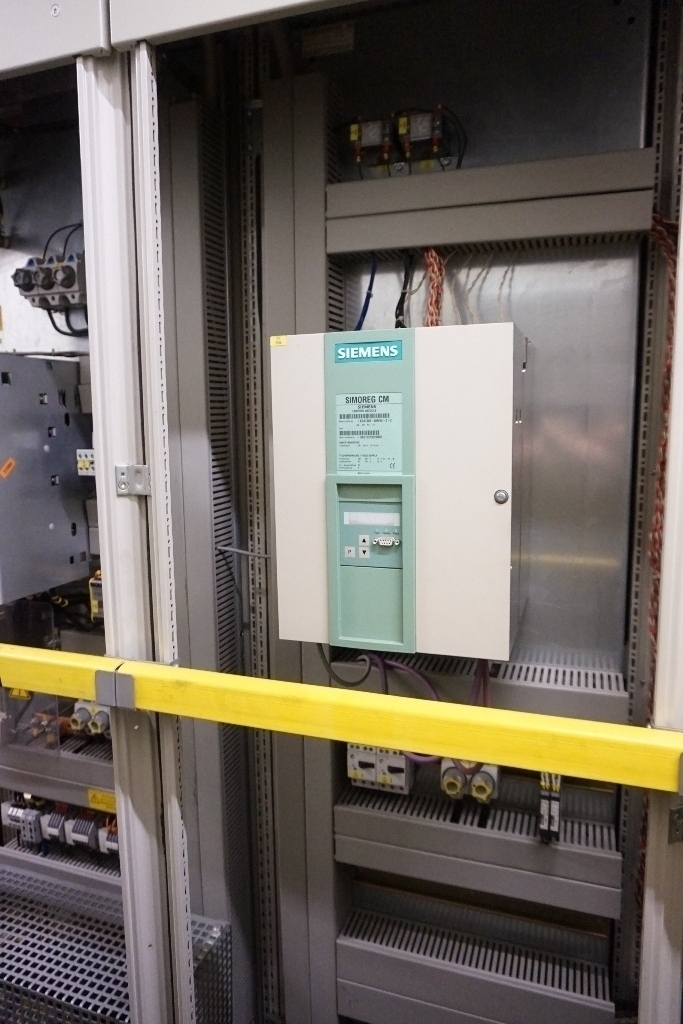

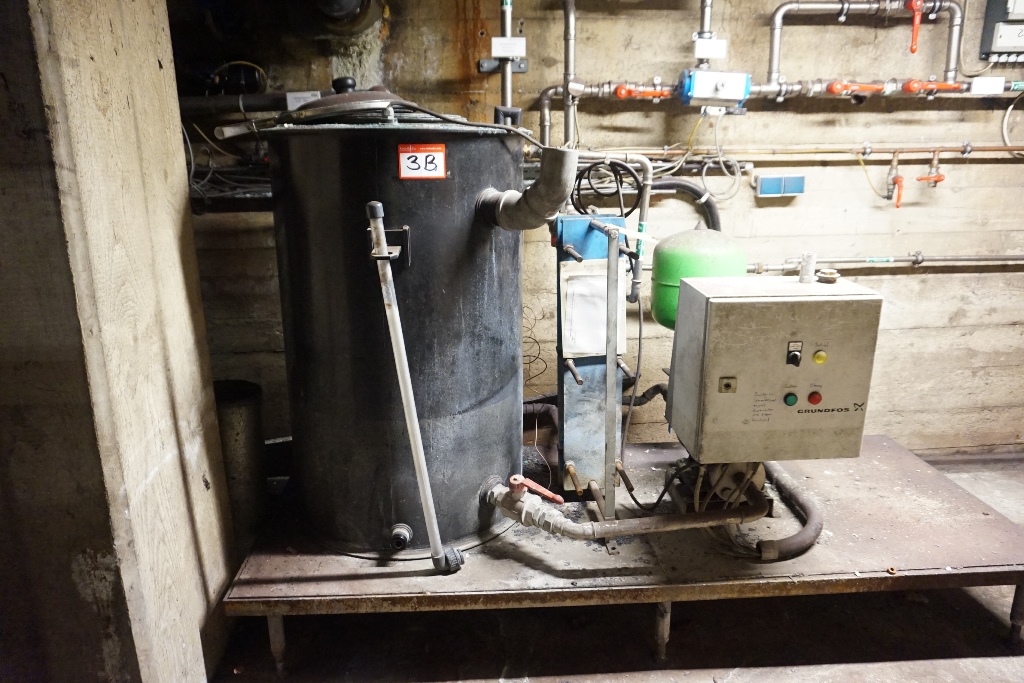

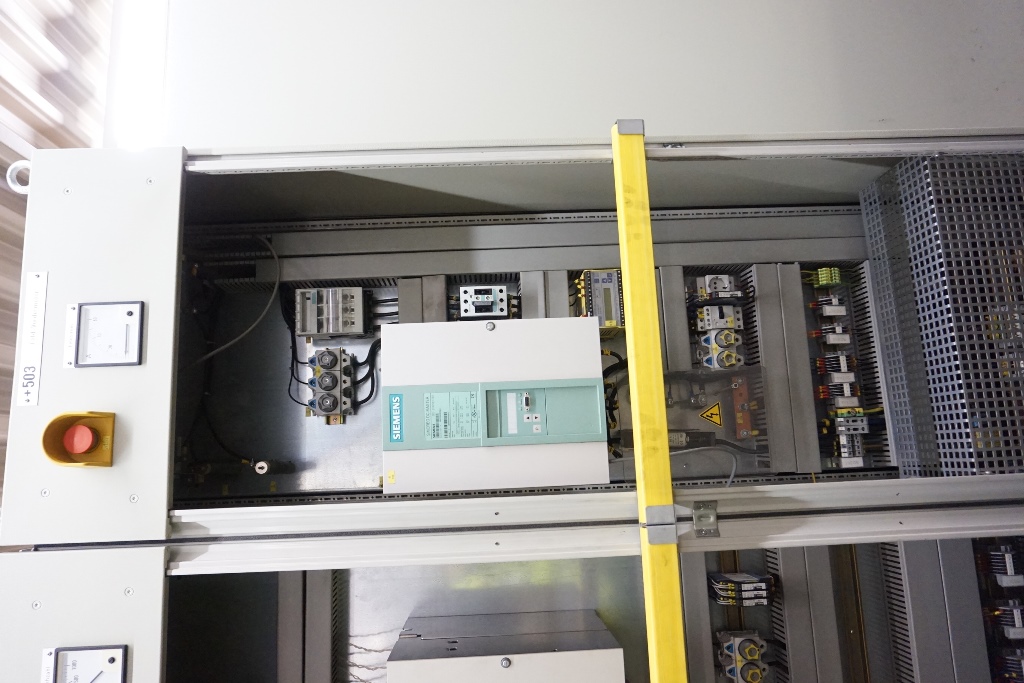

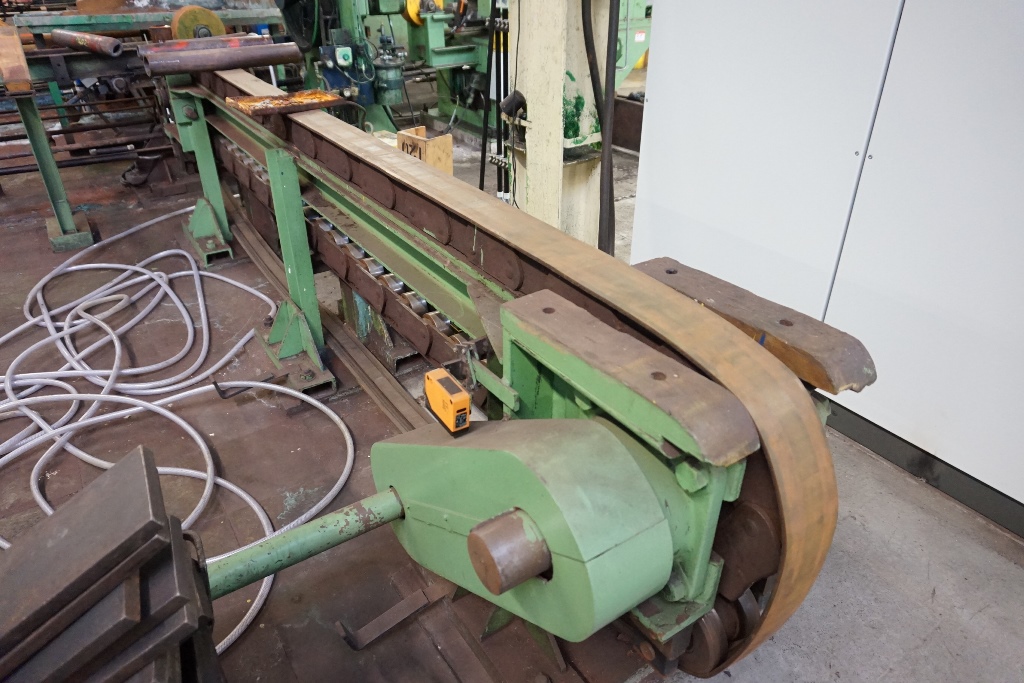

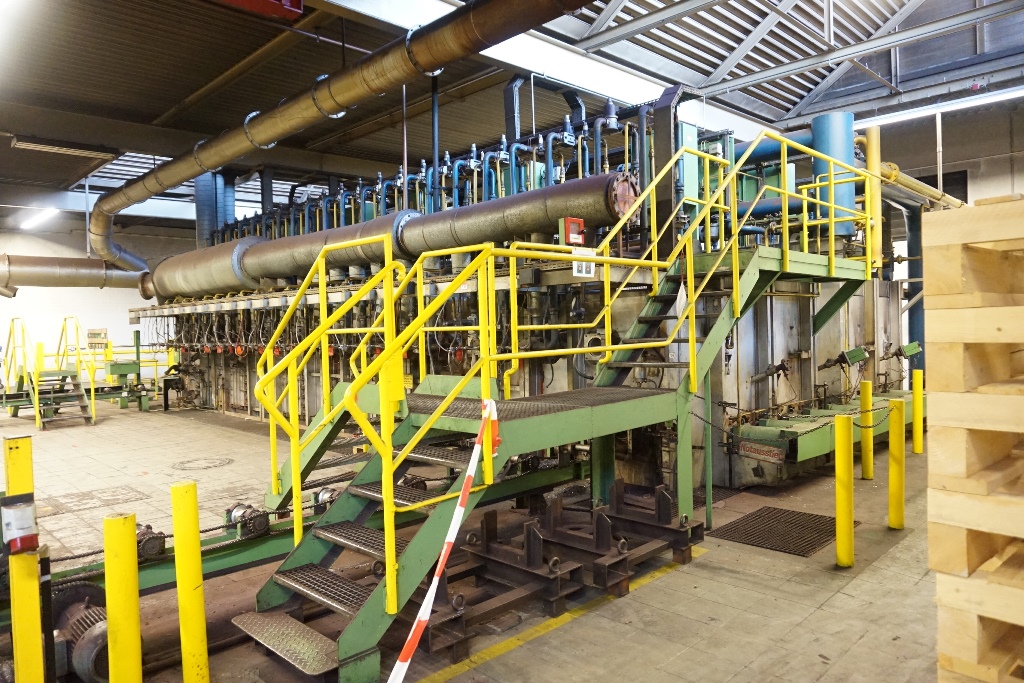

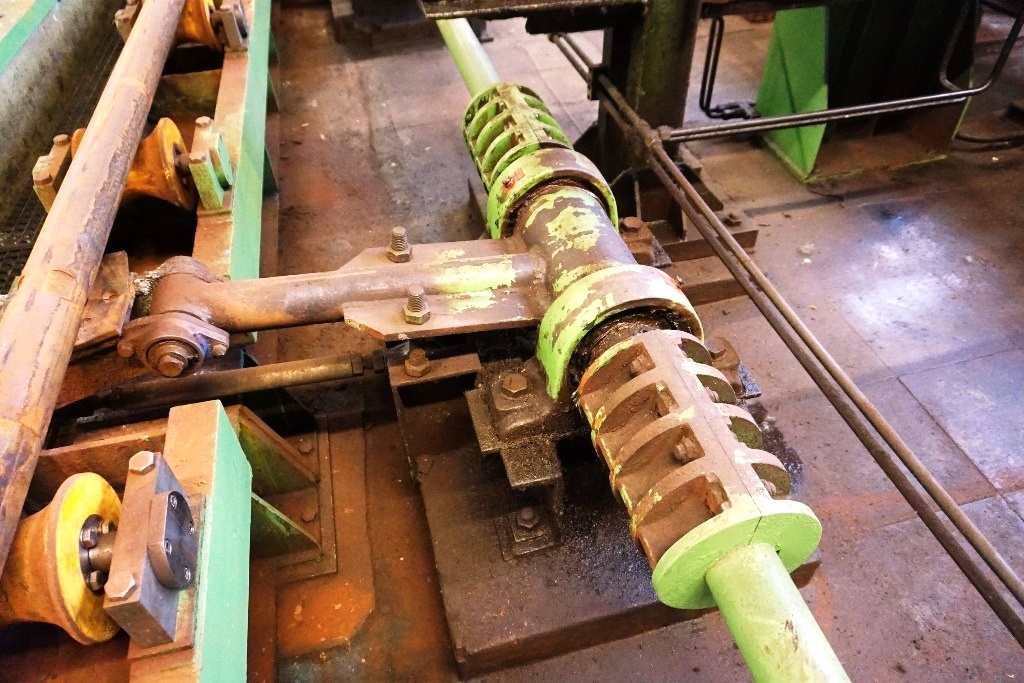

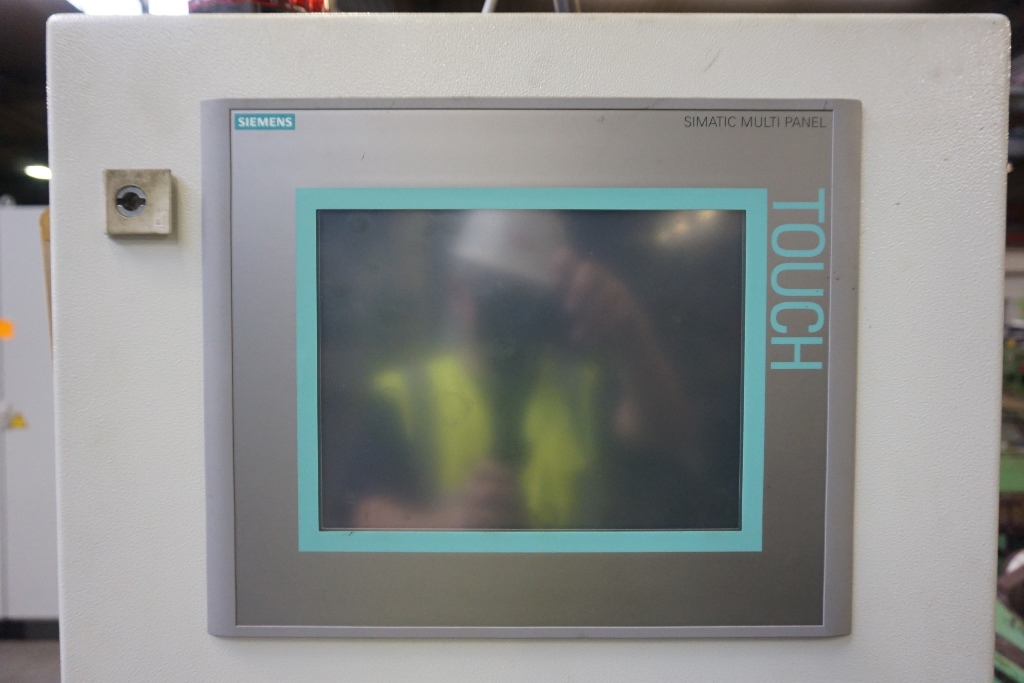

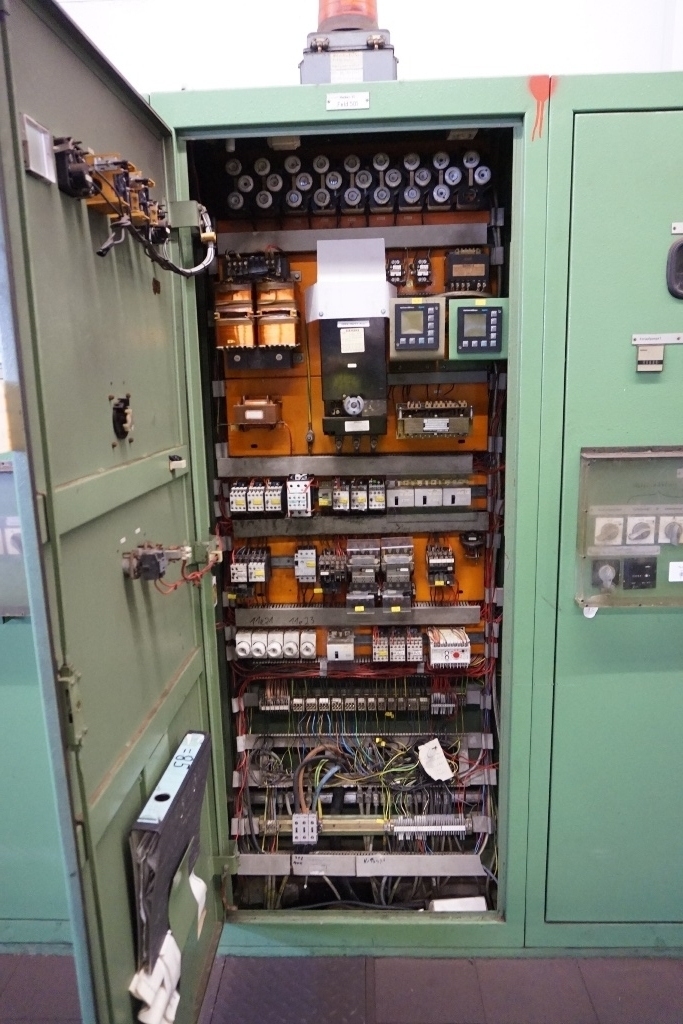

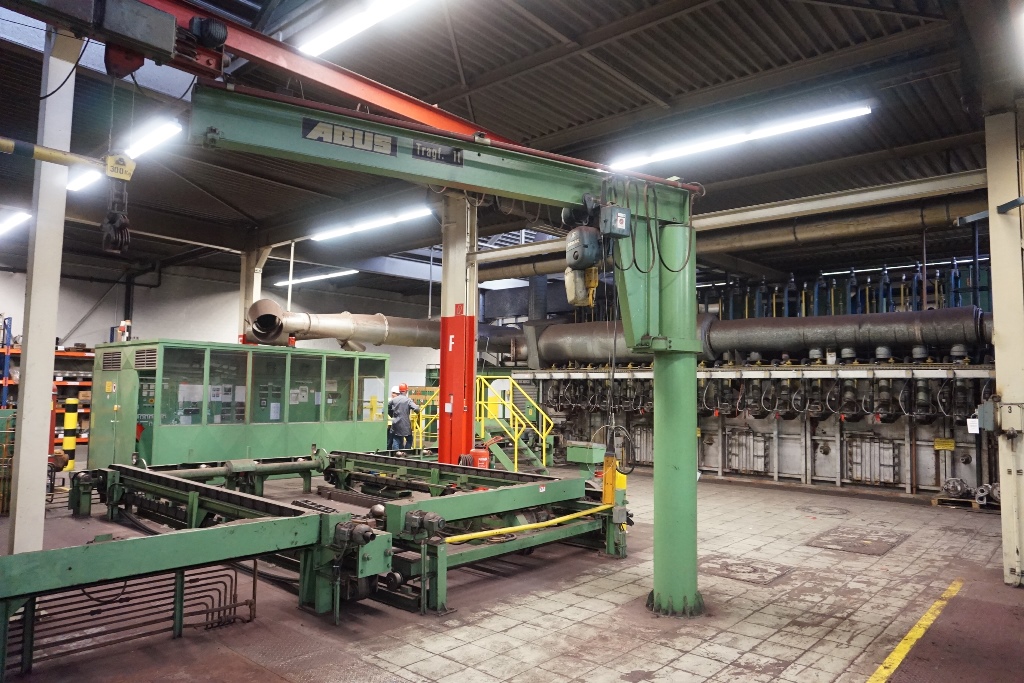

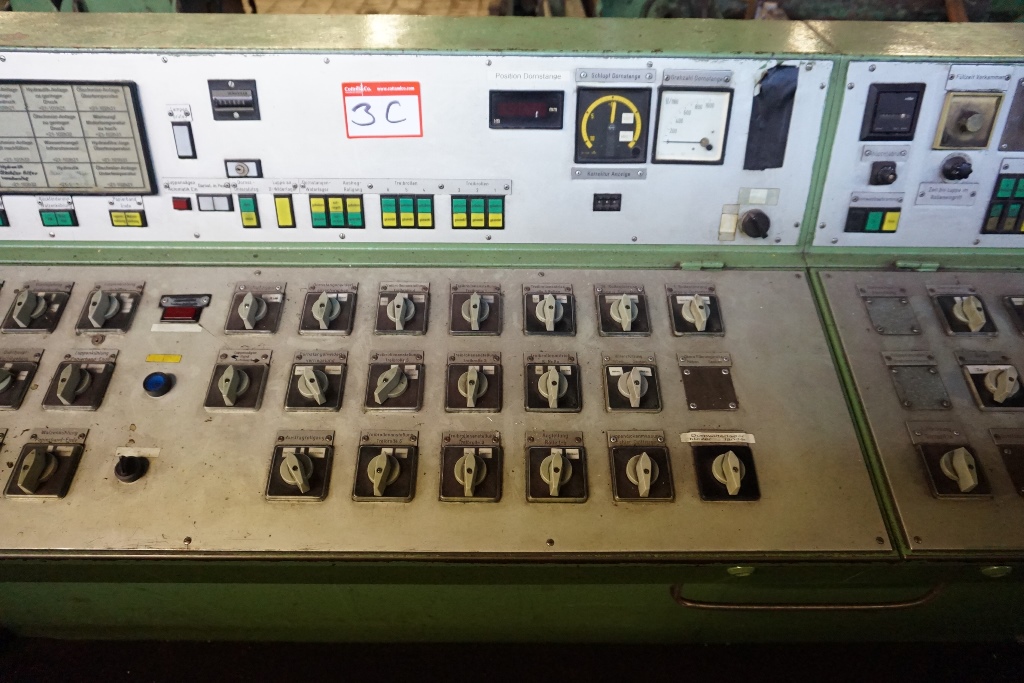

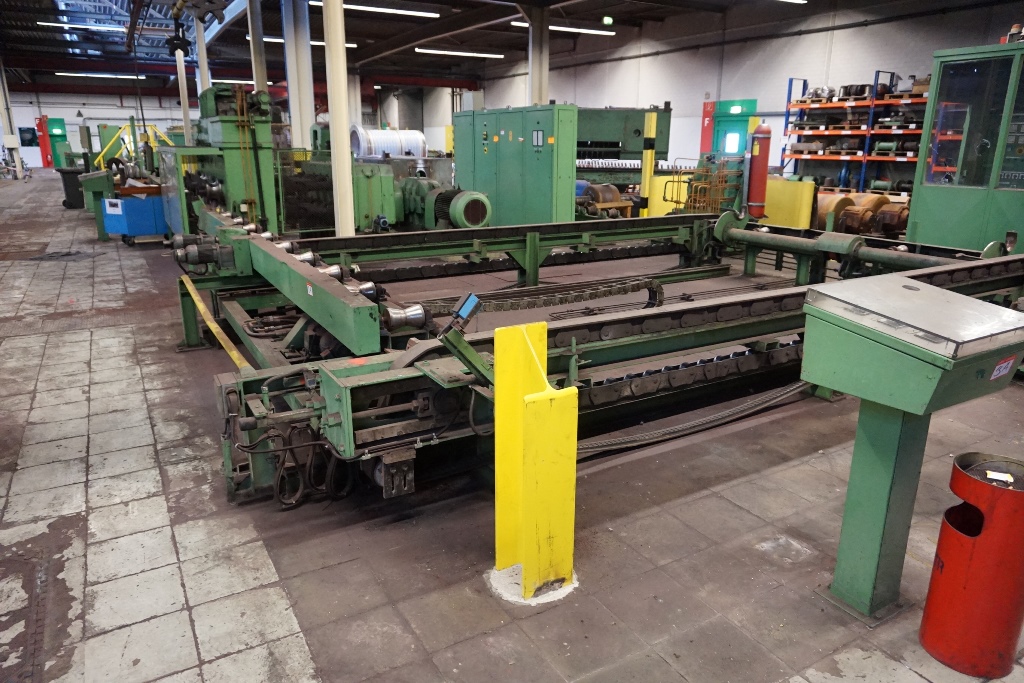

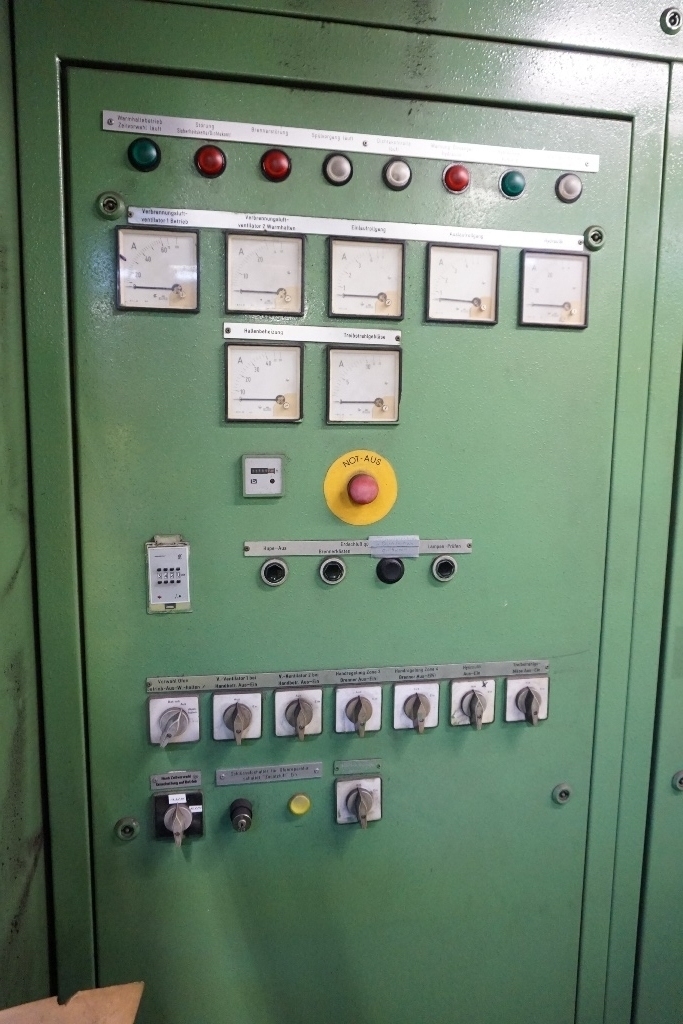

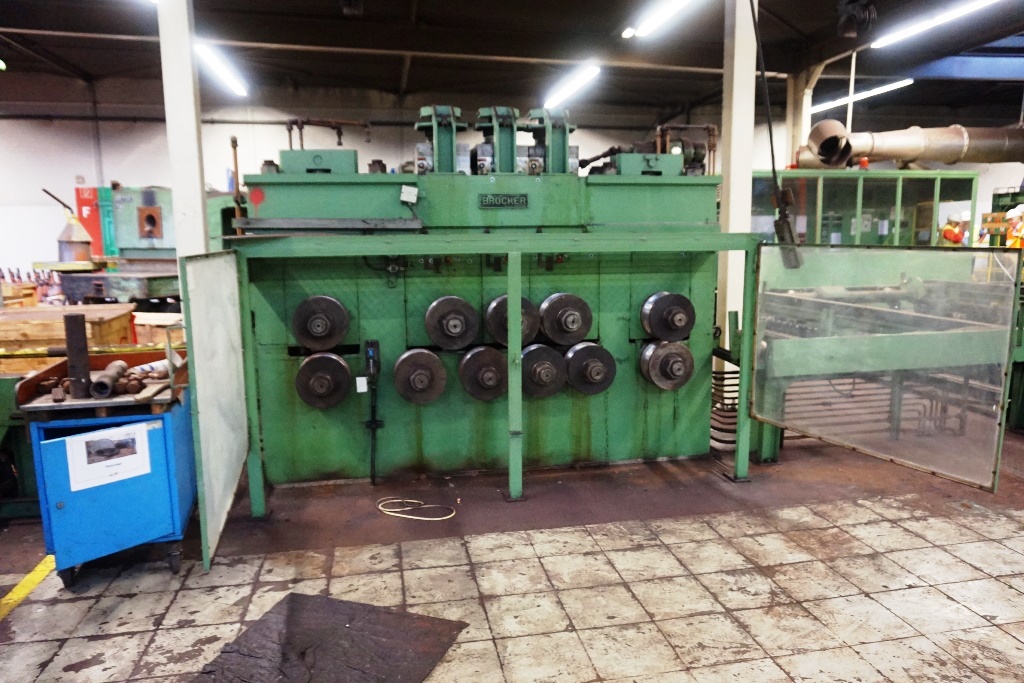

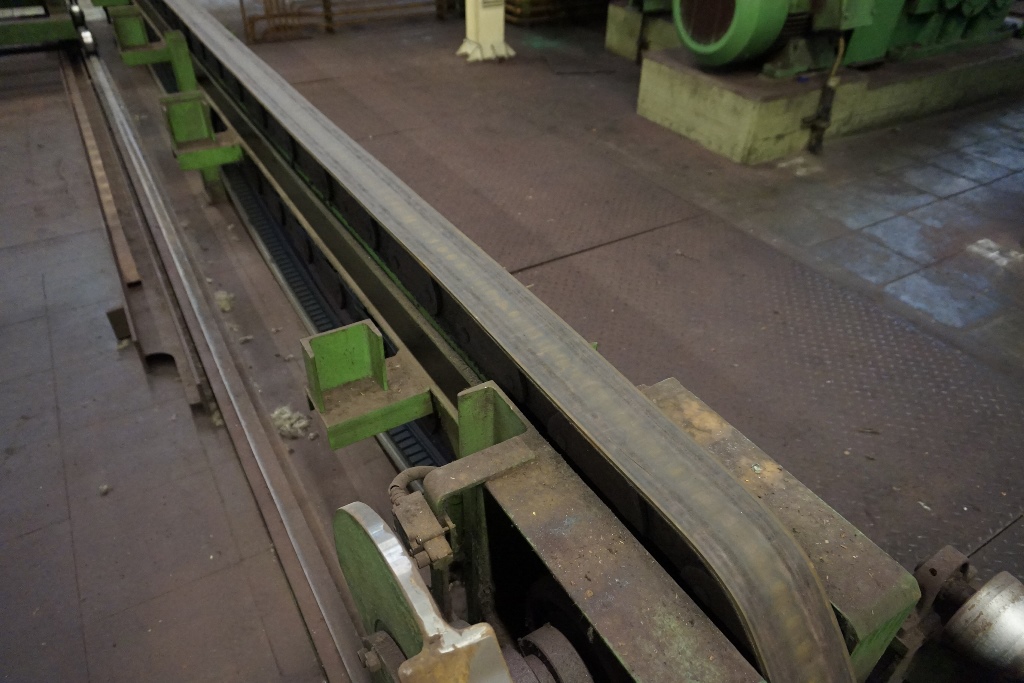

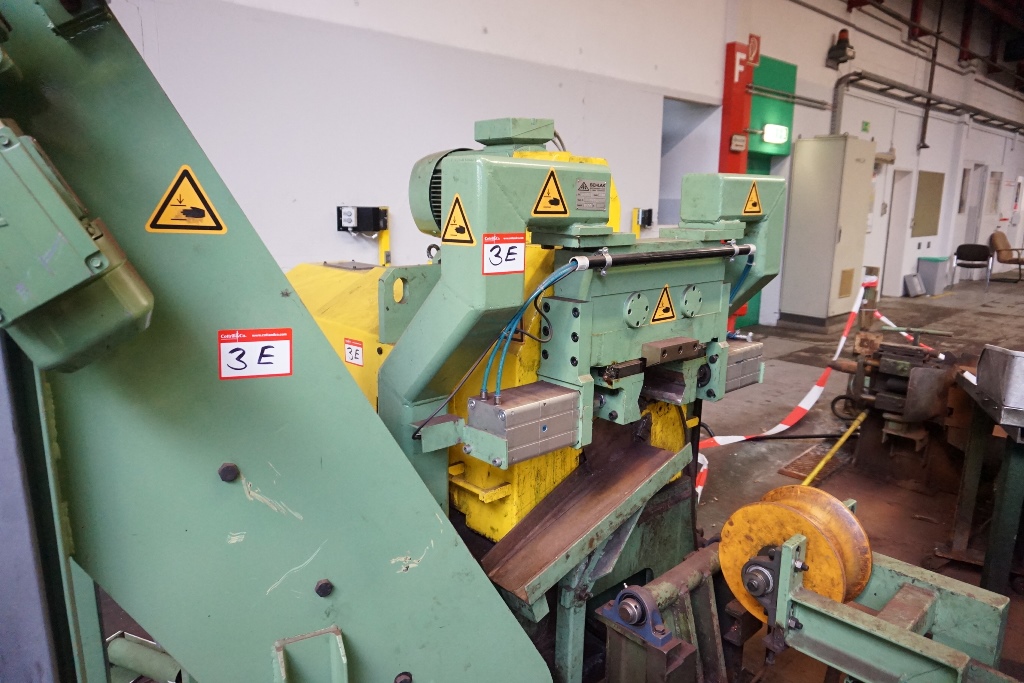

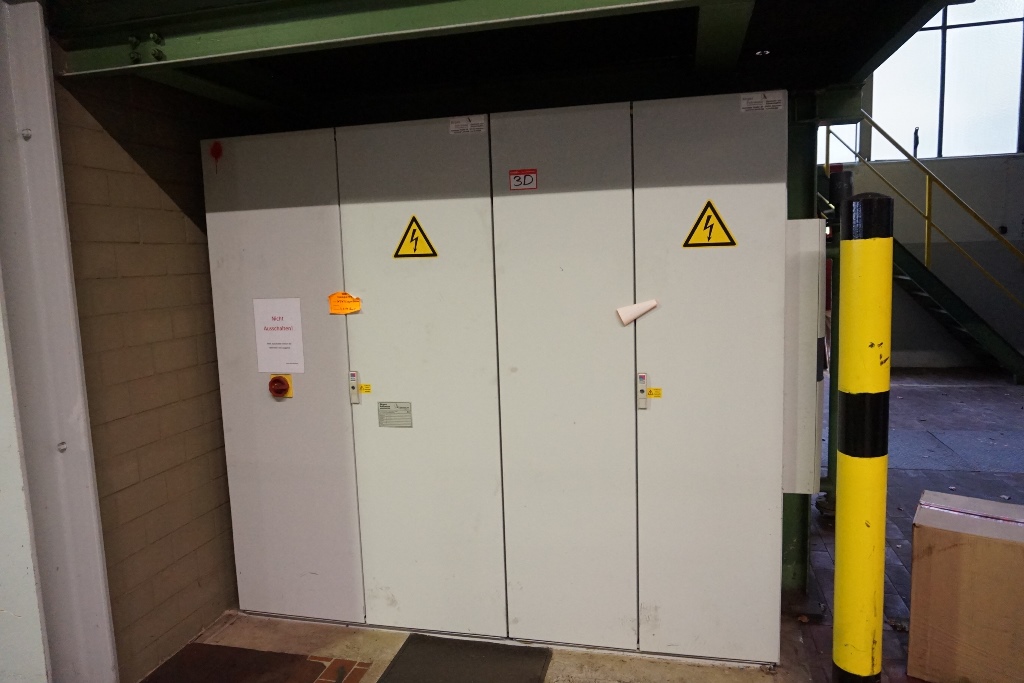

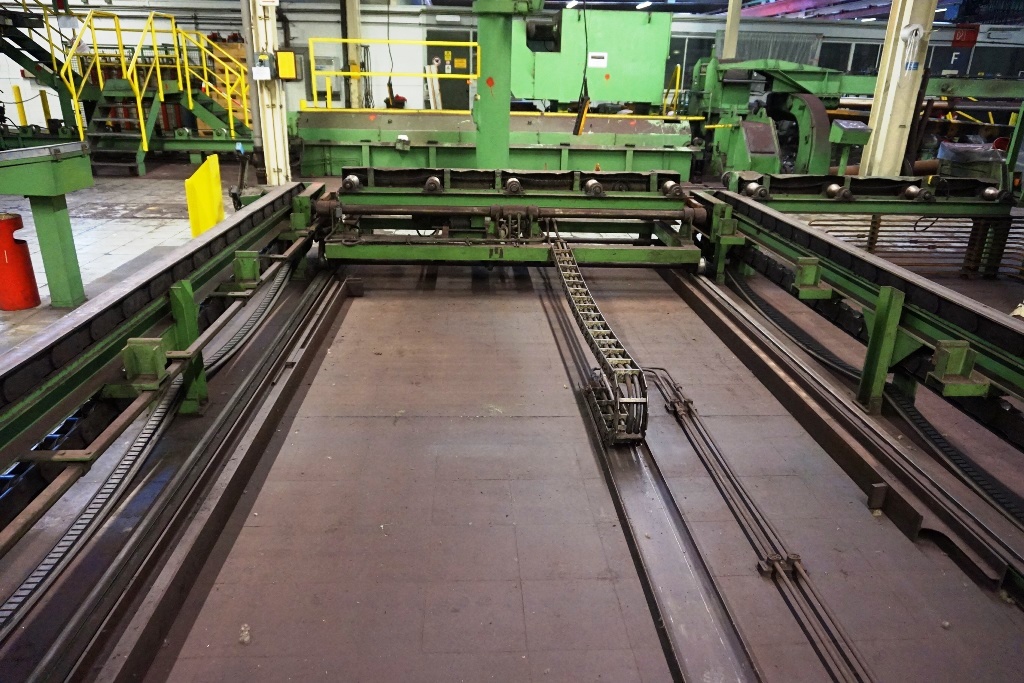

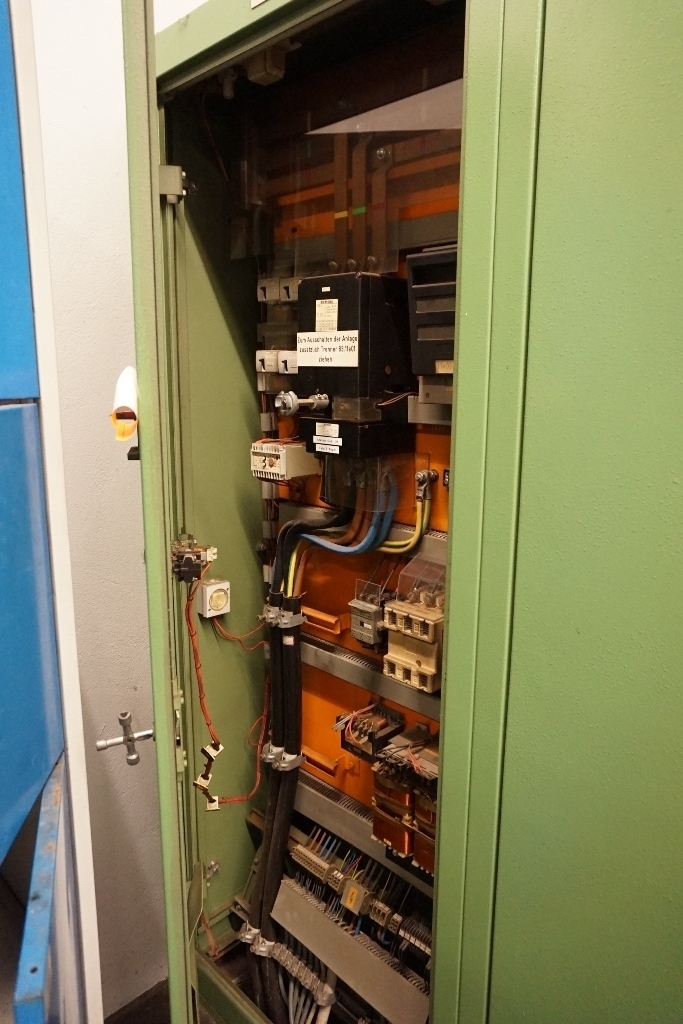

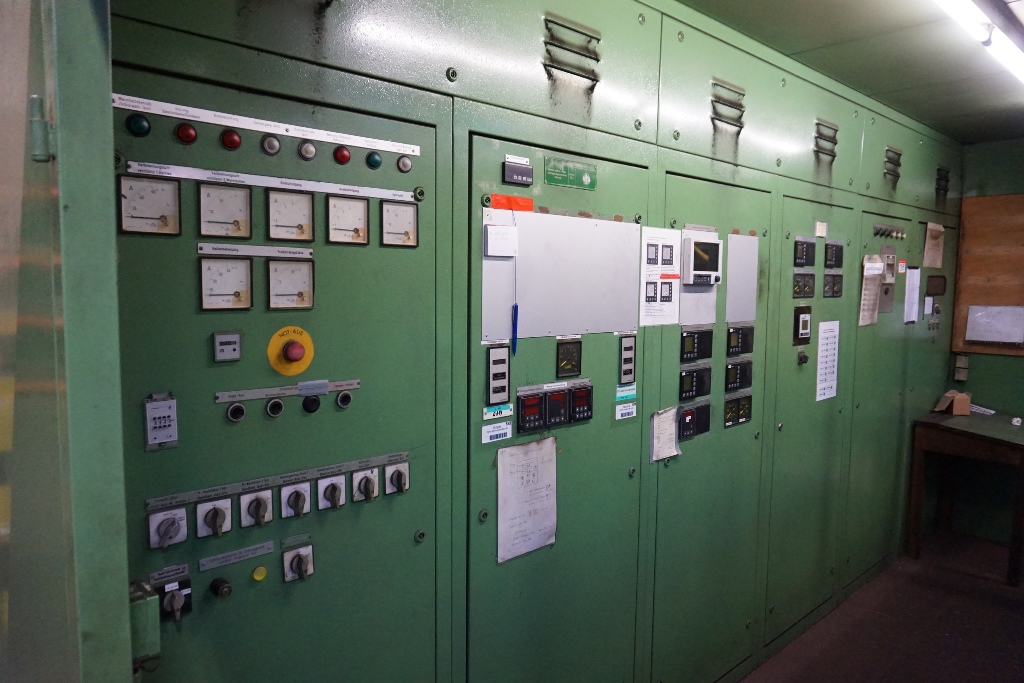

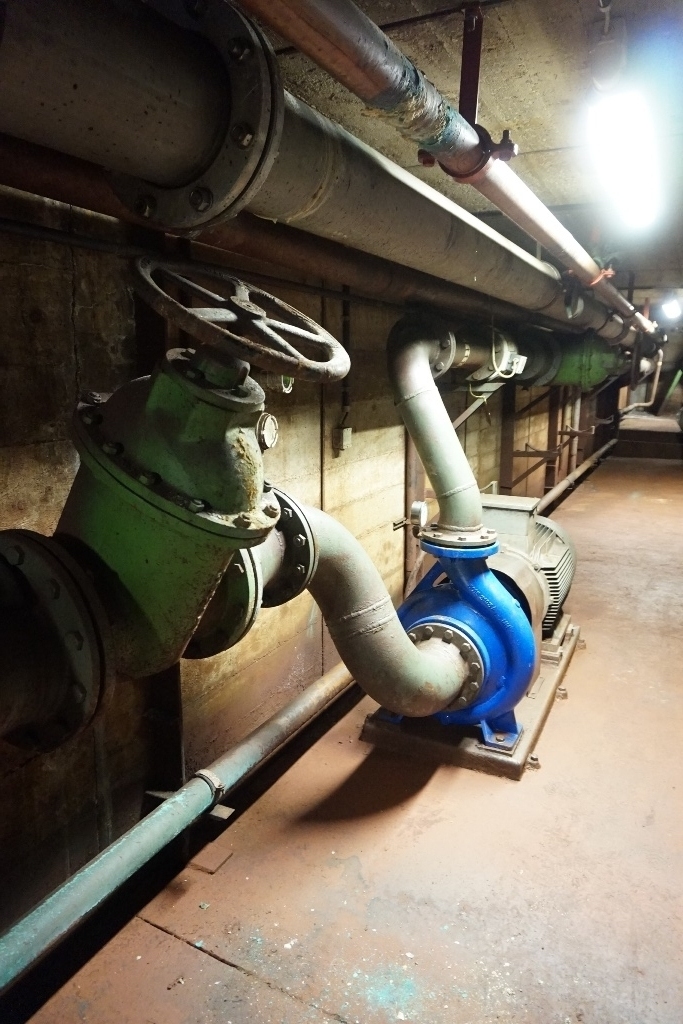

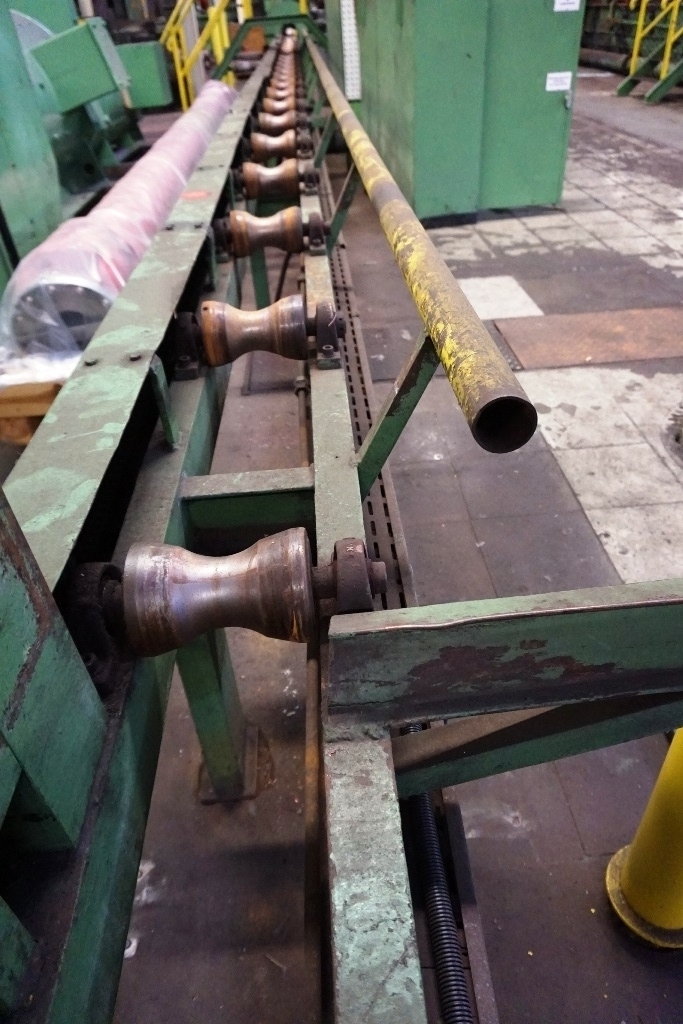

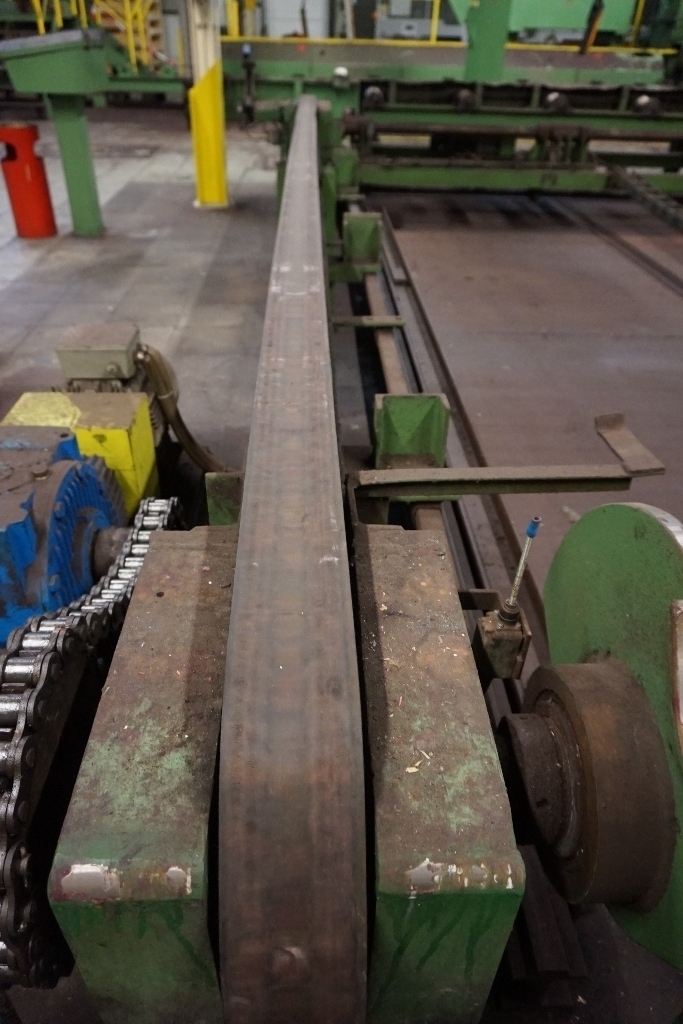

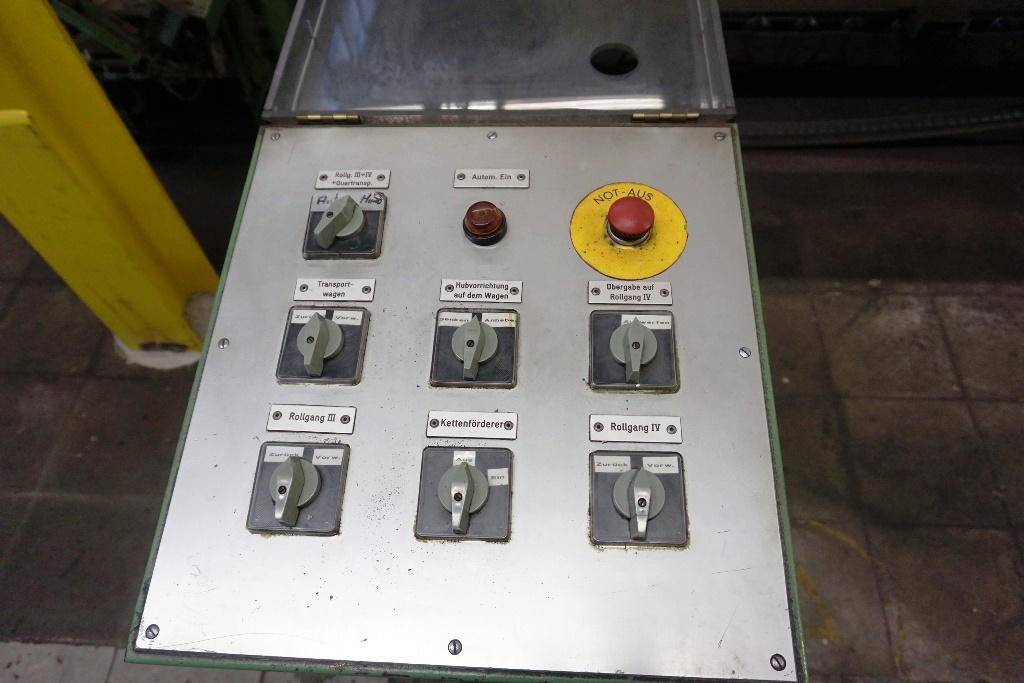

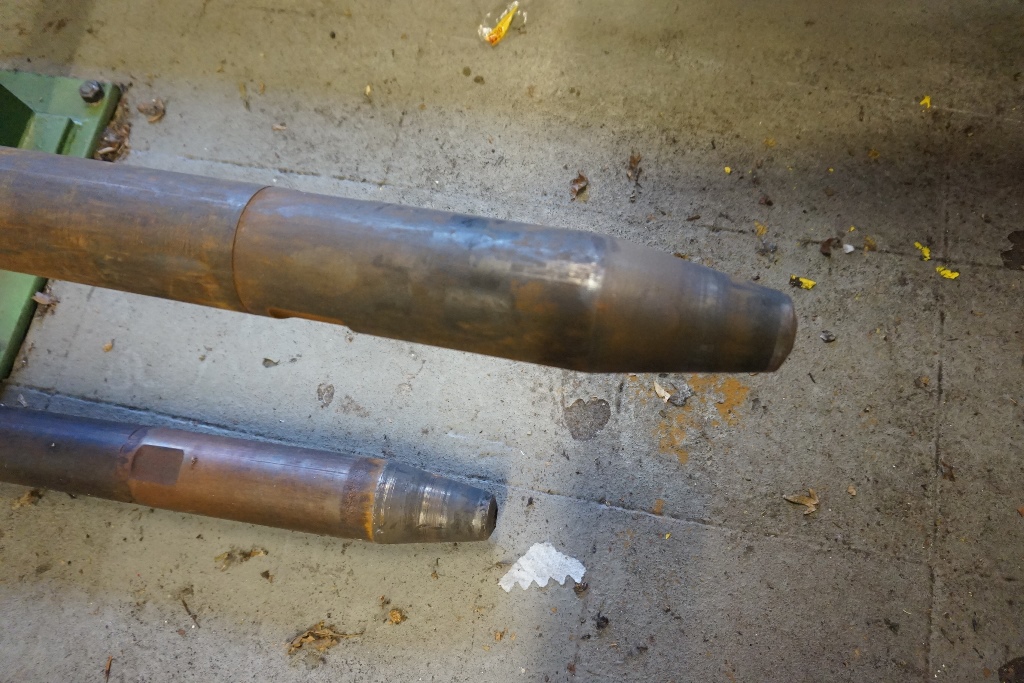

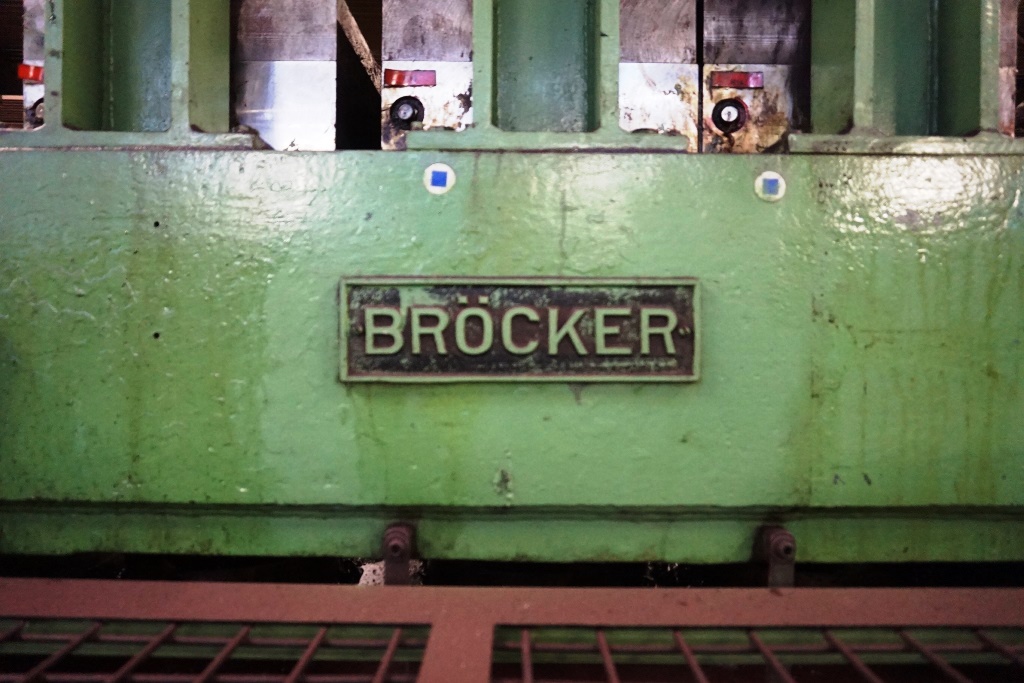

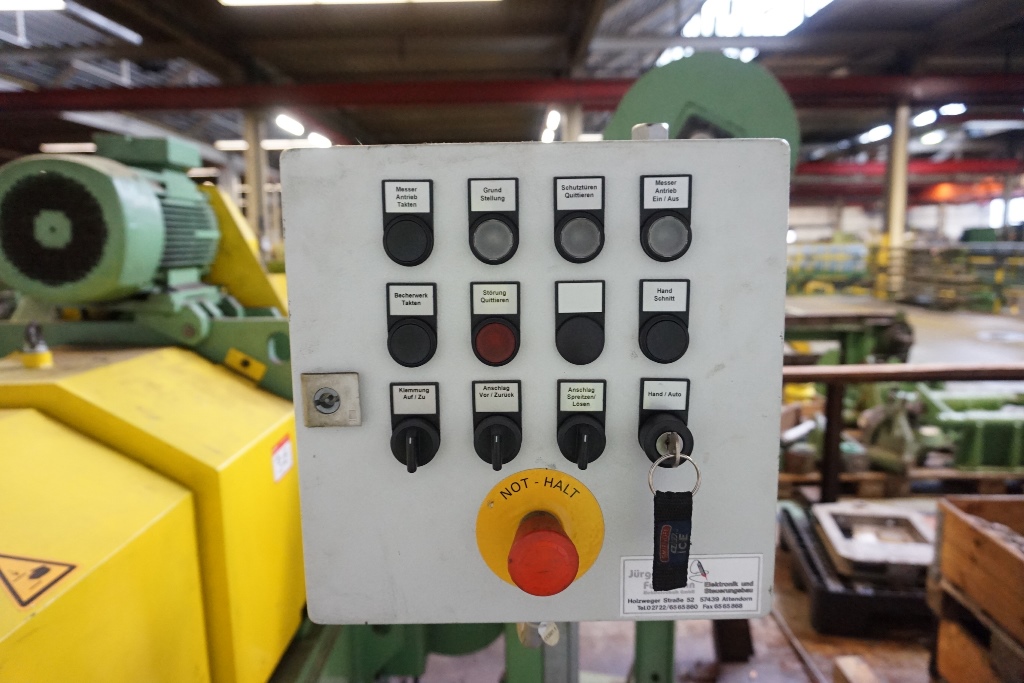

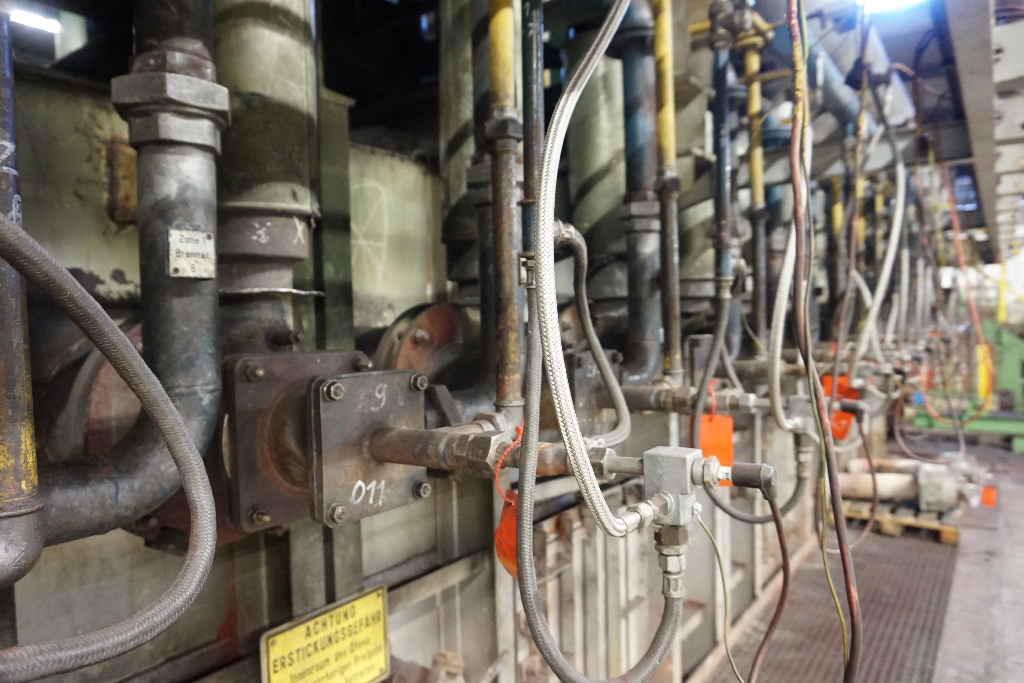

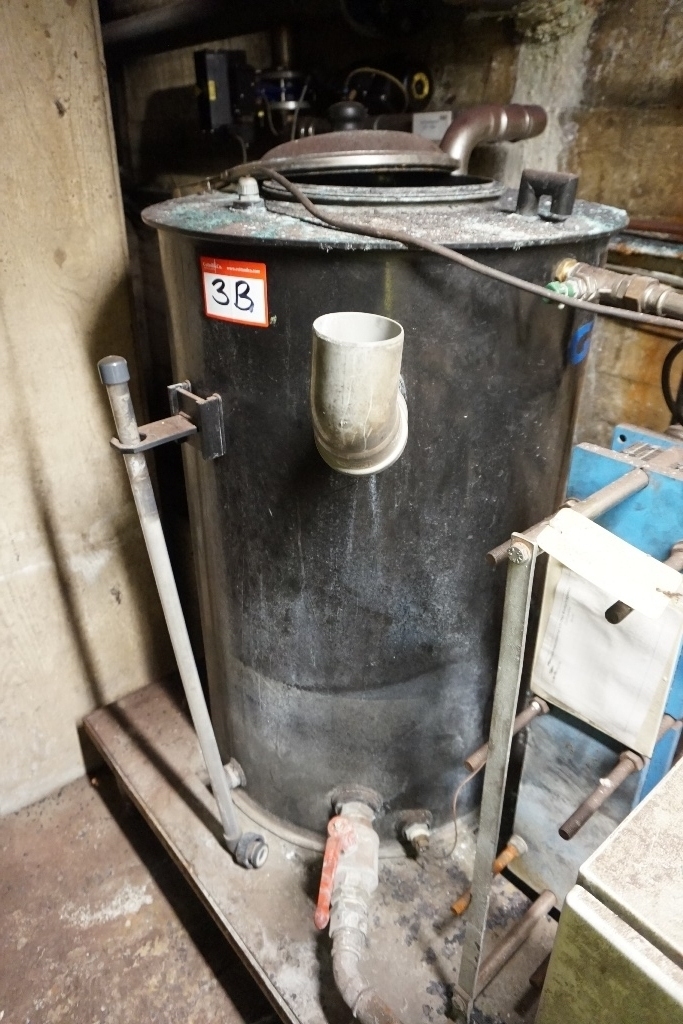

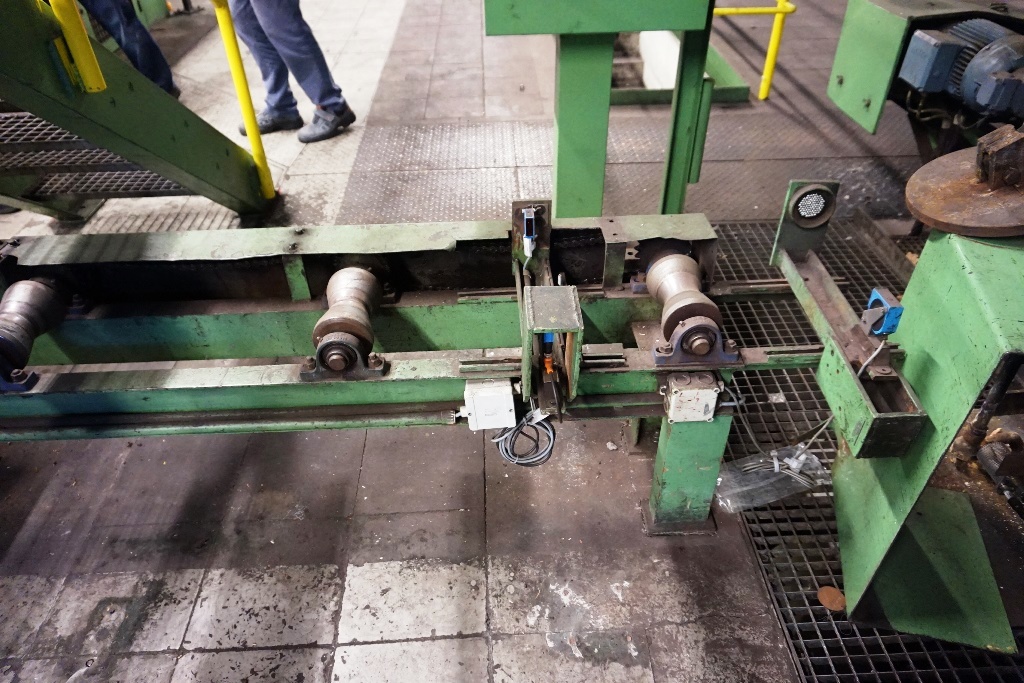

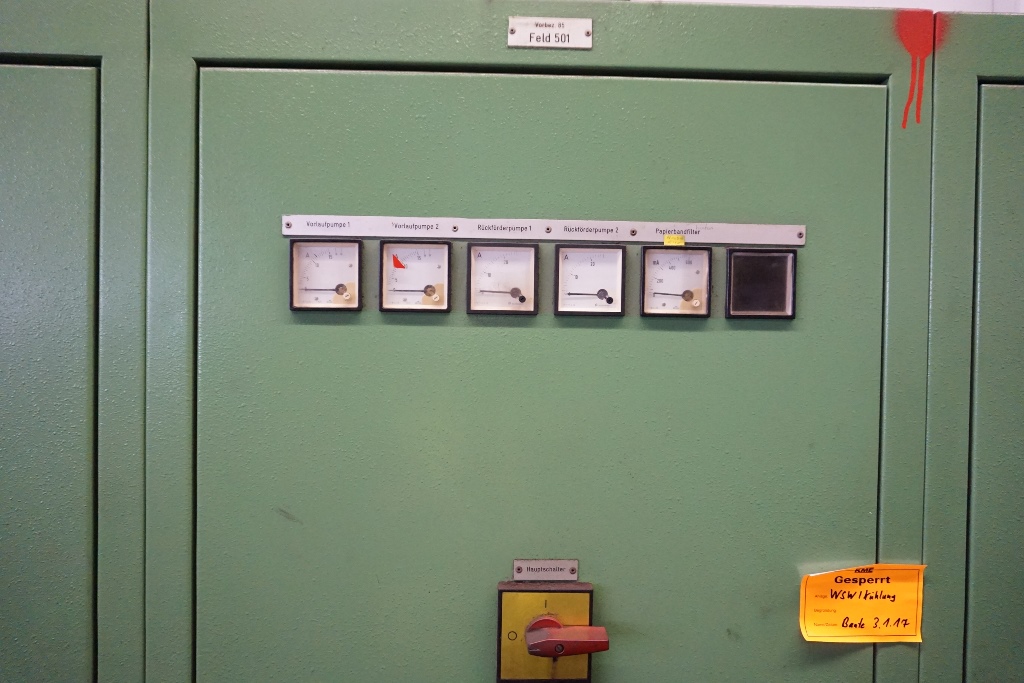

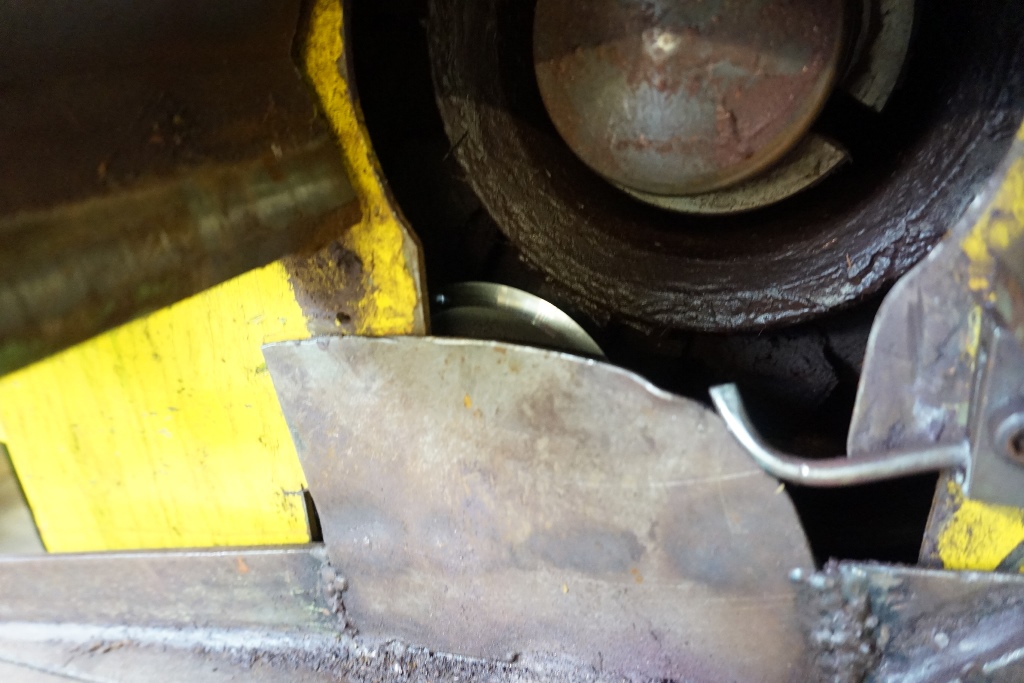

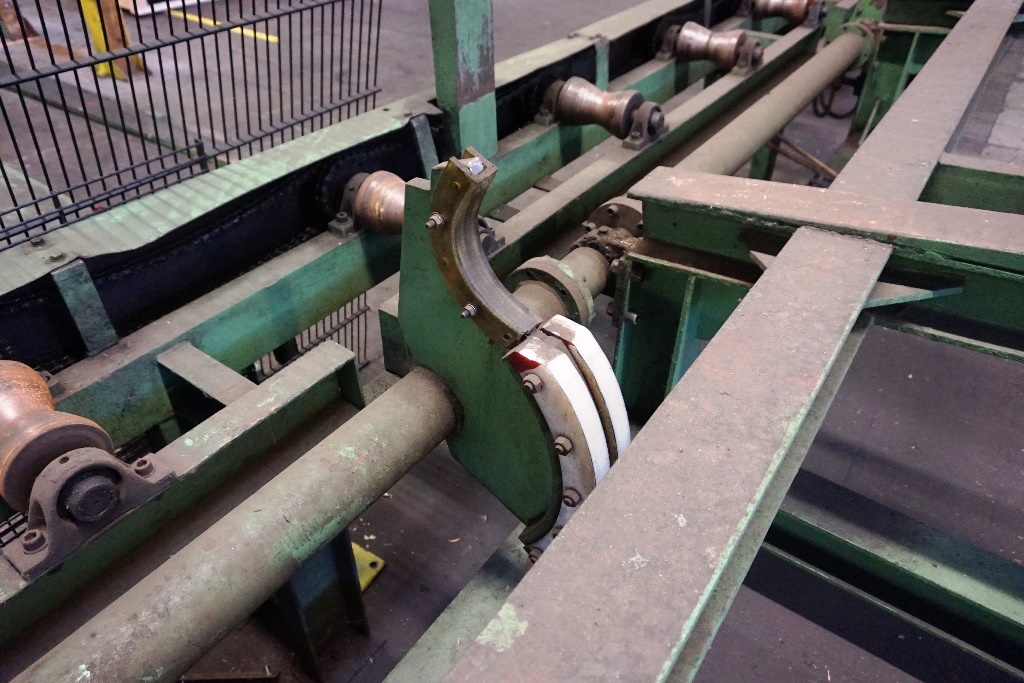

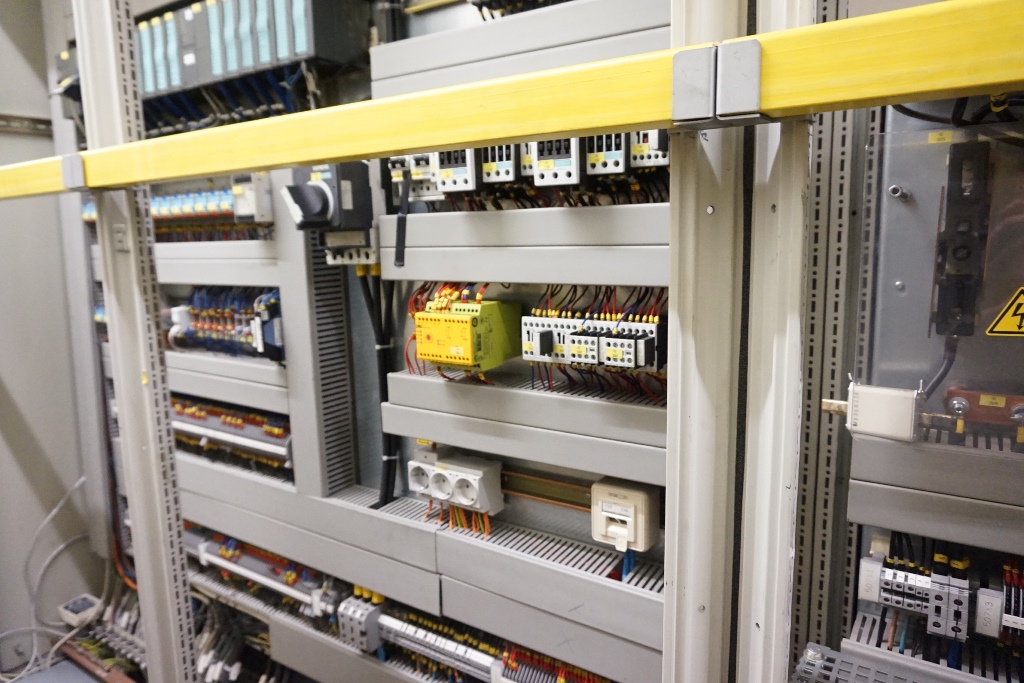

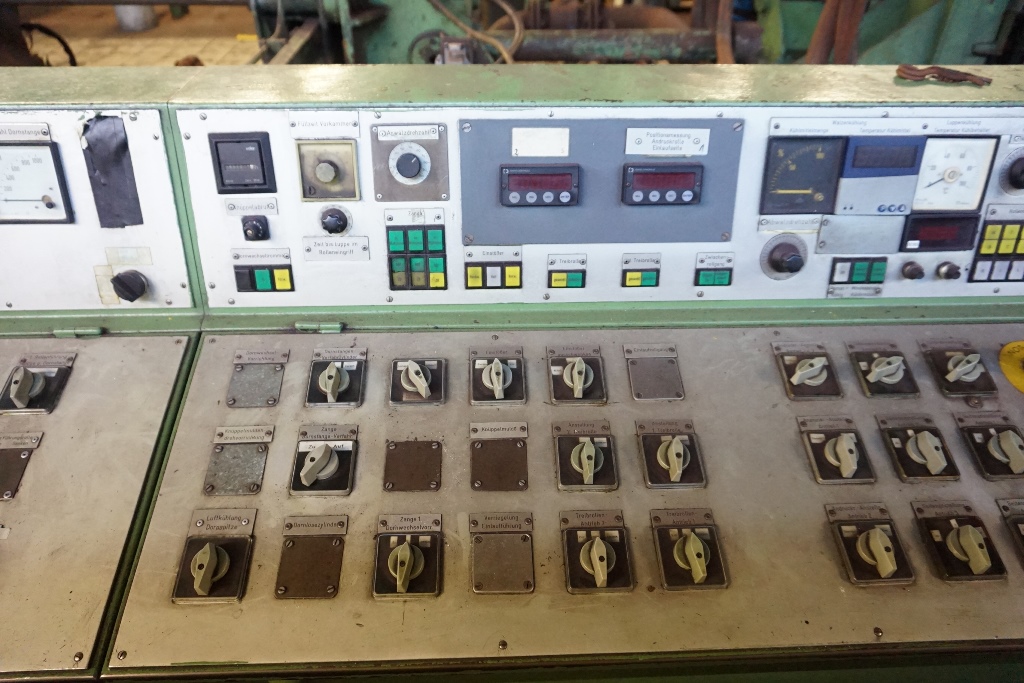

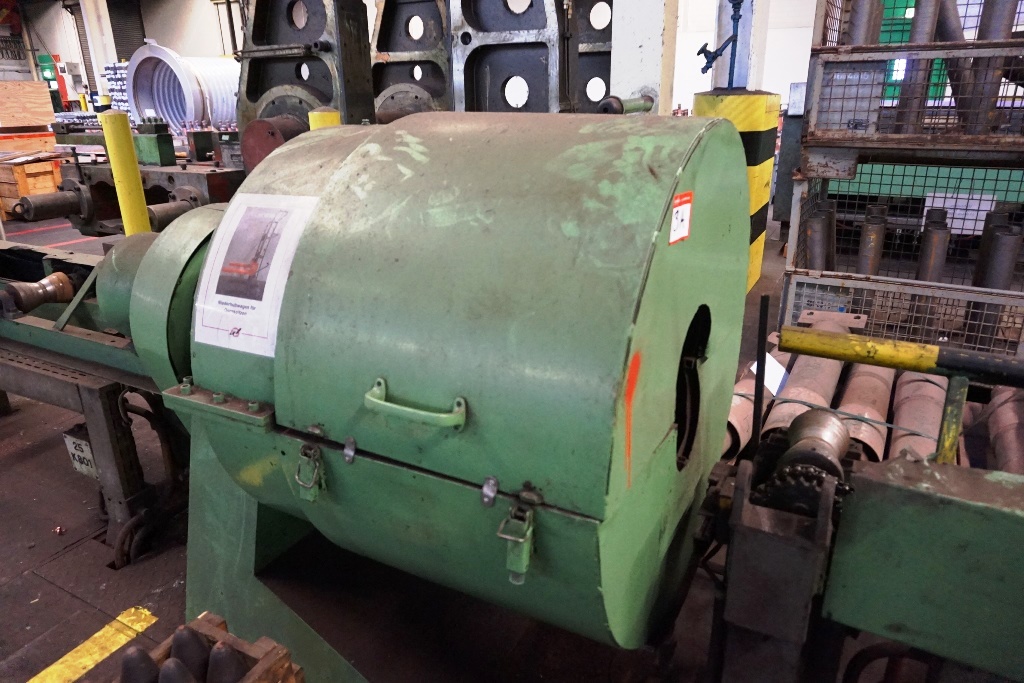

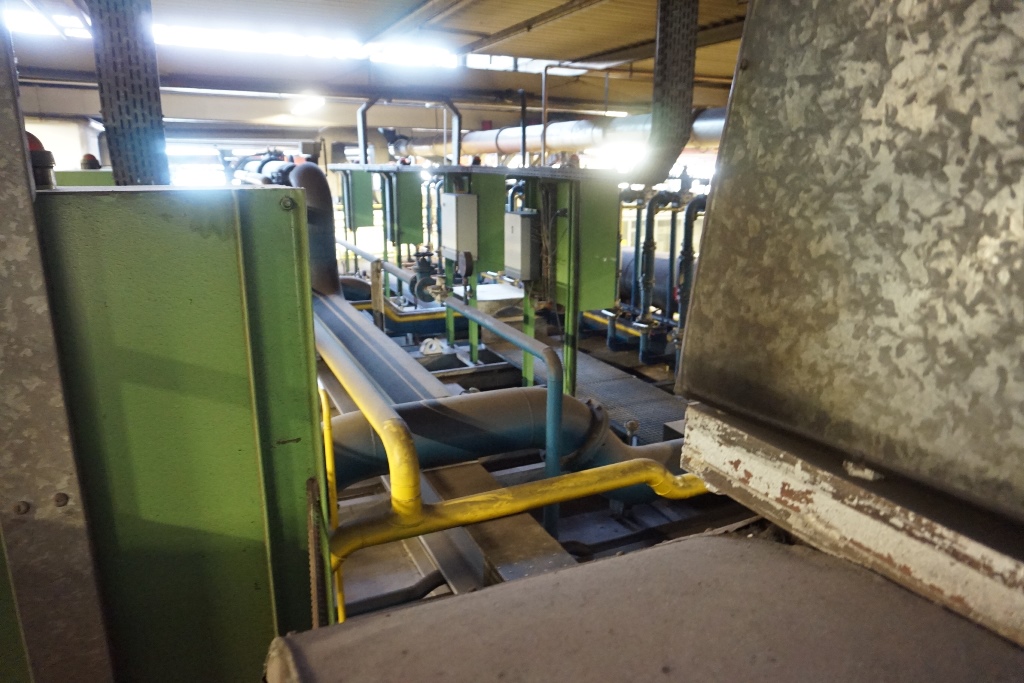

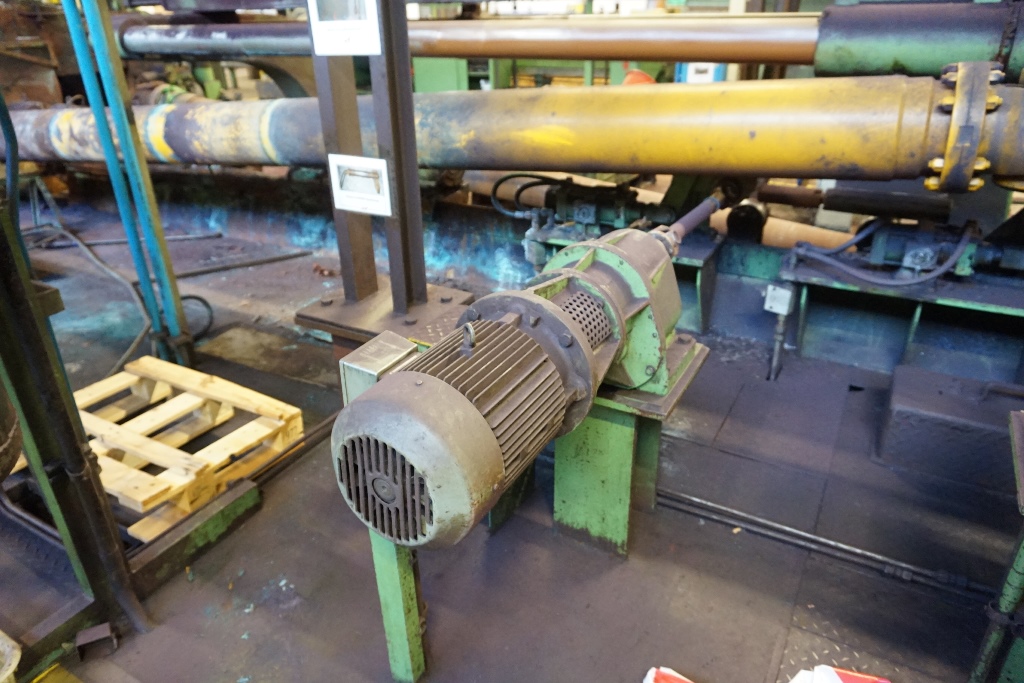

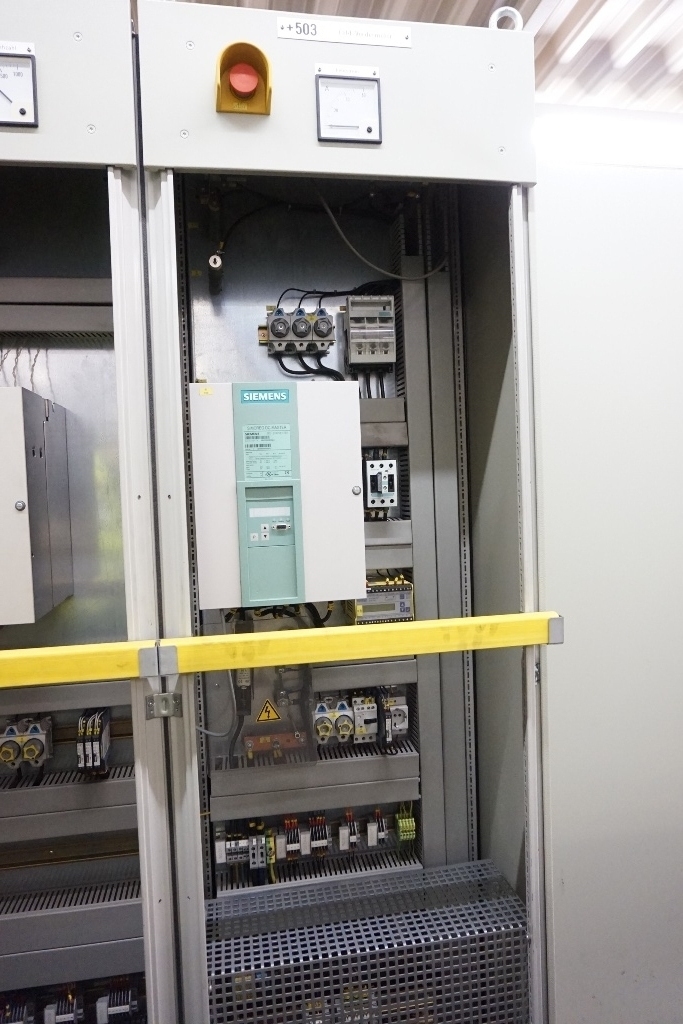

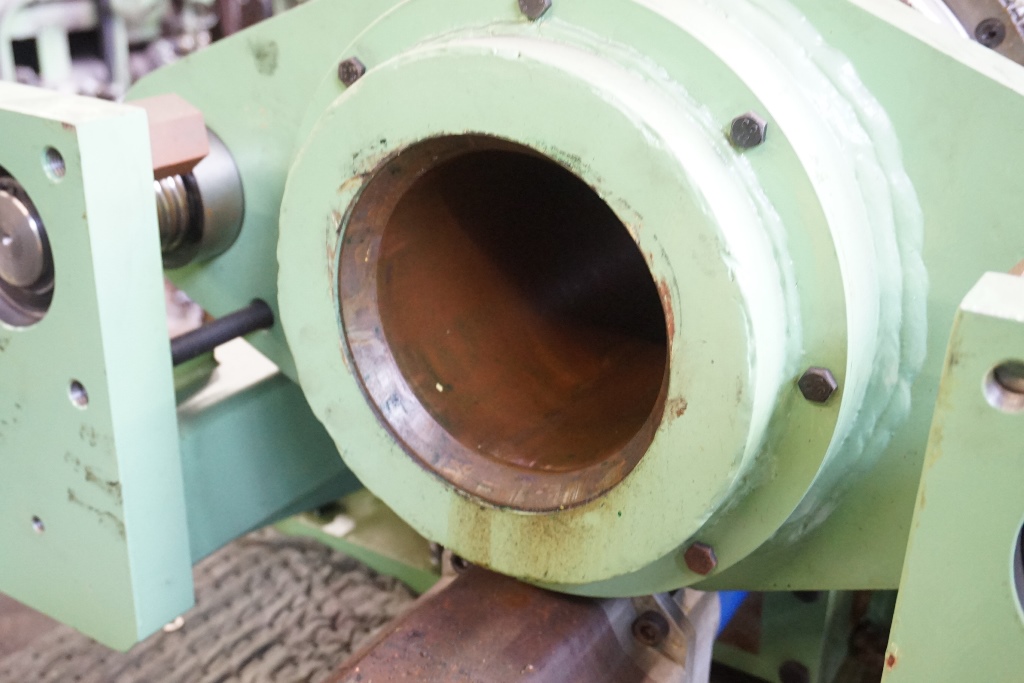

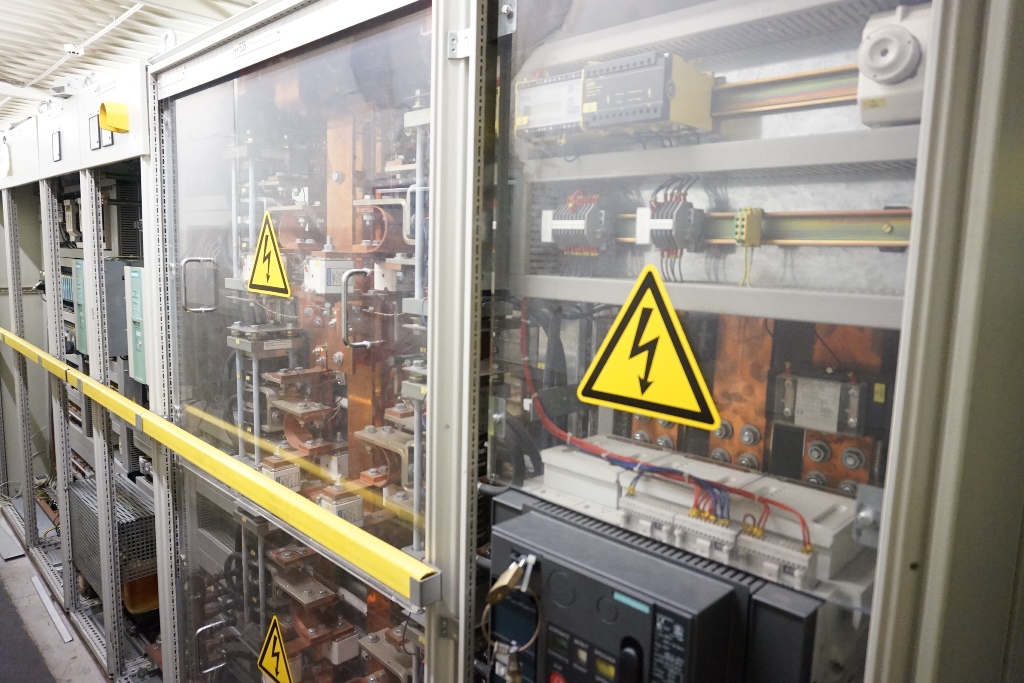

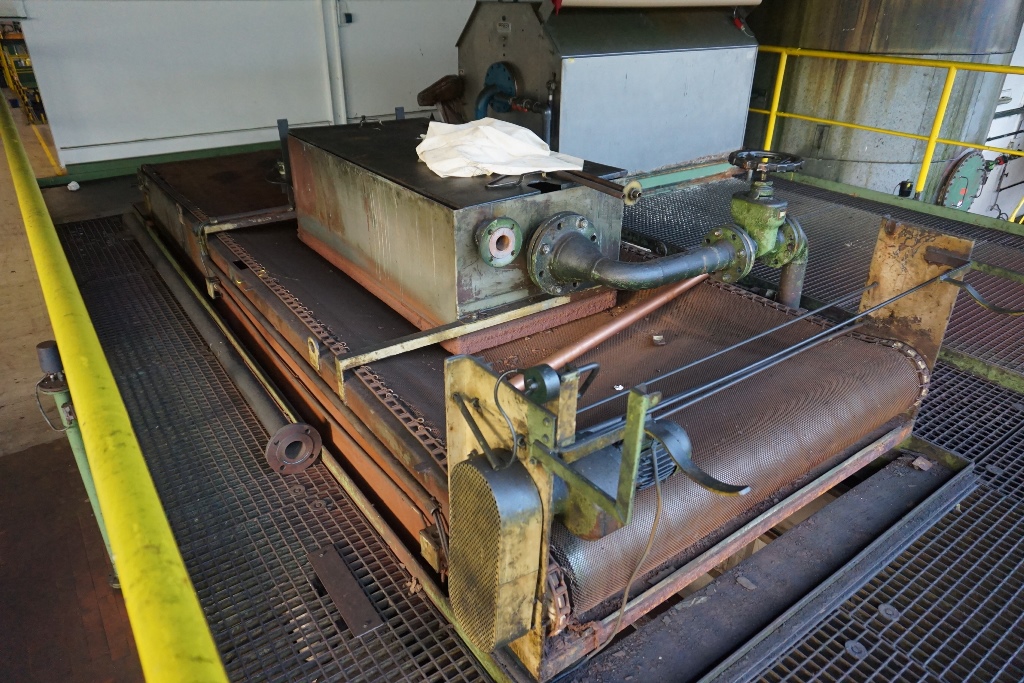

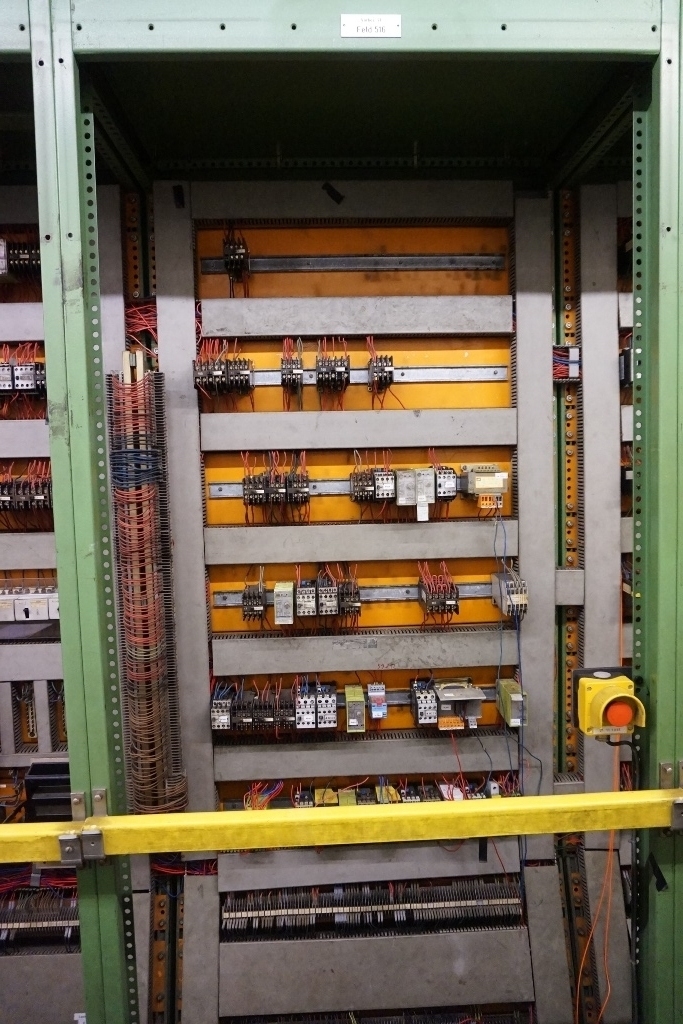

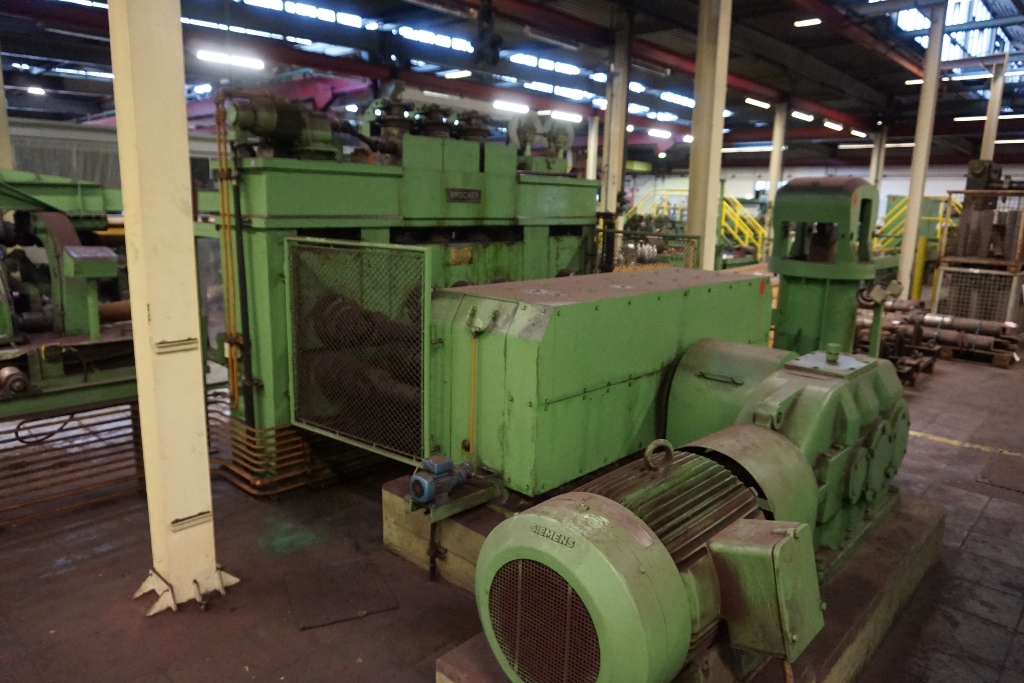

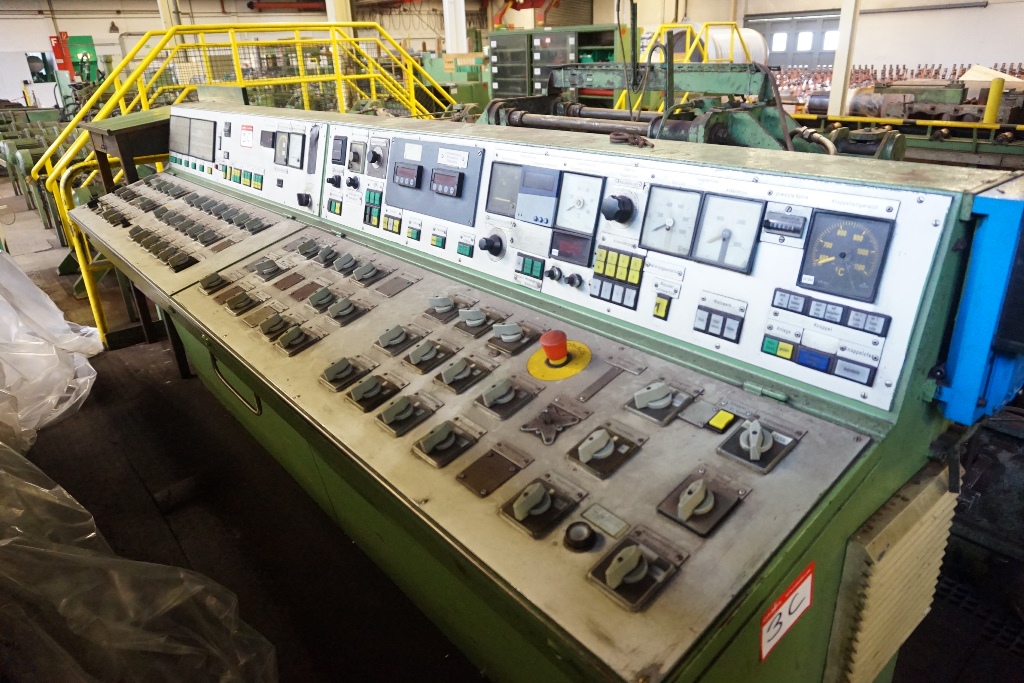

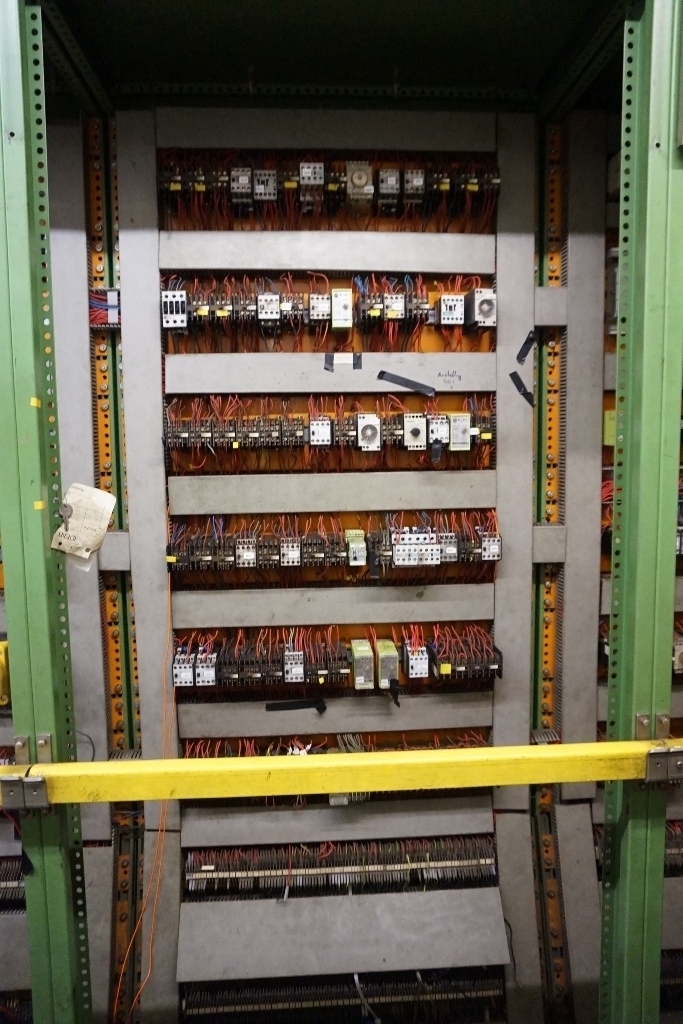

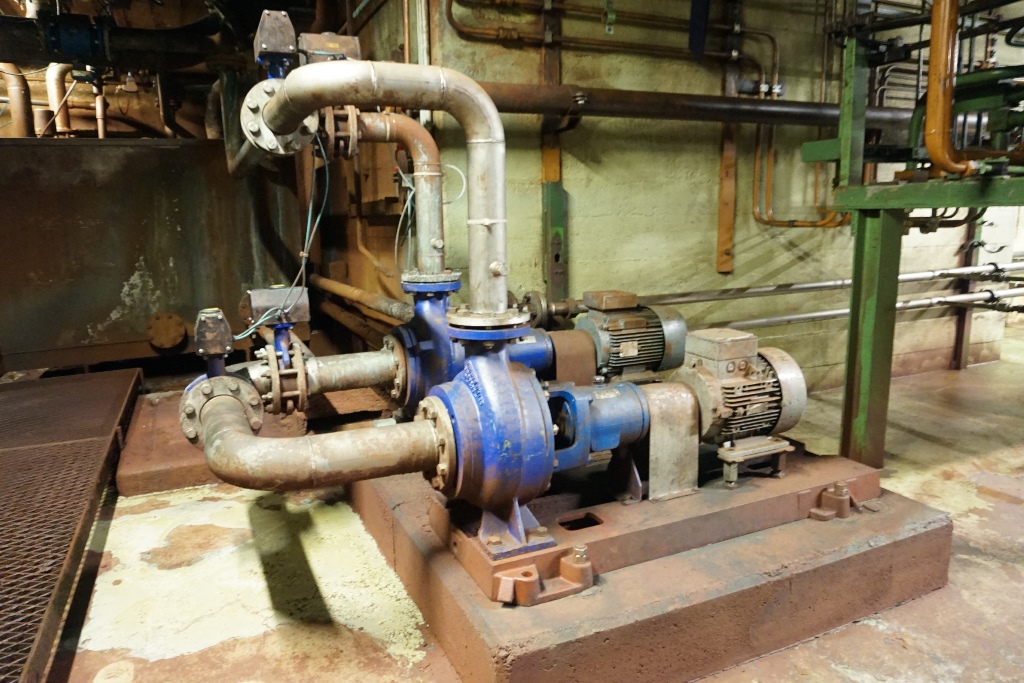

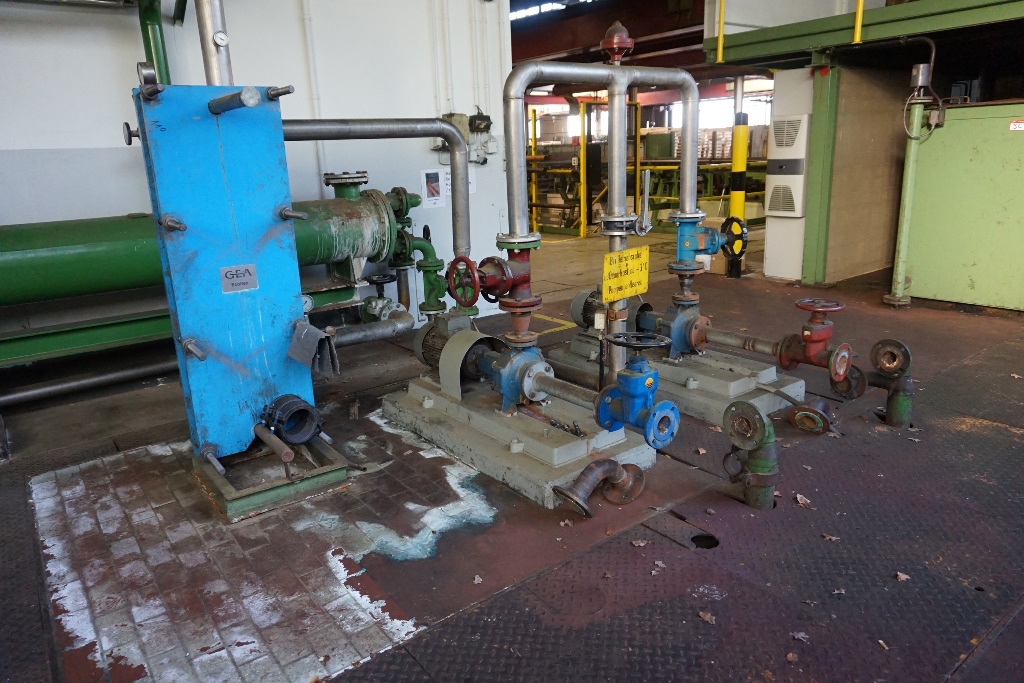

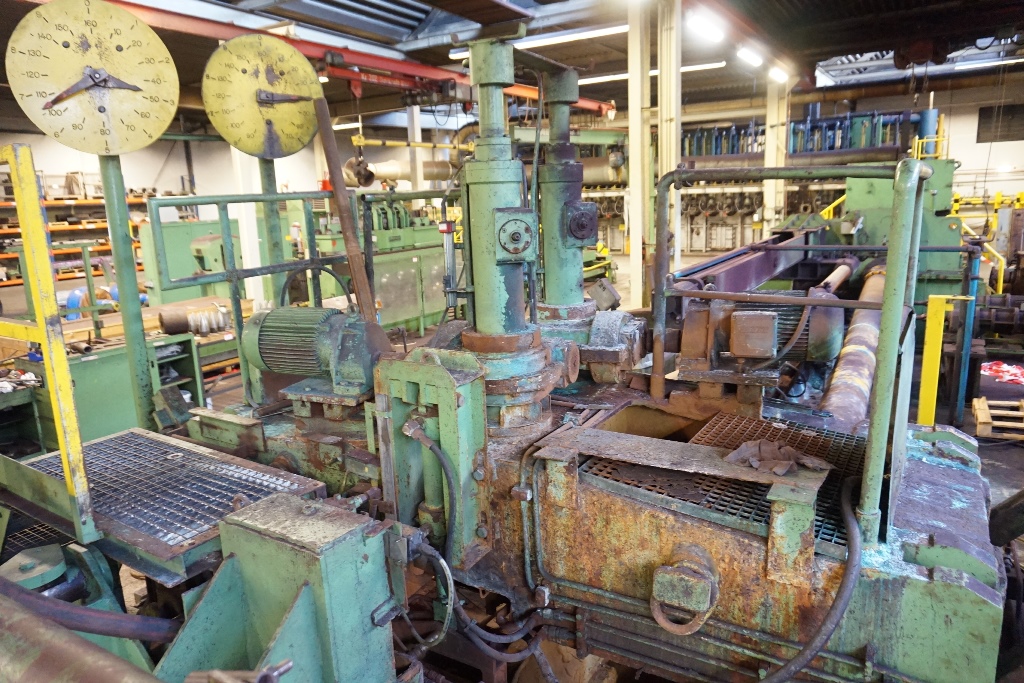

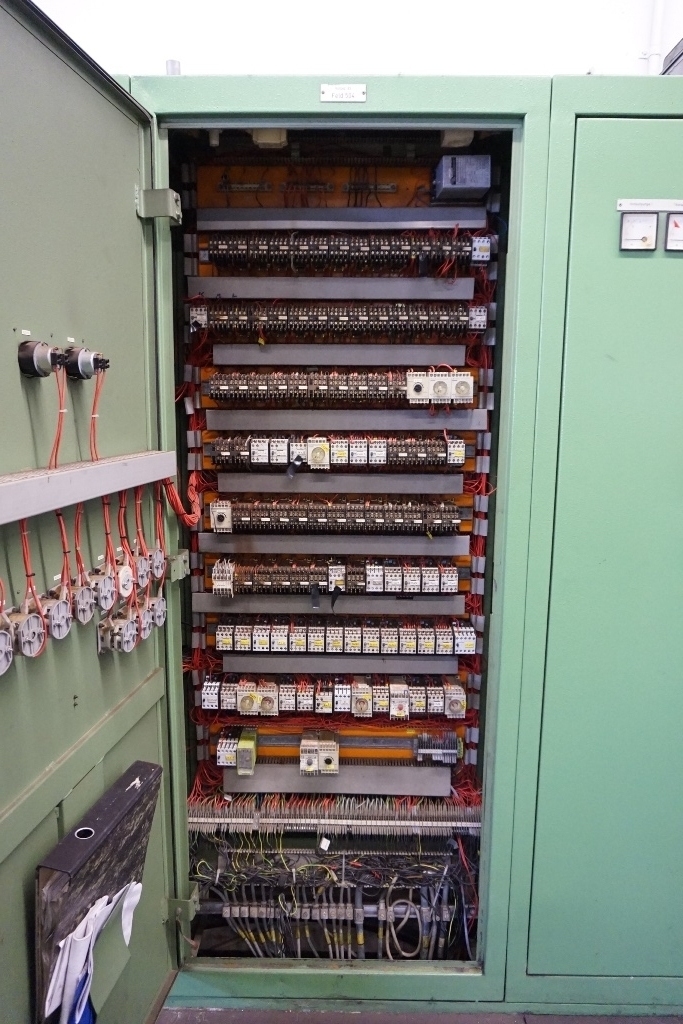

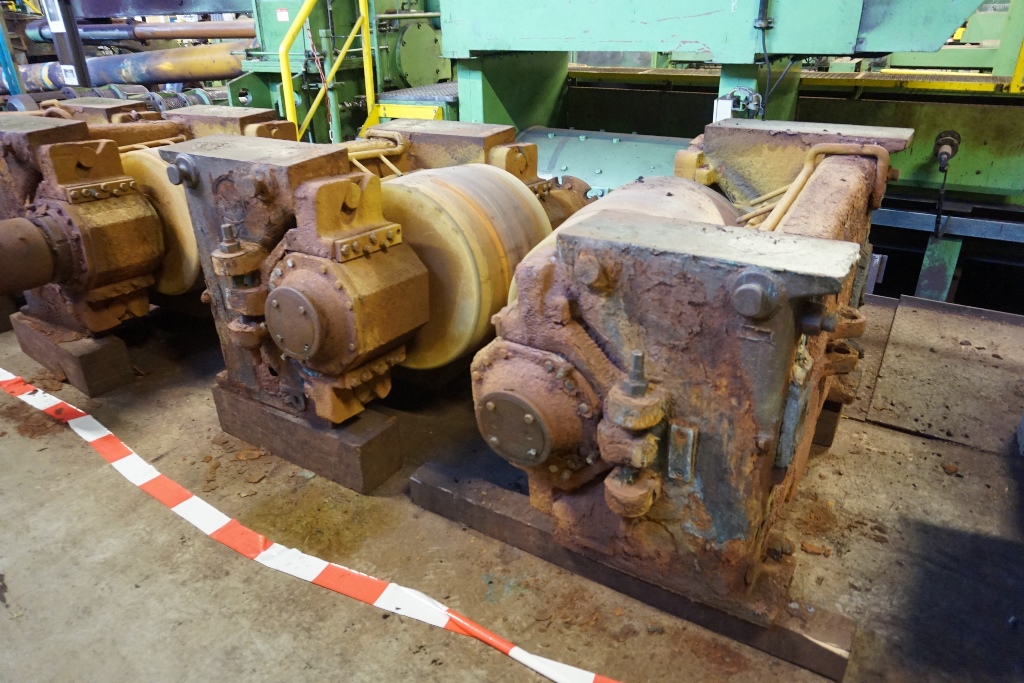

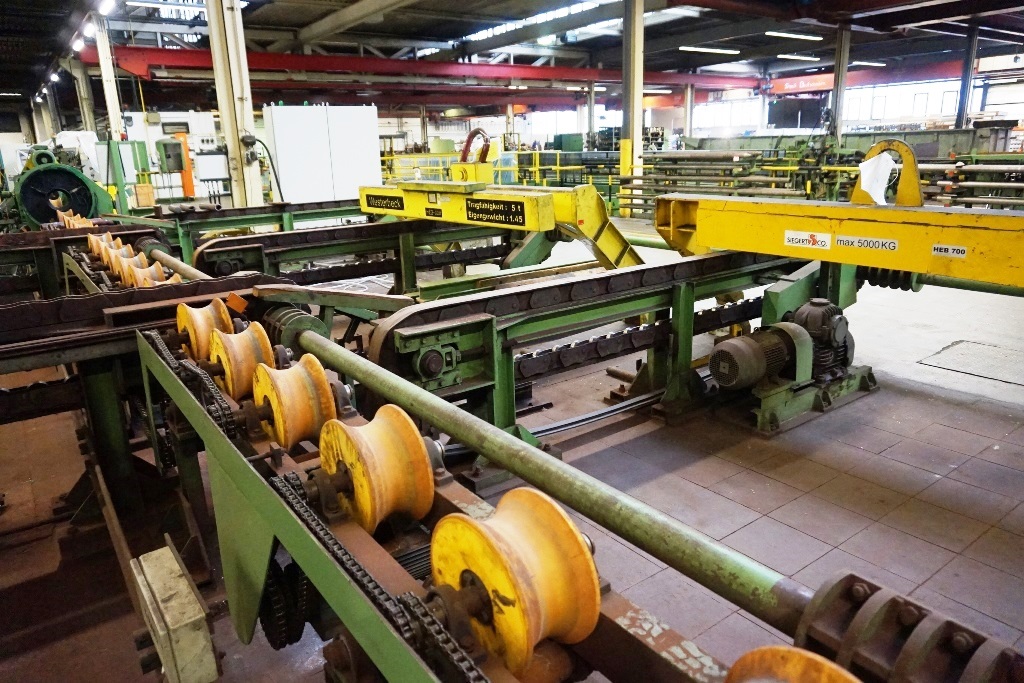

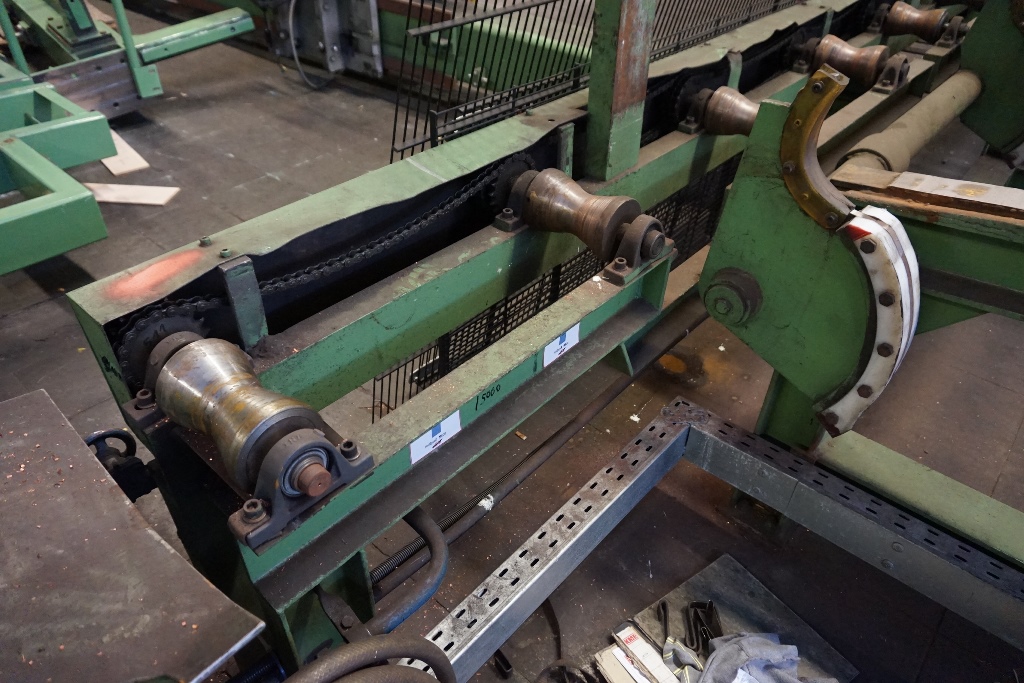

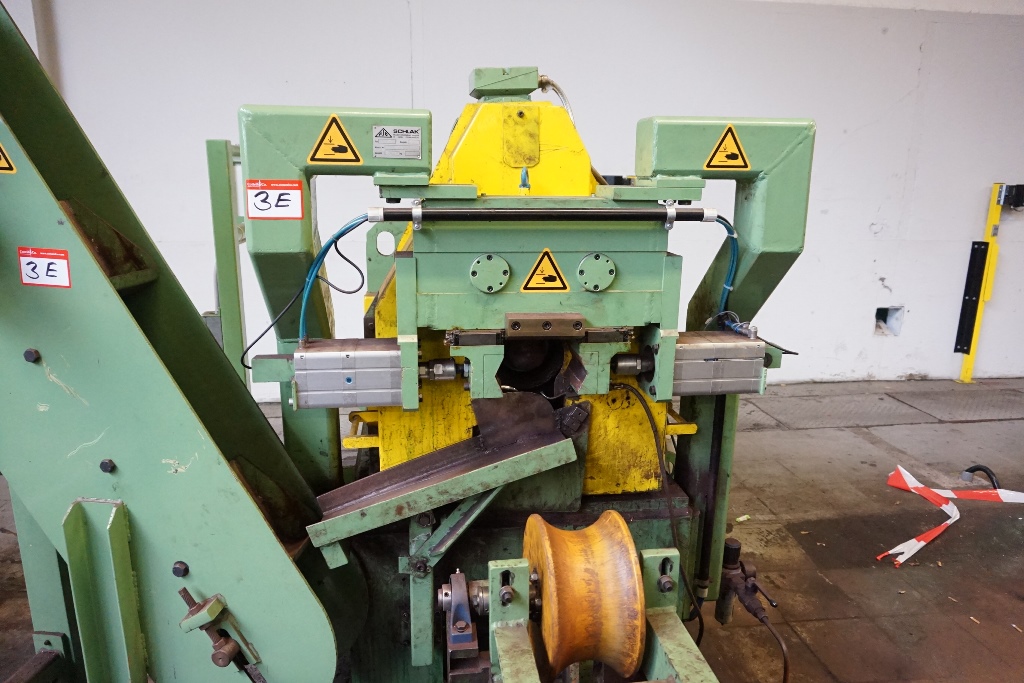

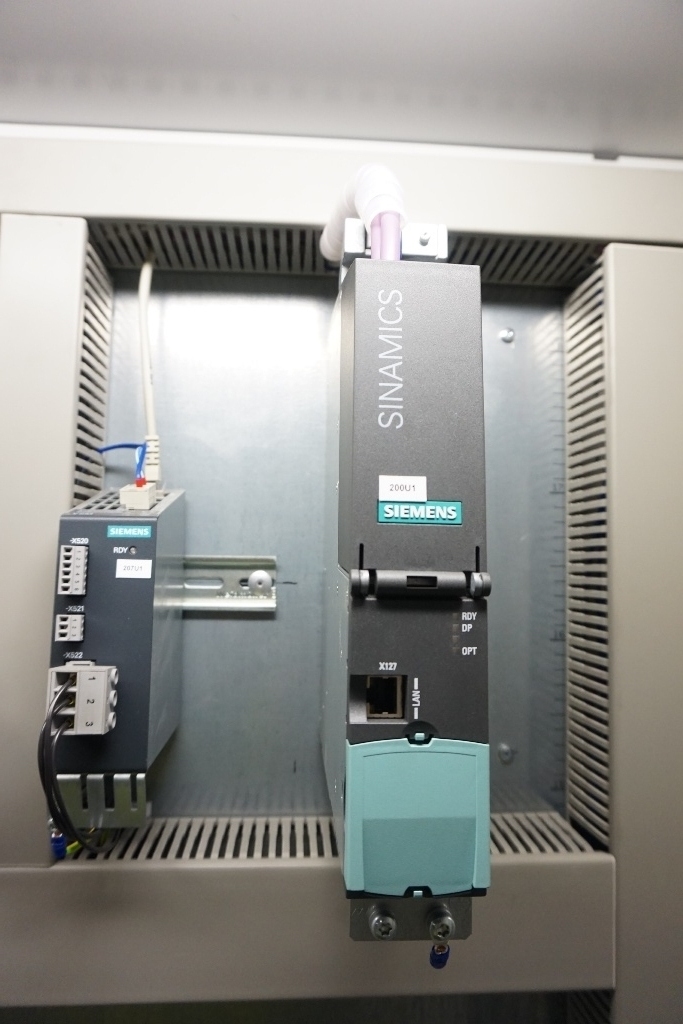

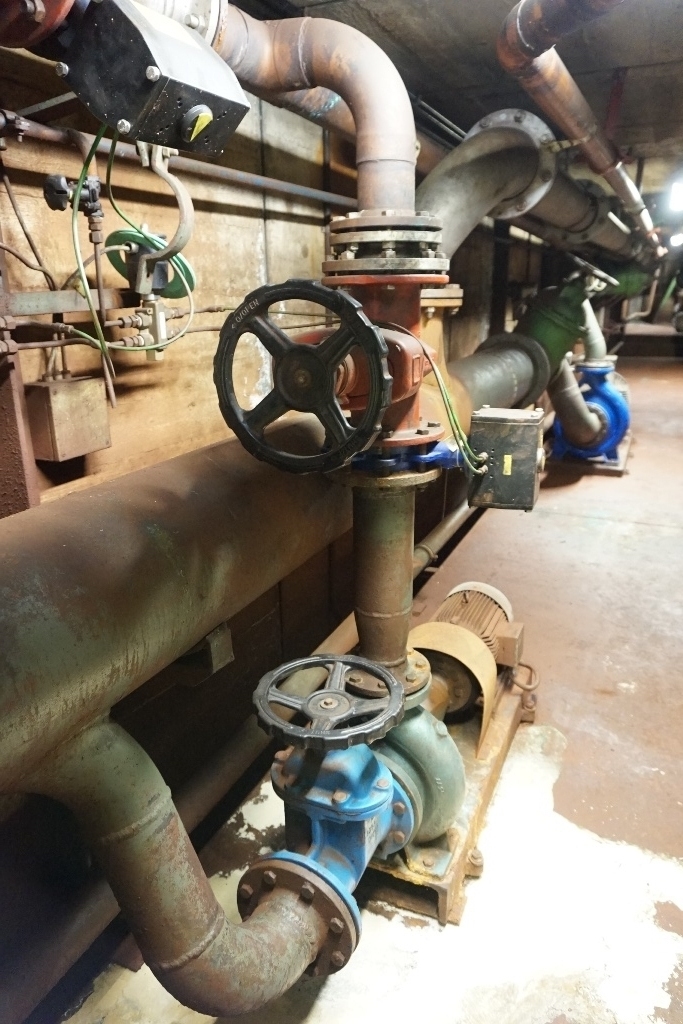

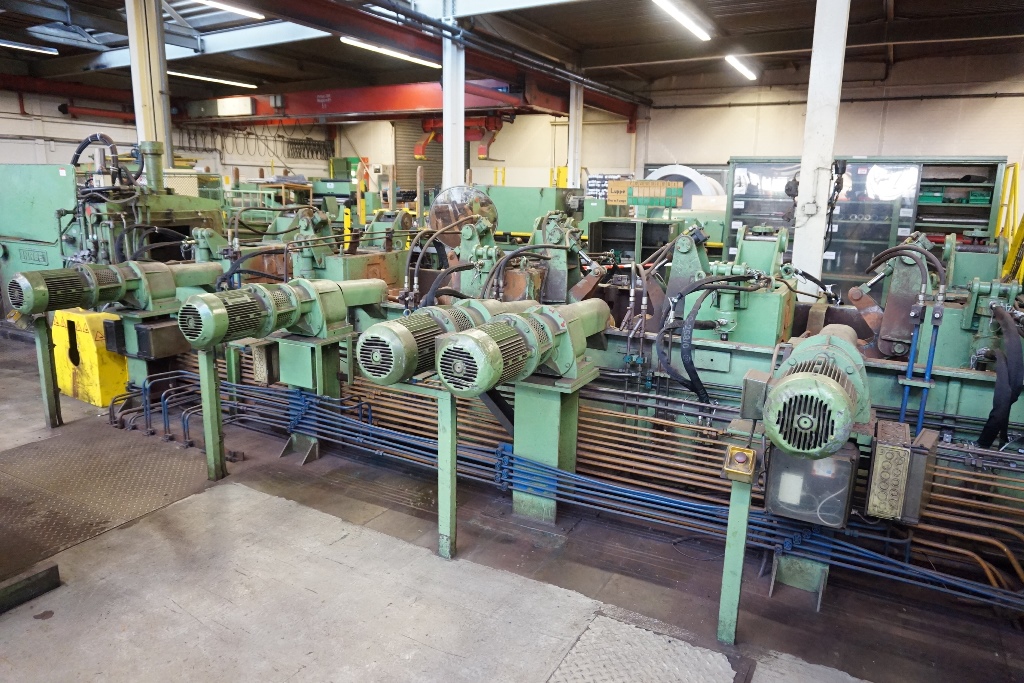

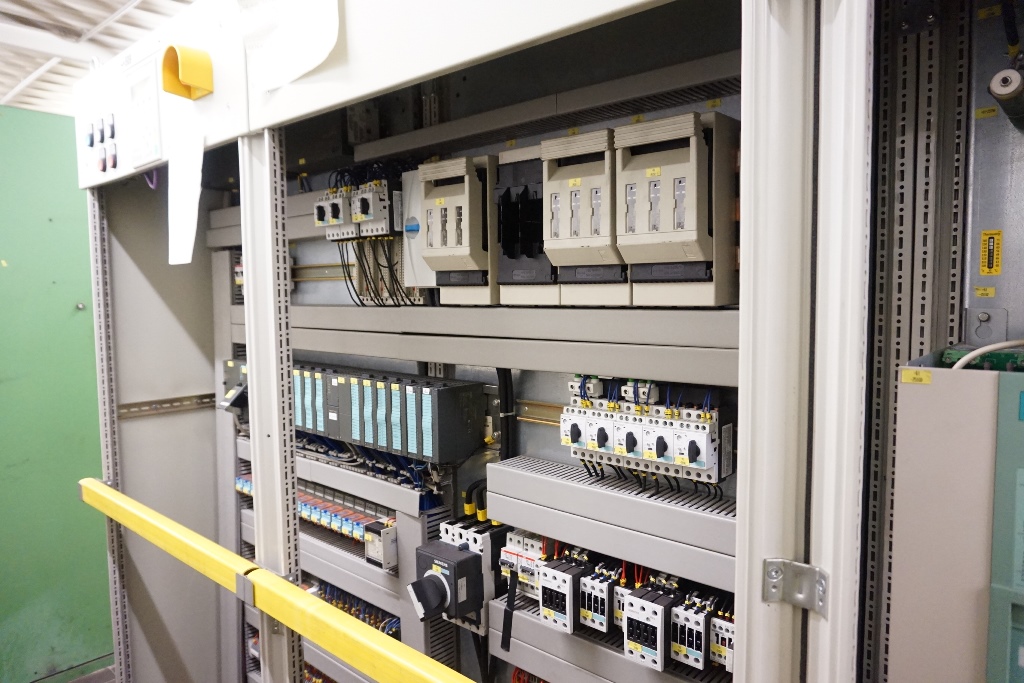

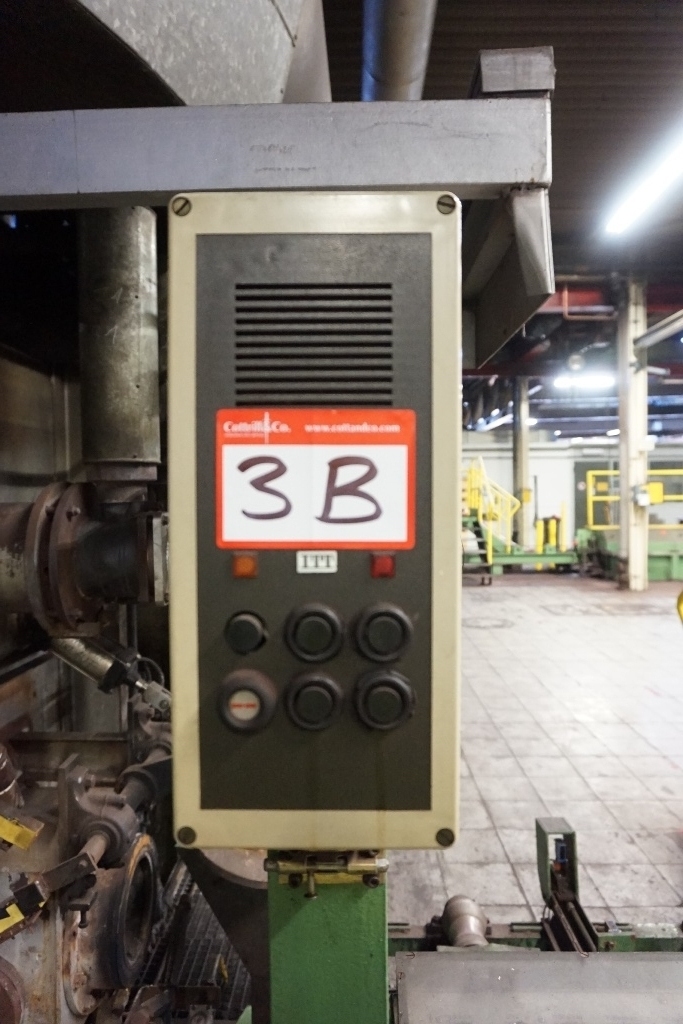

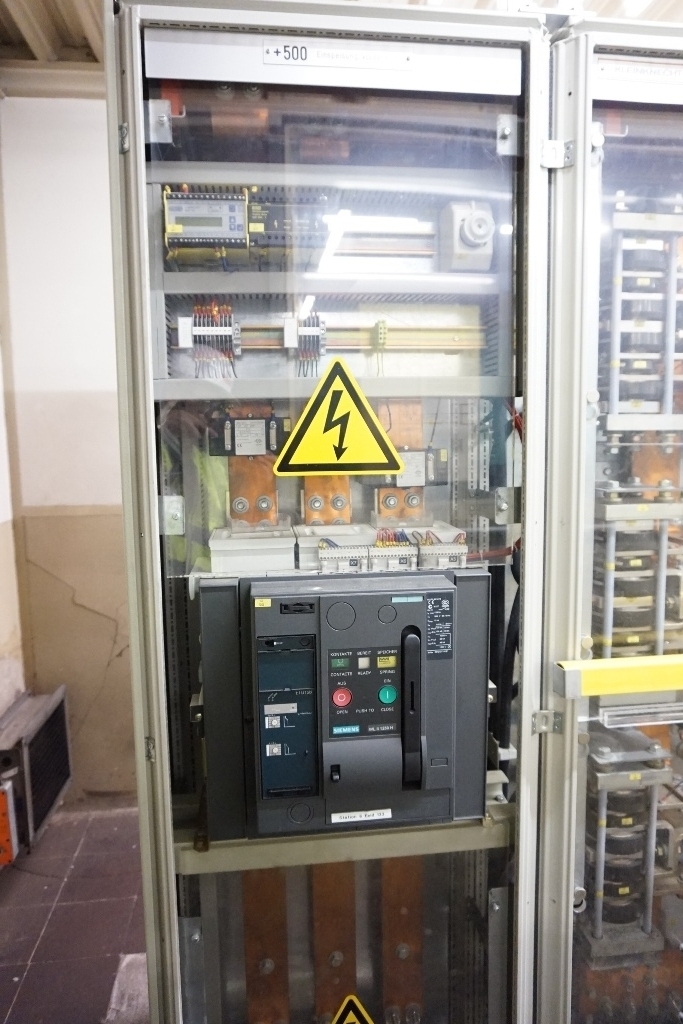

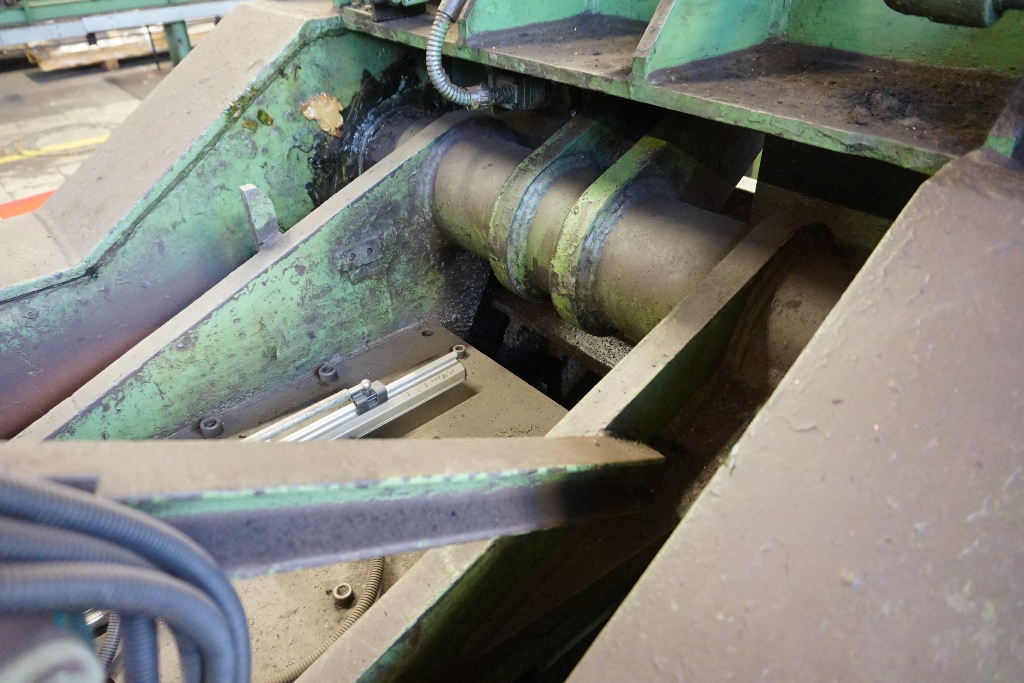

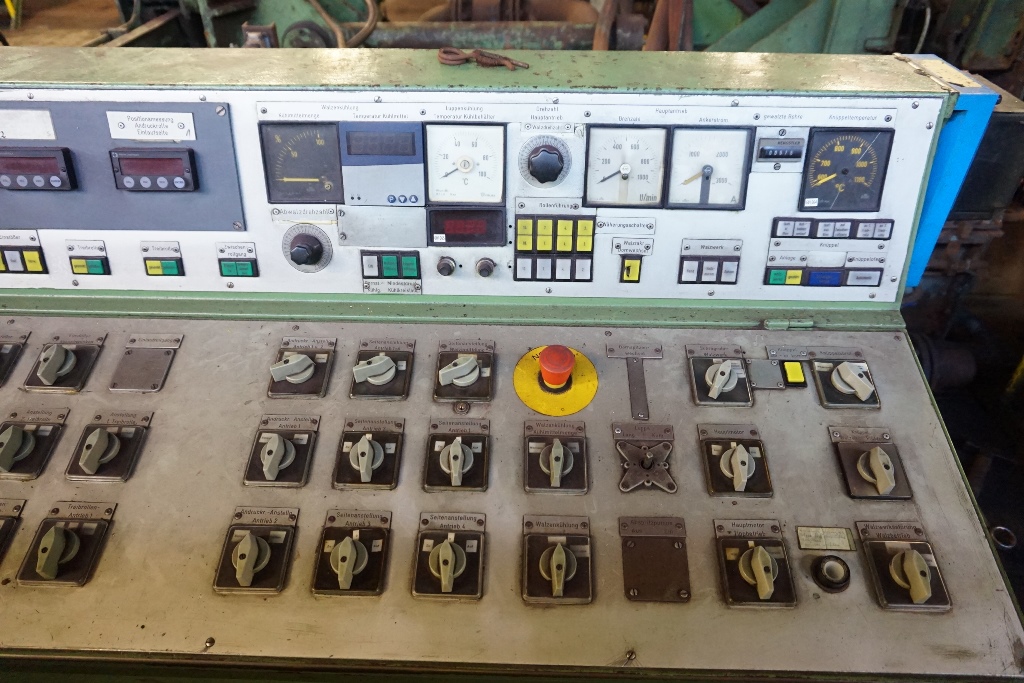

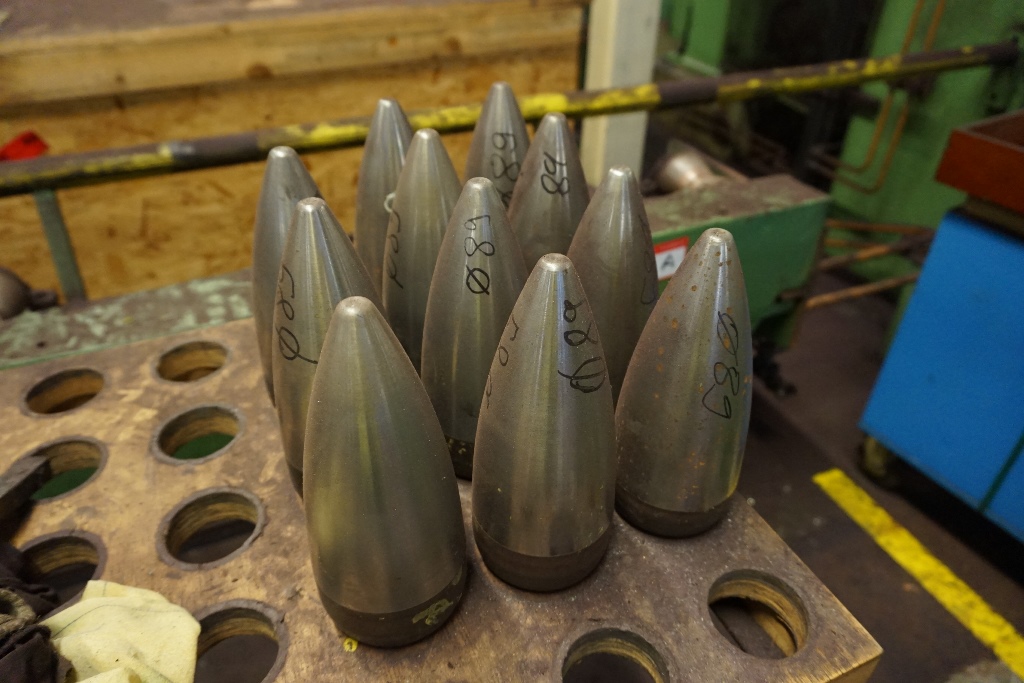

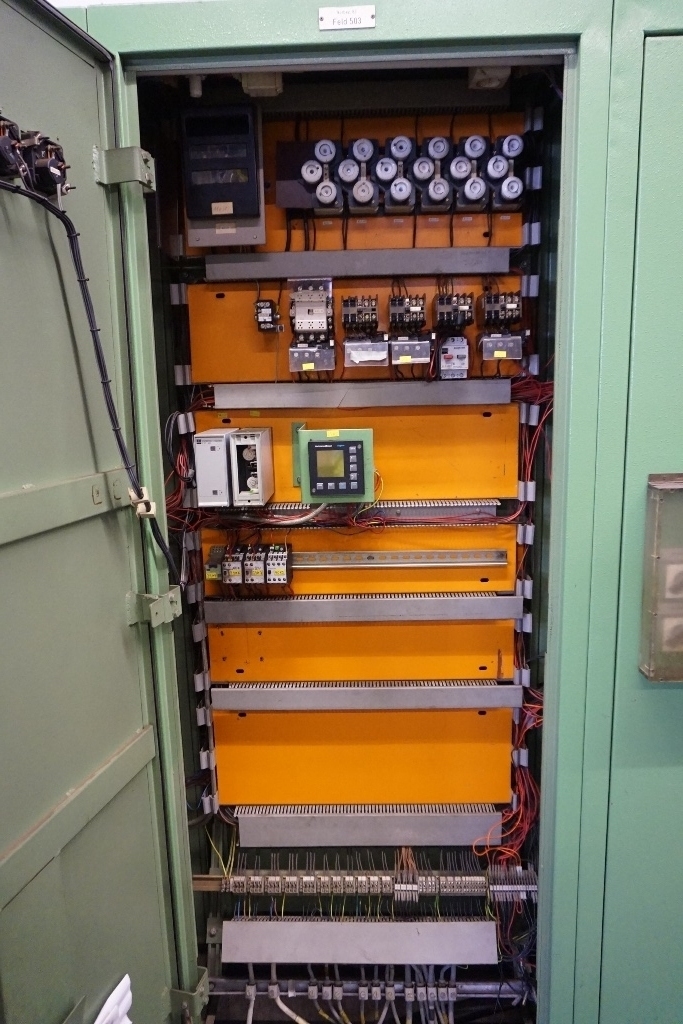

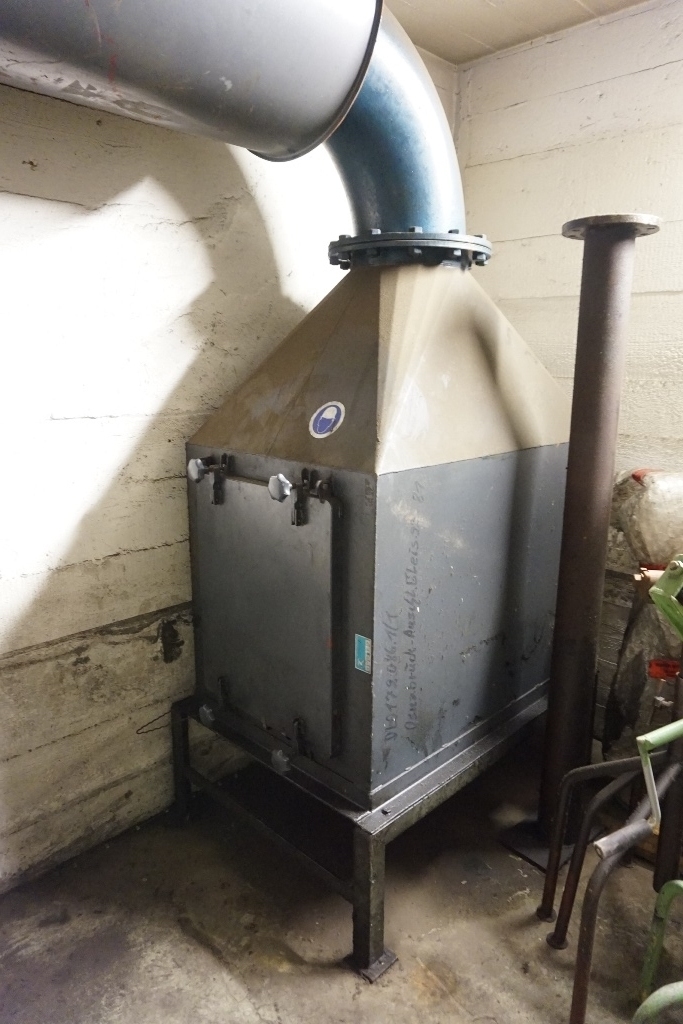

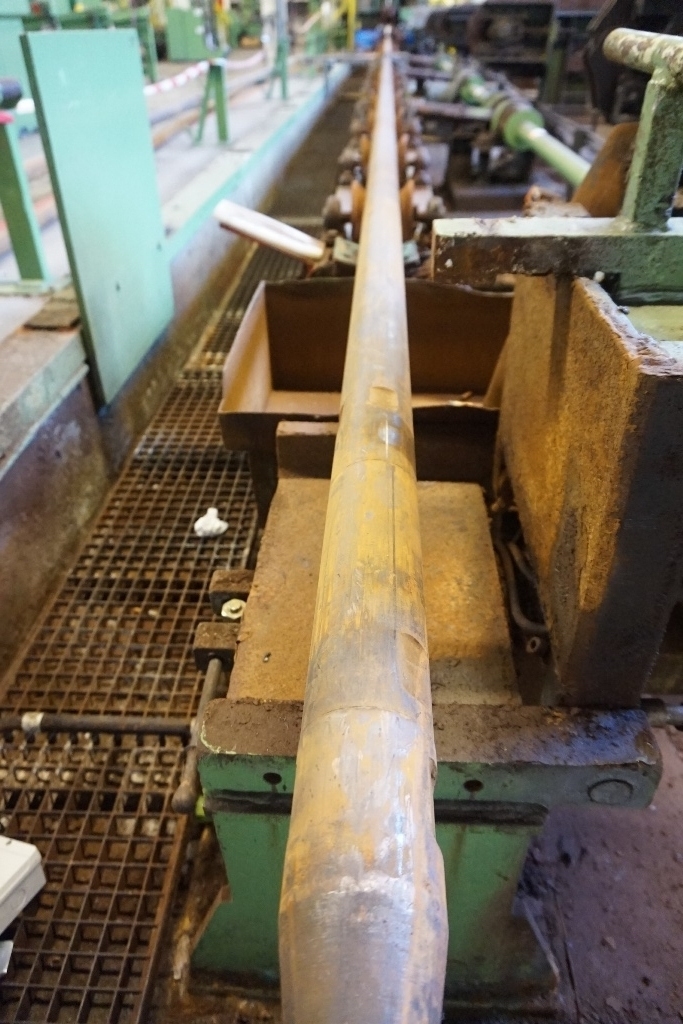

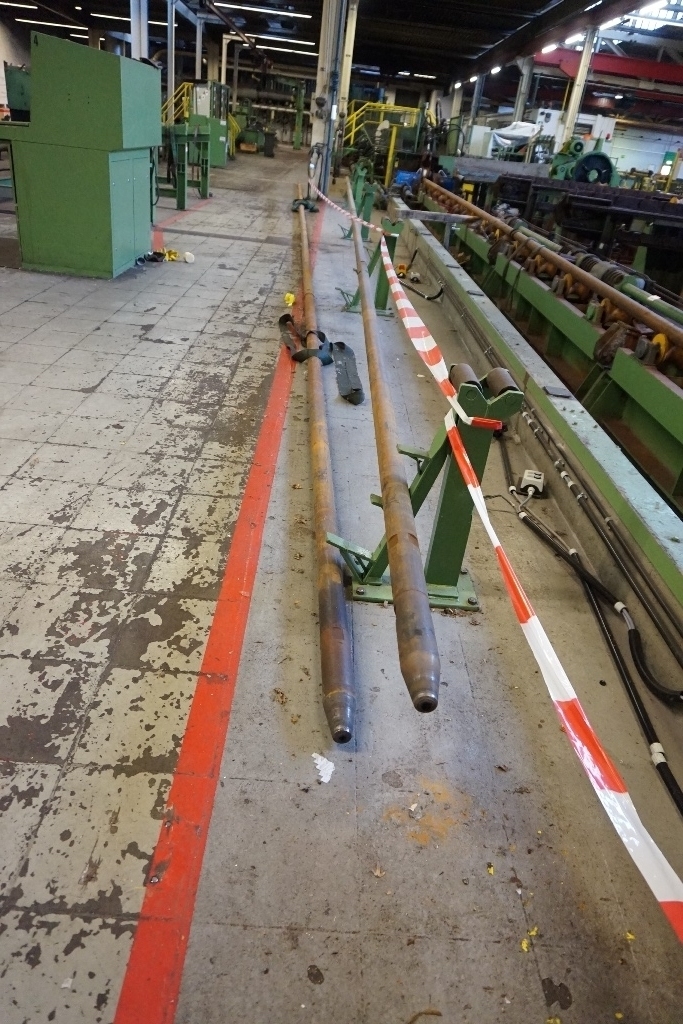

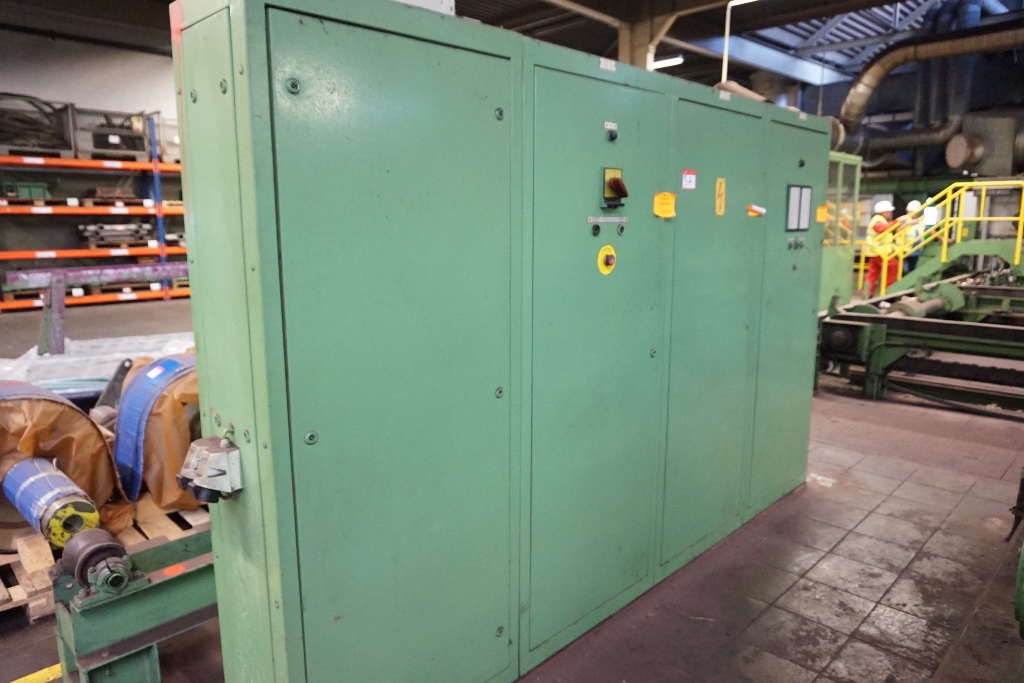

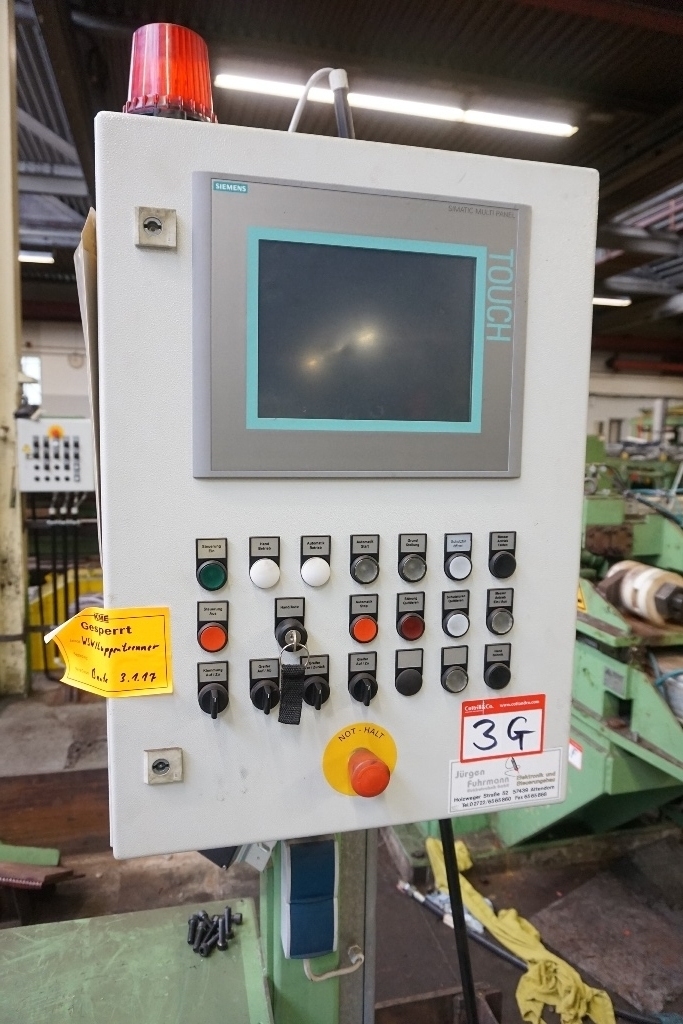

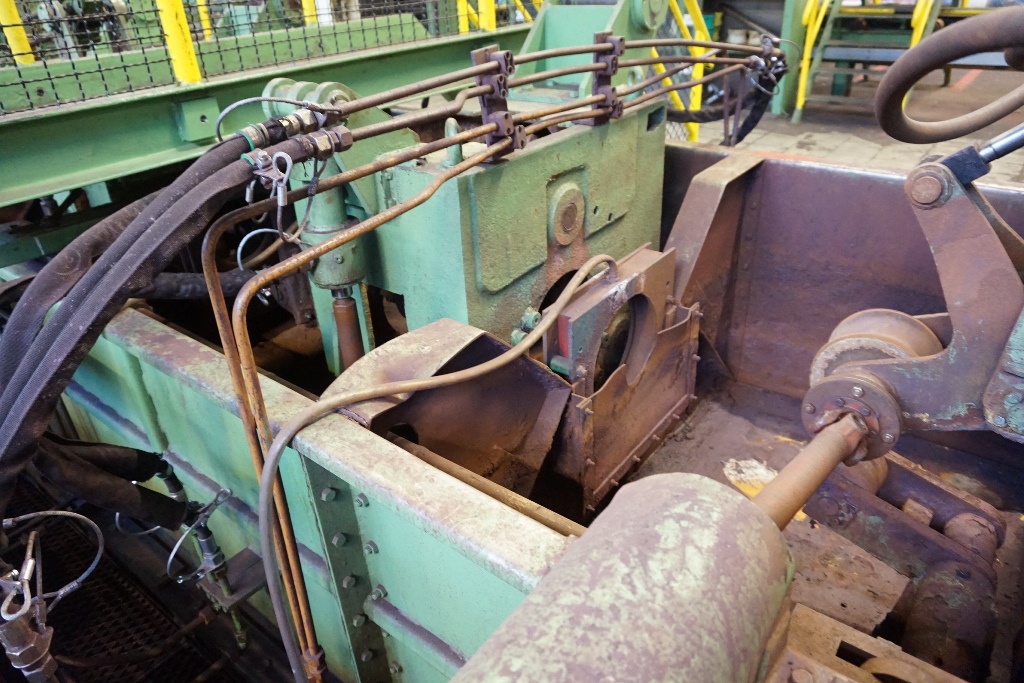

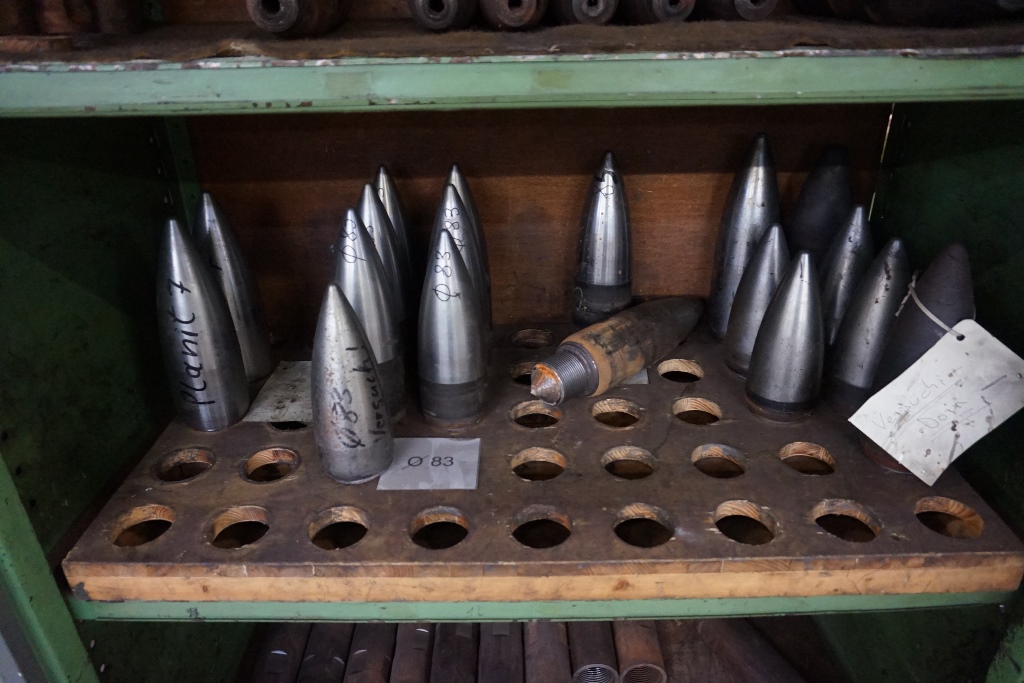

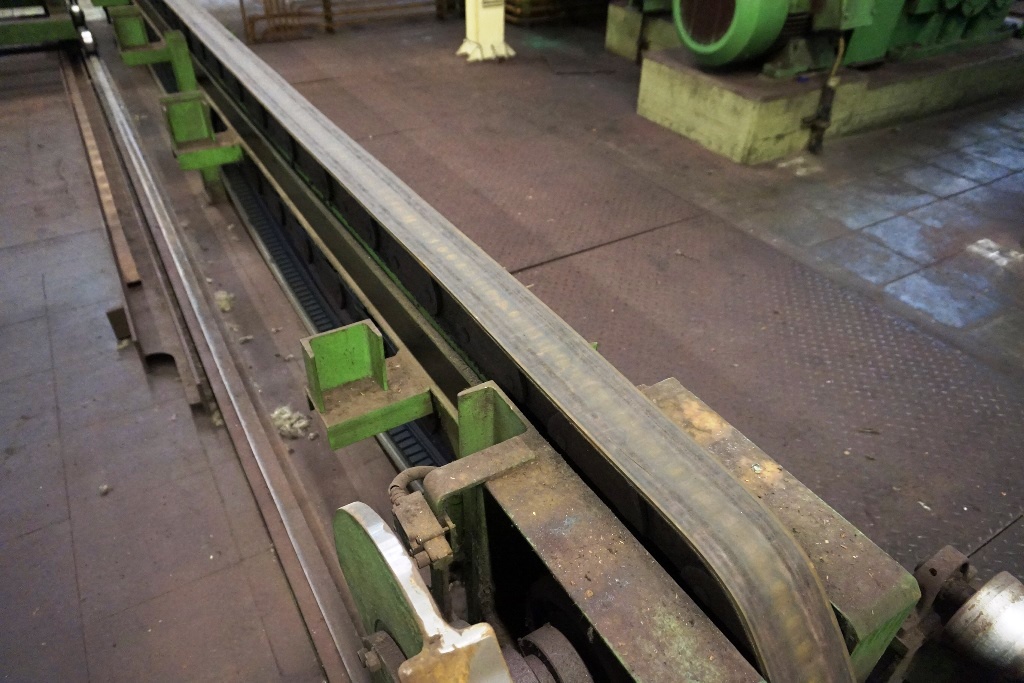

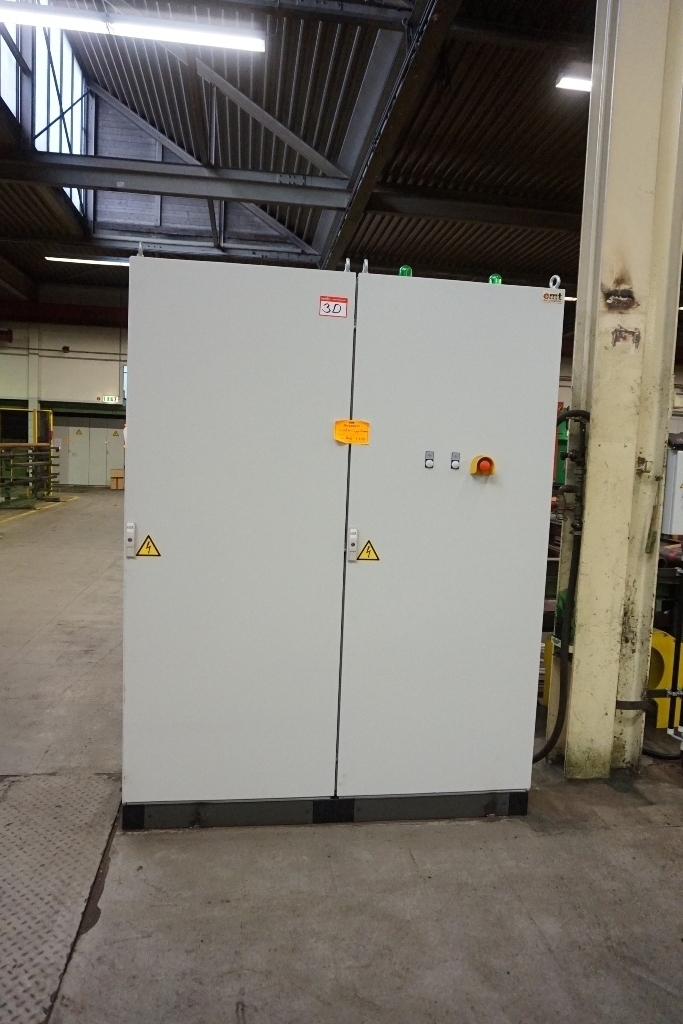

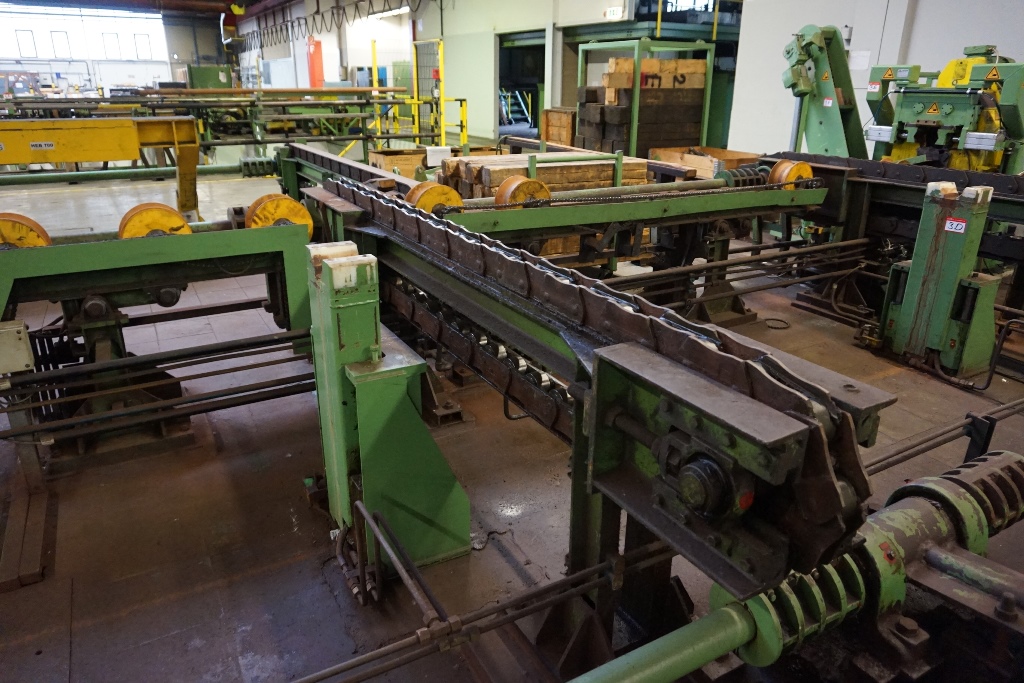

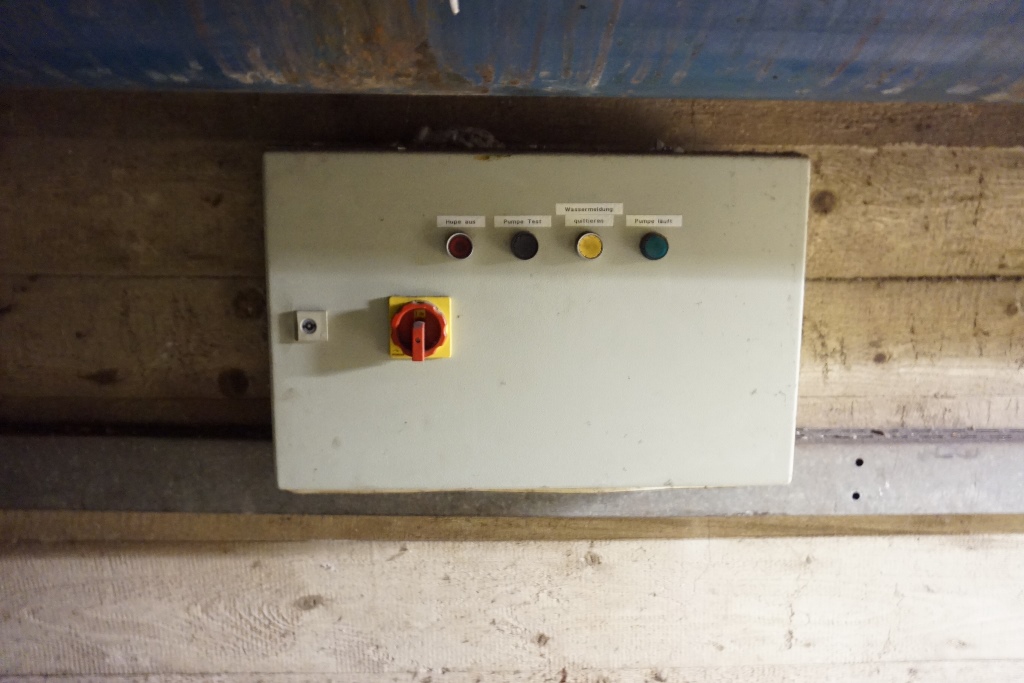

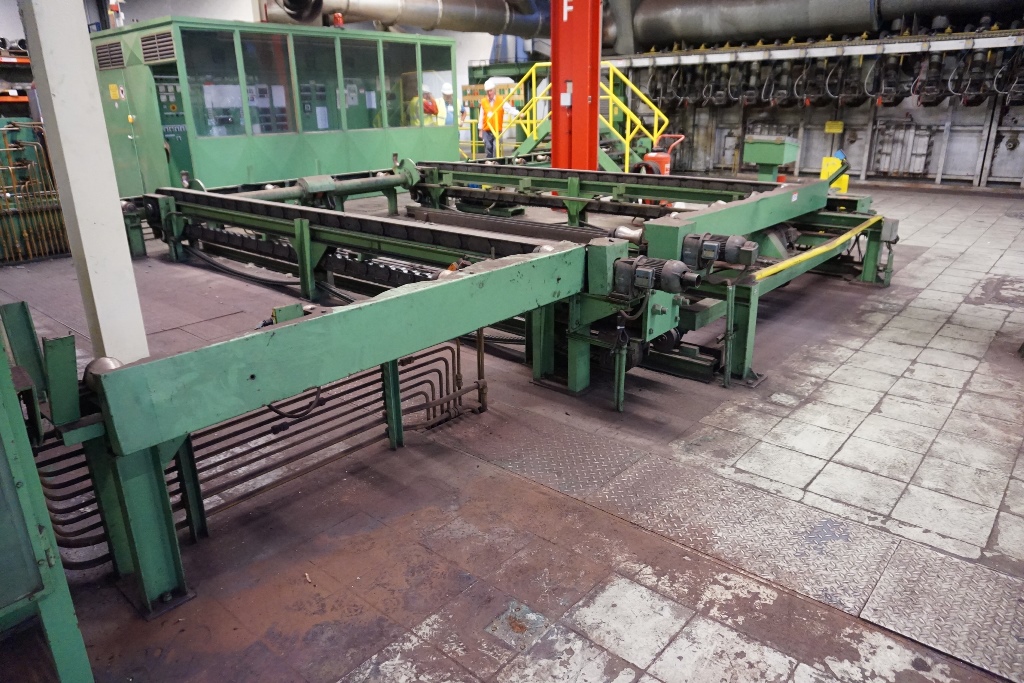

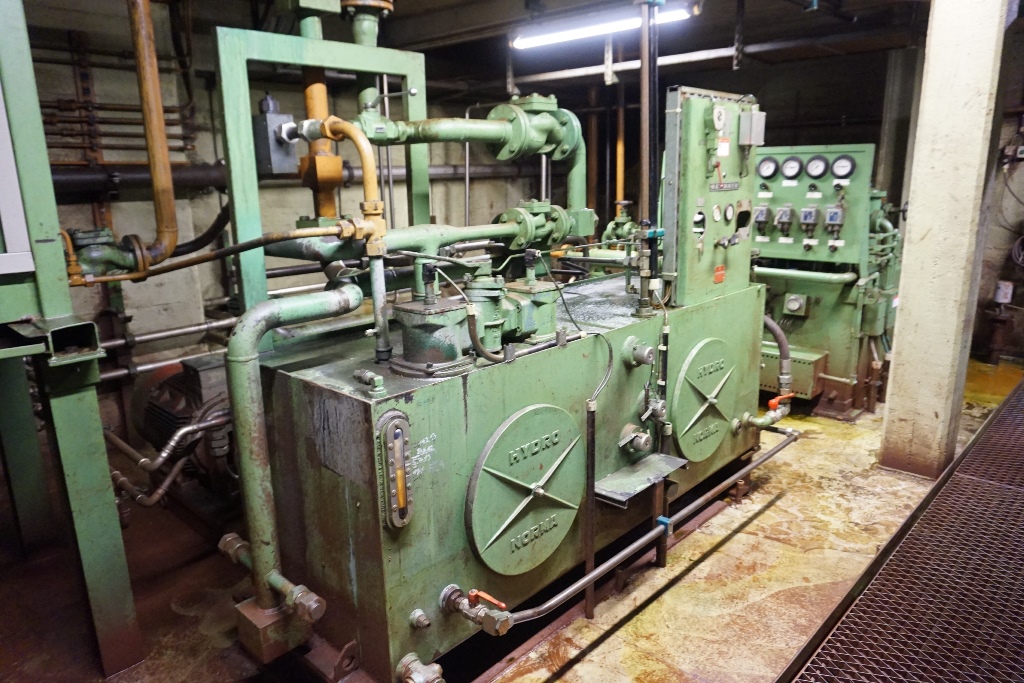

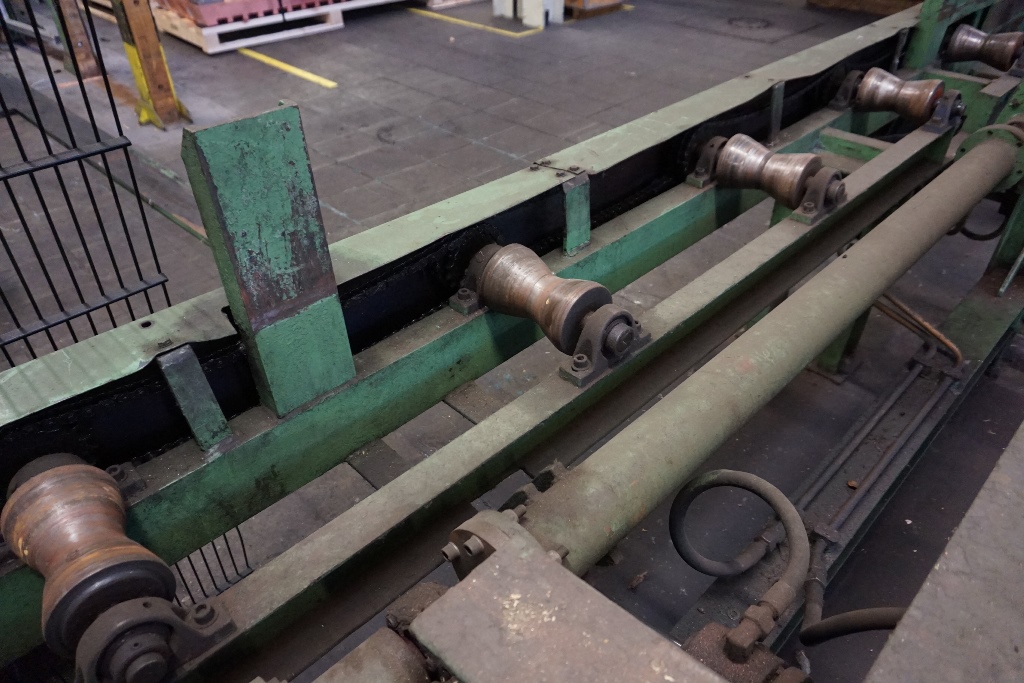

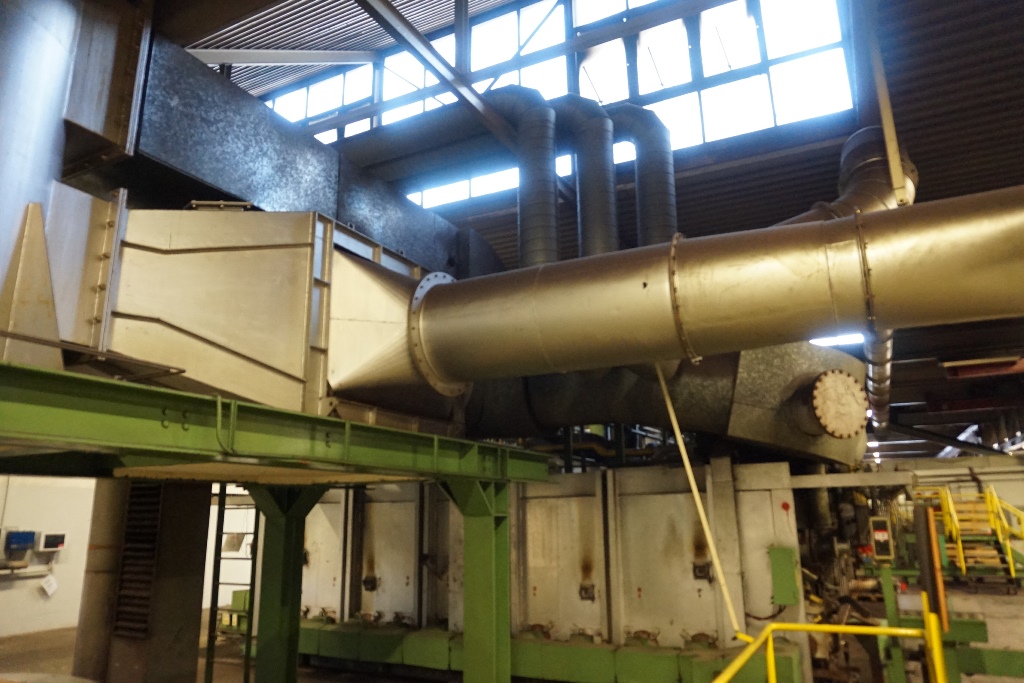

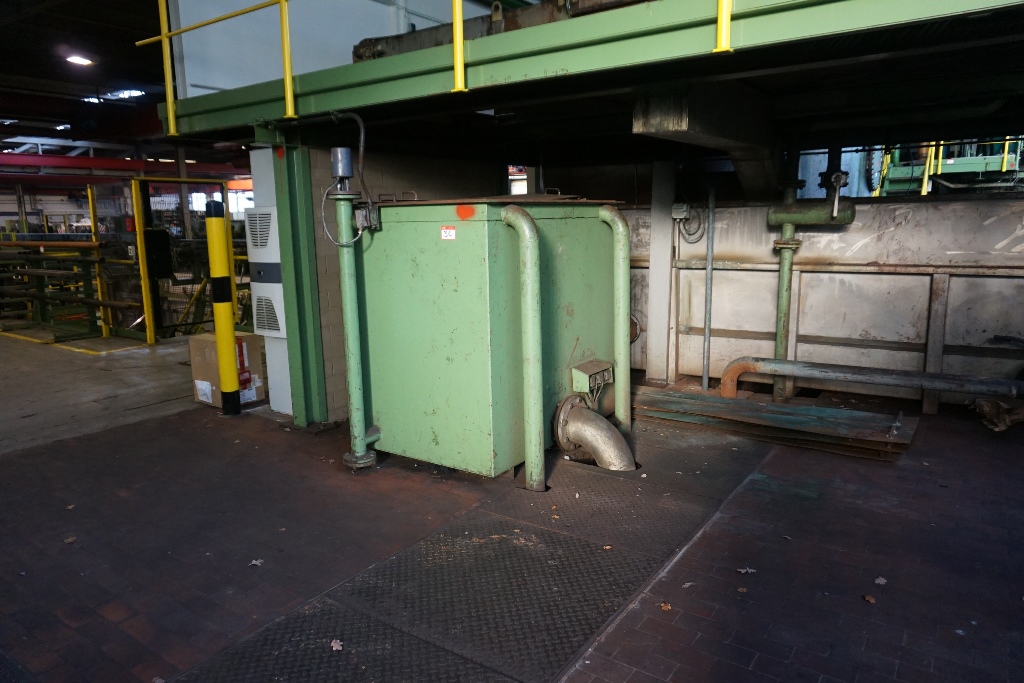

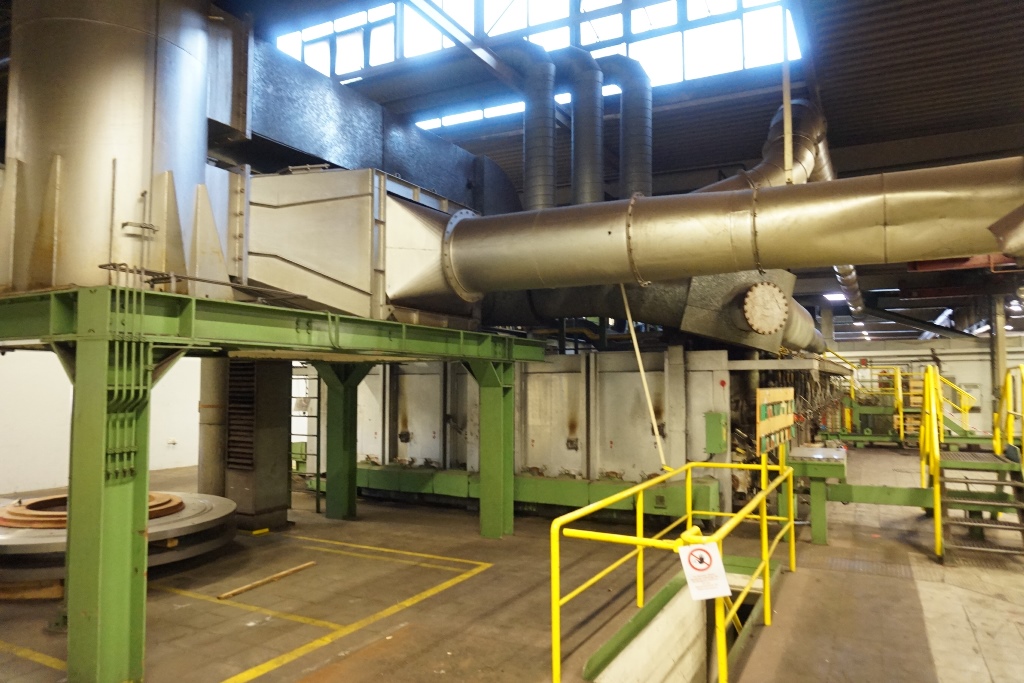

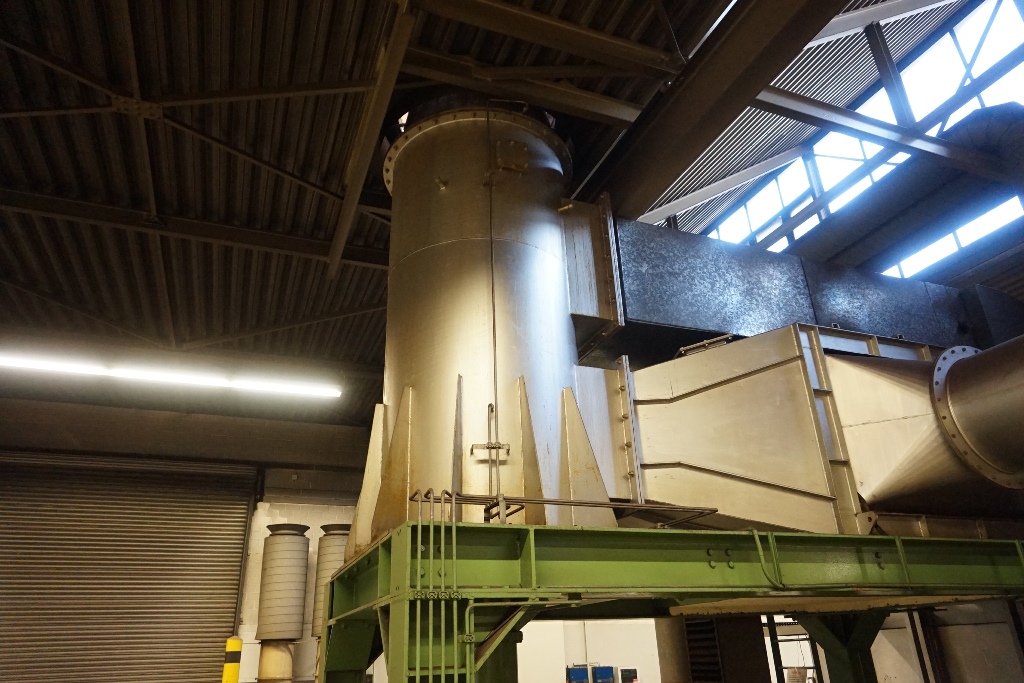

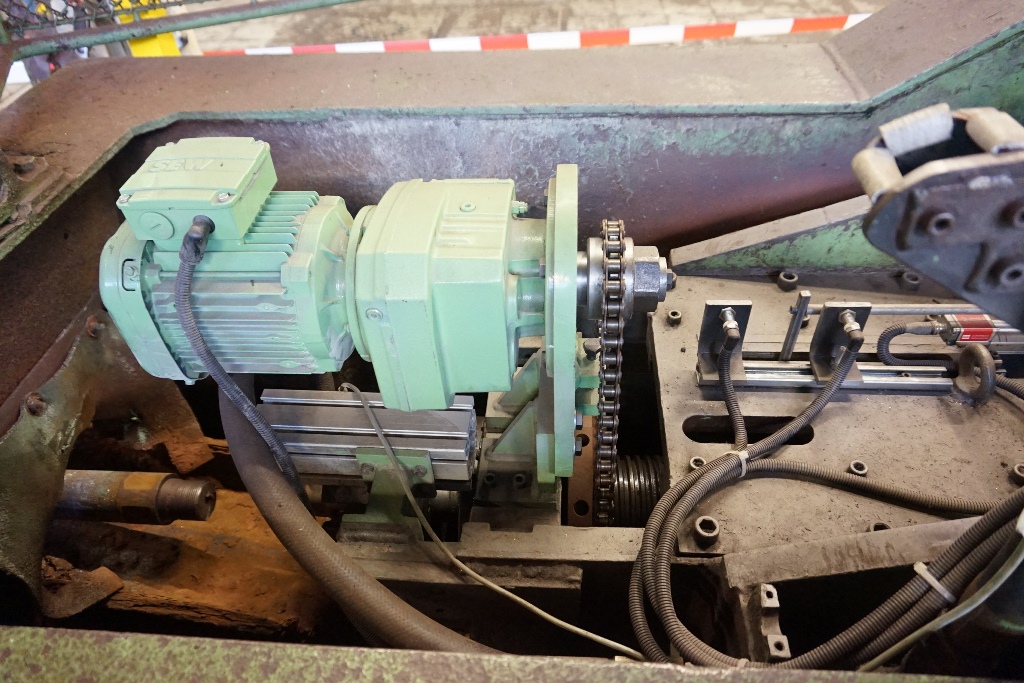

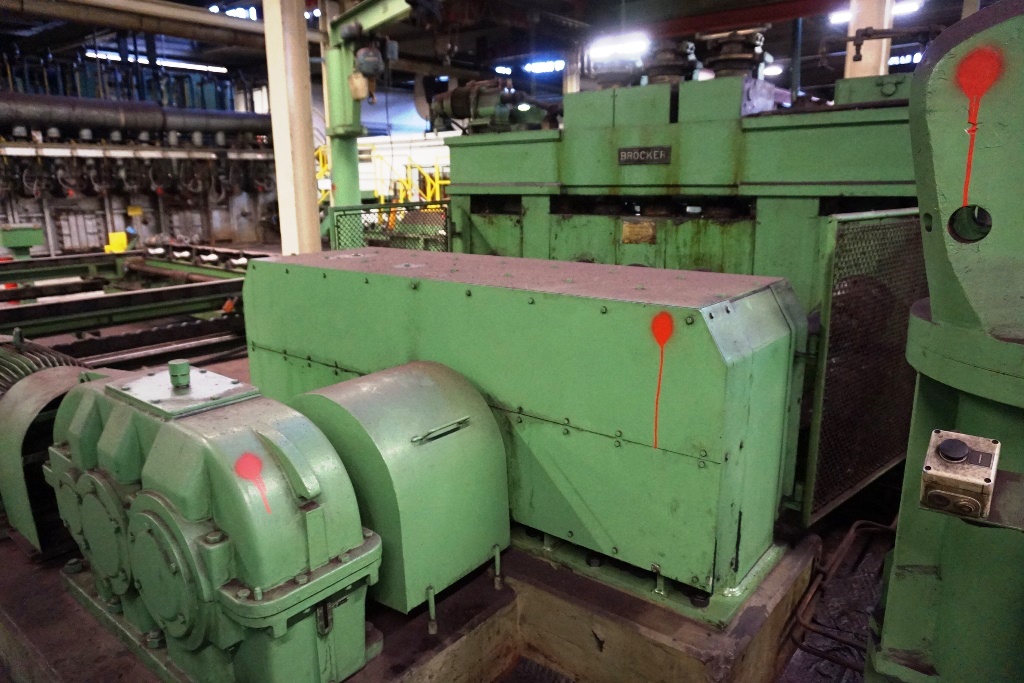

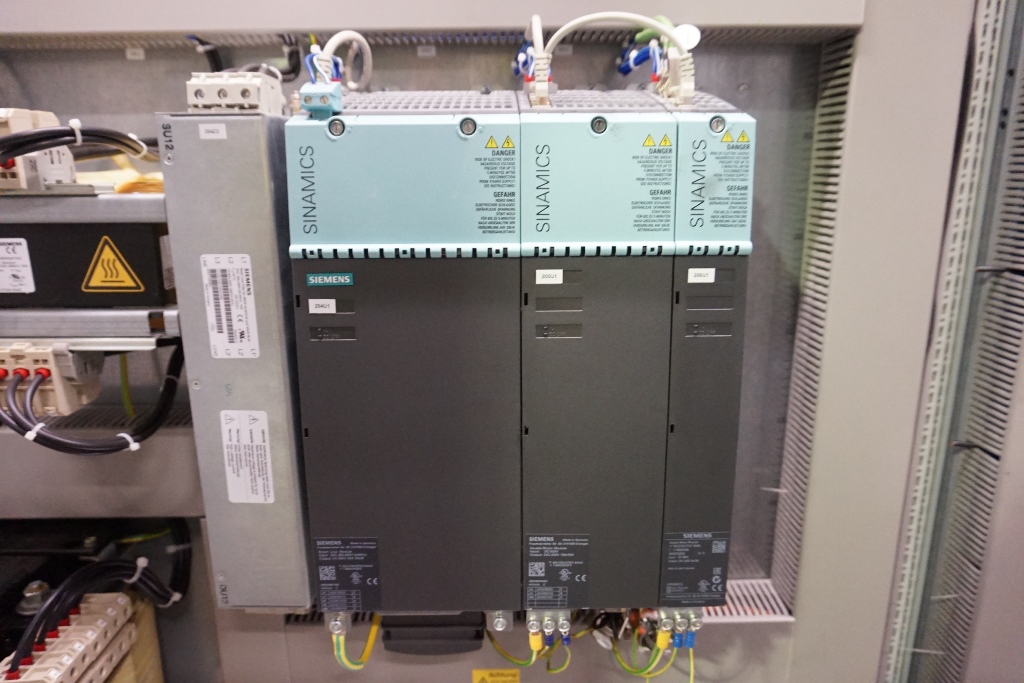

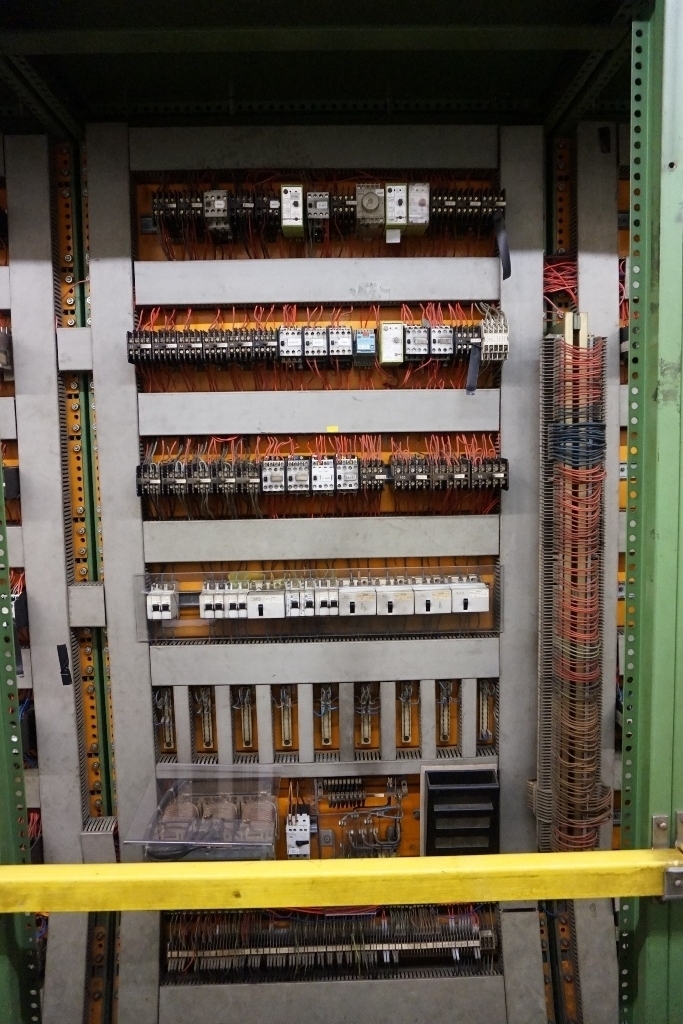

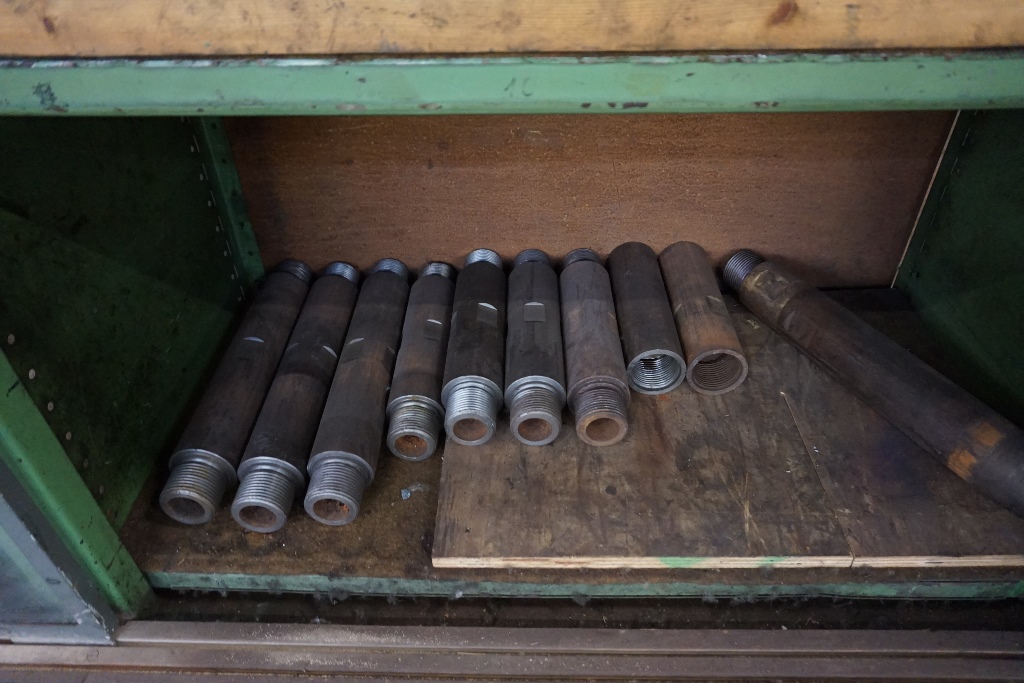

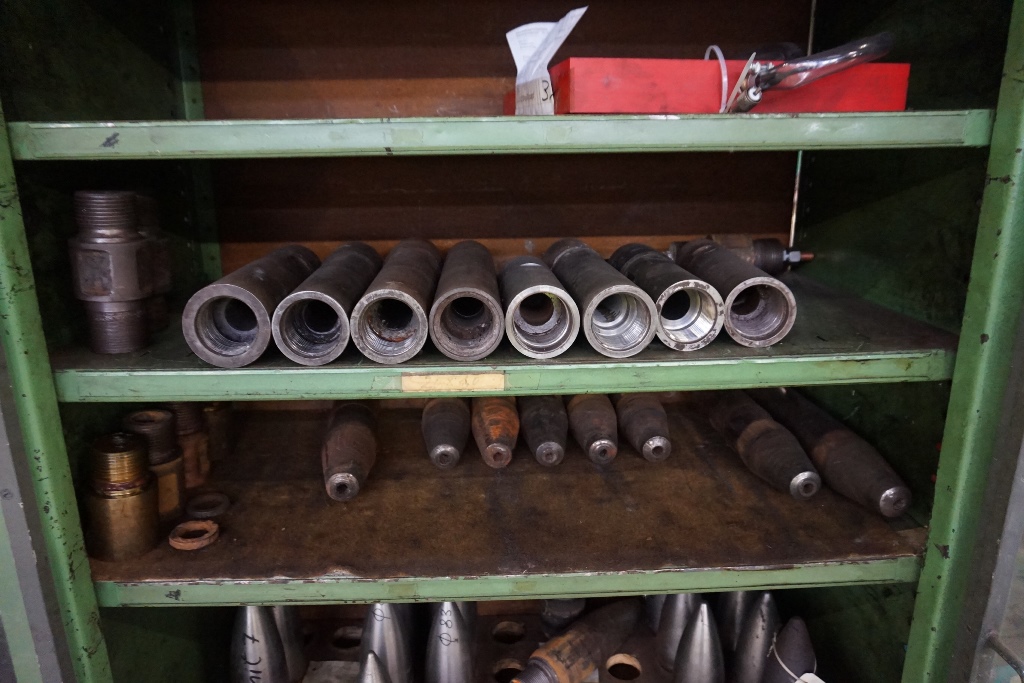

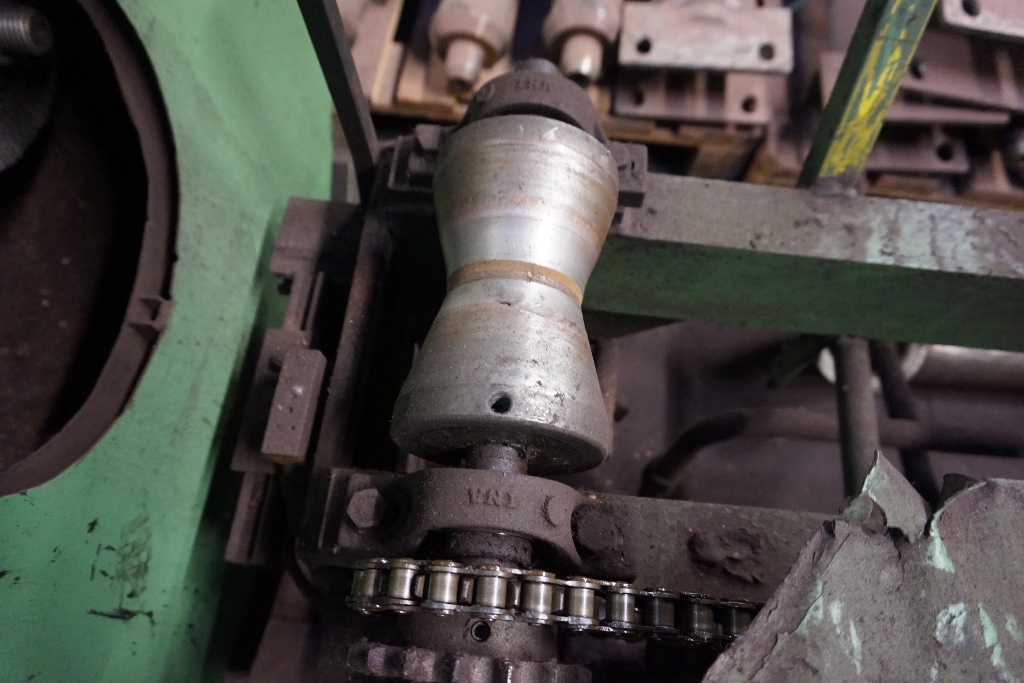

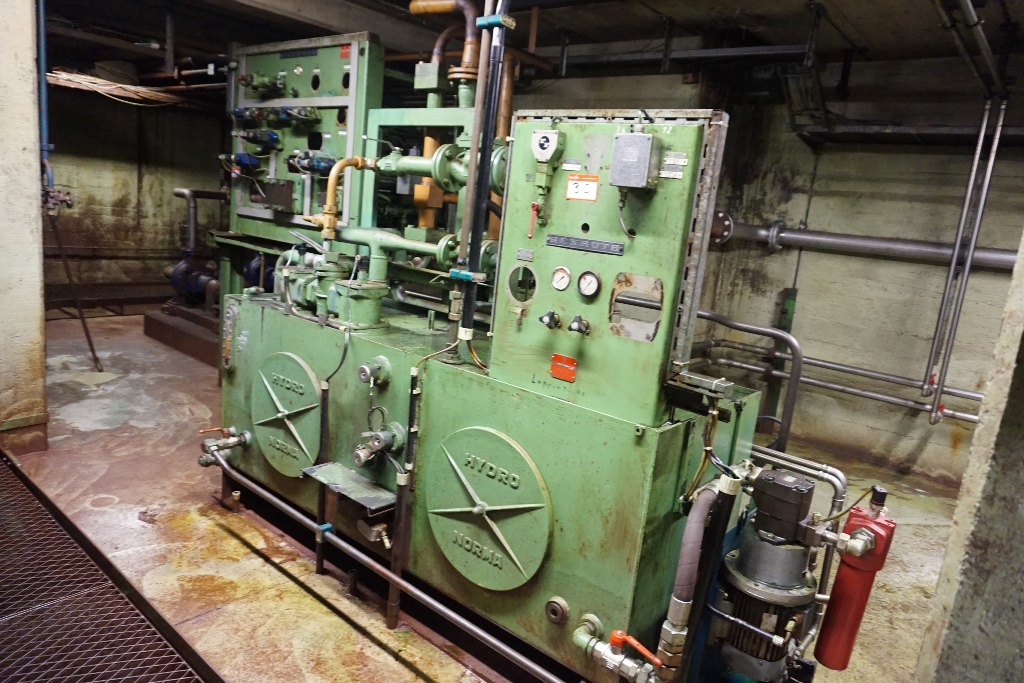

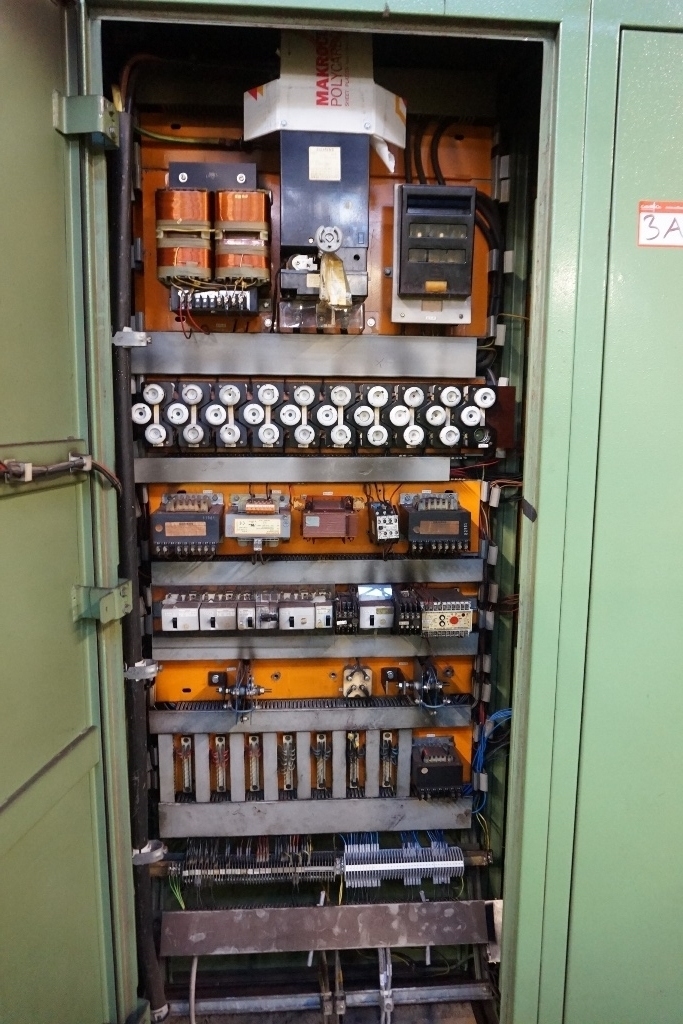

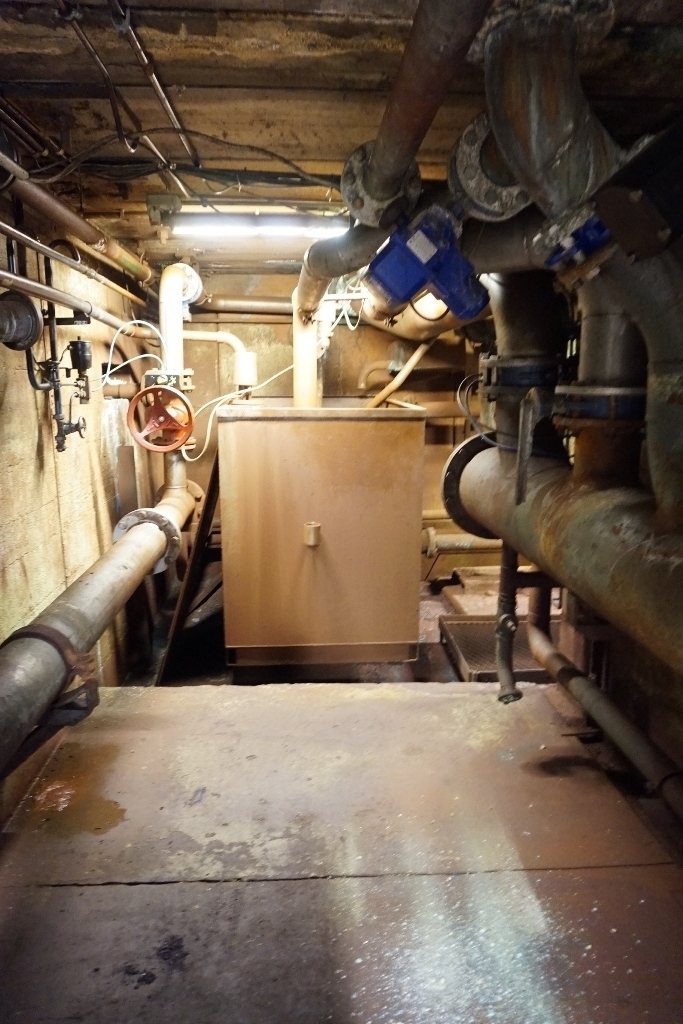

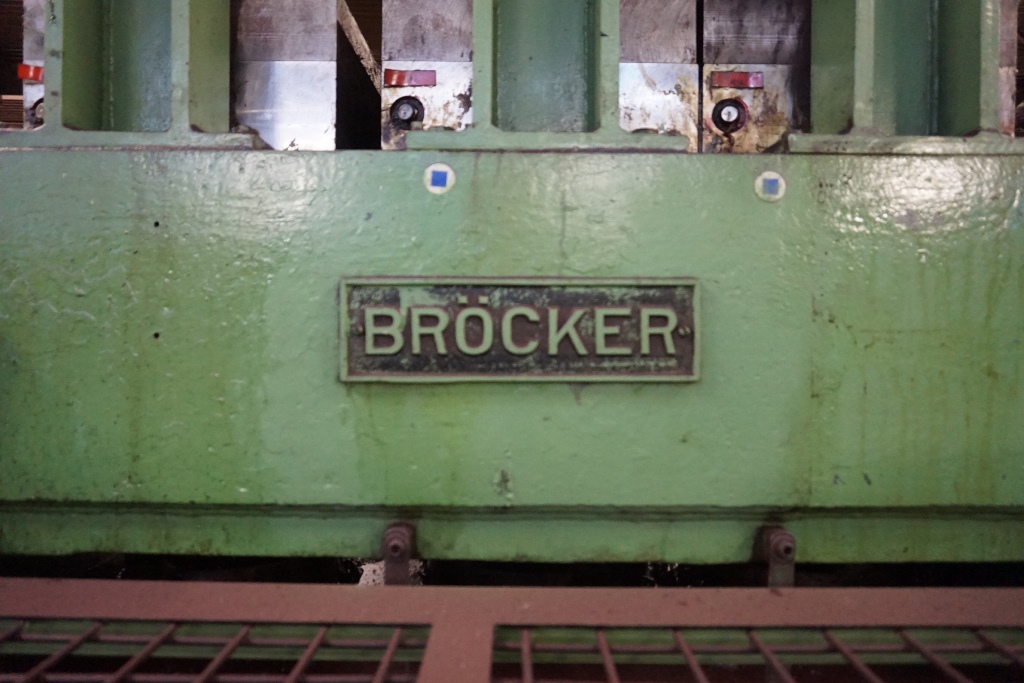

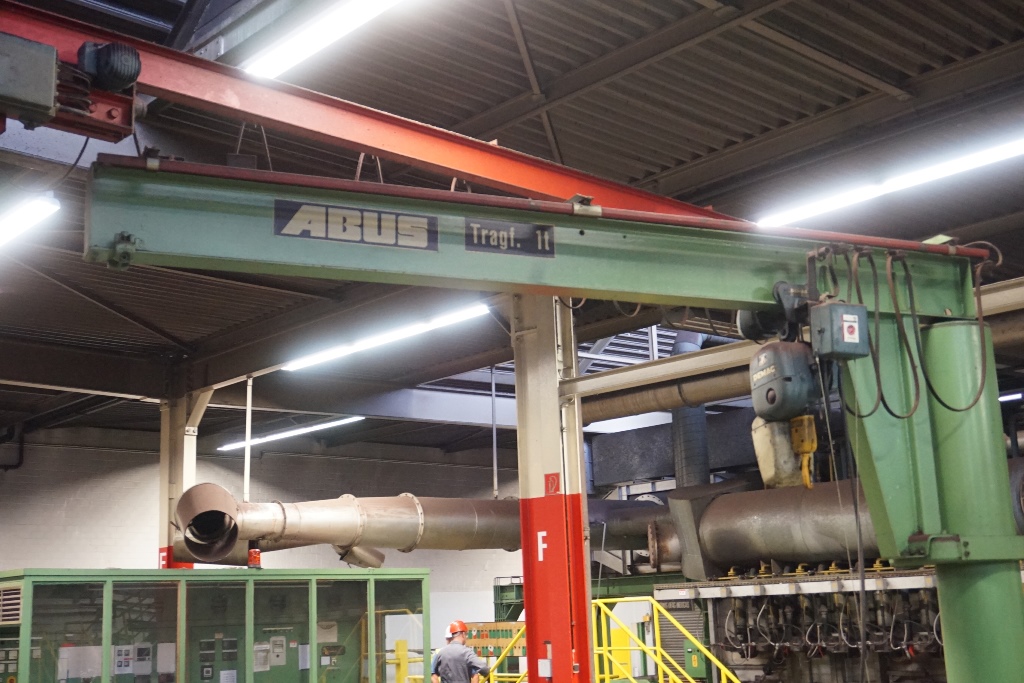

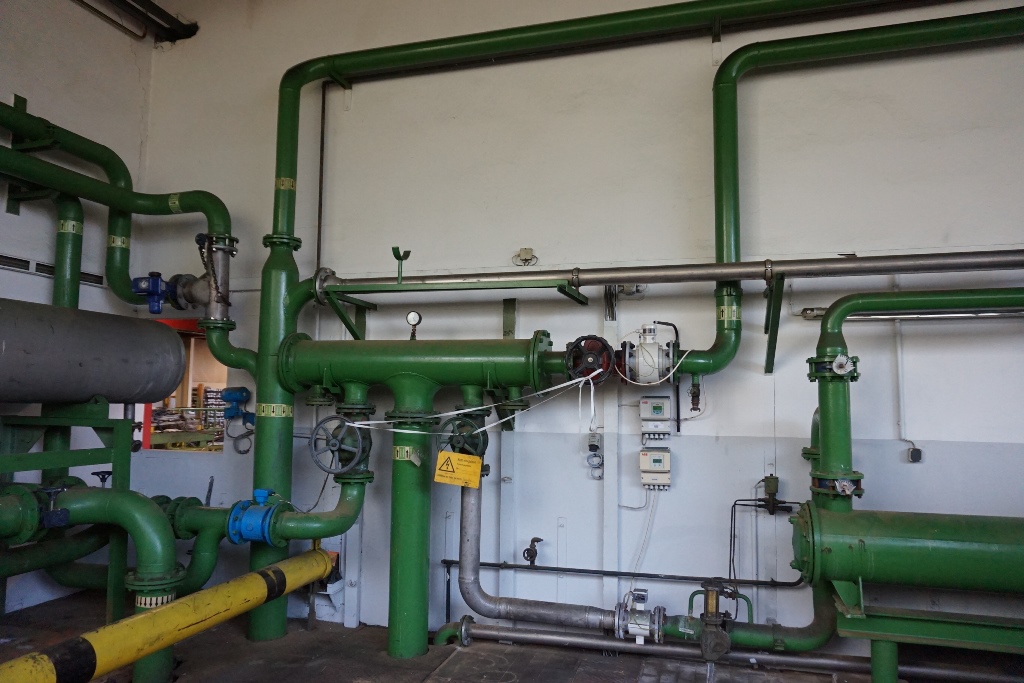

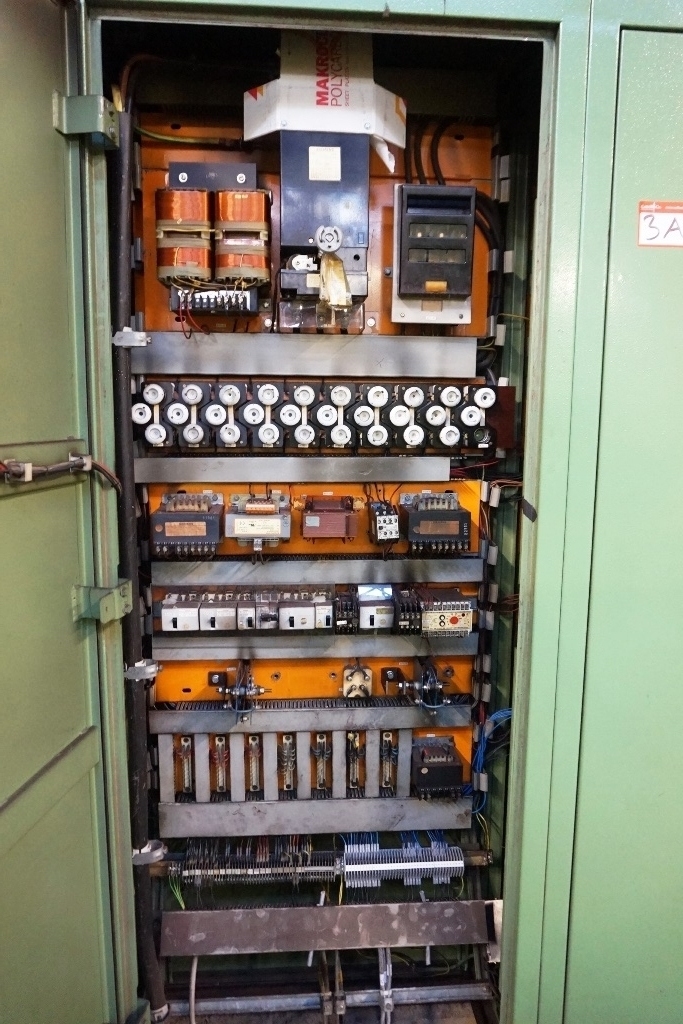

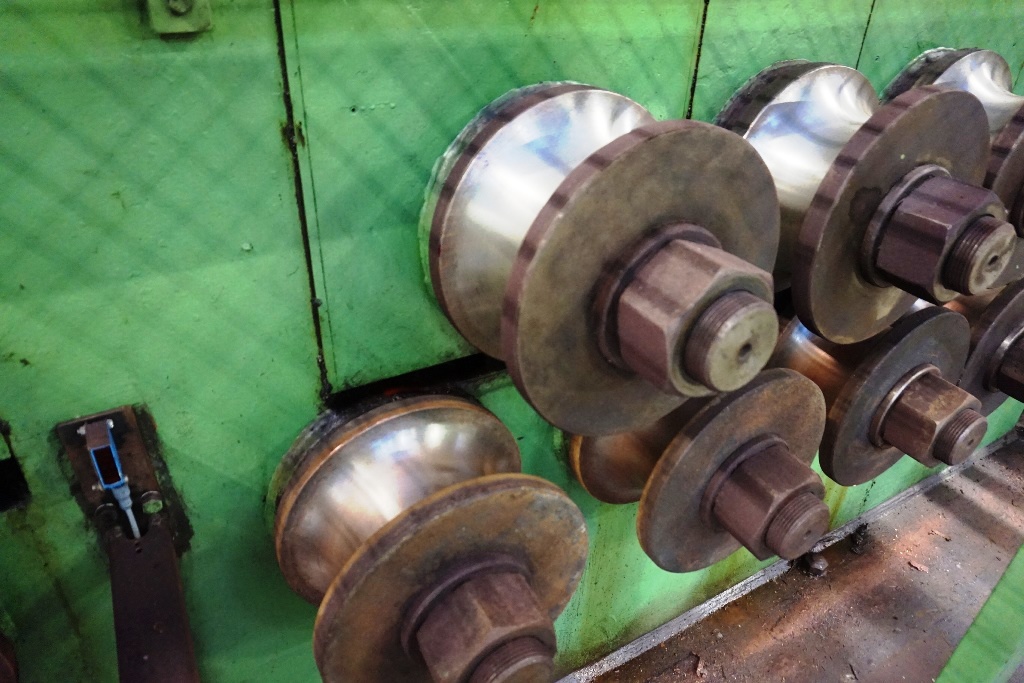

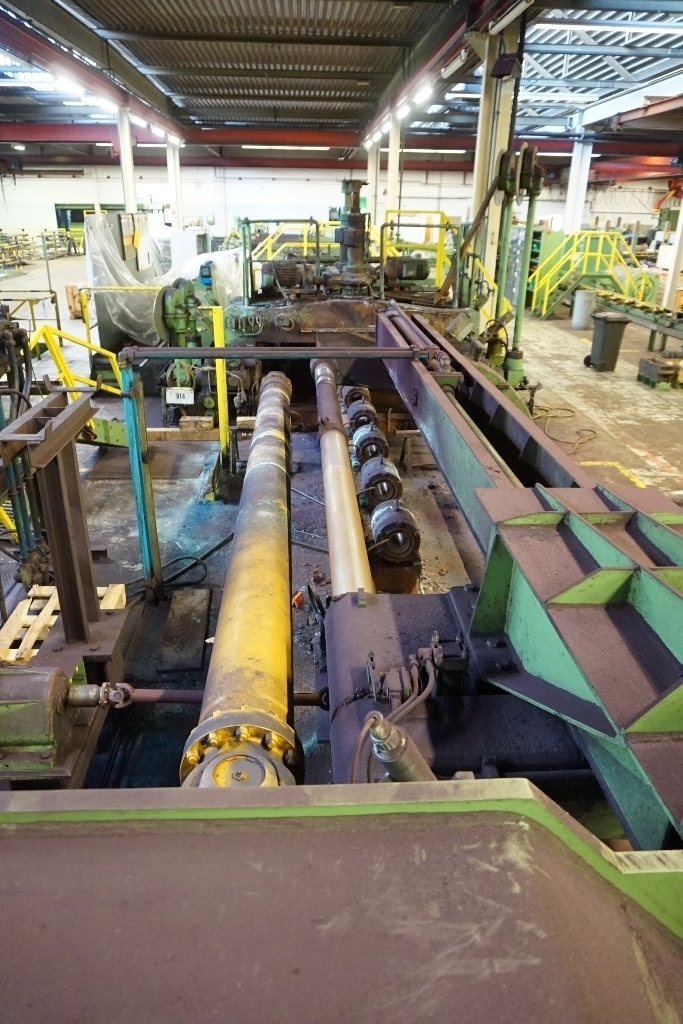

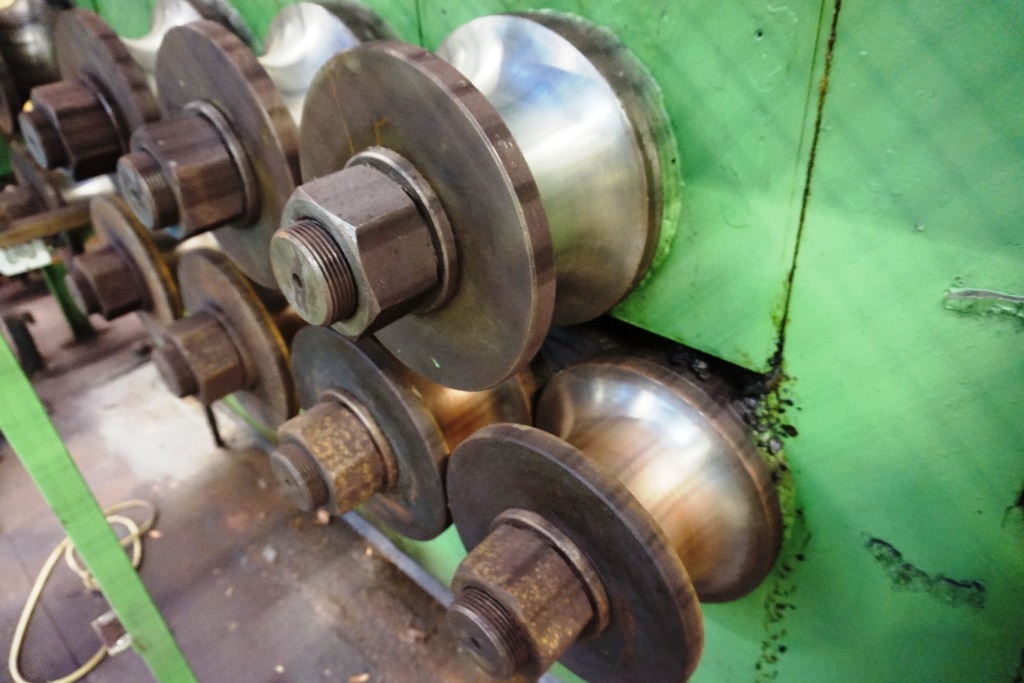

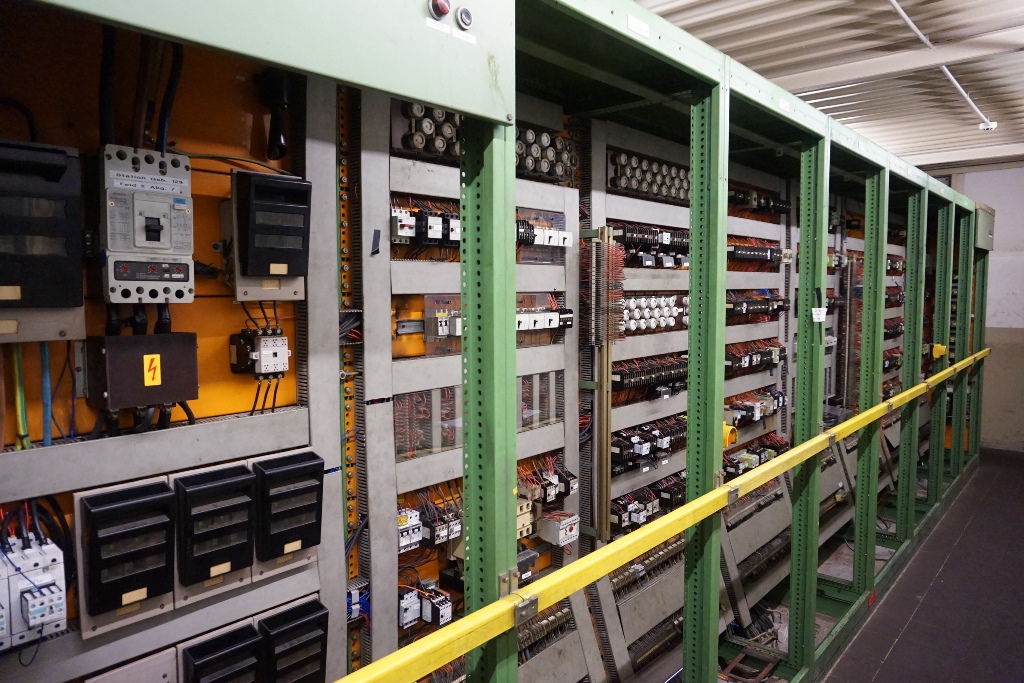

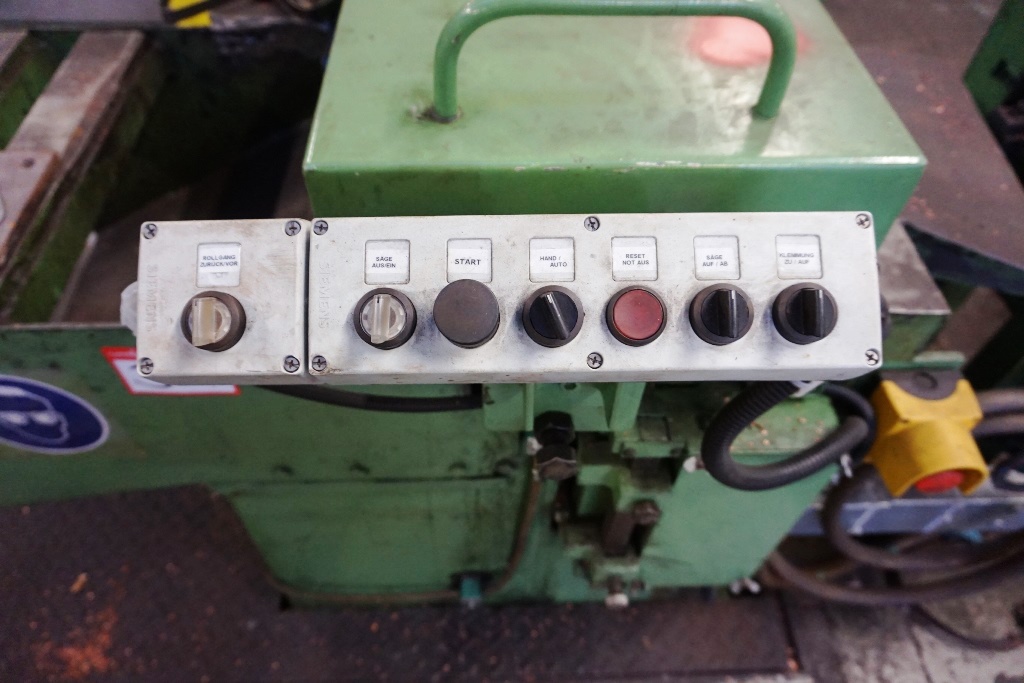

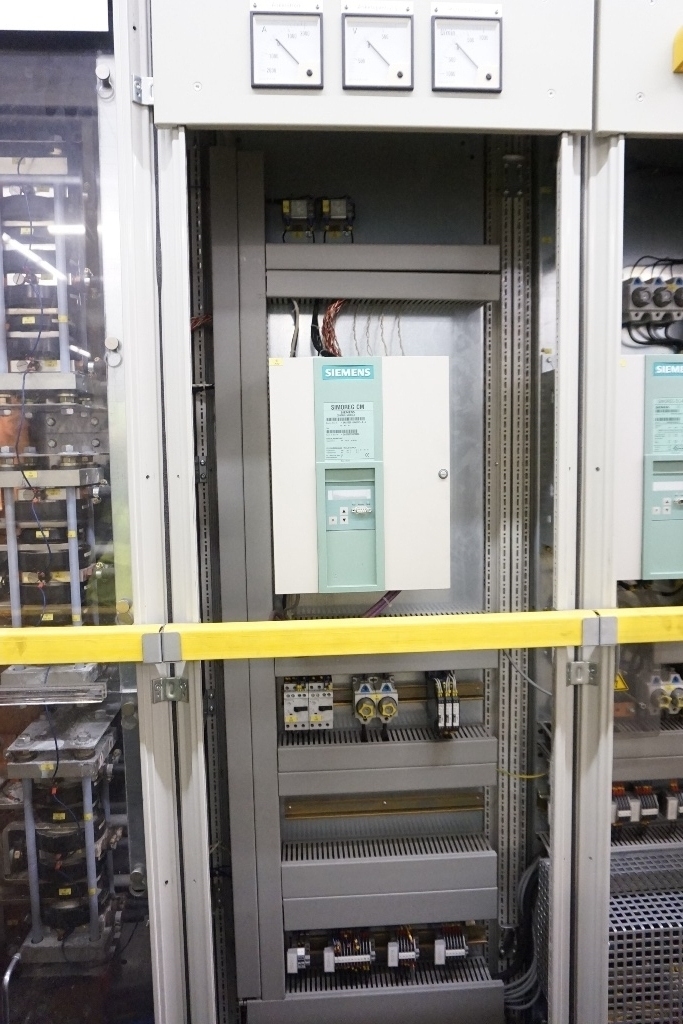

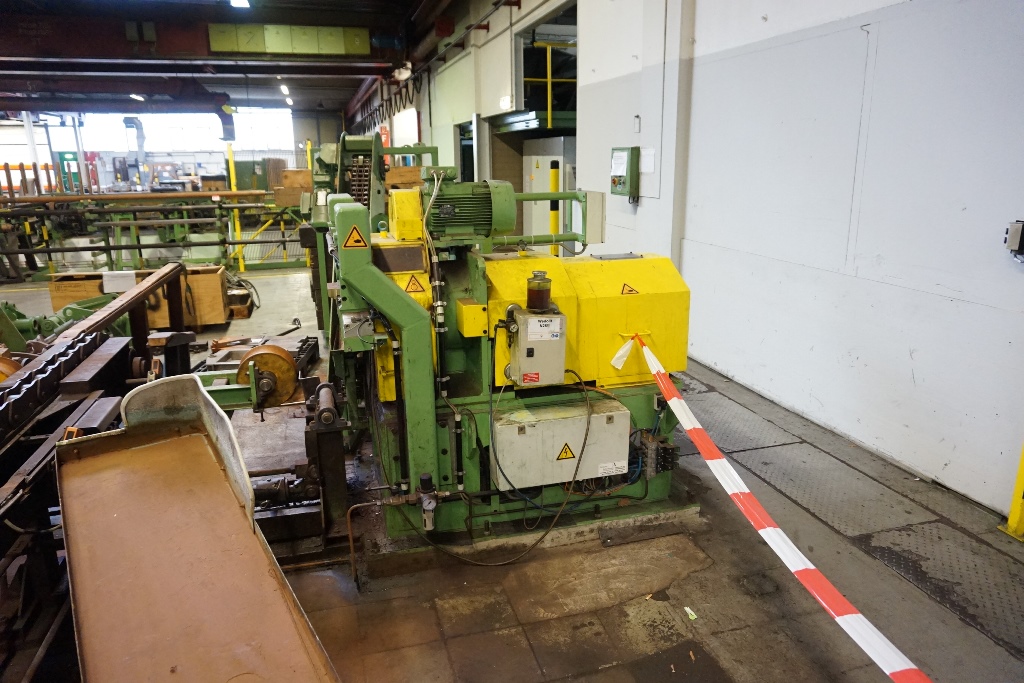

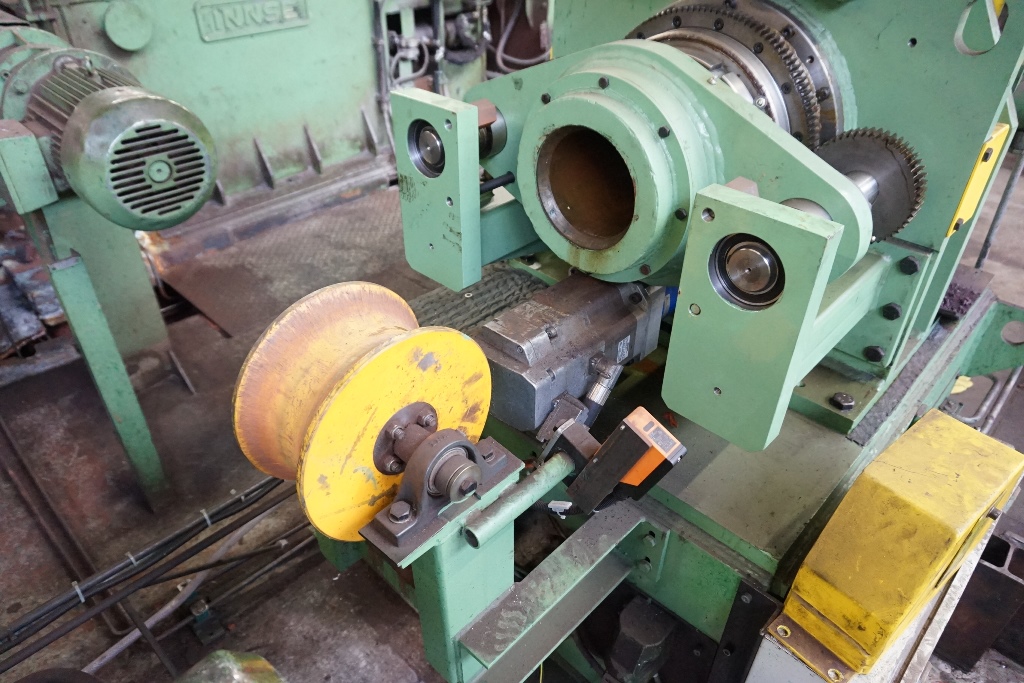

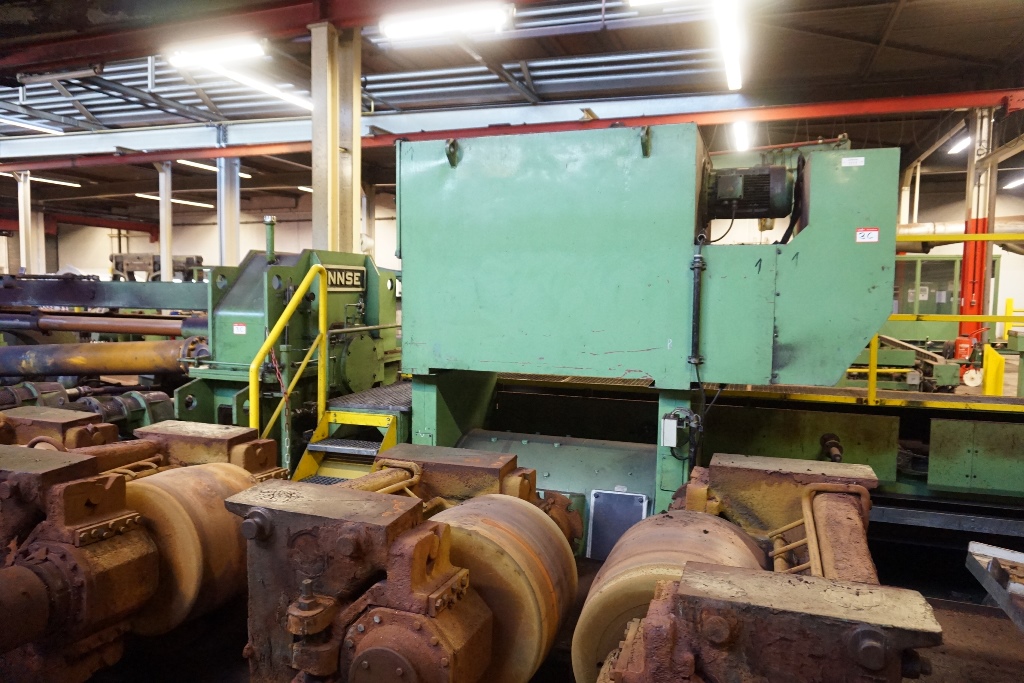

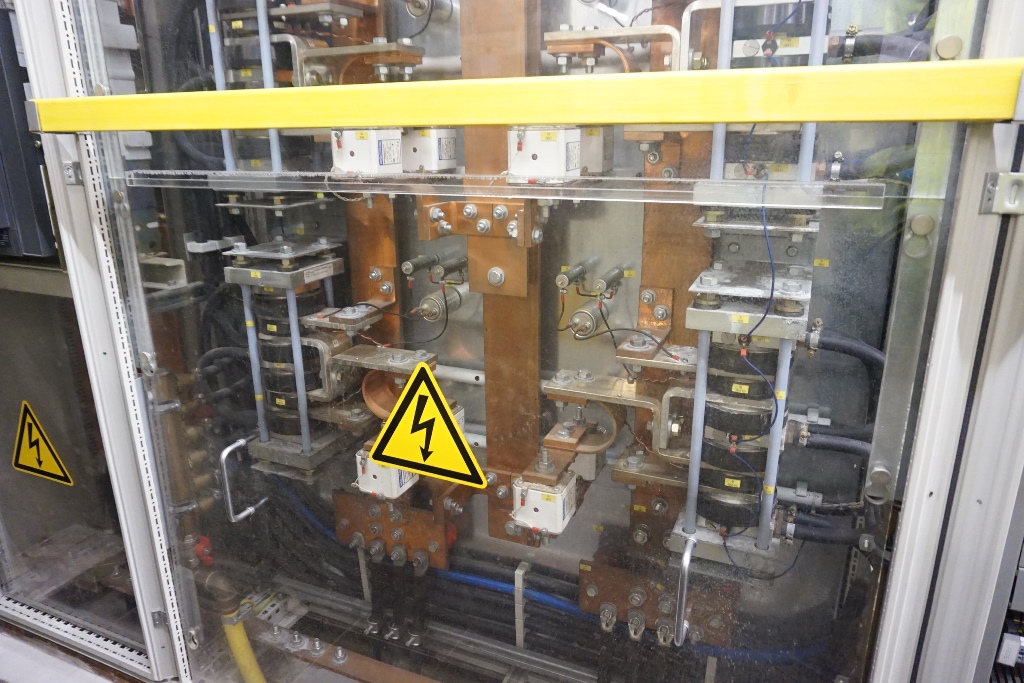

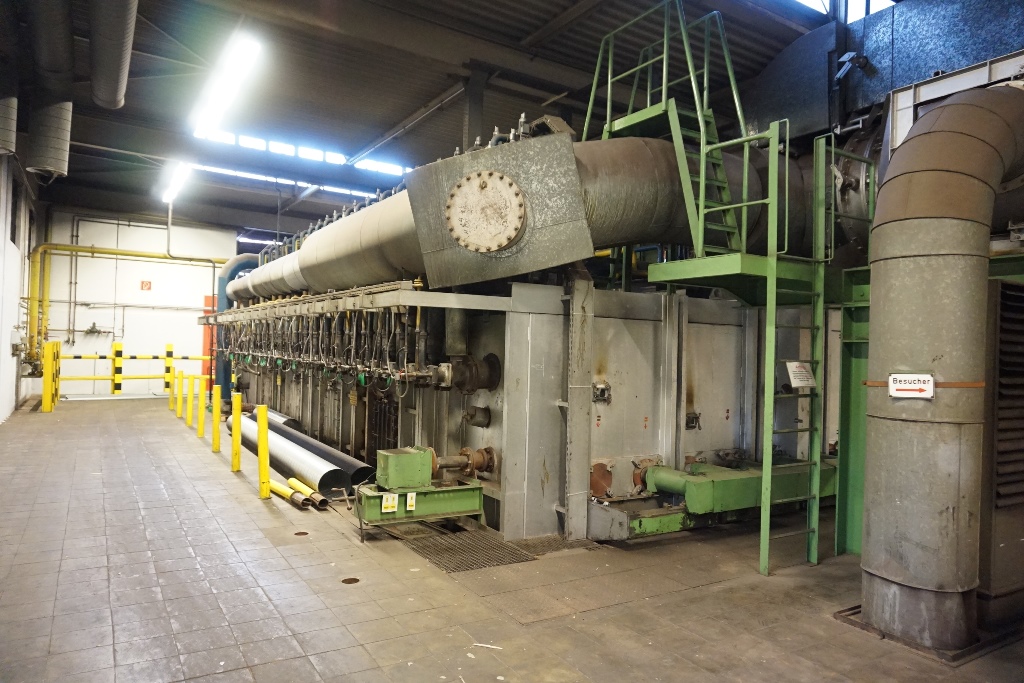

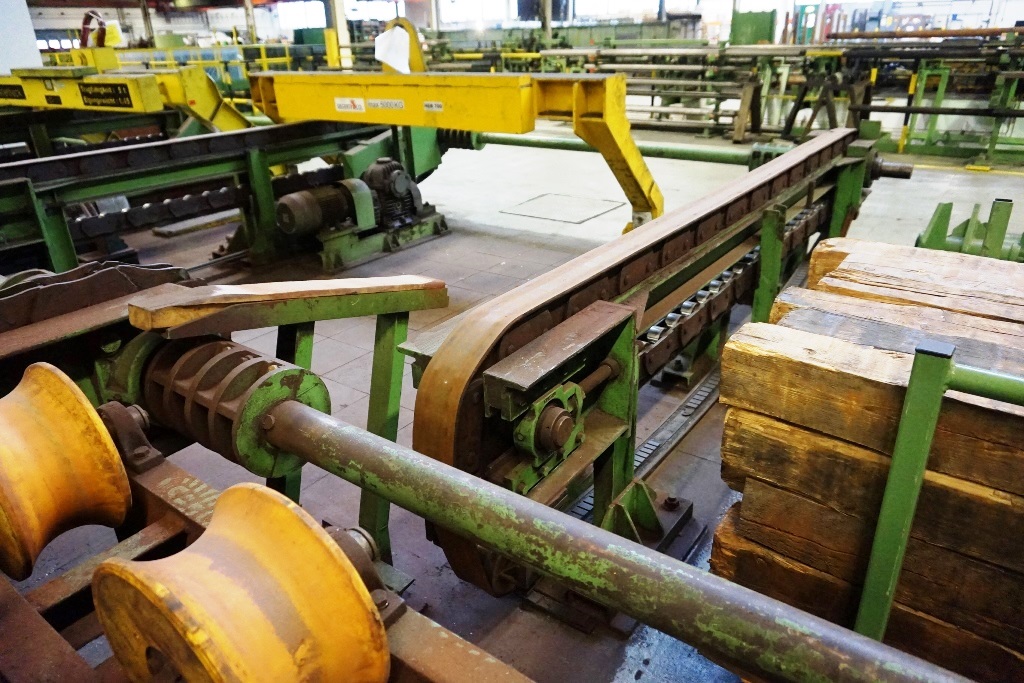

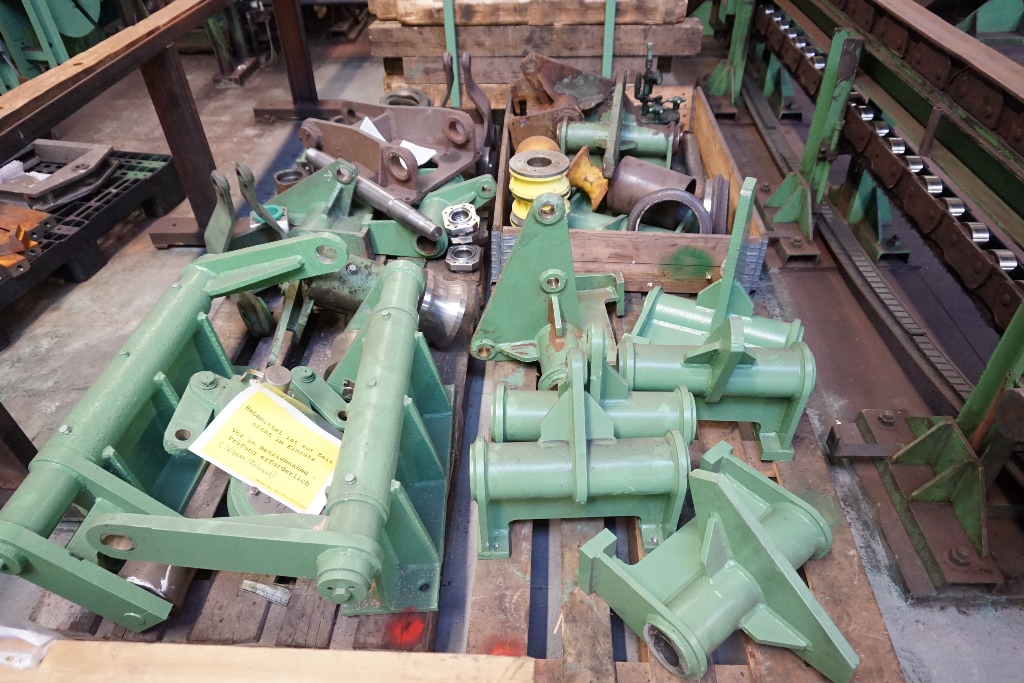

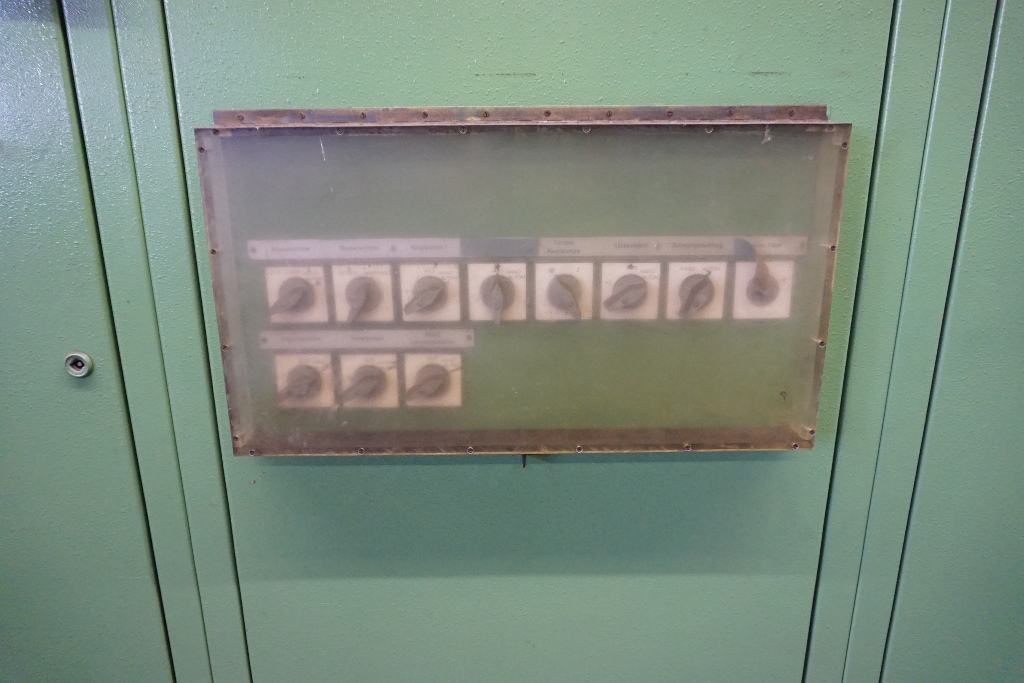

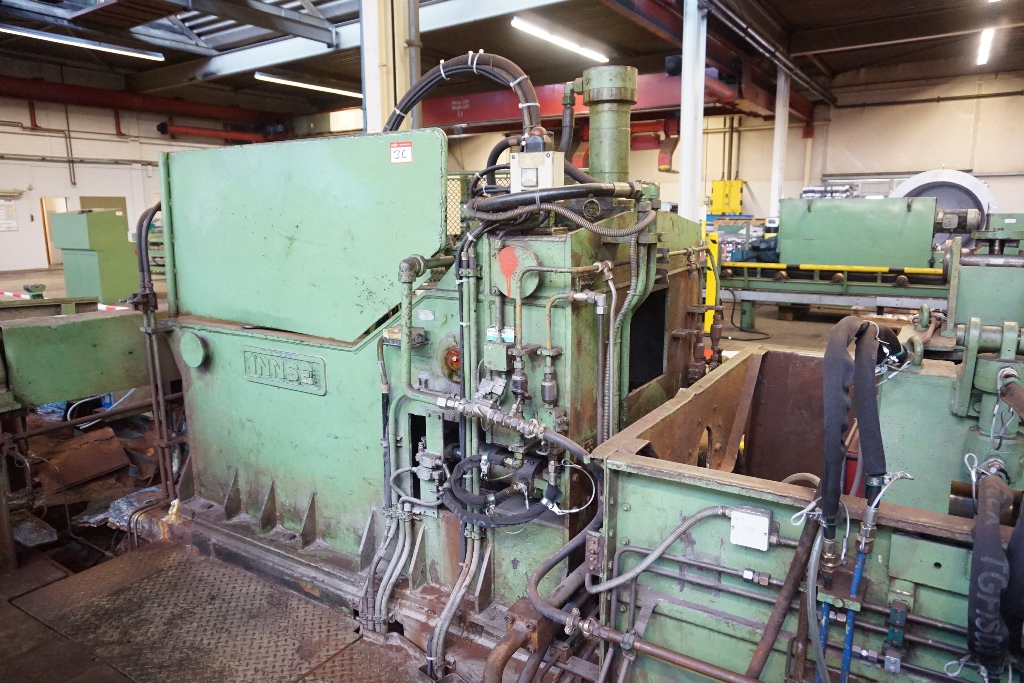

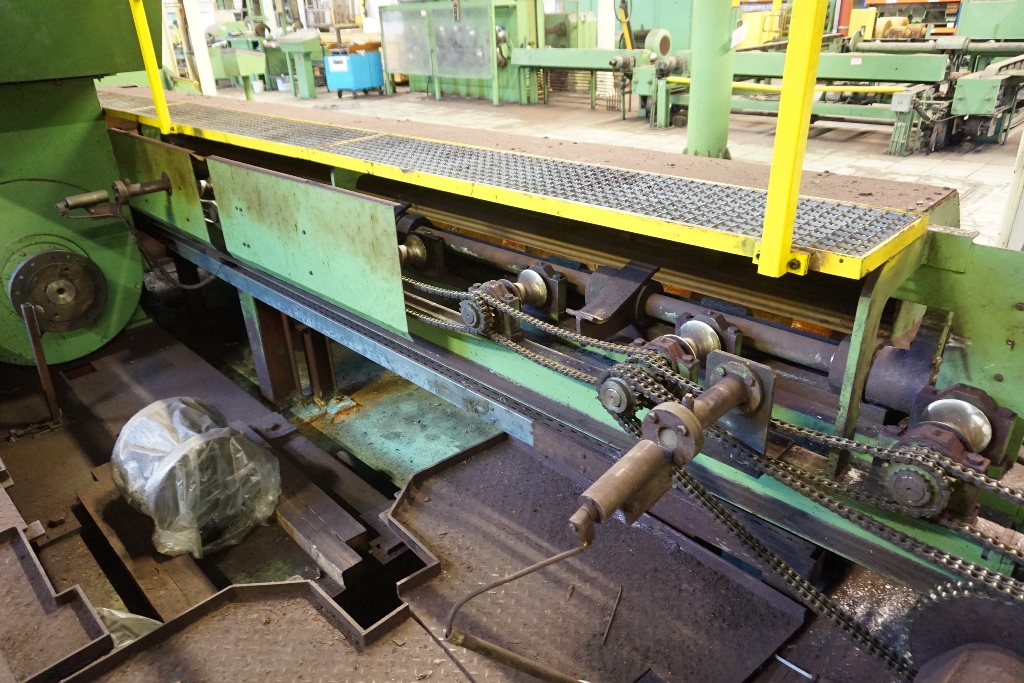

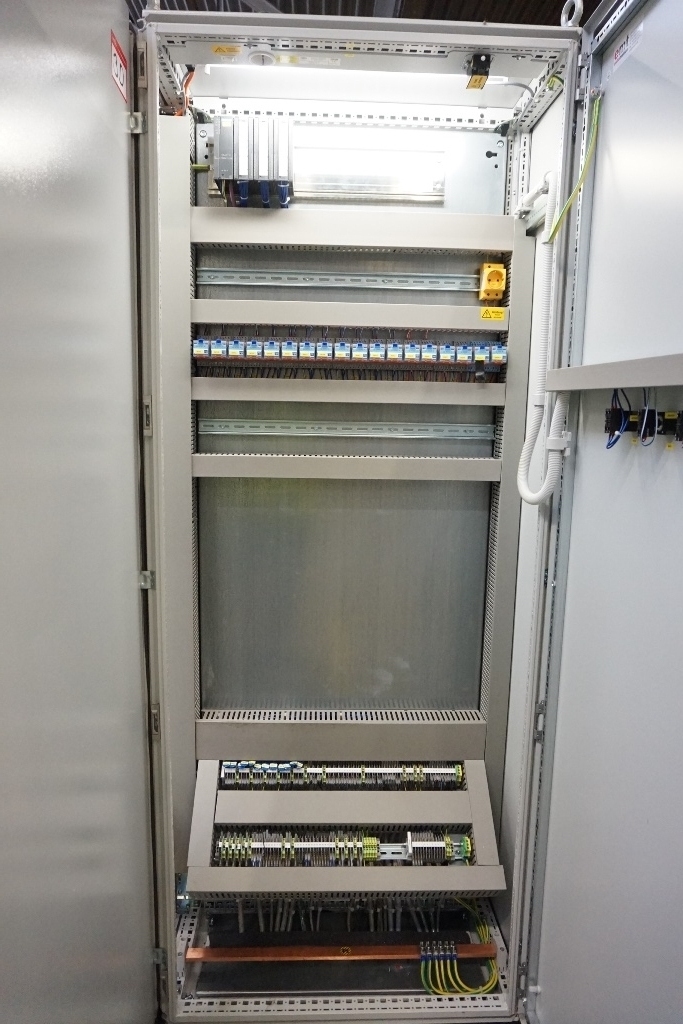

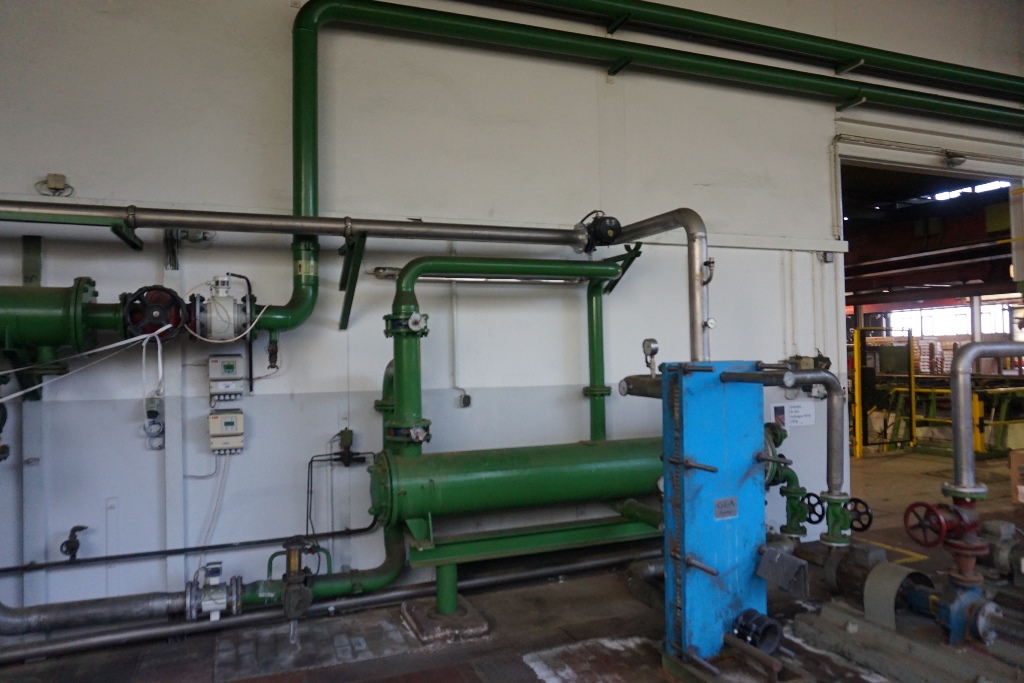

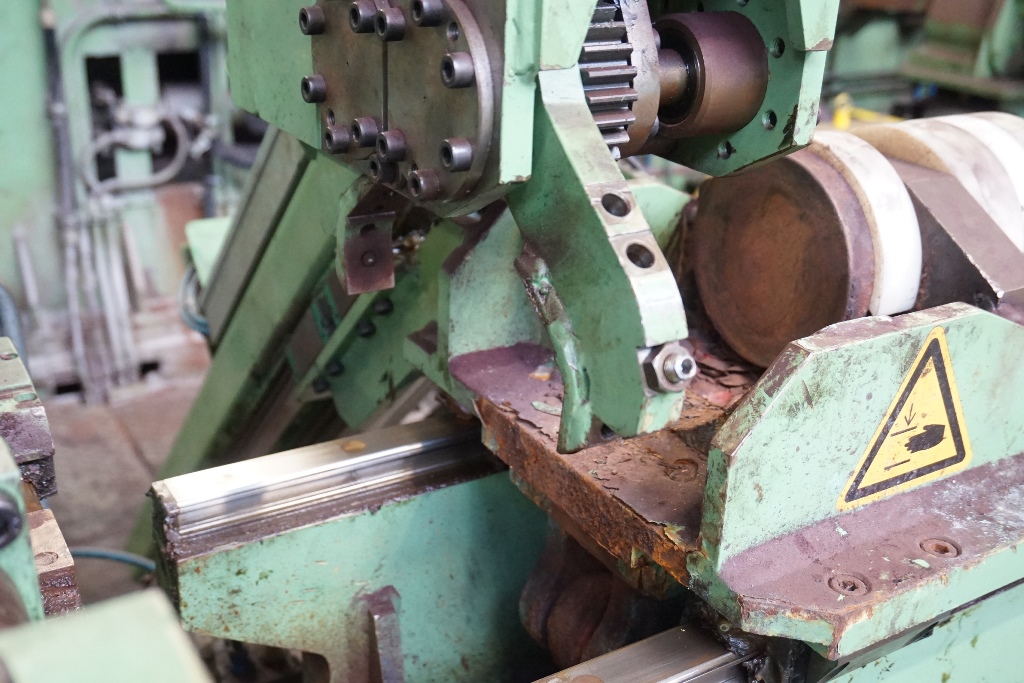

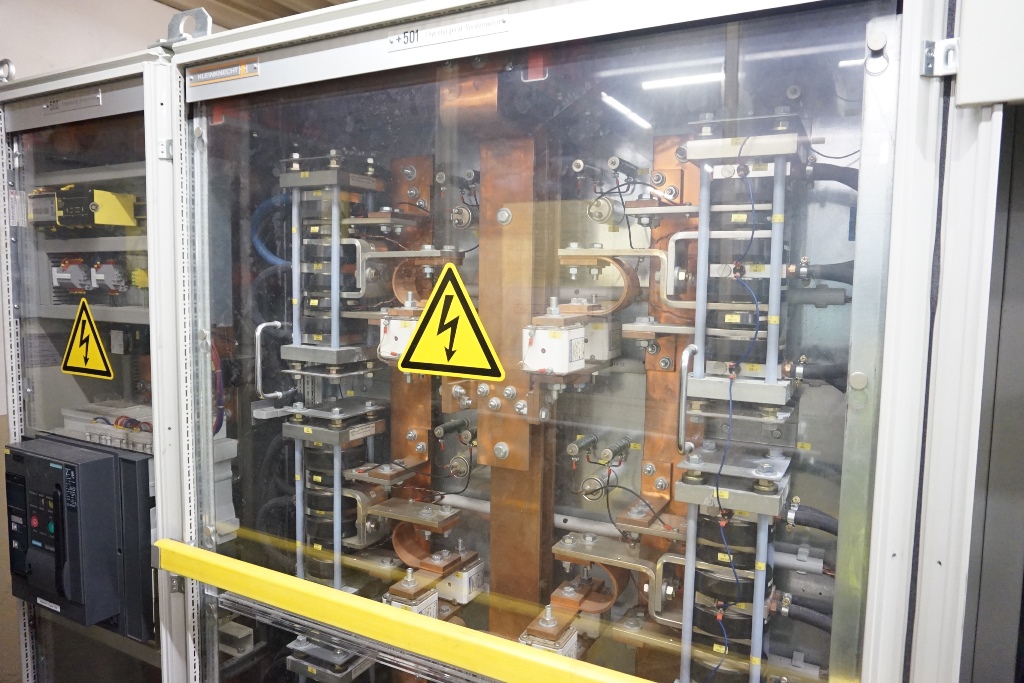

Innse Rotary Piercing Mill including furnace; Min / Max Billet 80mm dia x 3000mm length, 120mm dia x 5700mm length, Continuous Feeding System with Billet Brushing, Rotary Crane, Brocker Straightening Machine, Ludwig Ofag Indugas (LOI) / Charging and Discharging Billet Furnace, Tube Transportation System to Piercing Mill, Siemens Main Electric Motor, Gearbox and Transmission Innse Billet Pusher, Control Console, Re-sawing Unit, Pressure Rollers 116-145mm dia x 450mm width, Roller Material No. 12343, Core Material of Pressure Rollers 1.2343, Hardness of outer alloy 1.9080, Mandrel Diameter: 86mm, Mandrel Material 1.2581, Incoming Billets 115mm x 5400mm, Weight 508kg, Temperature 930c, Outgoing Billets 115mm x 13mm x 1250mm, Roller speed 70 – 90 RPM, Max Performance 28 pieces per hour, Electric Control with Siemens Multipanel Touch Screen, Water Cooling and Filtration System, Tooling for Piercing Mill and Transformers

Please Note: This Item is located in Germany

Please click here to view a specification sheet for this equipment
