Item description
Combination of lots 1, 1A, & 1B

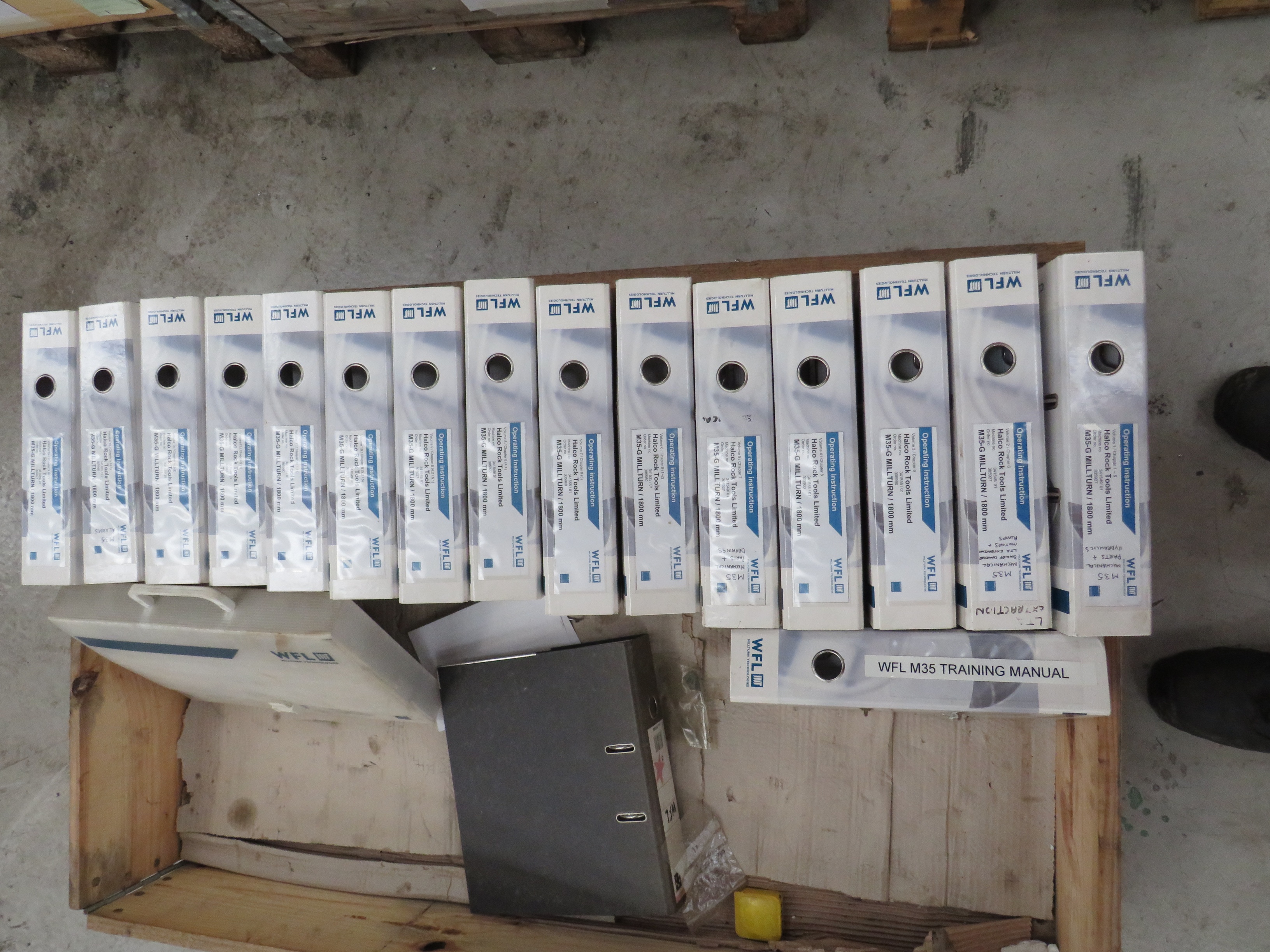

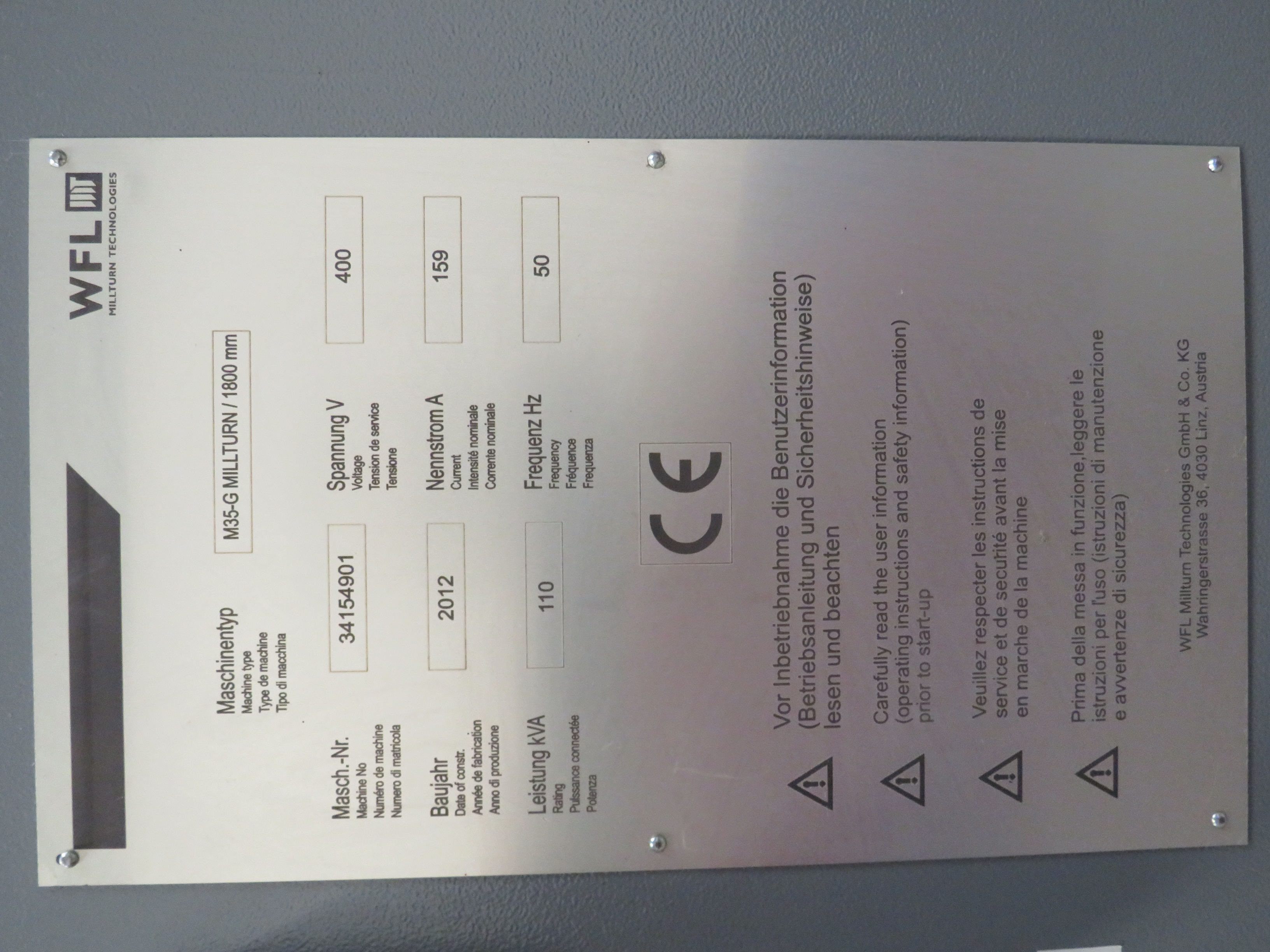

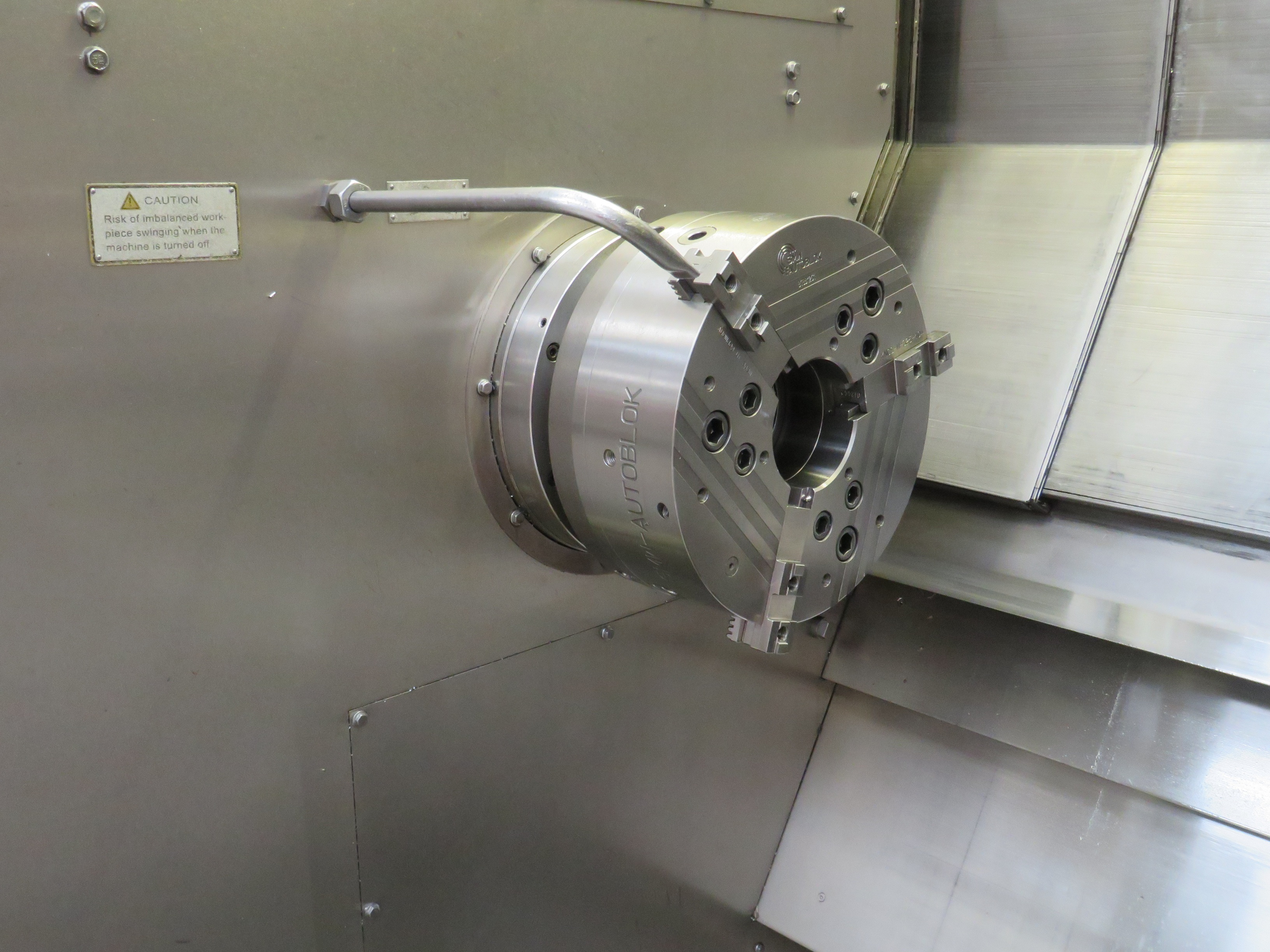

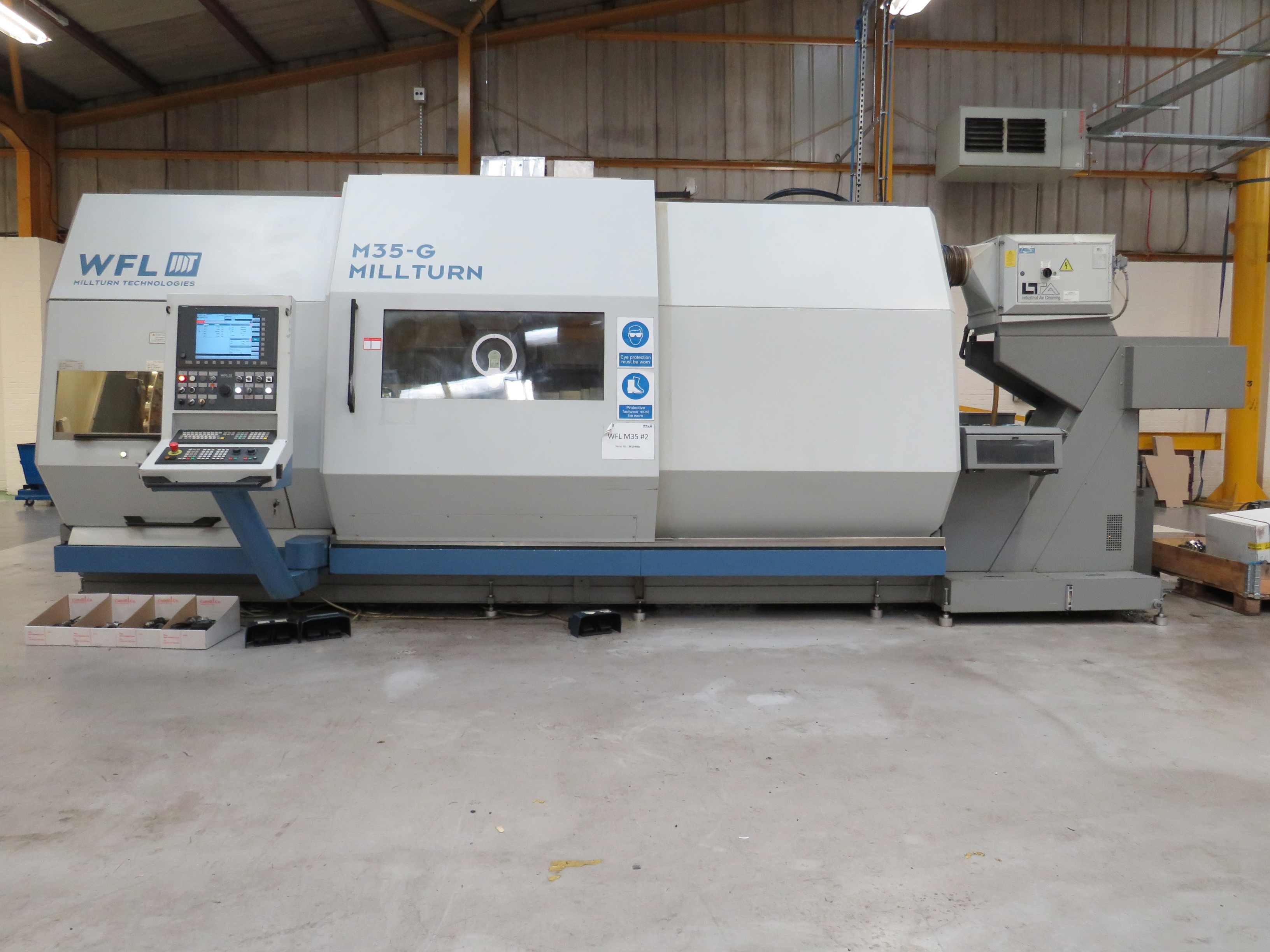

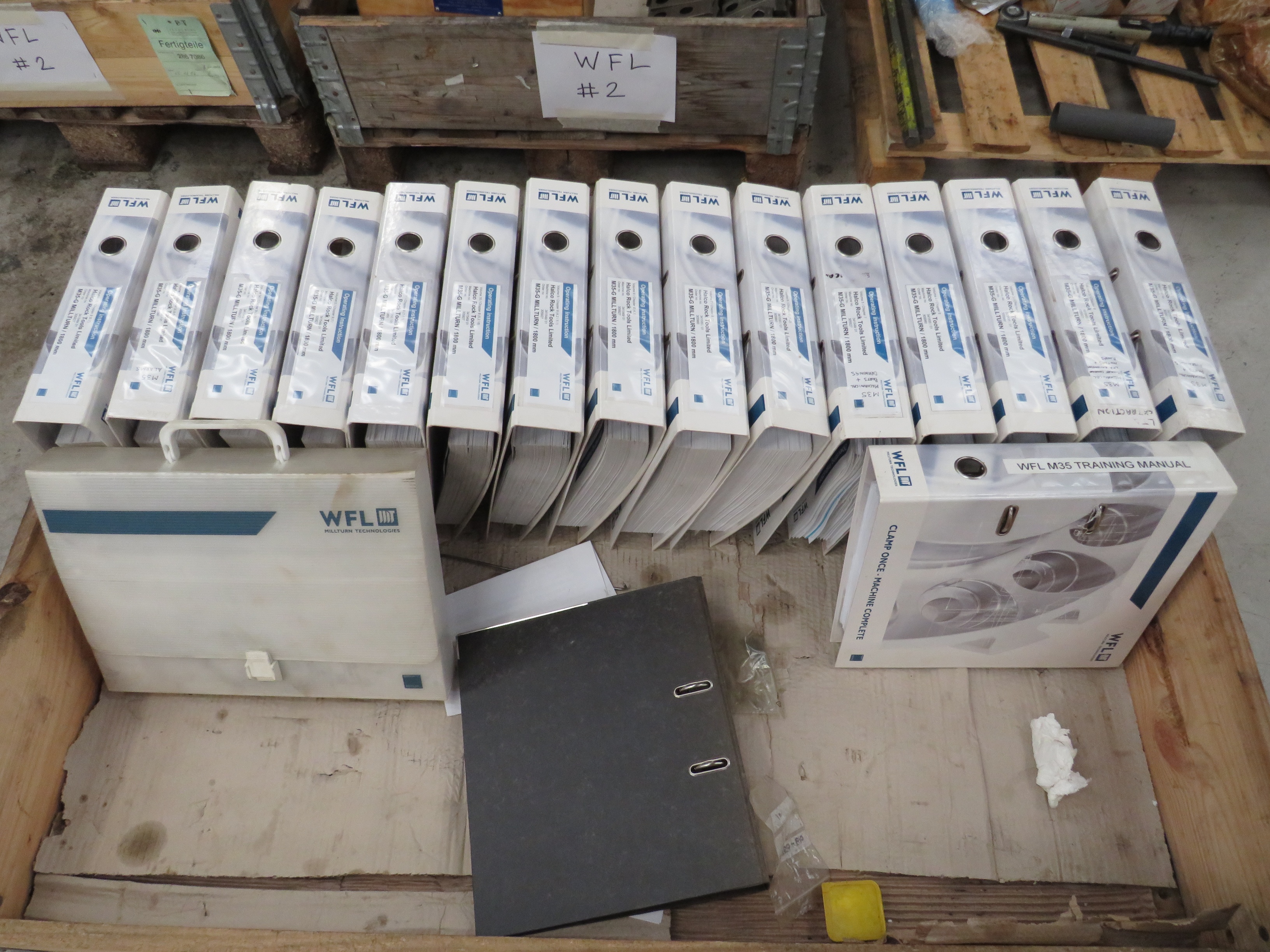

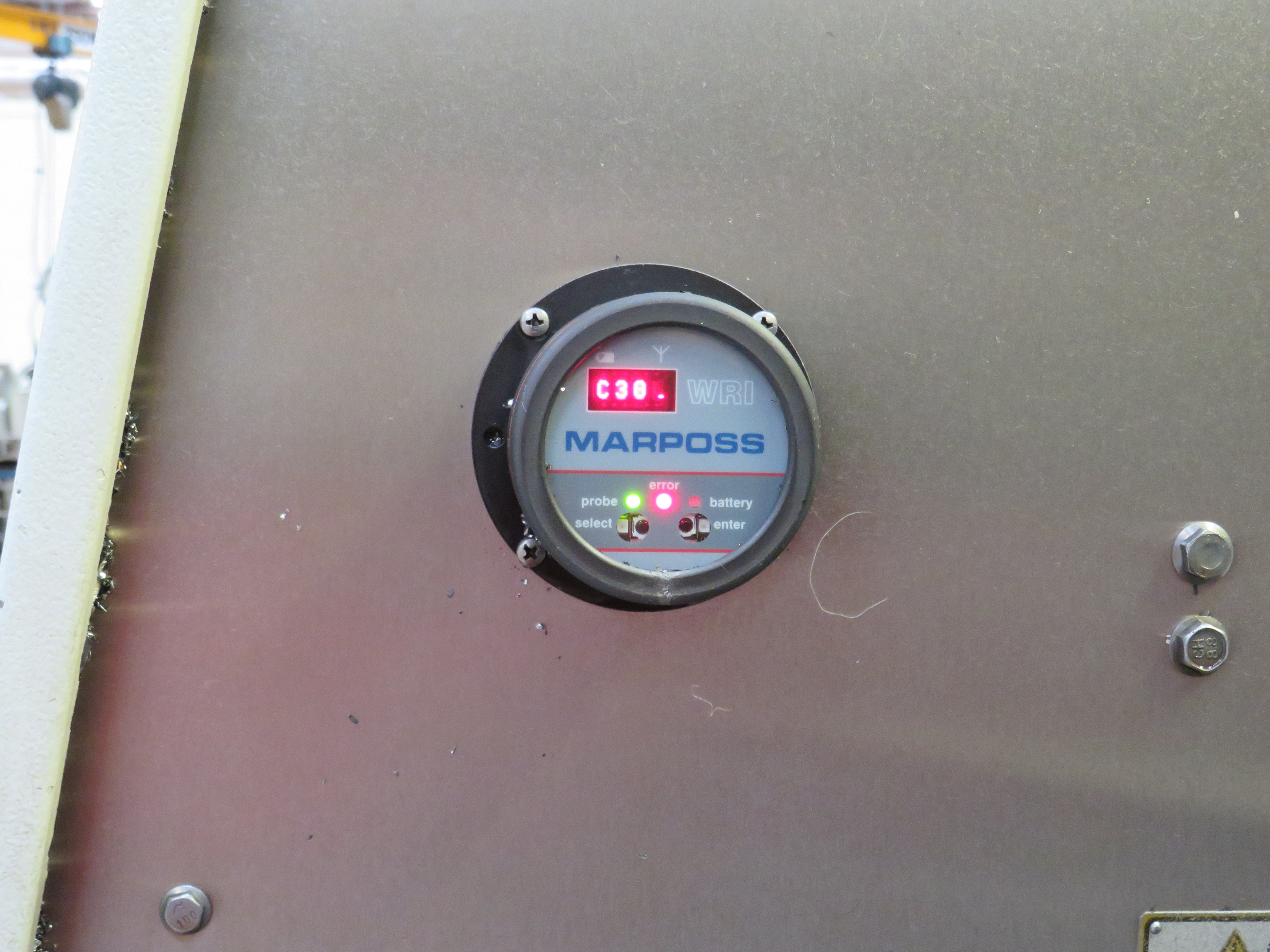

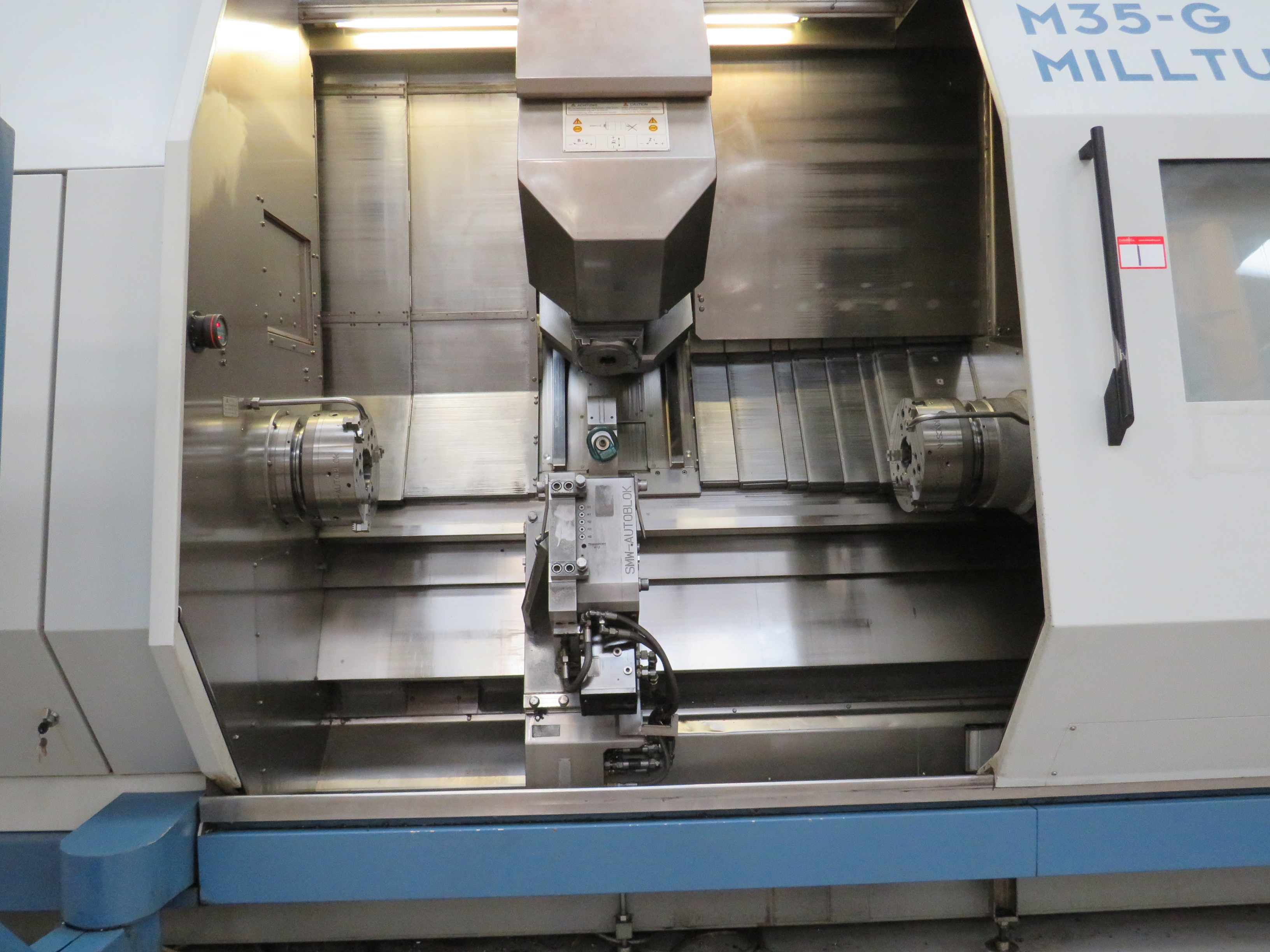

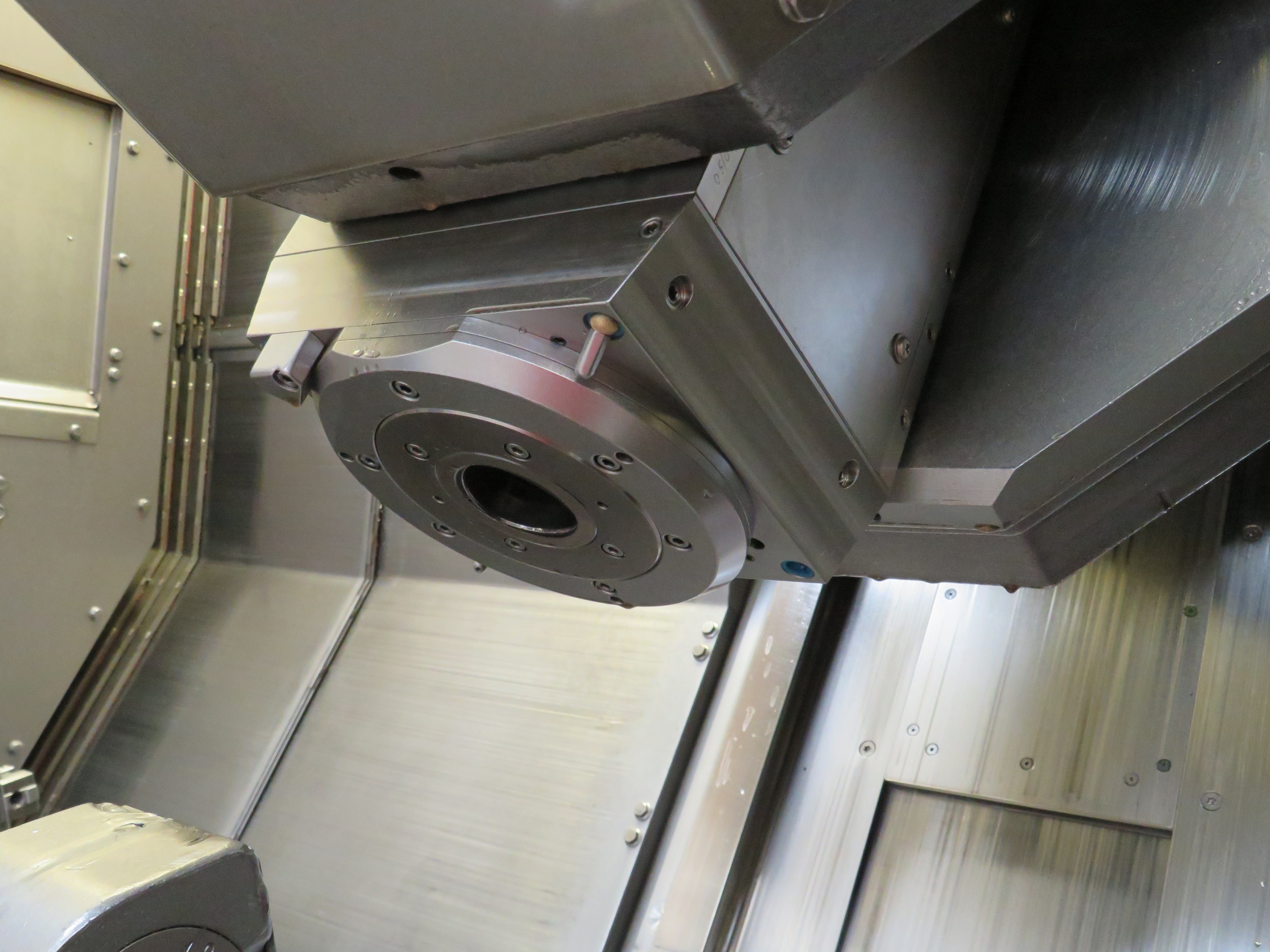

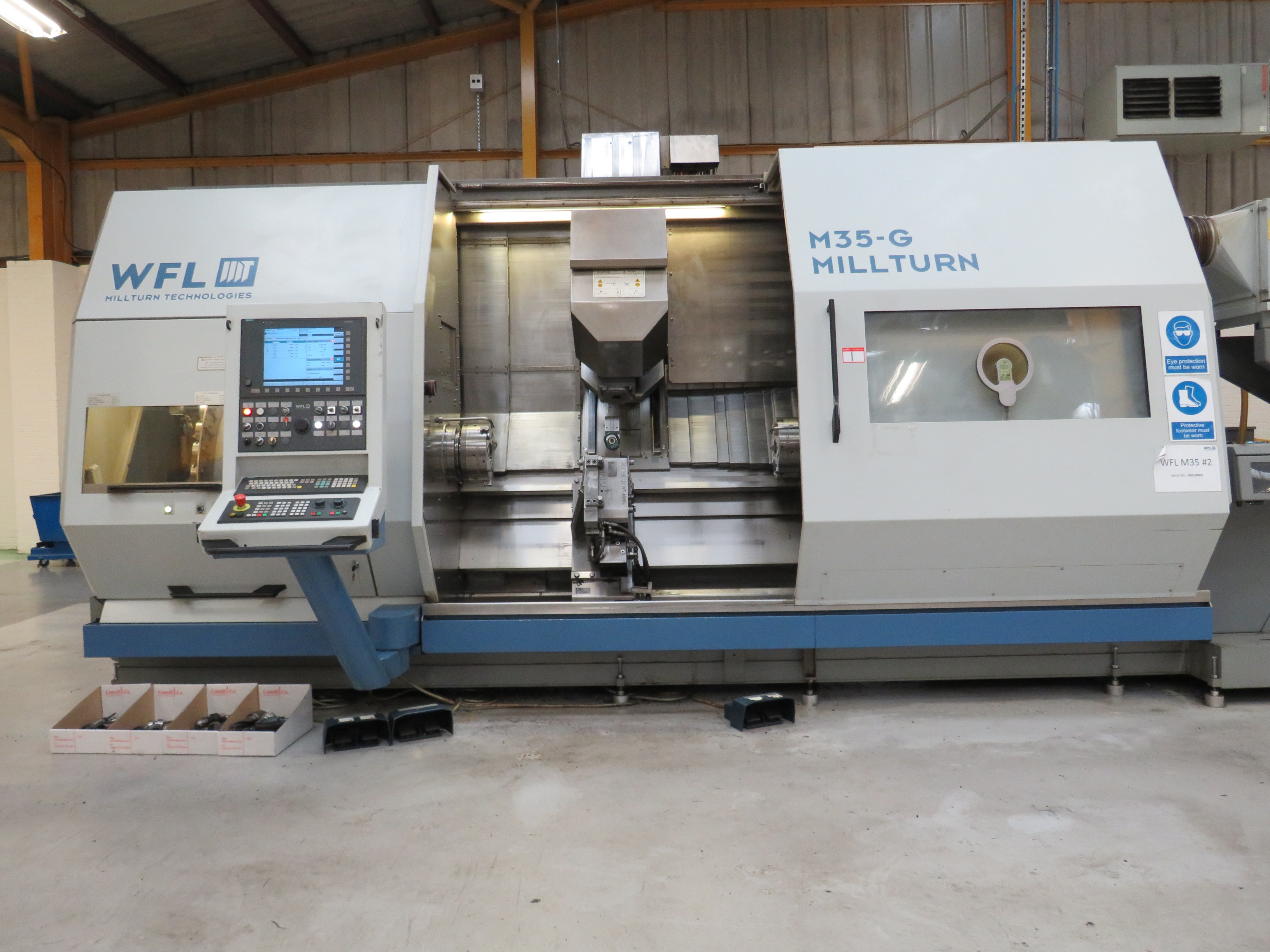

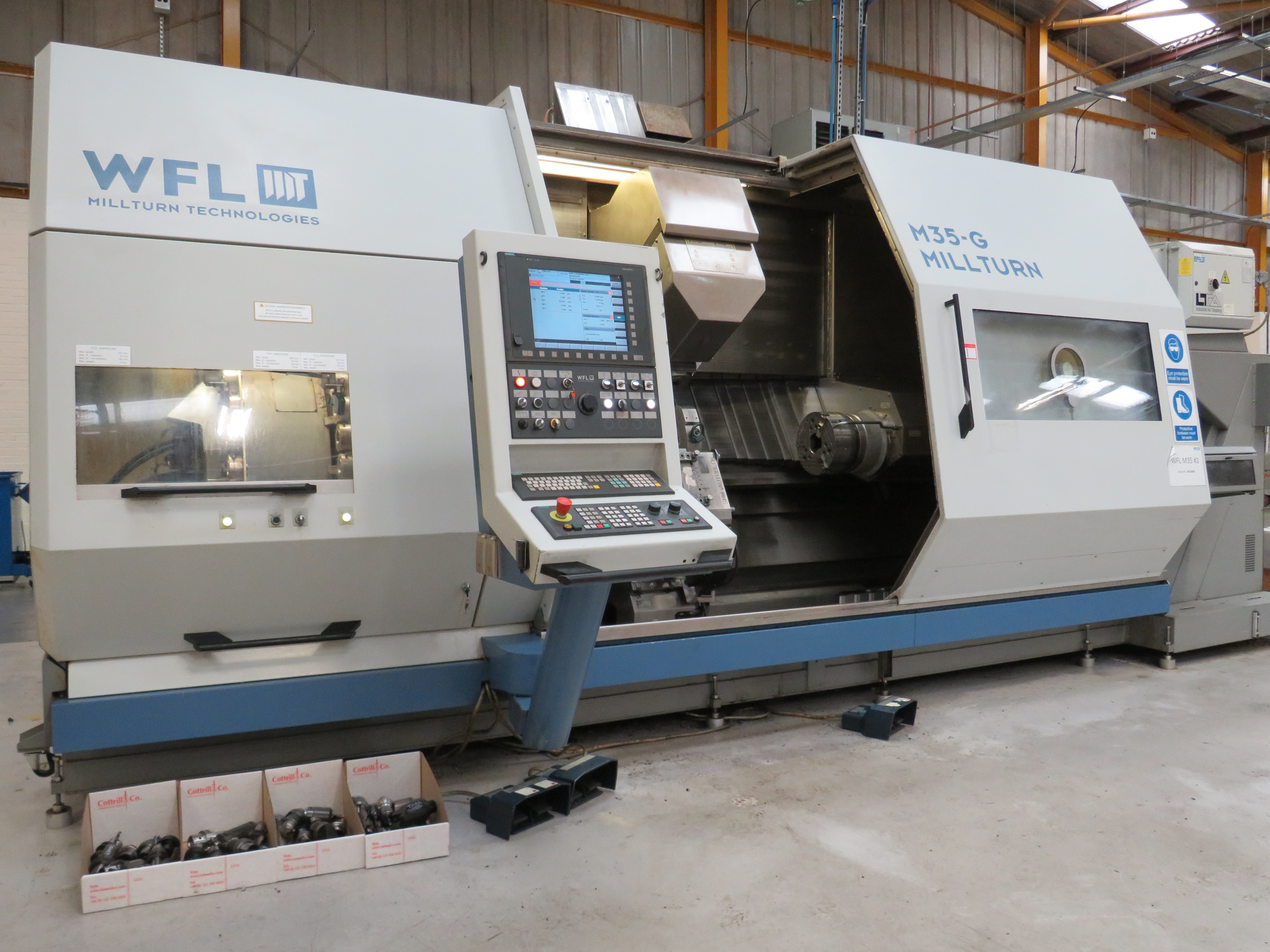

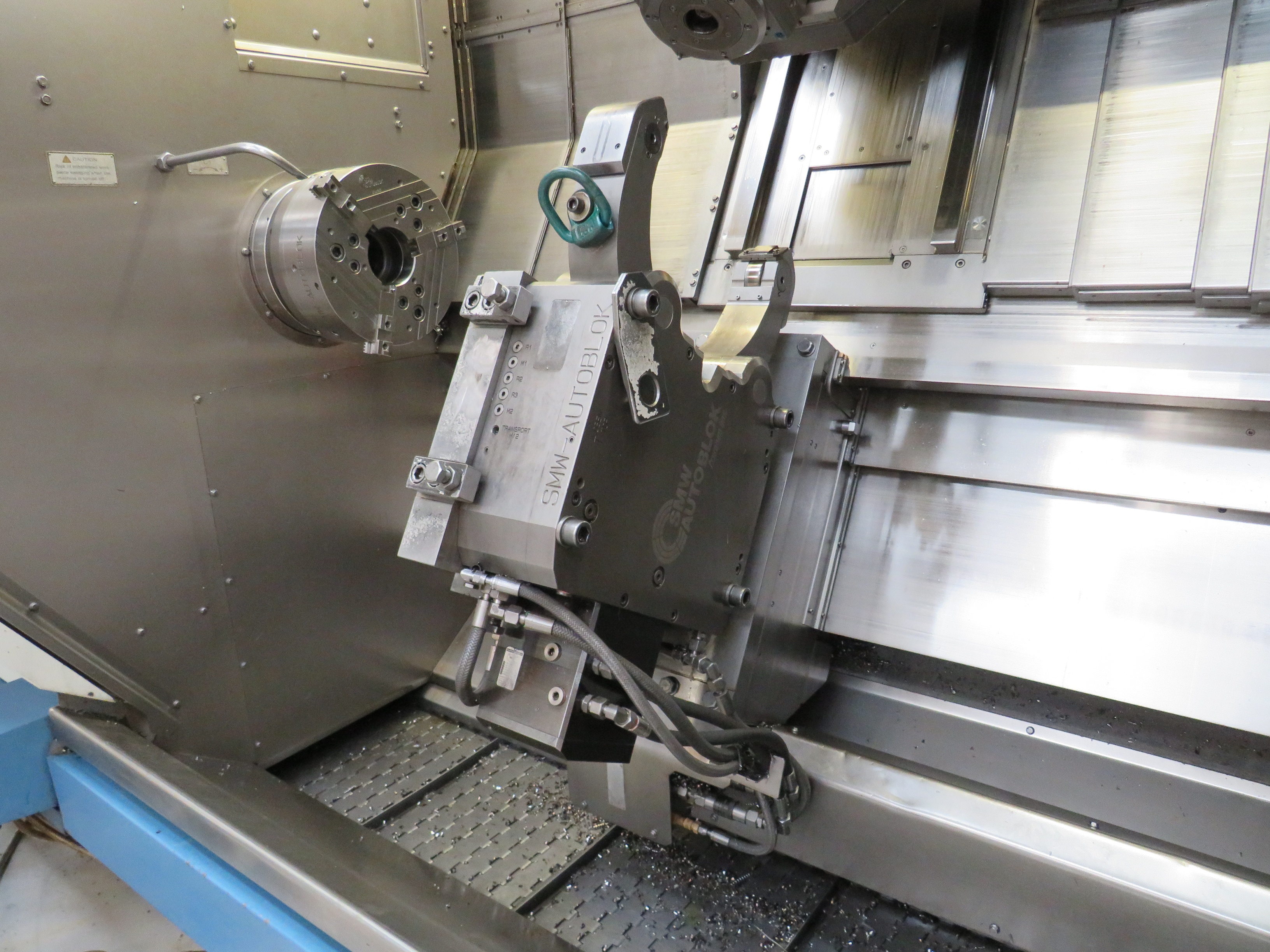

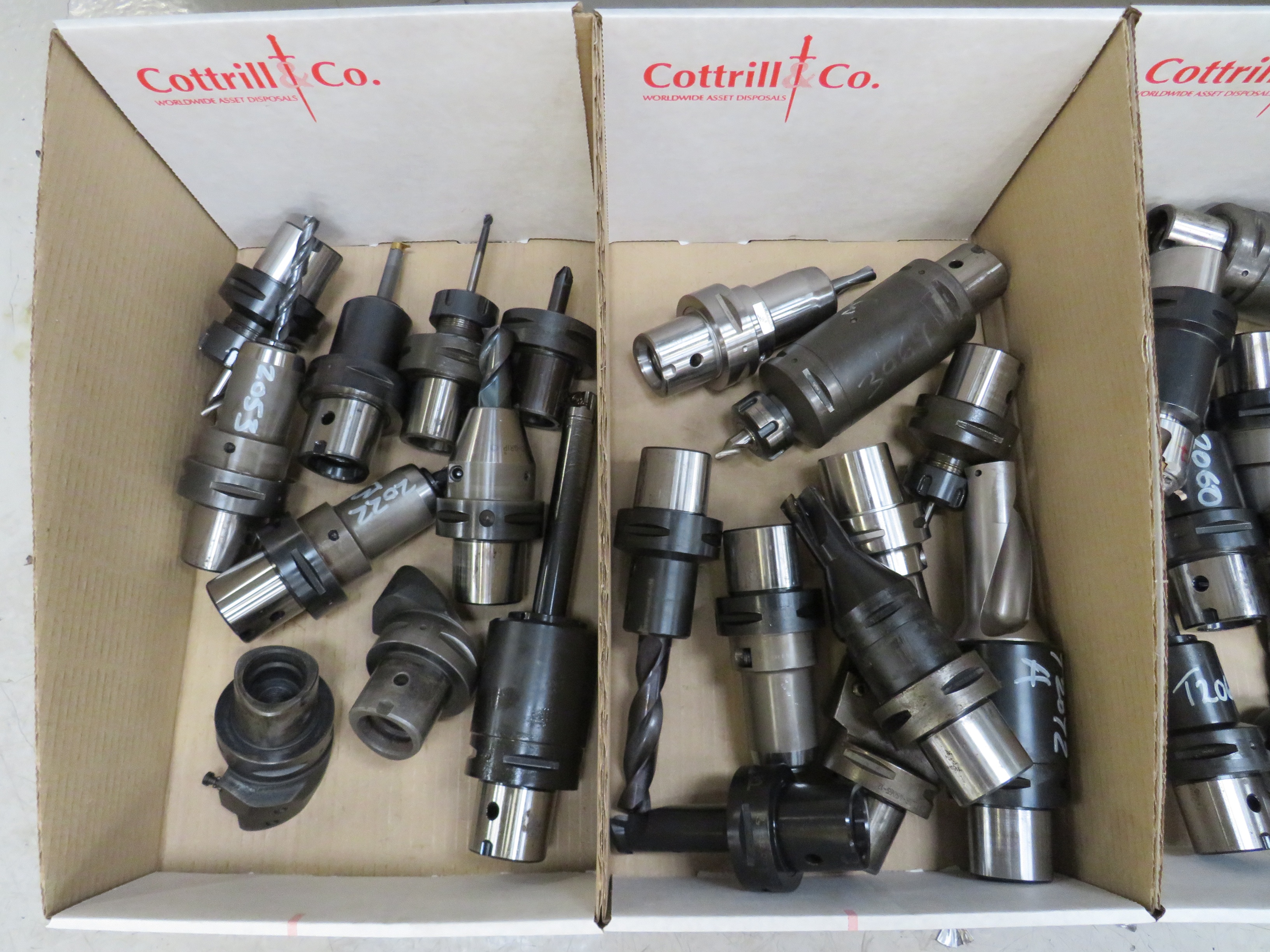

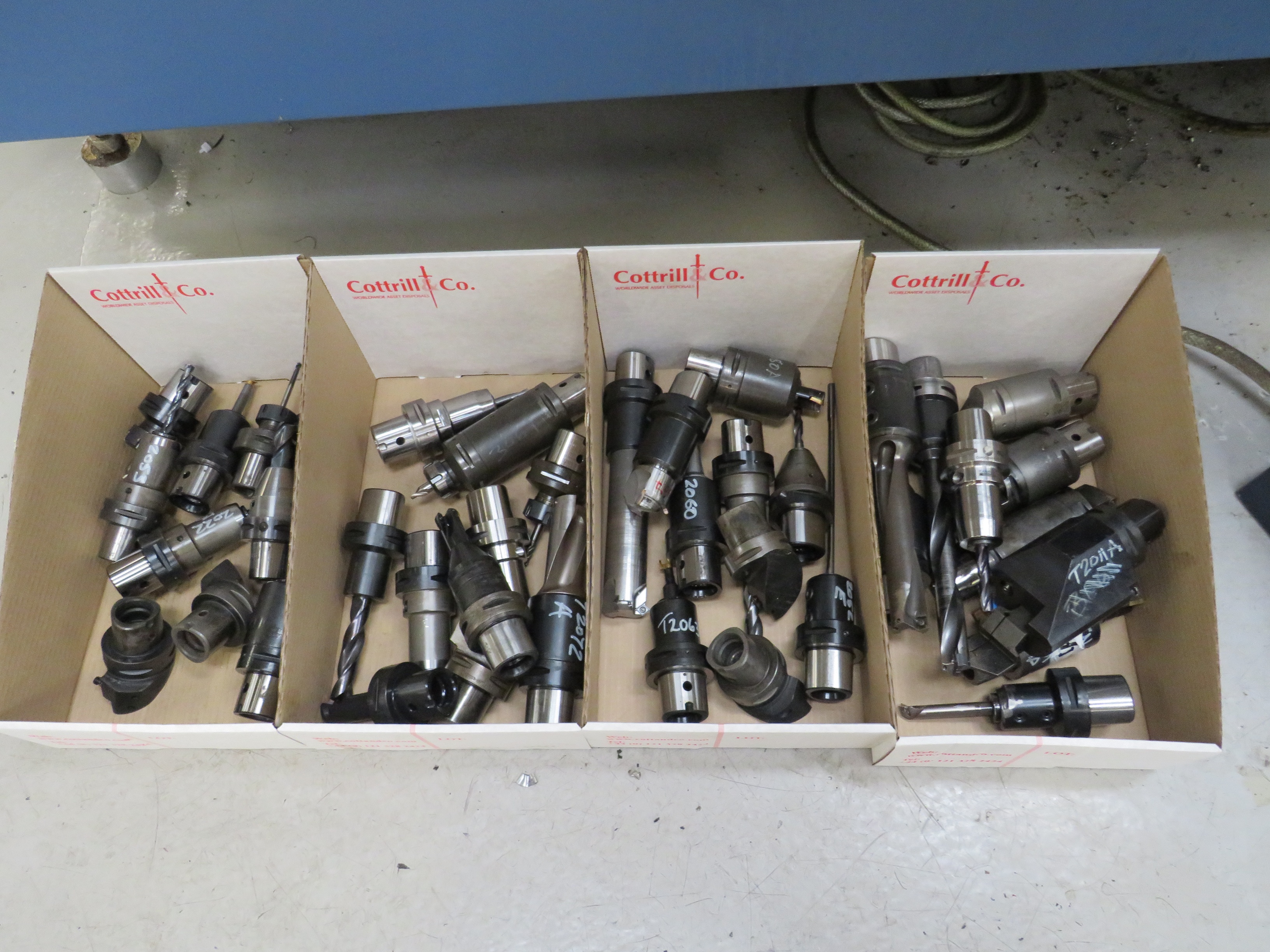

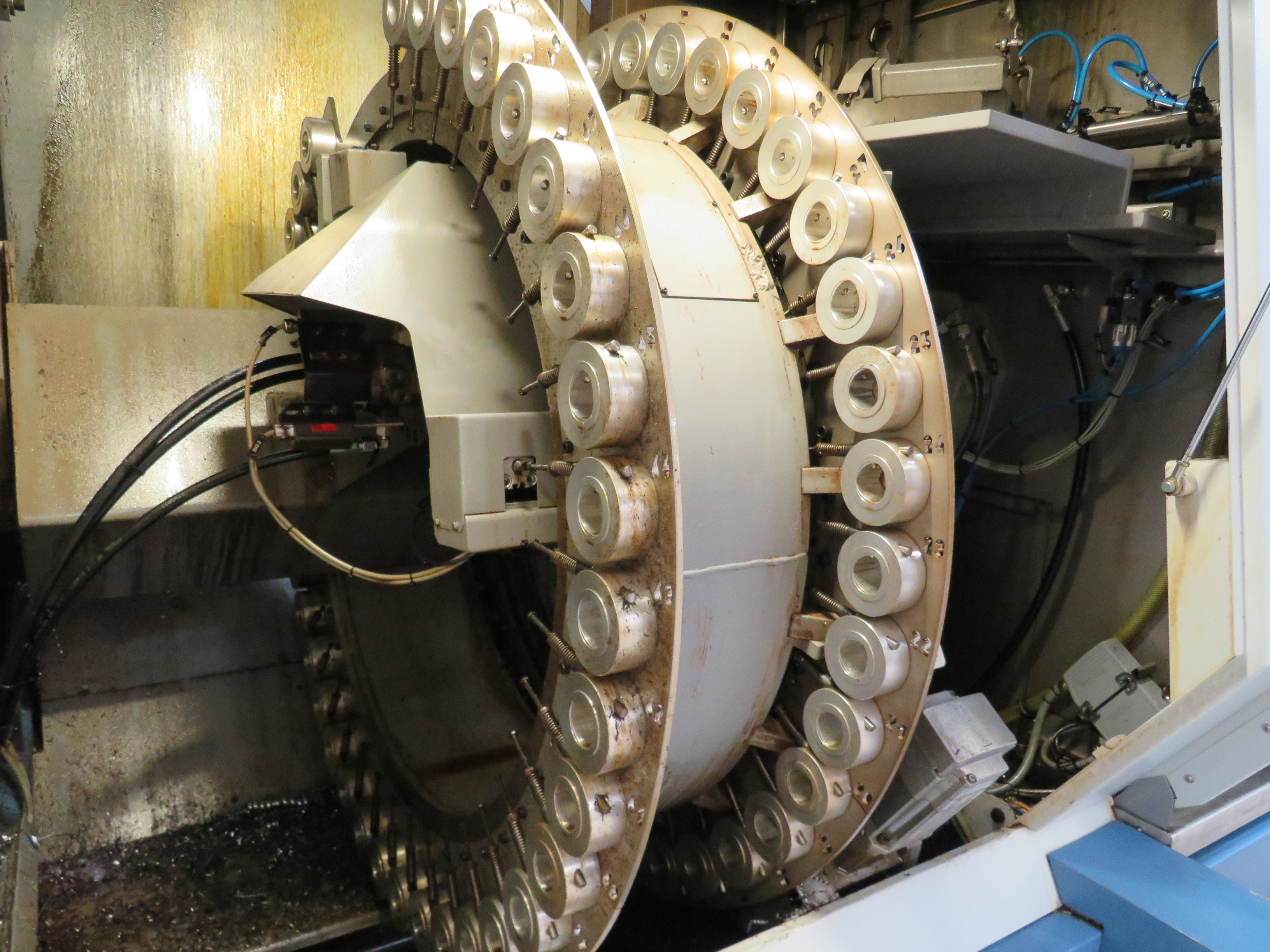

1 - WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance Between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm, Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning speeds With Chuck 3300 rpm, Turning Speed Without Chuck 4000 rpm, Milling Spindle Speeds 9000rpm, with 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck SMW Autoblock 3 Jaw Hydraulic, Tooling Type Capto C6, 80 Position ATC, Marposs WR1, SHW 3 Point Hydraulic Steady, Model SR-5-ZSW, 45 – 310mm Capacity, SHW 3 Point Hydraulic Steady, Model SLU-X-2ZS, 8 – 101mm Capacity, Manuals, Swarf Conveyor, Swarf Skip, High Pressure Coolant, Paper Filtration Unit, Electrics 400v, 3ph, 50 Hz, Spindle Motor 29/33kw, Sub Spindle Motor 29/33kw, Milling Spindle Motor 15/20kw, Approximate Dimensions: 7500 x 3700 x 2950mm, Approximate Weight 20,000kg. S/No 34154901 (2012)

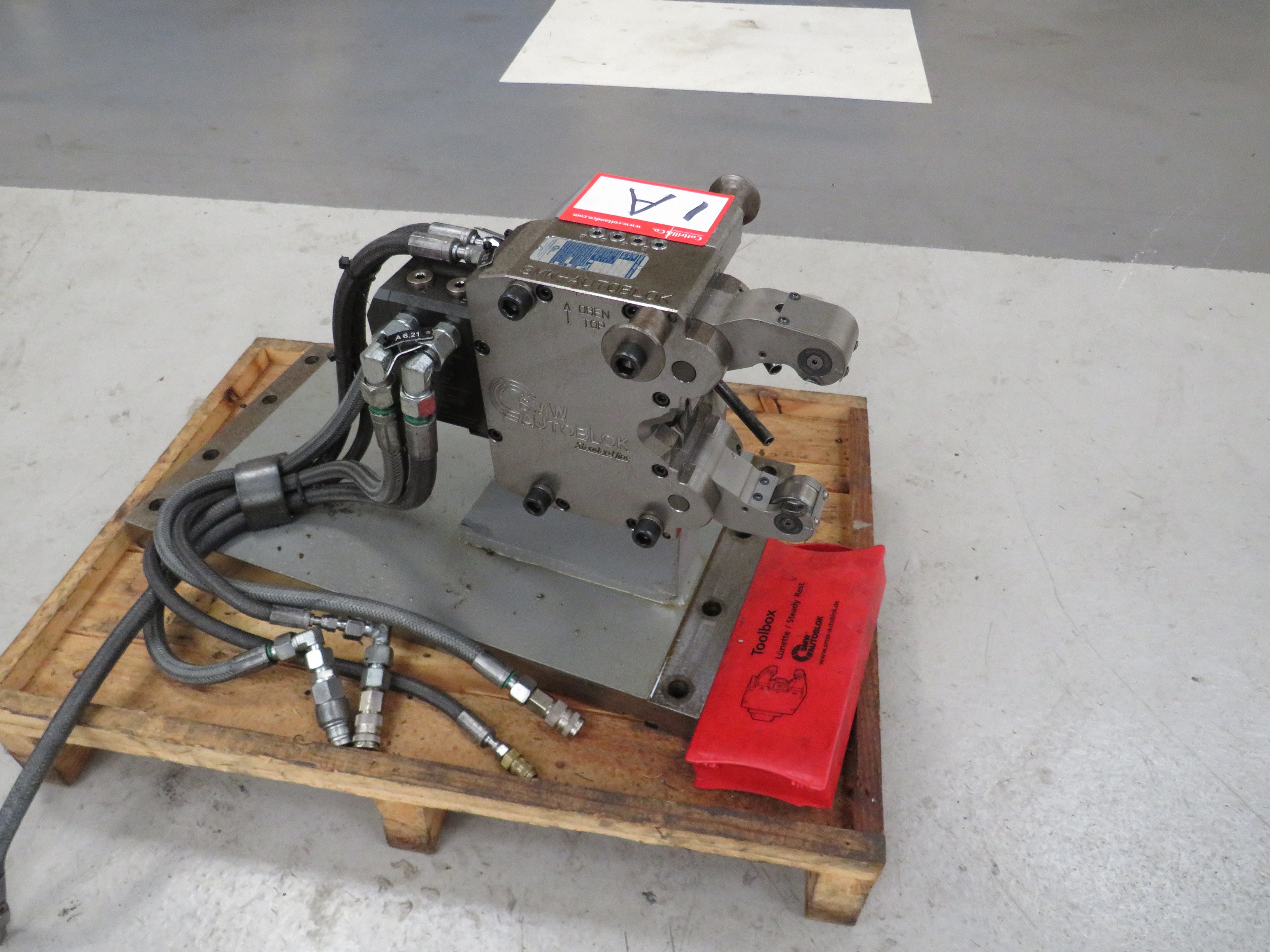

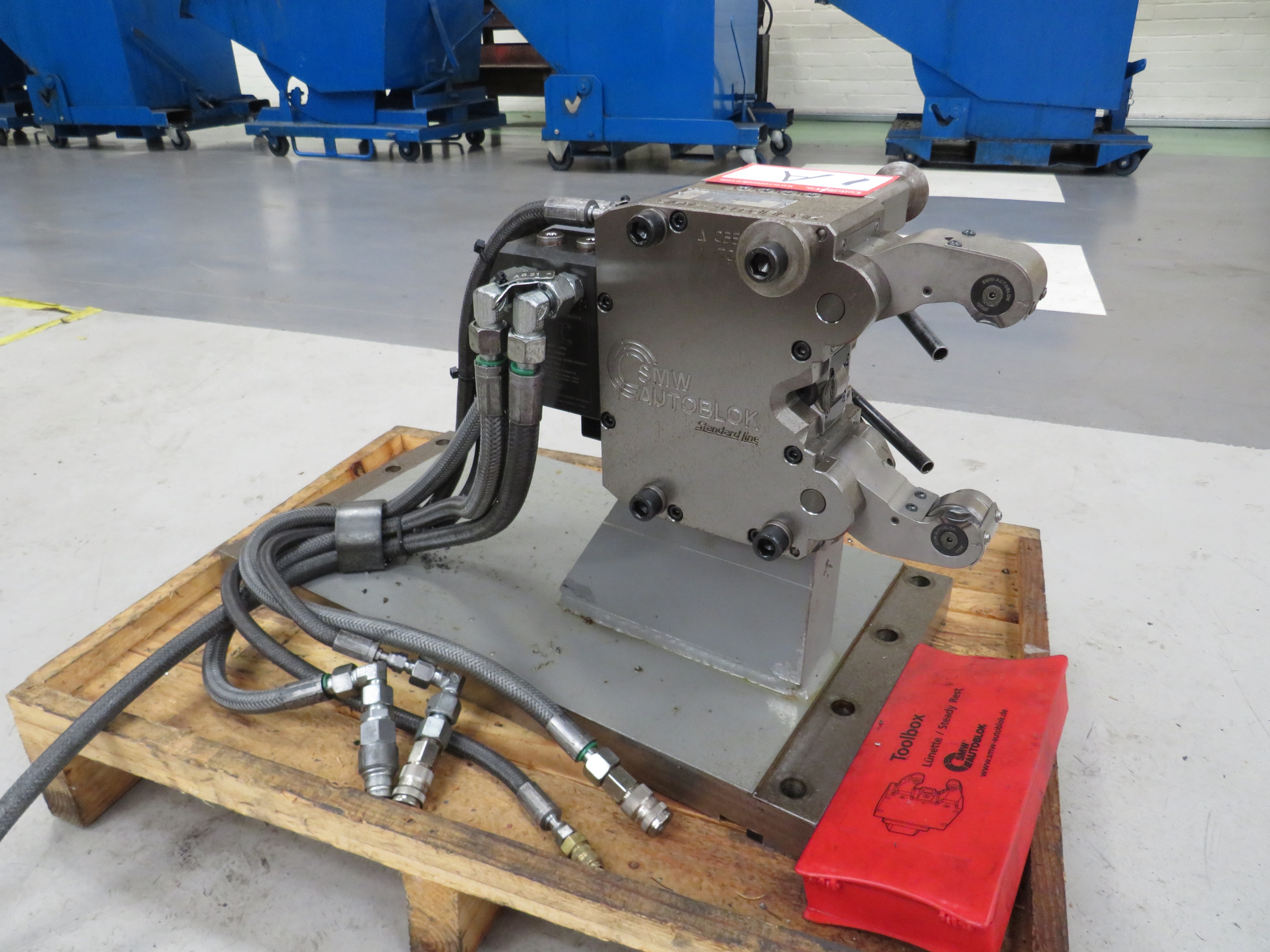

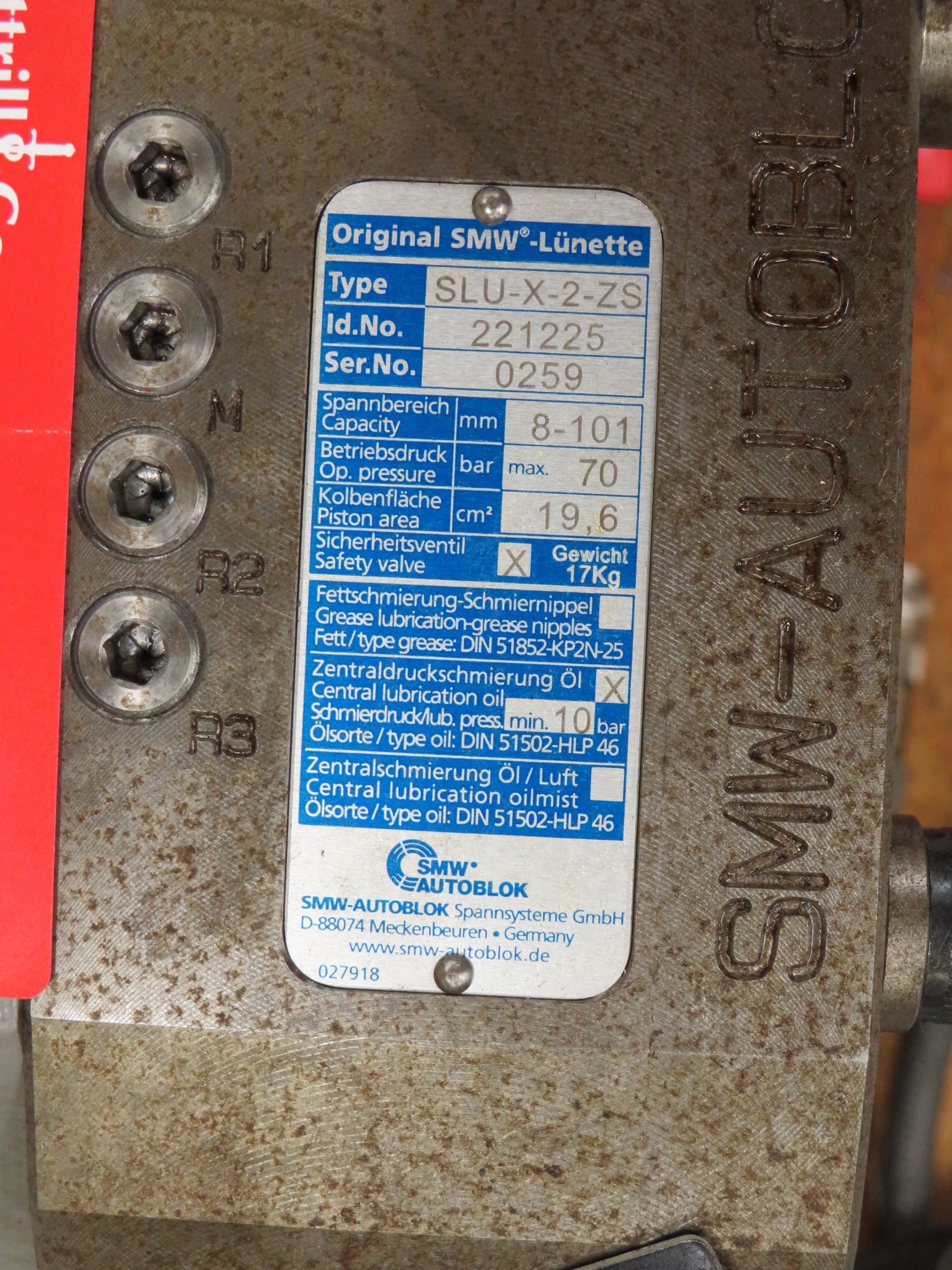

1A - SMW Autoblok Hydraulic Steady Suitable for WFL Millturn
1B - WRP45 Marposs Probe

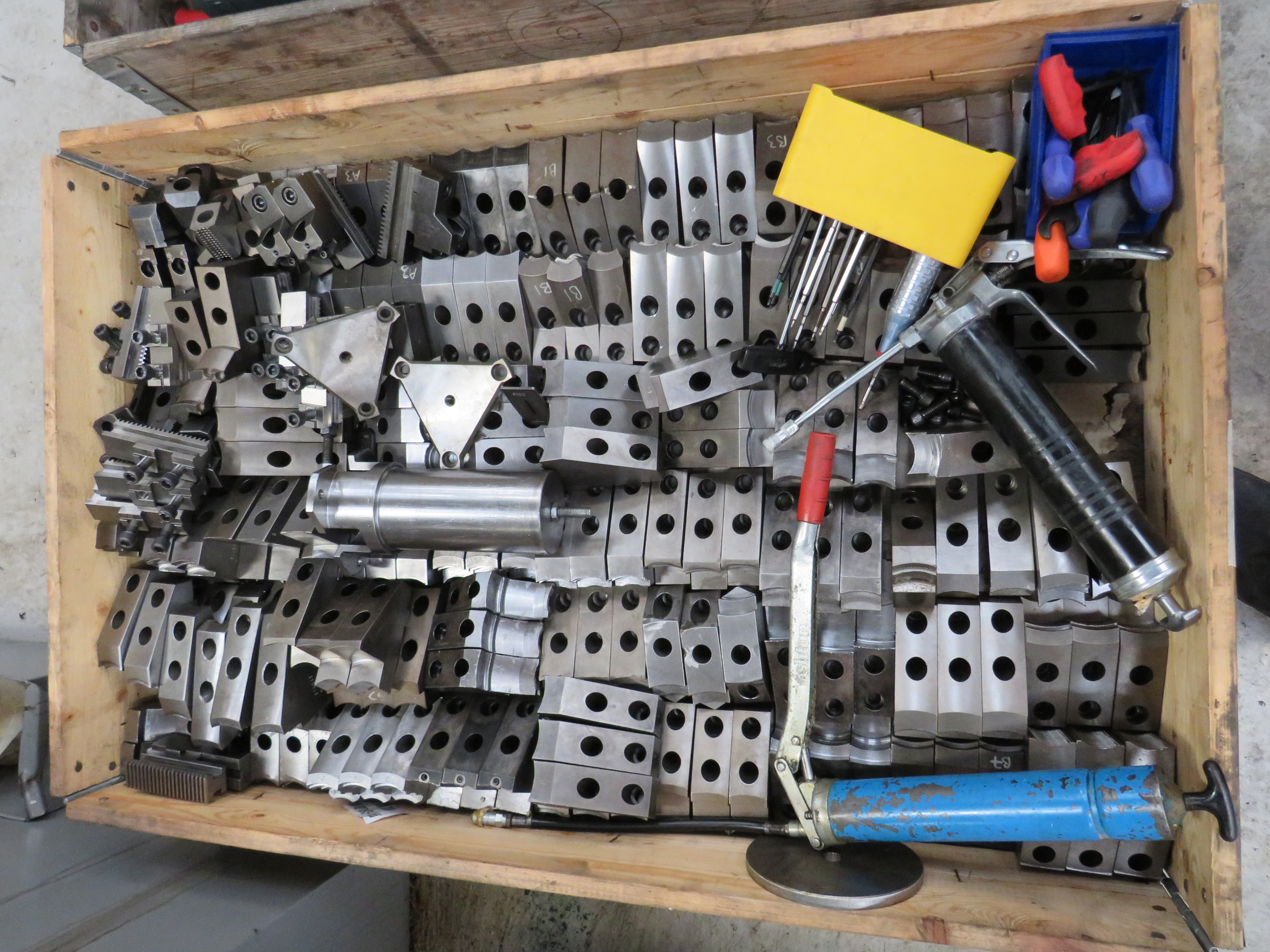

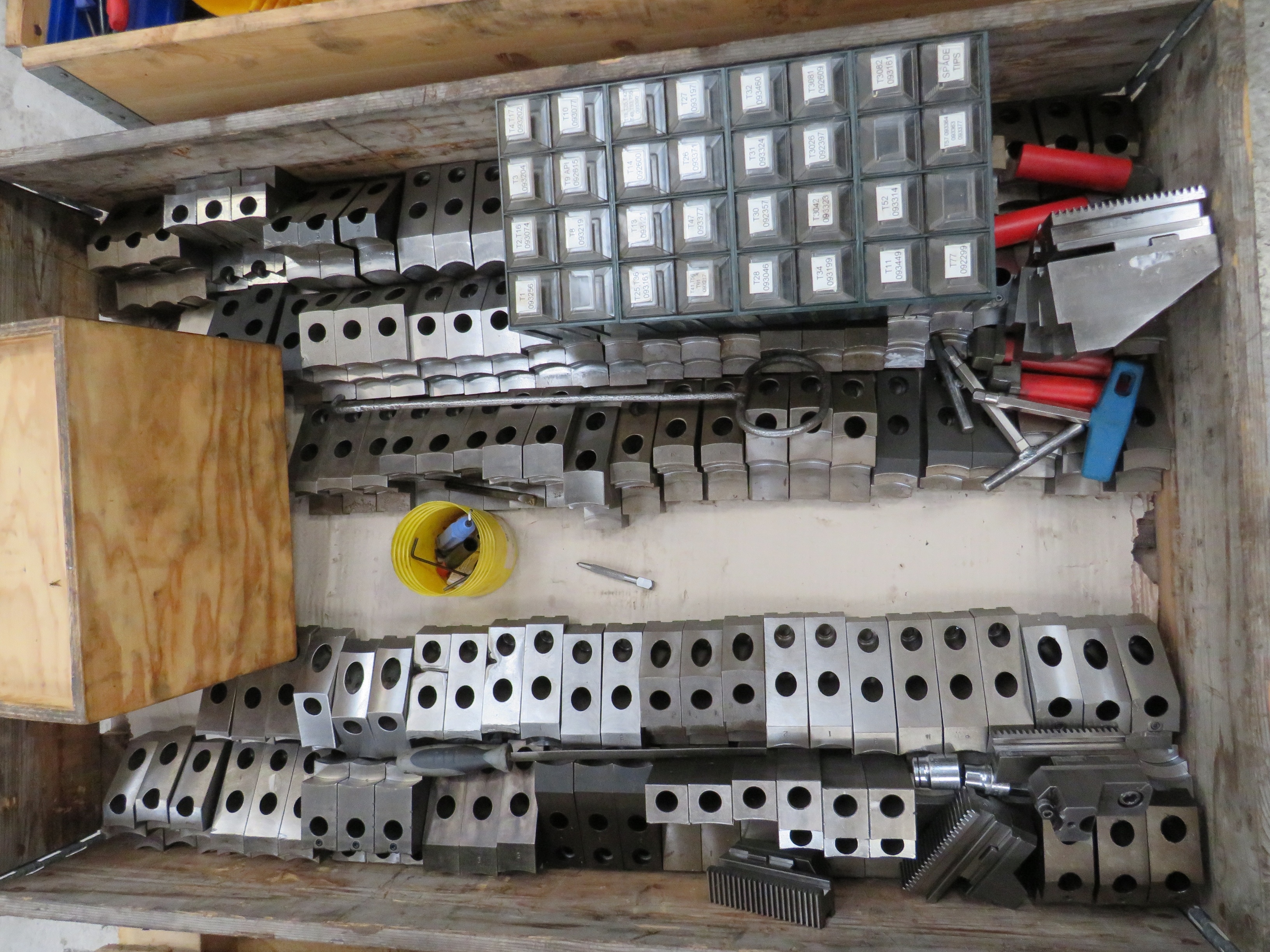

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
Lots in this combination
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here| Lot # | Description |
|---|---|
| 1 | WFL M35-G 1800 7 Axis Millturn |
| 1A | SMW Autoblok Hydraulic Steady |
| 1B | WRP45 Marposs Probe |
Buyer's premium
Buyer's Premium will be charged at 18.00%.
VAT
Value added tax will be charged at 20.00%.
Export Info
The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences
