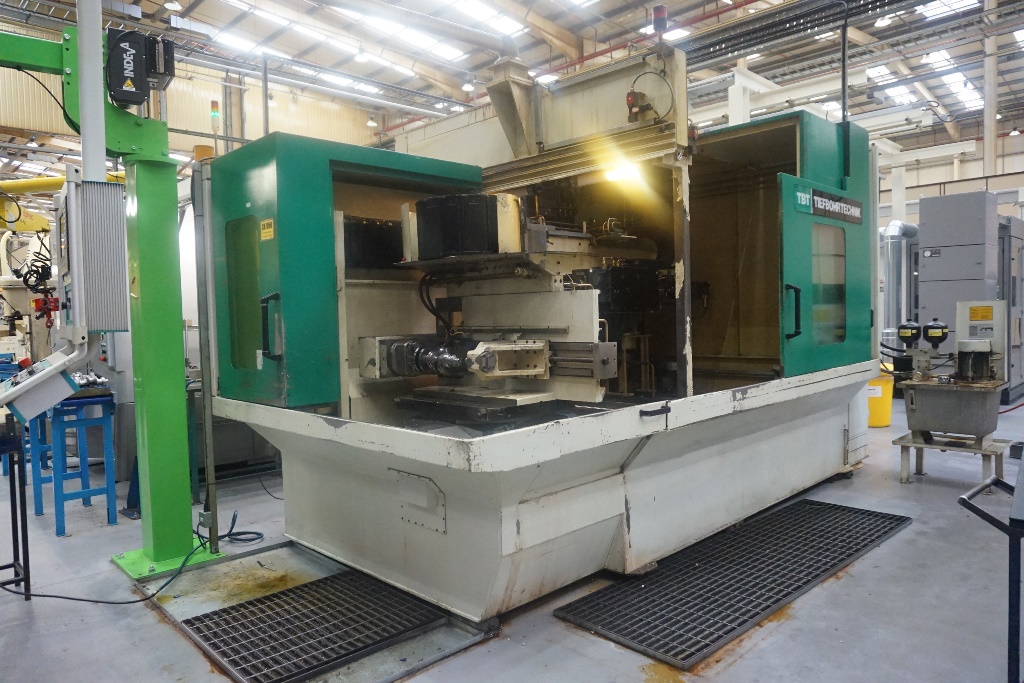

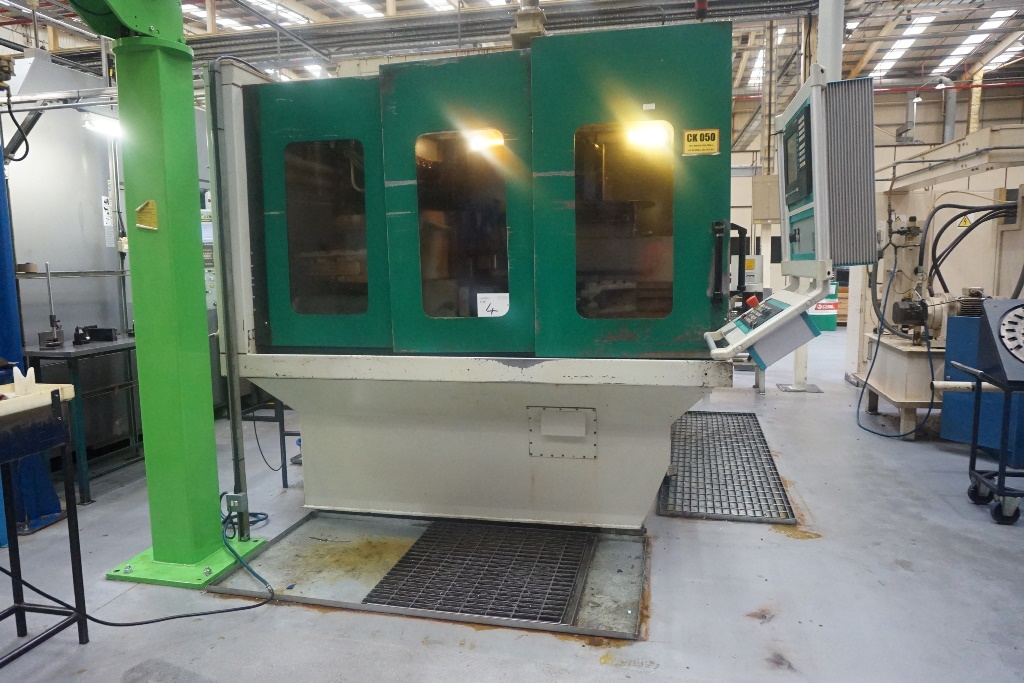

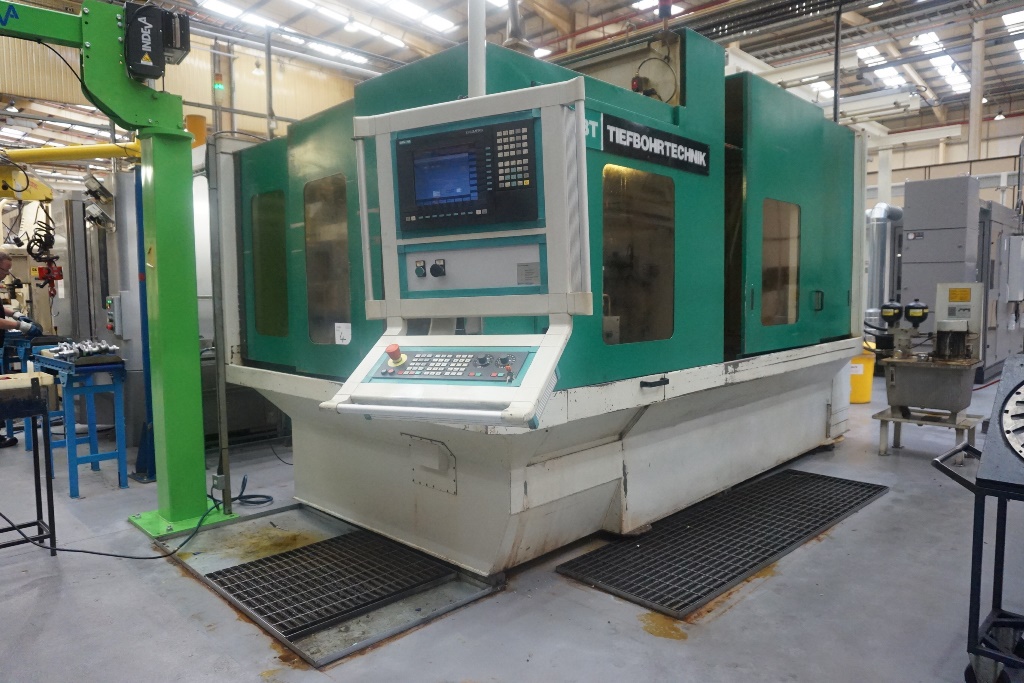

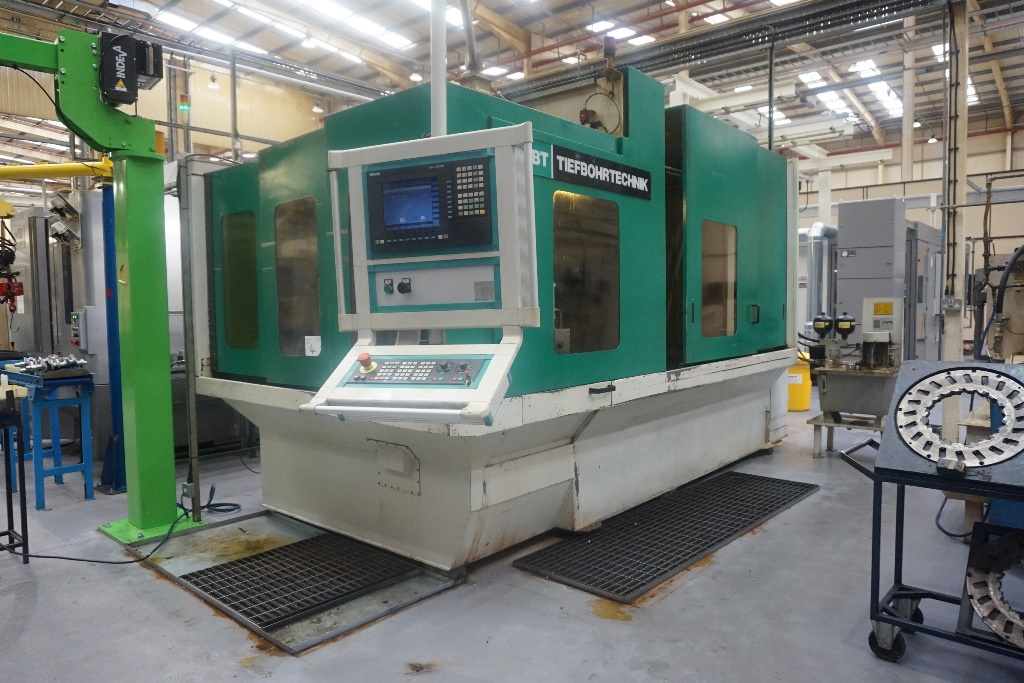

Los 4: TBT Tiefbohrtechnik BW200-1 CNC 7 axis Deep Hole Drilling Machine
Video

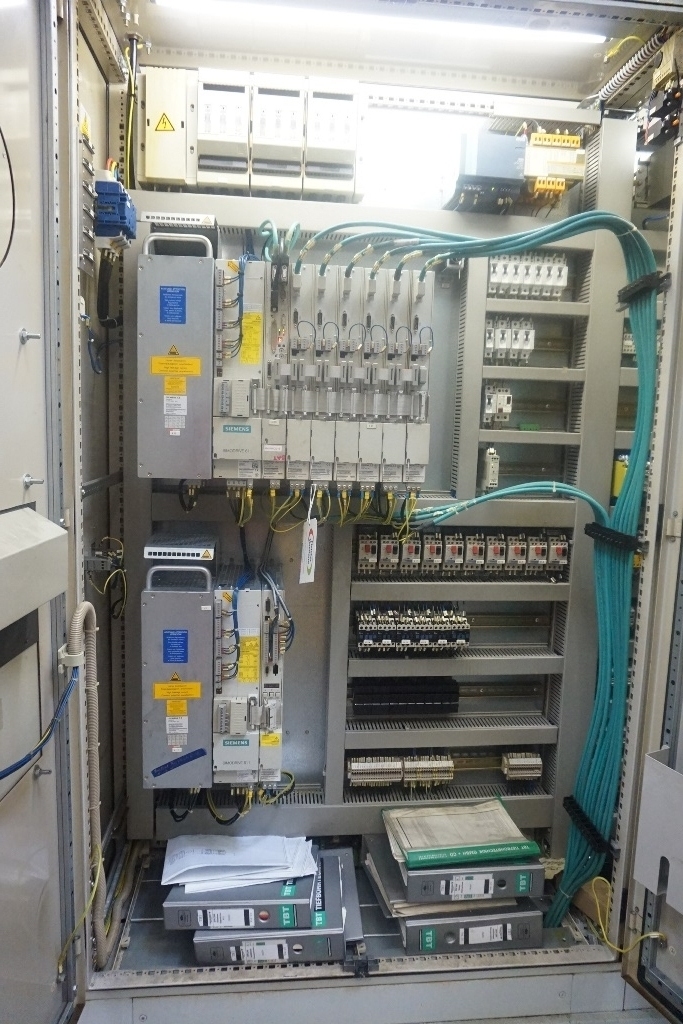

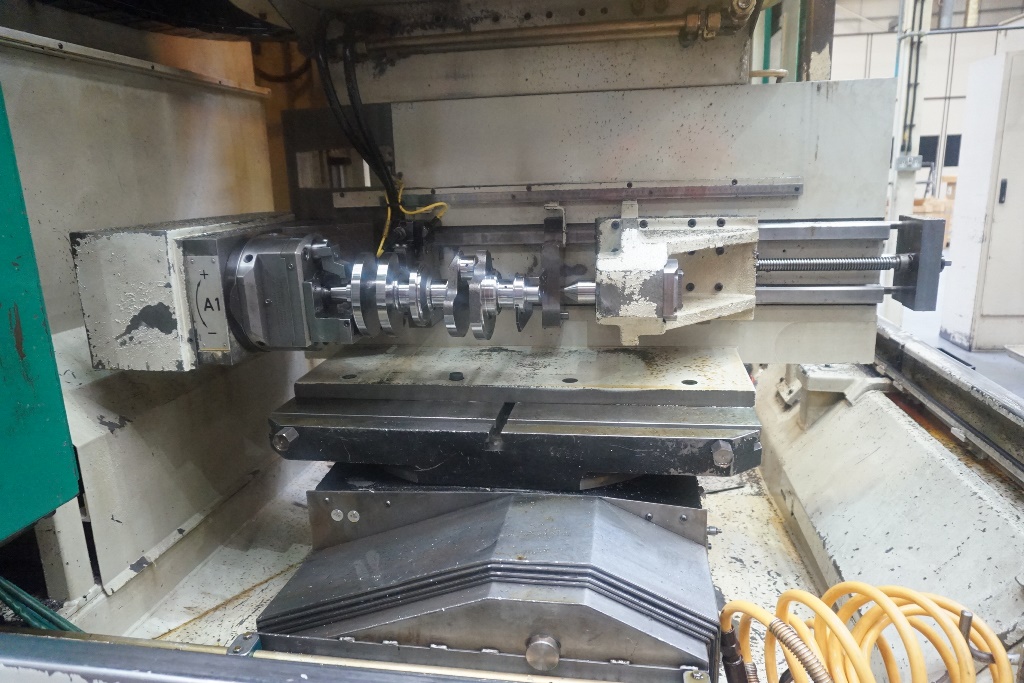

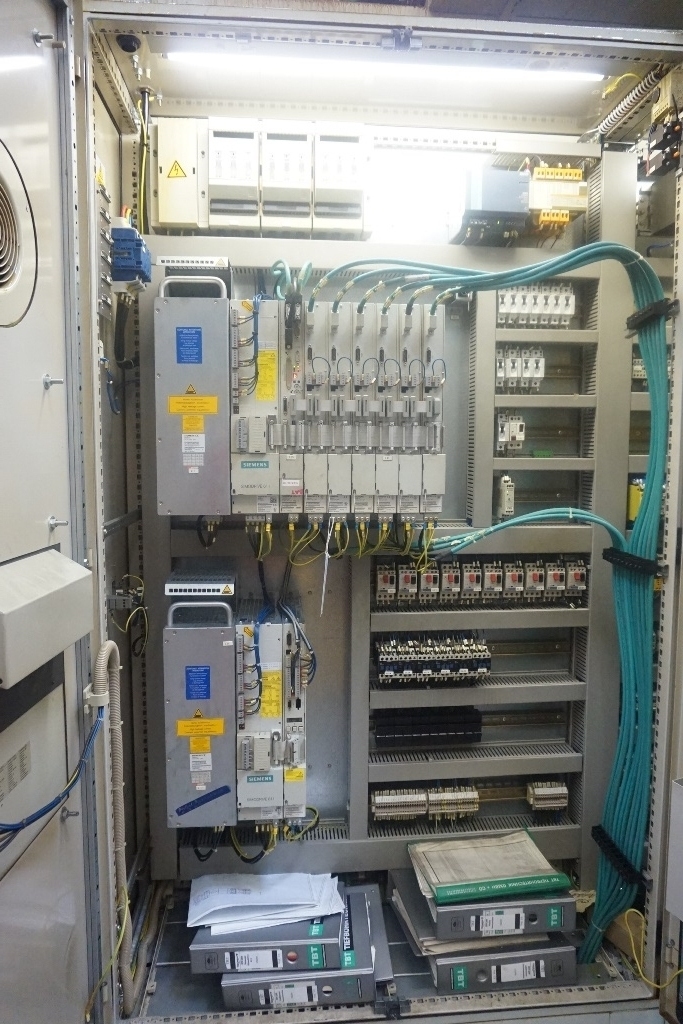

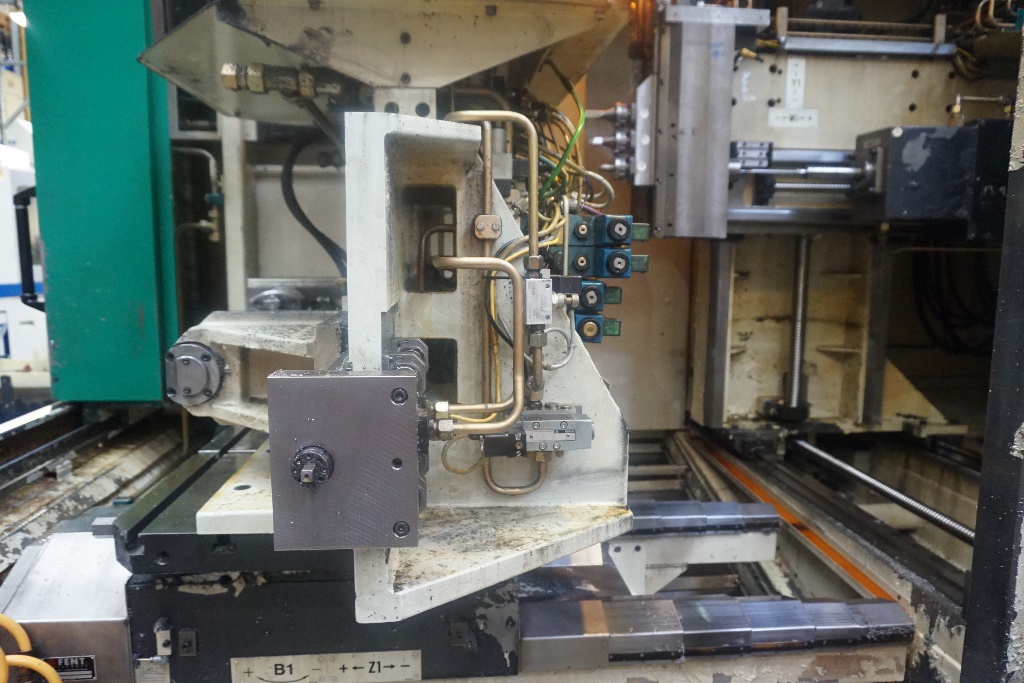

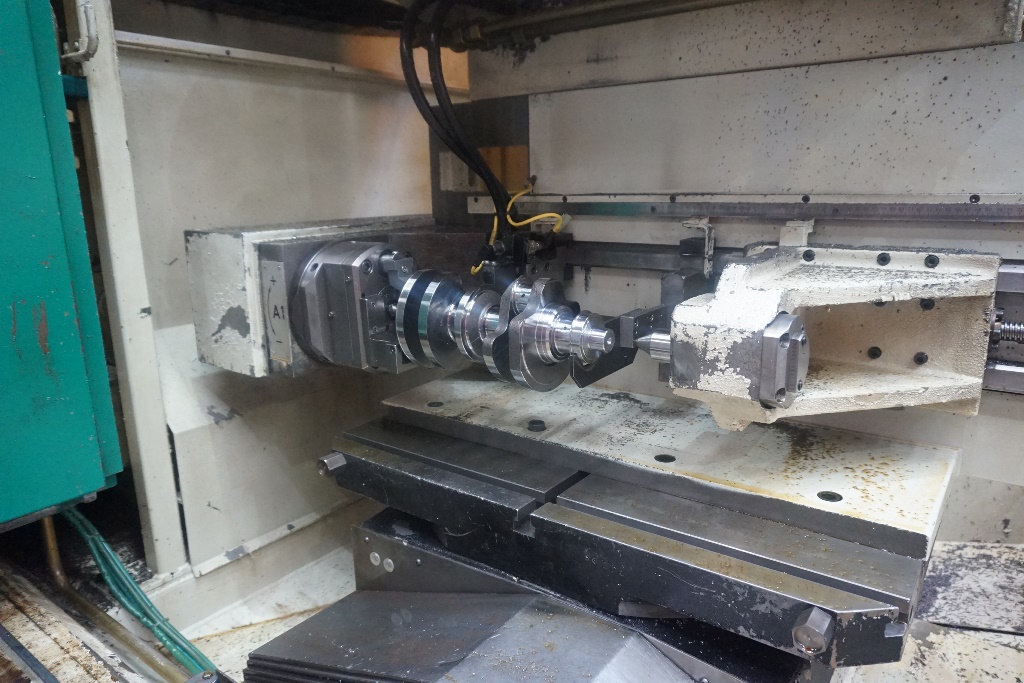

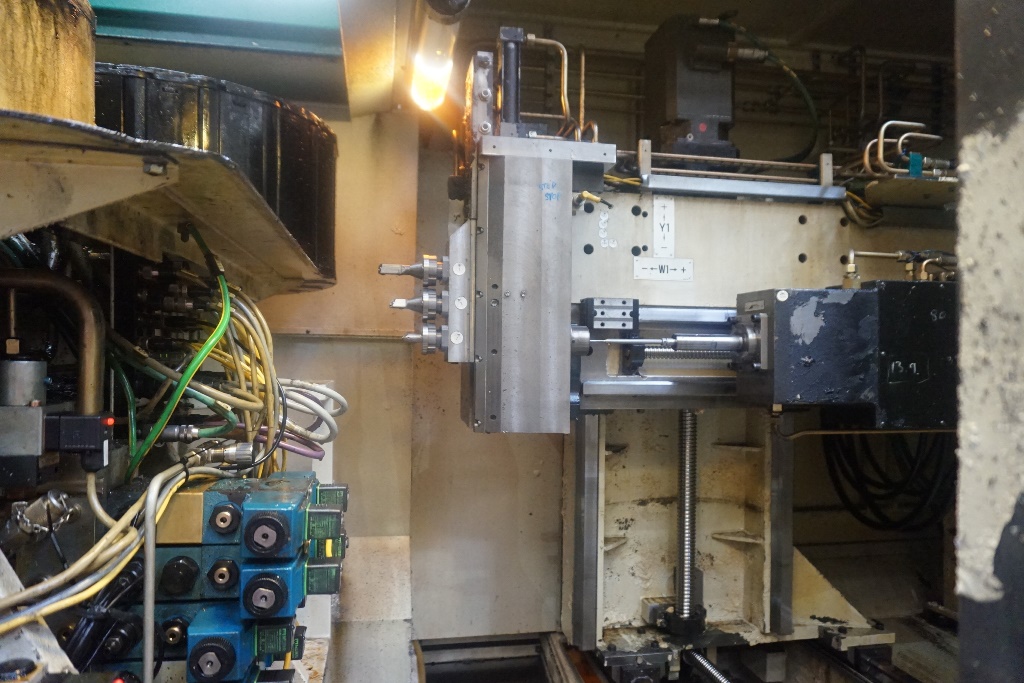

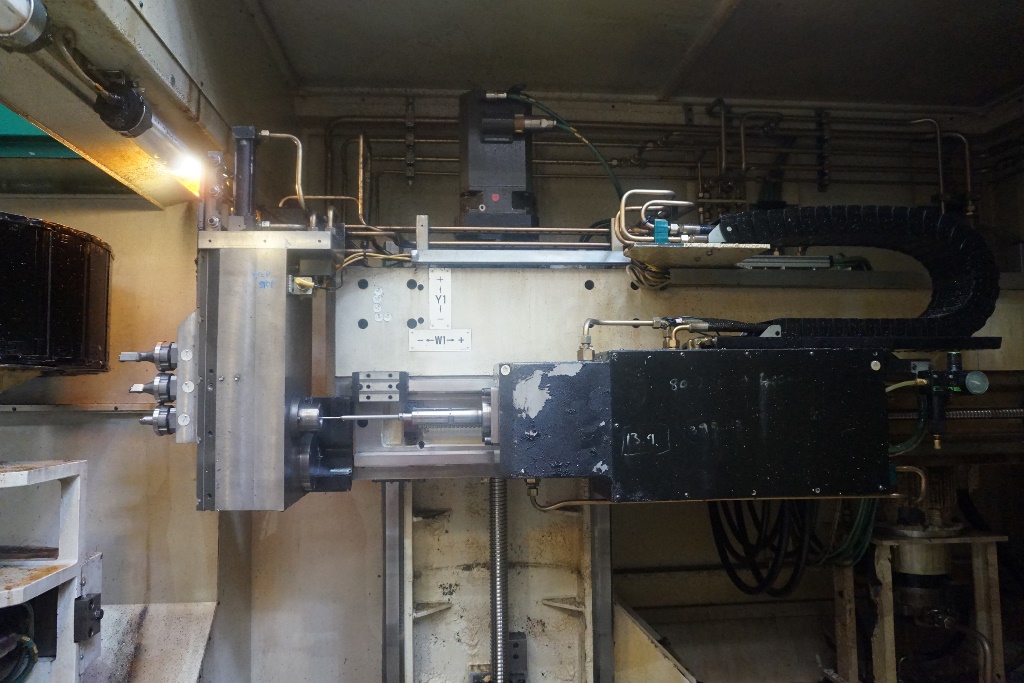

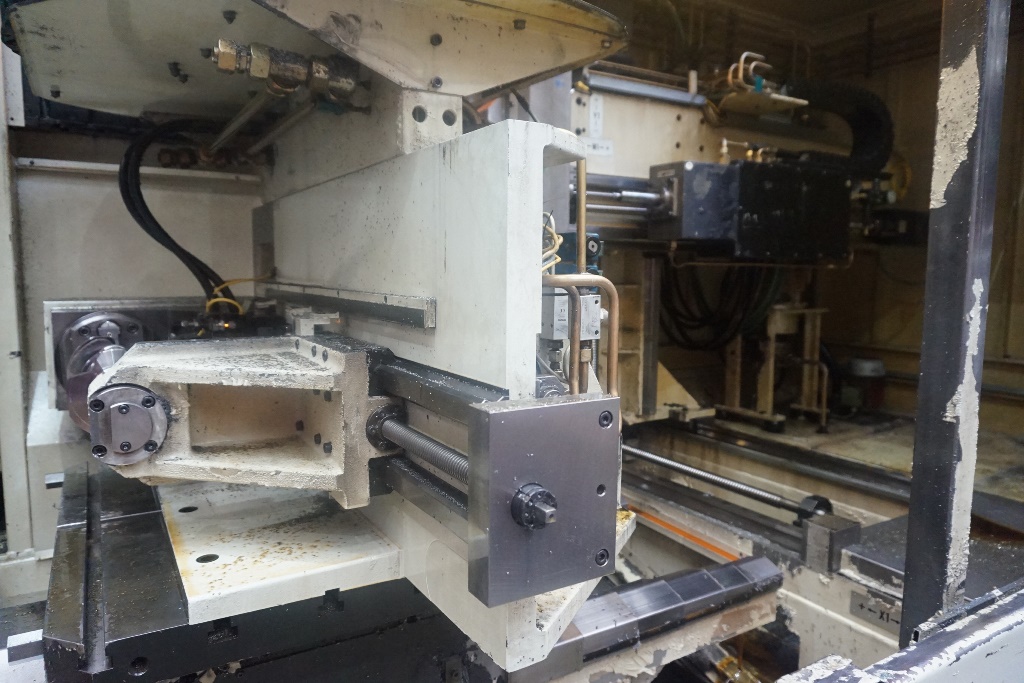

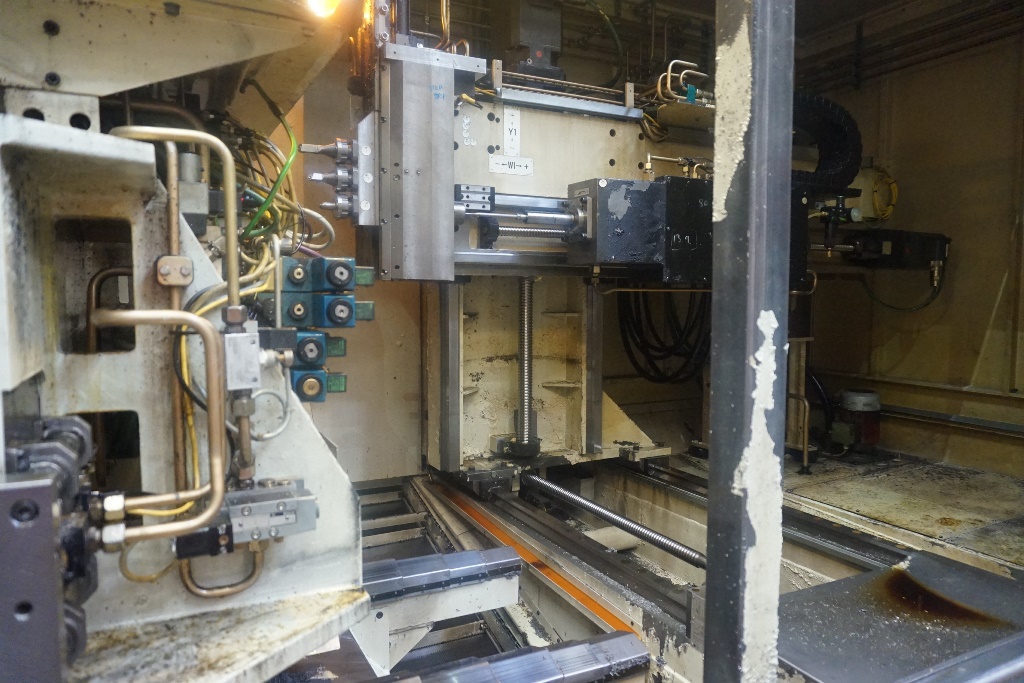

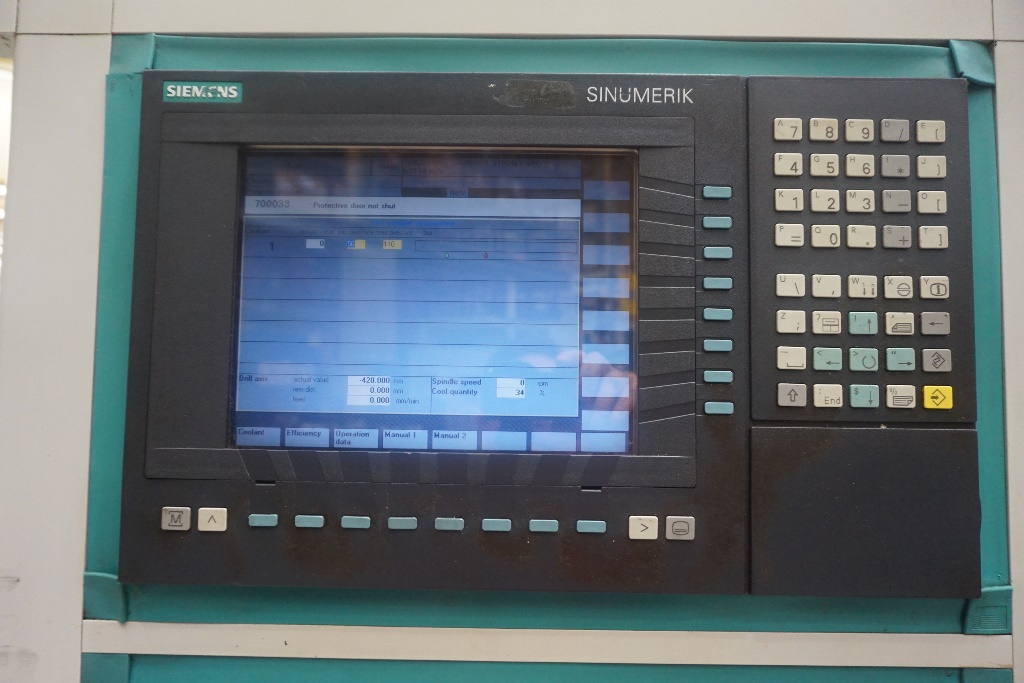

TBT Tiefbohrtechnik BW200-1 CNC 7 axis Deep Hole Drilling Machine with Siemens 840D Control. Single Spindle Single Lip Deep Hole Drilling Machine with 1000mm Stroke (W axis), max depth 900mm, min drilling dia 2mm, max drilling dia 12mm, Rapid Traverse 15m/min, Feed Traverse 10m/min, Rotary Table (C axis) 800 x 600mm with Tilting (B axis) and Swivelling (A axis W axis Stroke (Drilling Spindle) 900mm, Y axis Stroke (Vertical) 600 mm, X axis Stroke (Cross) 800mm, Z axis Stroke (Rotary Table Longt) 400mm with High Pressure Coolant System and Chip Conveyor, S/No. 106021-11 (2000). Full set of manuals and drawings available. Currently used for crankshaft oil hole drilling.
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Location: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Bitte beachten Sie, dass dieses Los auch als Kombi-Los angeboten wird
| Losnummer | Beschreibung | Aktuelles Gebot |
|---|---|---|
| * | Combination of Lots, 1, 2, 3, 4, 5, 6, 7 | £ 48,000 |
