Los *: Combination of Lots, 1, 2, 3, 4, 5, 6, 7

Lot 1 - Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32203 (1989)

Please Note: Roller Tracking and Handling equipment is not included.

and

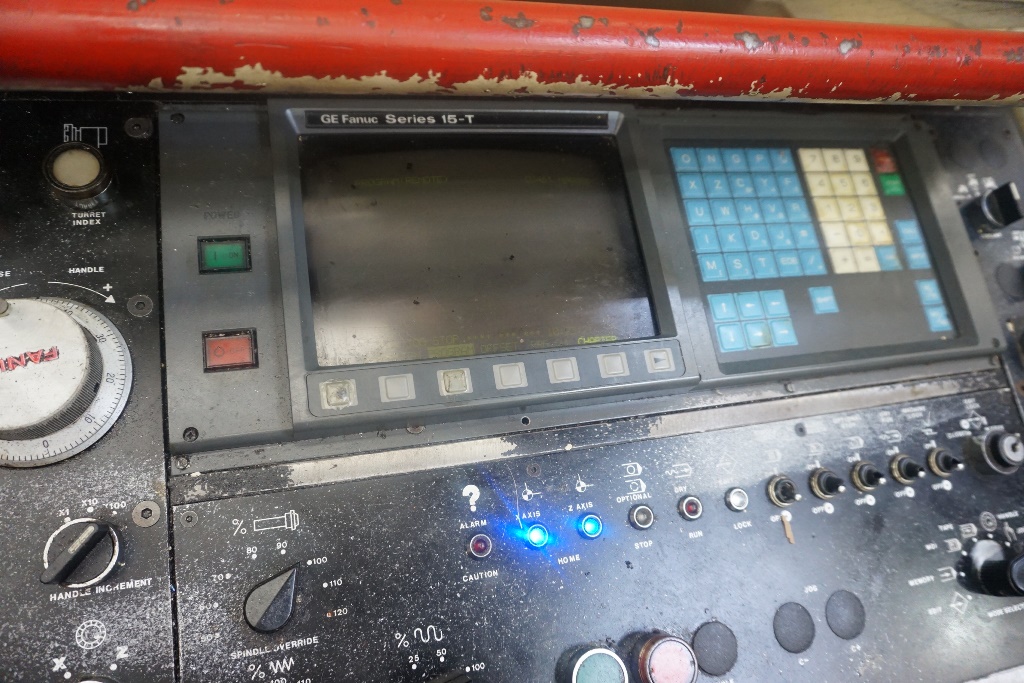

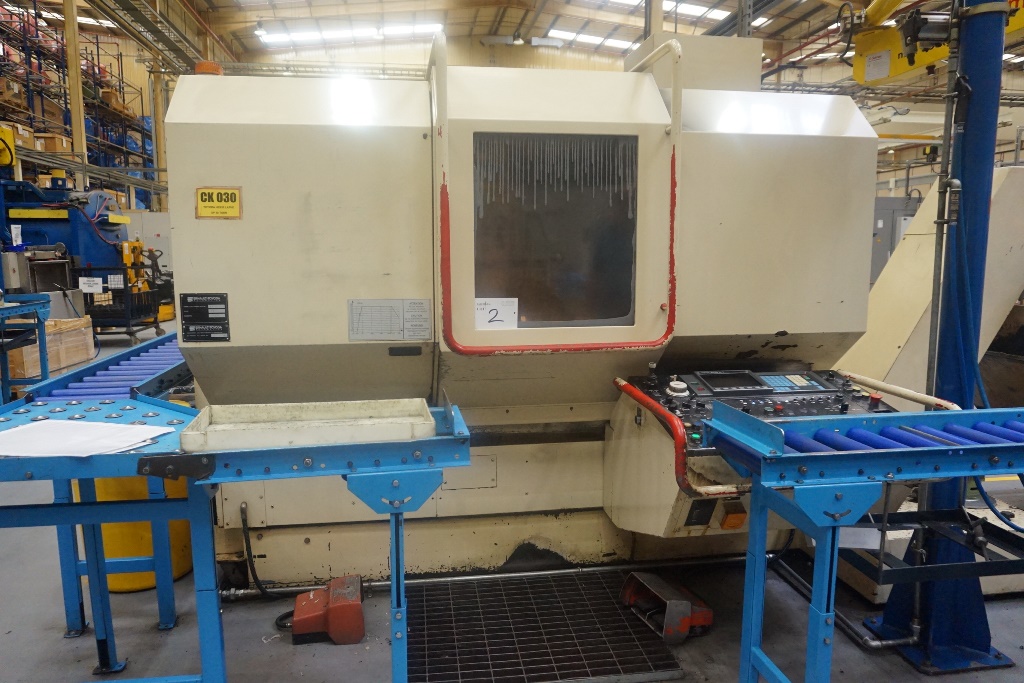

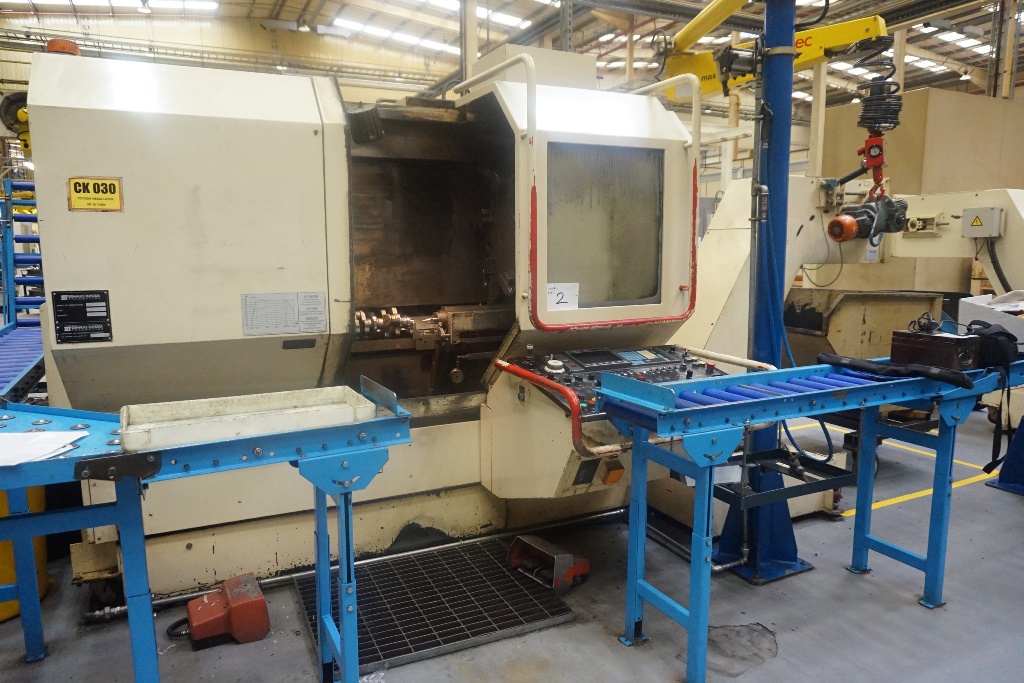

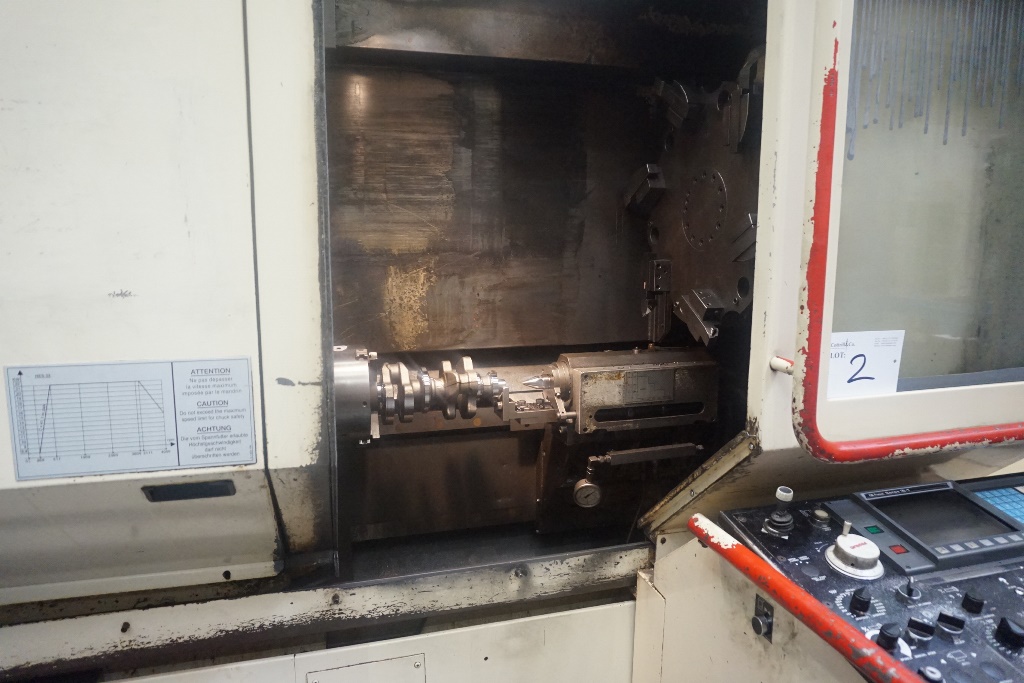

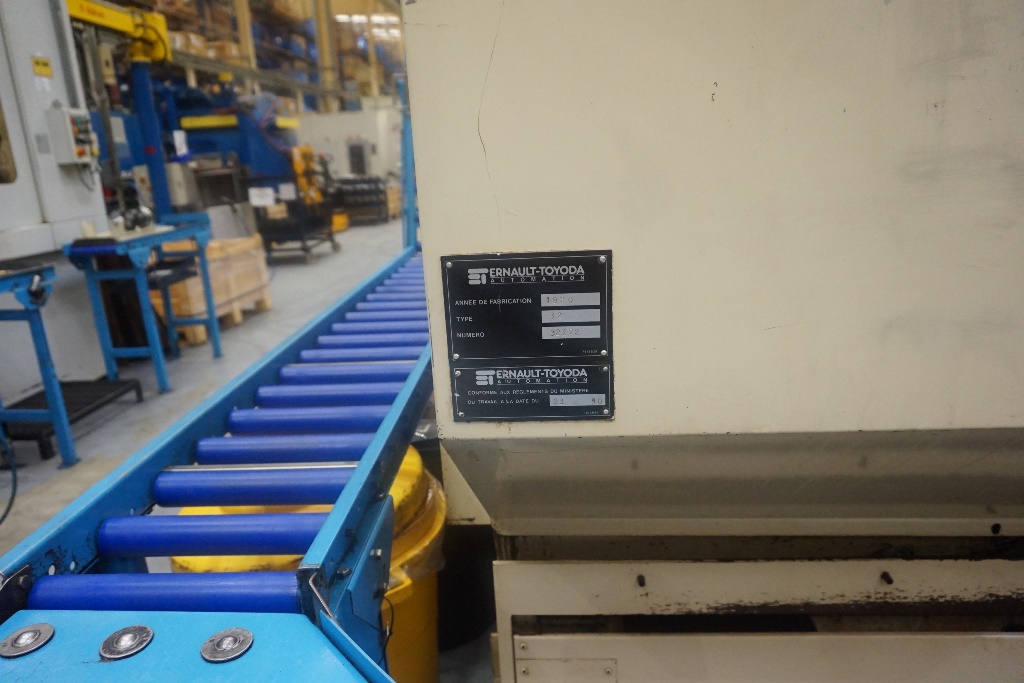

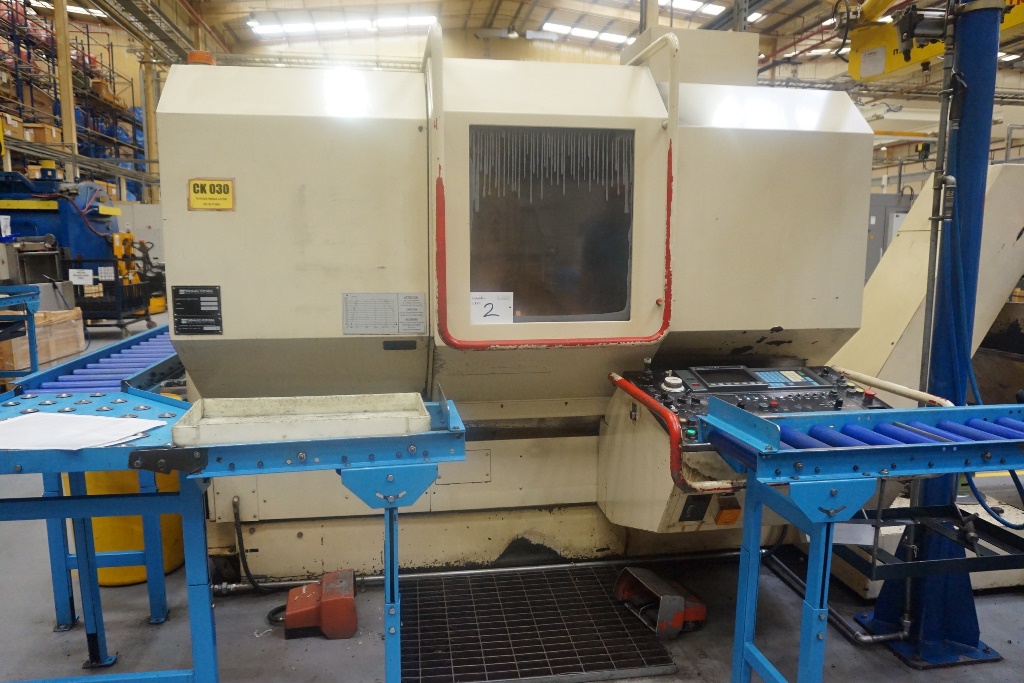

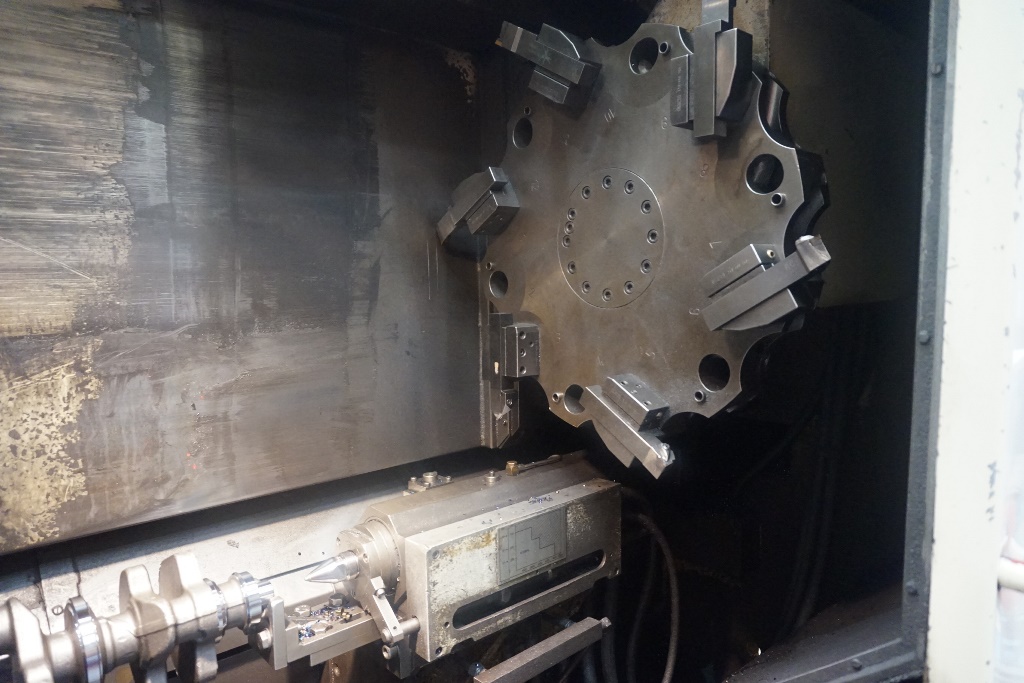

Lot 2 - Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32272 (1990)

Please Note: Roller Tracking and Handling equipment is not included.

and

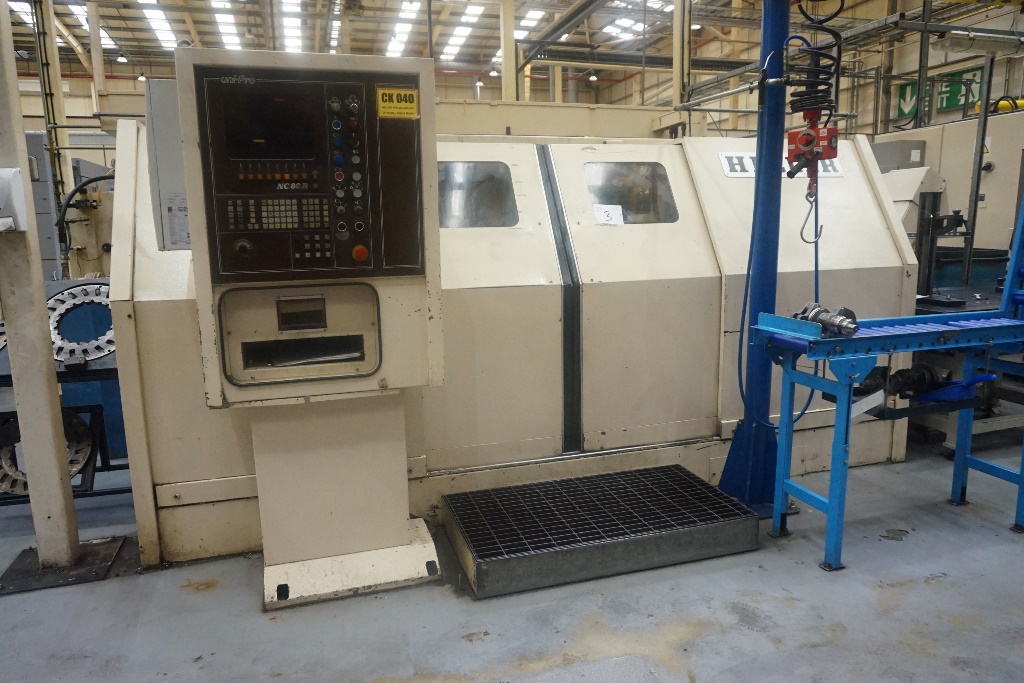

Lot 3 - HELLER RFK200/800/1 CNC Internal Crankshaft Milling Machine with Heller Unipro NC80R Control, 200mm dia x 800mm Capacity, (2) Sets Bohlerit Internal Cutters, Coolant and Swarf Conveyor, S/No. 43.41209 (1990). Used for milling of crankshaft pins and mains bearing shaft and webs. Full range of manuals, electrical drawings and foundation plan available.

Please Note: Roller Tracking and Handling equipment is not included.

and

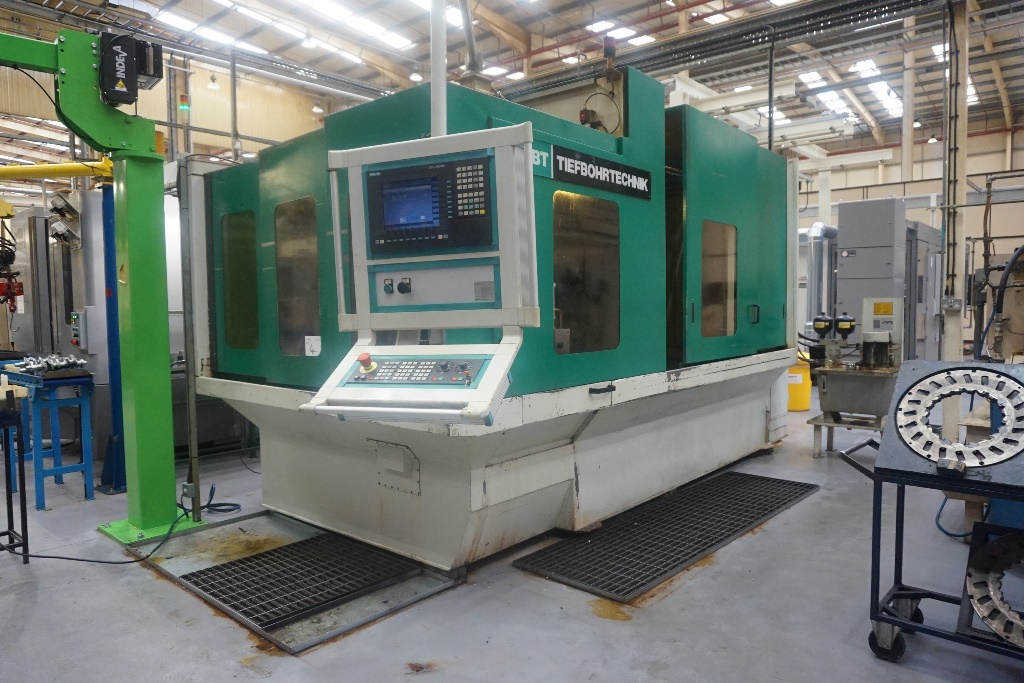

Lot 4 - TBT Tiefbohrtechnik BW200-1 CNC 7 axis Deep Hole Drilling Machine with Siemens 840D Control. Single Spindle Single Lip Deep Hole Drilling Machine with 1000mm Stroke (W axis), max depth 900mm, min drilling dia 2 mm, max drilling dia 12mm, Rapid Traverse 15m/min, Feed Traverse 10m/min. Rotary Table (C axis) 800 x 600mm with Tilting (B axis) and Swivelling (A axis W axis Stroke (Drilling Spindle) 900mm, Y axis Stroke (Vertical) 600 mm, X axis Stroke (Cross) 800mm, Z axis Stroke (Rotary Table Longt) 400mm with High Pressure Coolant System and Chip Conveyor, S/No. 106021-11 (2000). Full set of manuals and drawings available. Currently used for crankshaft oil hole drilling.

Please Note: Roller Tracking and Handling equipment is not included.

and

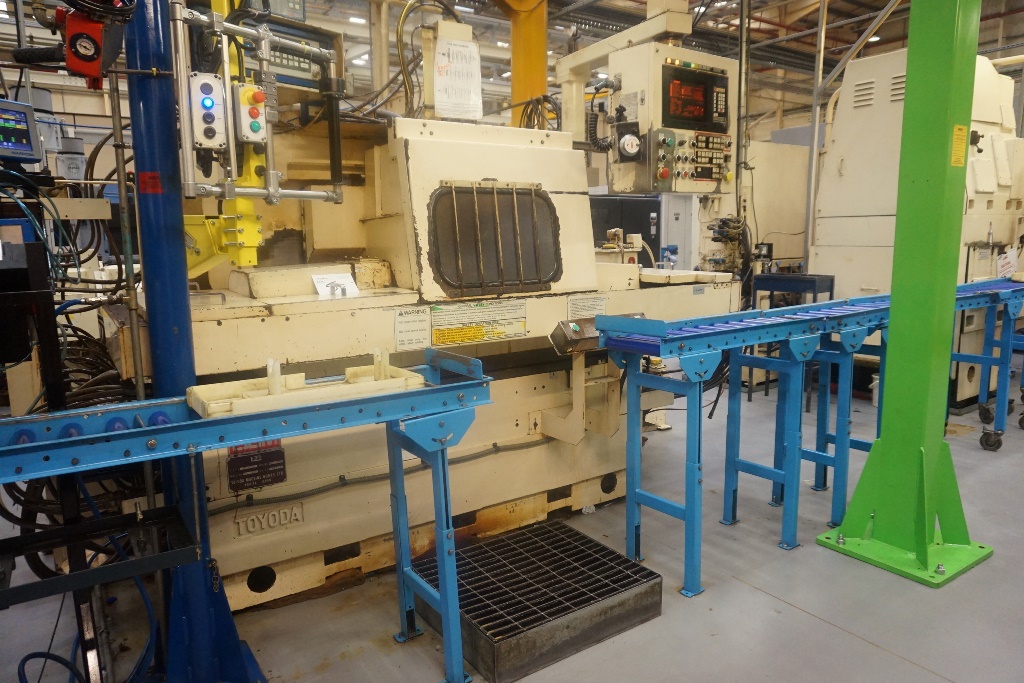

Lot 5 -Toyoda 60M GP72-63 CNC Straight Approach Cylindrical Grinder with Toyoda Toyopuc Control, 320mm dia x 500mm capacity, Marposs E39 auto sizing for lateral location, Marposs E78 Wheel Balancing, Diamond Roll Auto Wheel Dressing, CNK Coolant Clarifier (used for grinding of crankshaft mains bearing), Mfg/No RCJ-1955, Mach/No. RC1955 (1990). Manuals and drawings available. Used for taper grinding crankshaft spigot/spline end.

Please Note: Roller Tracking and Handling equipment is not included.

and

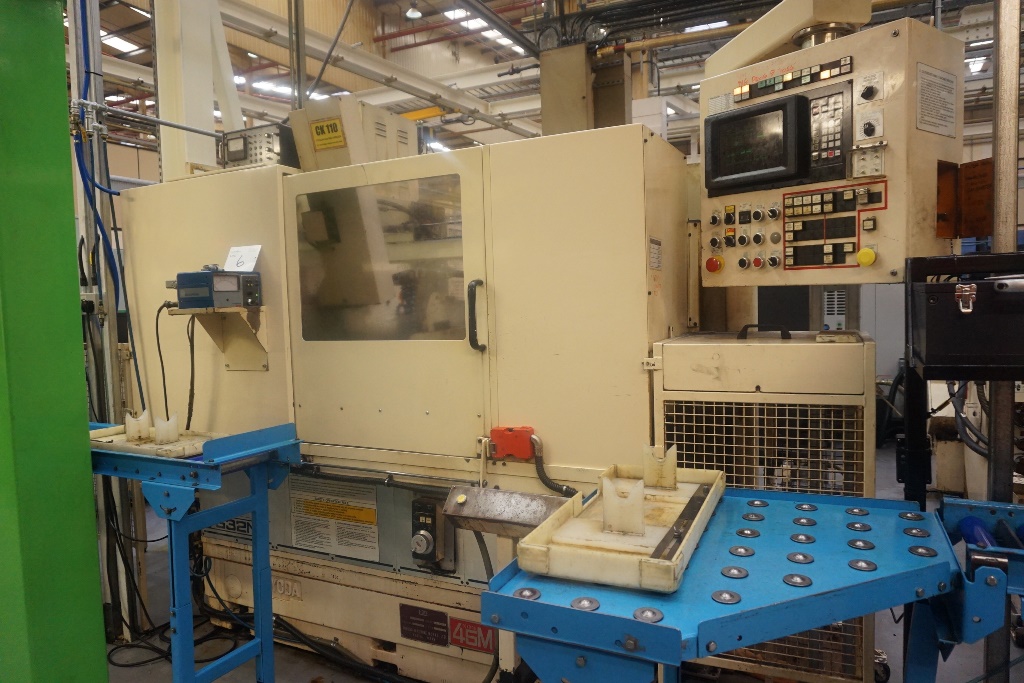

Lot 6 - Toyoda G32N-50N CNC Angle Approach Cylindrical Grinder with Toyoda Toyopuc Control, 320mm dia x 500mm capacity, Toyoda Automatic Lateral Locator, Automatic Wheel Dressing, CNK Coolant Clarifier (used for taper grinding crankshaft spigot/spline end), Mfg/No LG-5324, Mach/No RC-1949 (1990). Manuals and drawings available.

Please Note: Roller Tracking and Handling equipment is not included.

and

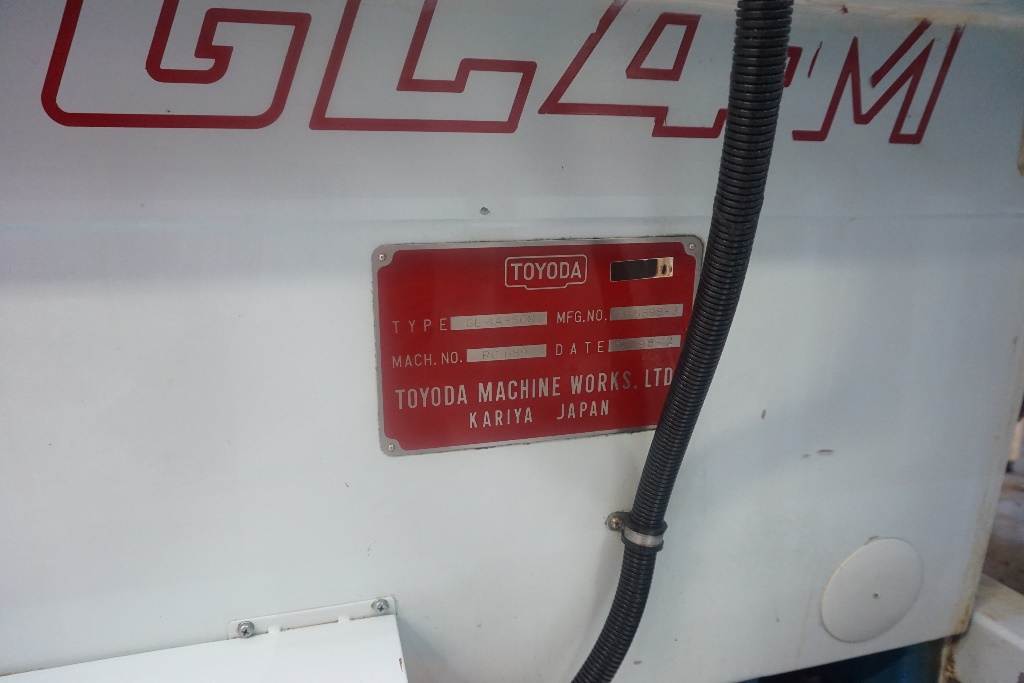

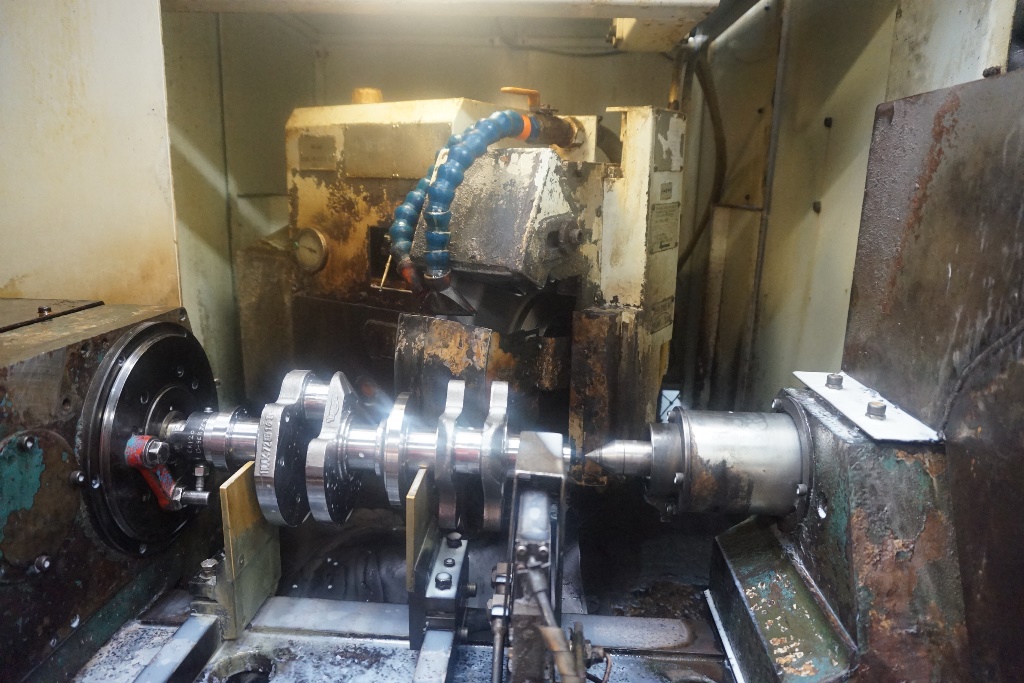

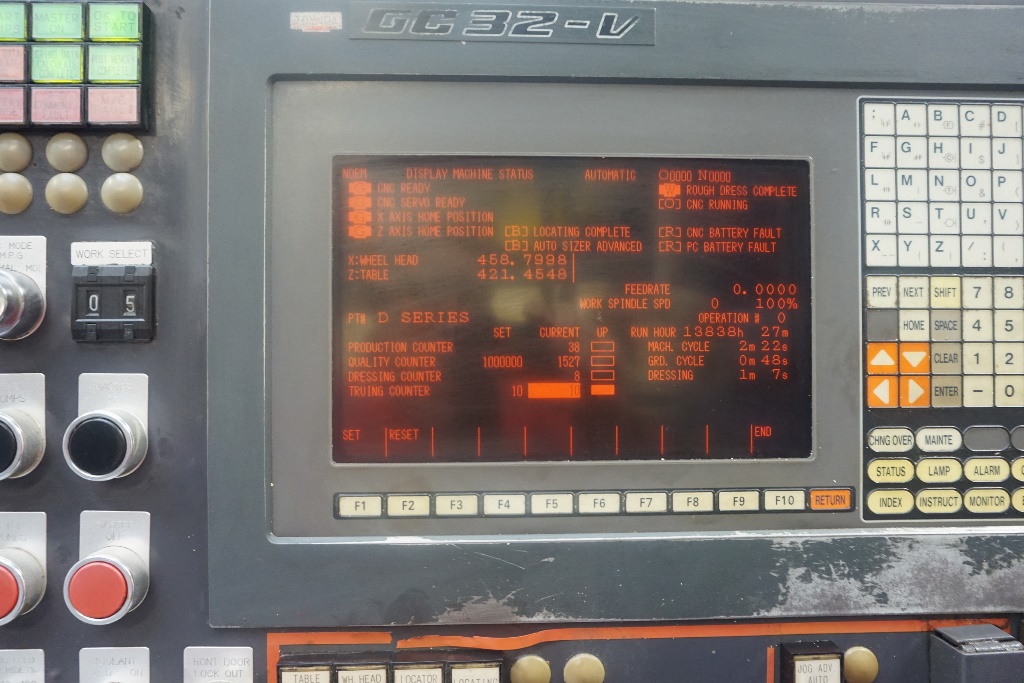

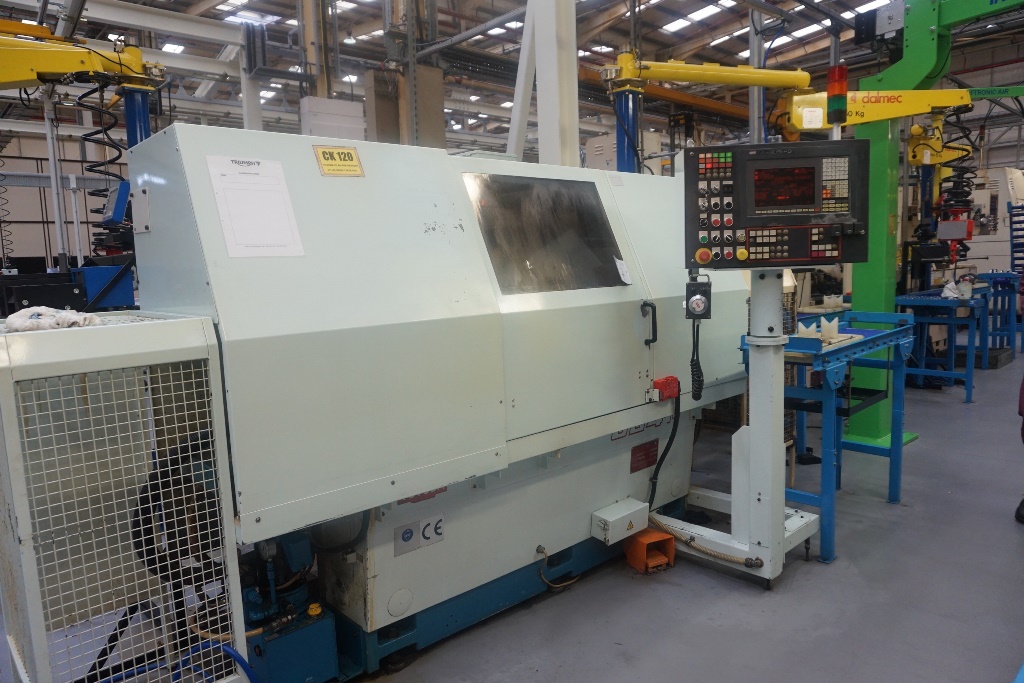

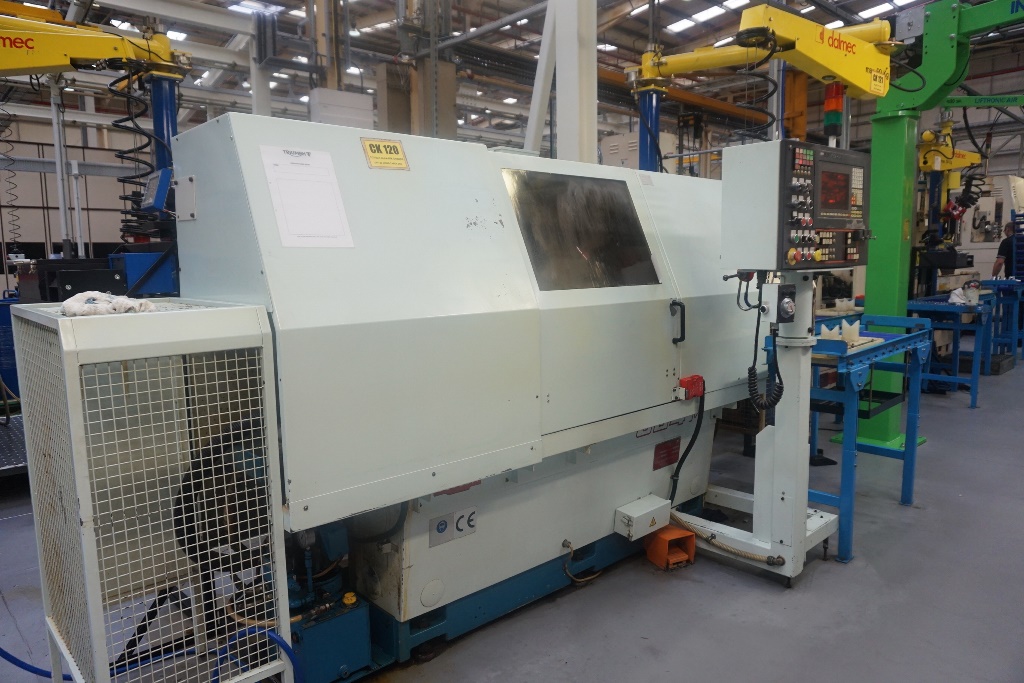

Lot 7 - Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32203 (1989)

Please Note: Roller Tracking and Handling equipment is not included.

Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
