Innse Rotary Piercing Mill Including Furnace (WHOLE LINE)

Min / Max Billet 80mm dia x 3000mm length, 120mm dia x 5700mm length
Continuous Feeding System with Billet Brushing,
Rotary Crane, Brocker Straightening Machine,
Ludwig Ofag Indugas (LOI) / Charging and Discharging Billet Furnace,
Tube Transportation System to Piercing Mill,
Siemens Main Electric Motor, Gearbox and Transmission Innse Billet Pusher, Control Console,
Pressure Rollers 116-145mm dia x 450mm width,
Roller Material No. 12343, Core Material of Pressure Rollers 1.2343,
Hardness of outer alloy 1.9080,
Mandrel Diameter: 86mm, Mandrel Material 1.2581,
Incoming Billets 115mm x 5400mm, Weight 508kg, Temperature 930c,
Outgoing Billets 115mm x 13mm x 1250mm,
Roller speed 70 – 90 RPM, Max Performance 28 pieces per hour,
Water Cooling and Filtration System,
Tooling for Piercing Mill and Transformers

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

Innse Continuous Billet Feeding System with Bridge Crane, Brocker Straightening Unit, Controls and Electrical Cabinets

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

Ludwig OFAG Indugas Gas Heated Charging & Discharging Billet Furnace, Heat Exchanger

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

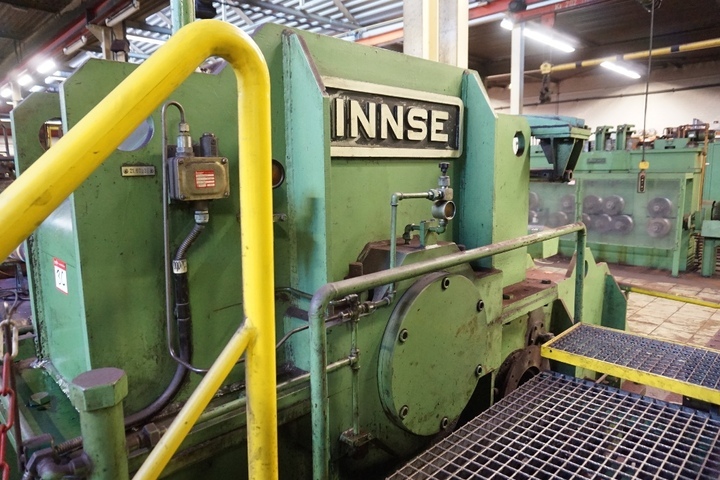

Innse Rotary Piercing Mill with Billet Pusher, Transportation Systems, Water Cooling, Filtration and Treatment, Zumbach Diameter Monitoring System, Controls and Electrical Cabinets

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

Tooling for Piercing Mill

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

Spares for LOI Billet Furnace

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

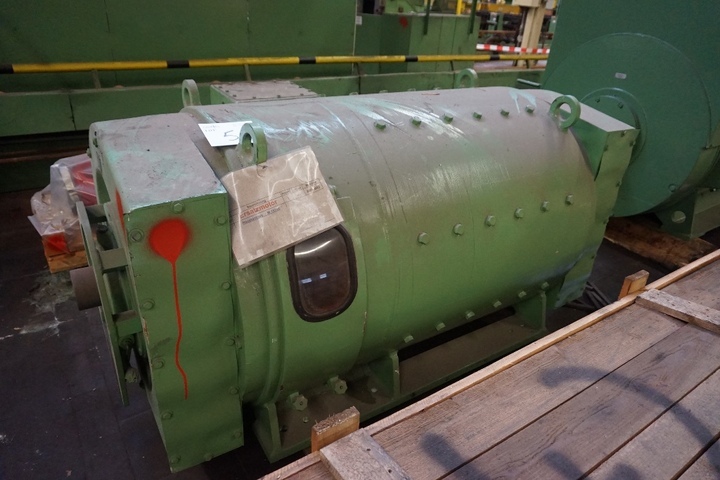

Spares for Piercing Mill

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

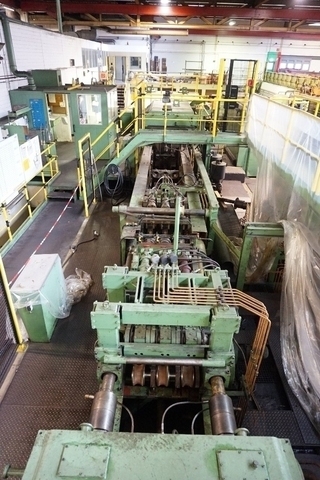

SMS/MEER/ Cold Pilger Rolling Mill, (3) x 115 VMR, number of Billets (3), Continuous Chain, Shell Transportation System with Feeding Table, Strokes 90 maximum – 85 per minute actual, Feed Rate 15.8 / 14.1mm Stroke, Shell Length 14,000mm Max, 8000 Minimum, Shell Dia Outer 115m Inner 89mm, Shell Weight 500KG, Exit Material: Tube Dia Outer 58mm Inner 53.2mm, Max Tube Eccentricity: % + - 2, Main Electric DC Motor 950KW 800 RPM with Controls, Reserve Main Clutch, Kind & Co/ Century Calibrating Roller 610mm dia x 220mm width, Tools Calibrating Roller Material. No. TQ1/1.2344, Calibrating Roller Hardness (HRc), Chrome Plate Mandrels – Material 1.2363, Thickness 0.003mm Hardness (HRc) 54-56 Pushing Device, Push Rods x 4, Noise Protection Hood with Controls, Chain Shell Transport System, Emulsion System with Controls, Tube Guilding System – Pilger Tunnel, Turning Device for Pilger Tools, Mandrel Support, Delimon Central Lubricating System, Controls and Electrical Cabinets

Lot 6B - Spares

Lot 6C - Die Polishing Machines

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

SMS/MEER/ Cold Pilger Rolling Mill, (3) x 115 VMR, number of Billets (3), Continuous Chain, Shell Transportation System with Feeding Table, Strokes 90 maximum – 85 per minute actual, Feed Rate 15.8 / 14.1mm Stroke, Shell Length 14,000mm Max, 8000 Minimum, Shell Dia Outer 115m Inner 89mm, Shell Weight 500KG, Exit Material: Tube Dia Outer 58mm Inner 53.2mm, Max Tube Eccentricity: % + - 2, Main Electric DC Motor 950KW 800 RPM with Controls, Reserve Main Clutch, Kind & Co/ Century Calibrating Roller 610mm dia x 220mm width, Tools Calibrating Roller Material. No. TQ1/1.2344, Calibrating Roller Hardness (HRc), Chrome Plate Mandrels – Material 1.2363, Thickness 0.003mm Hardness (HRc) 54-56 Pushing Device, Push Rods x 4, Noise Protection Hood with Controls, Chain Shell Transport System, Emulsion System with Controls, Tube Guilding System – Pilger Tunnel, Turning Device for Pilger Tools, Mandrel Support, Delimon Central Lubricating System, Controls and Electrical Cabinets

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment

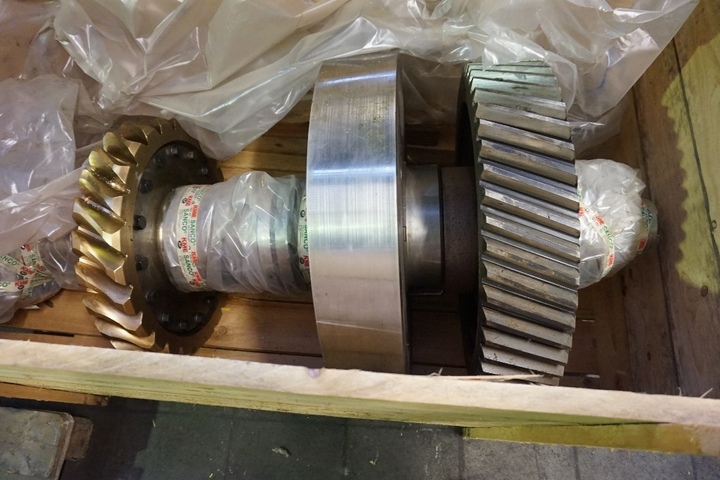

Spares

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment
