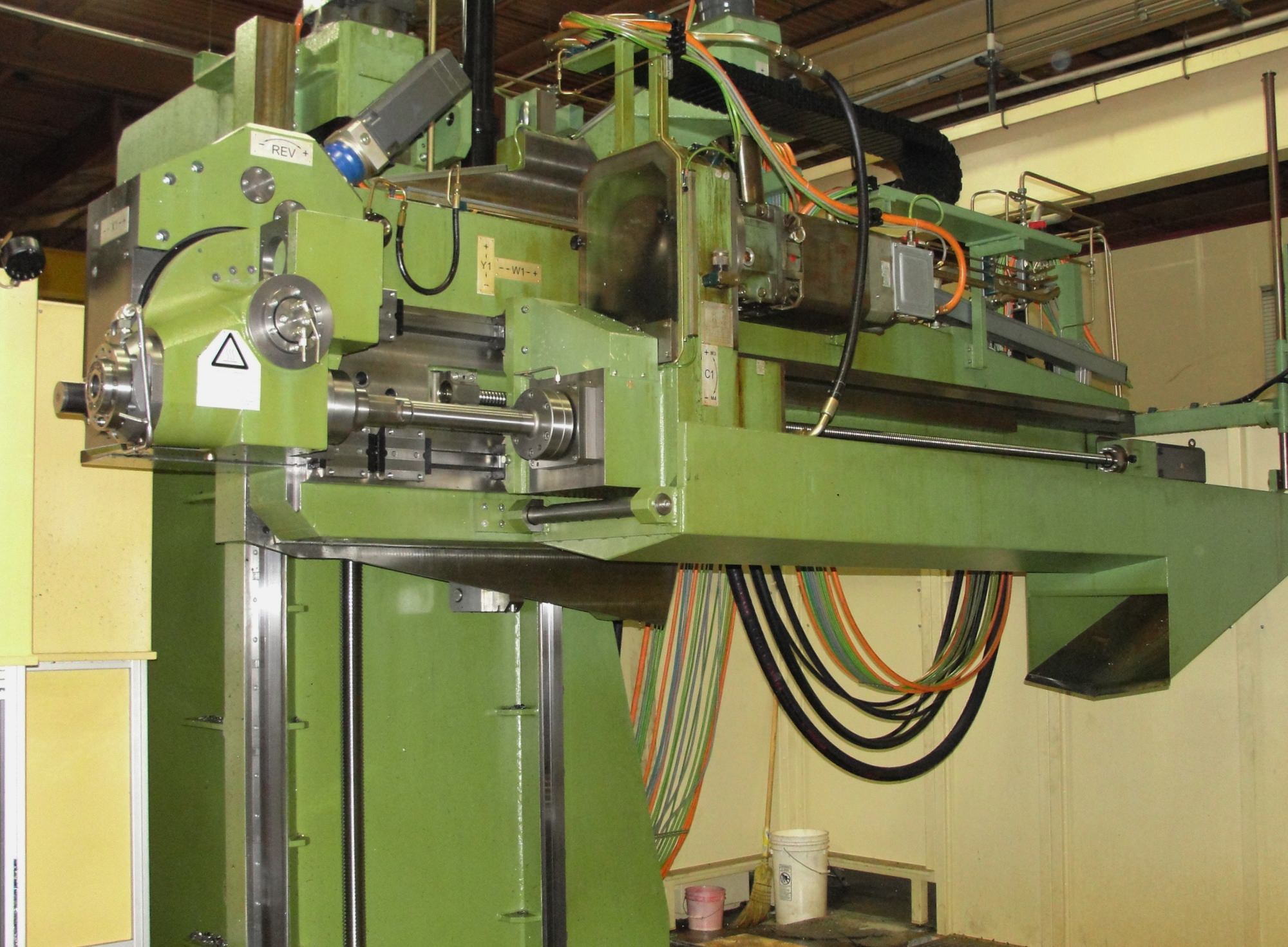

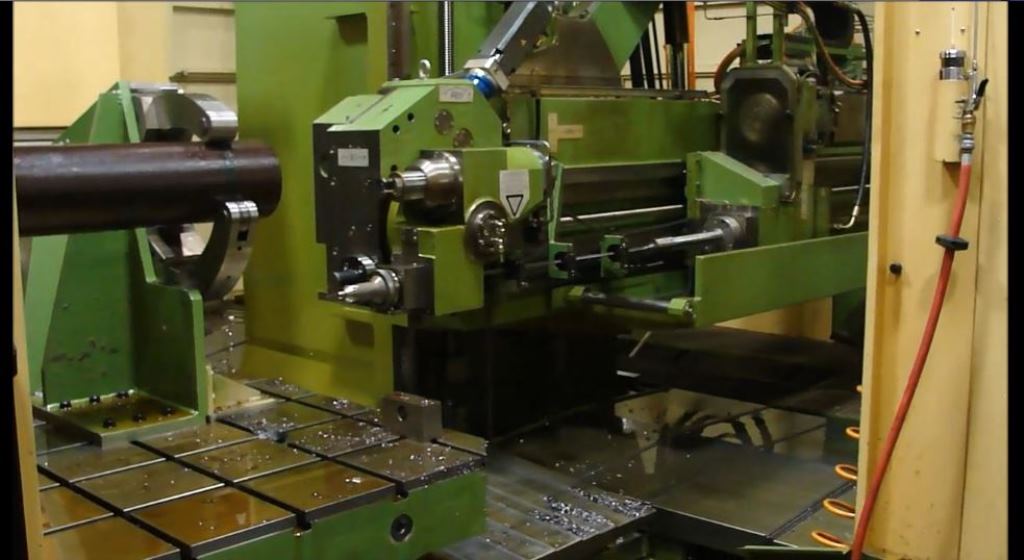

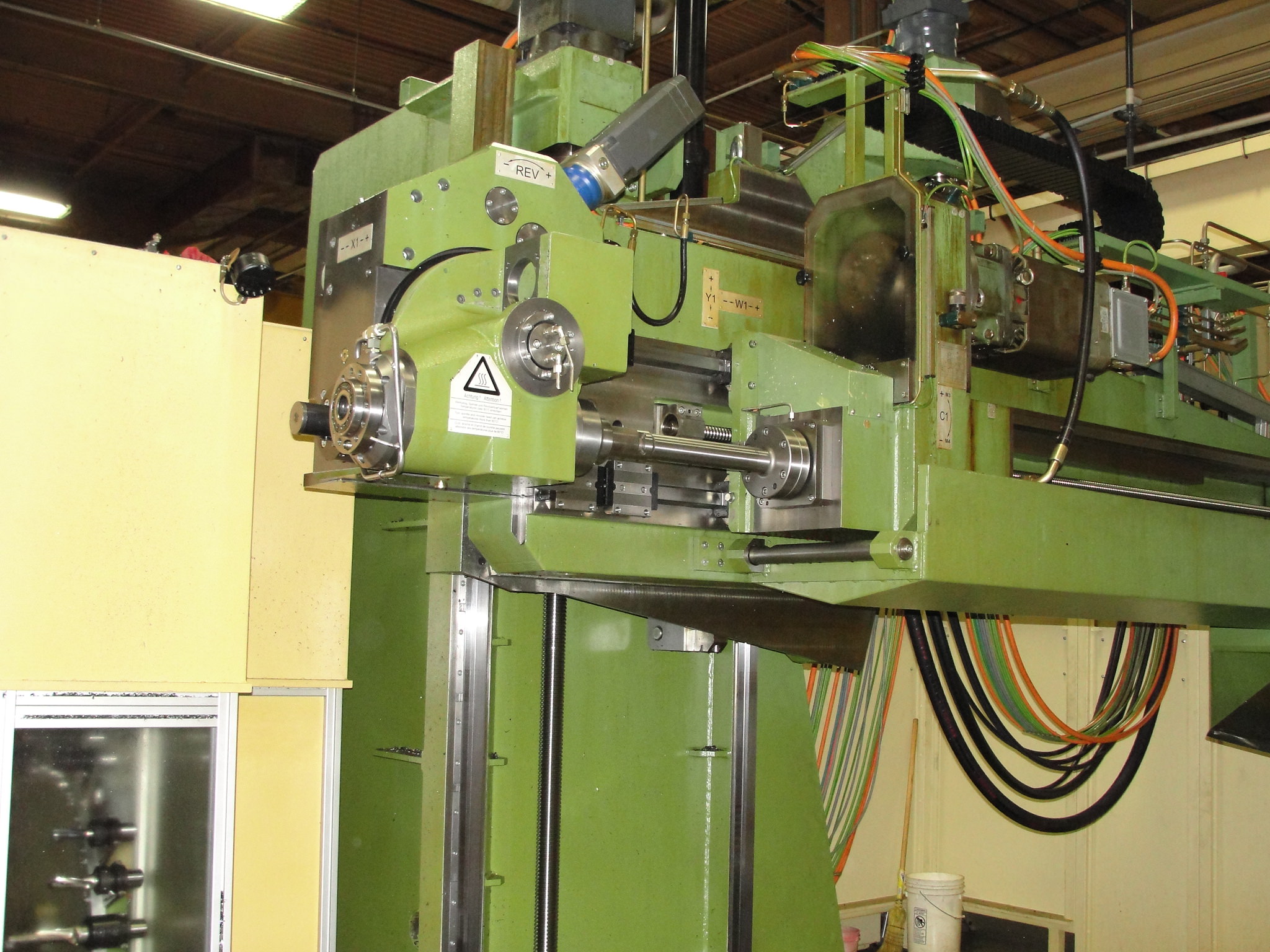

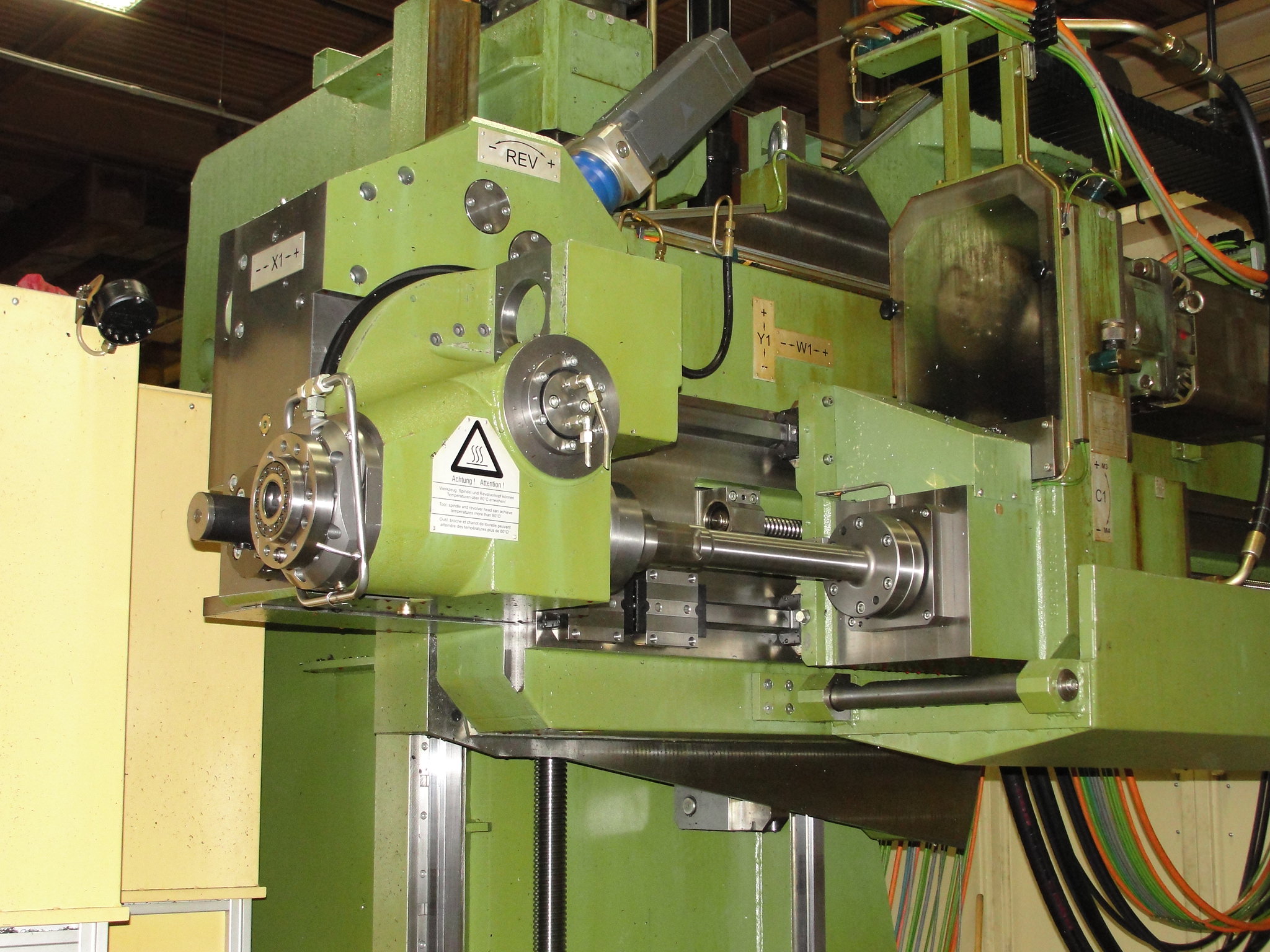

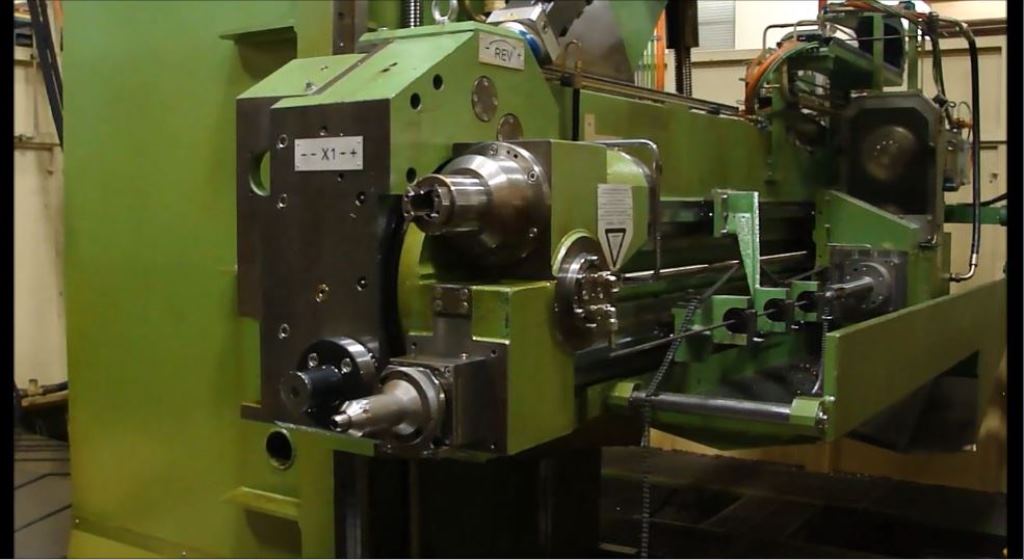

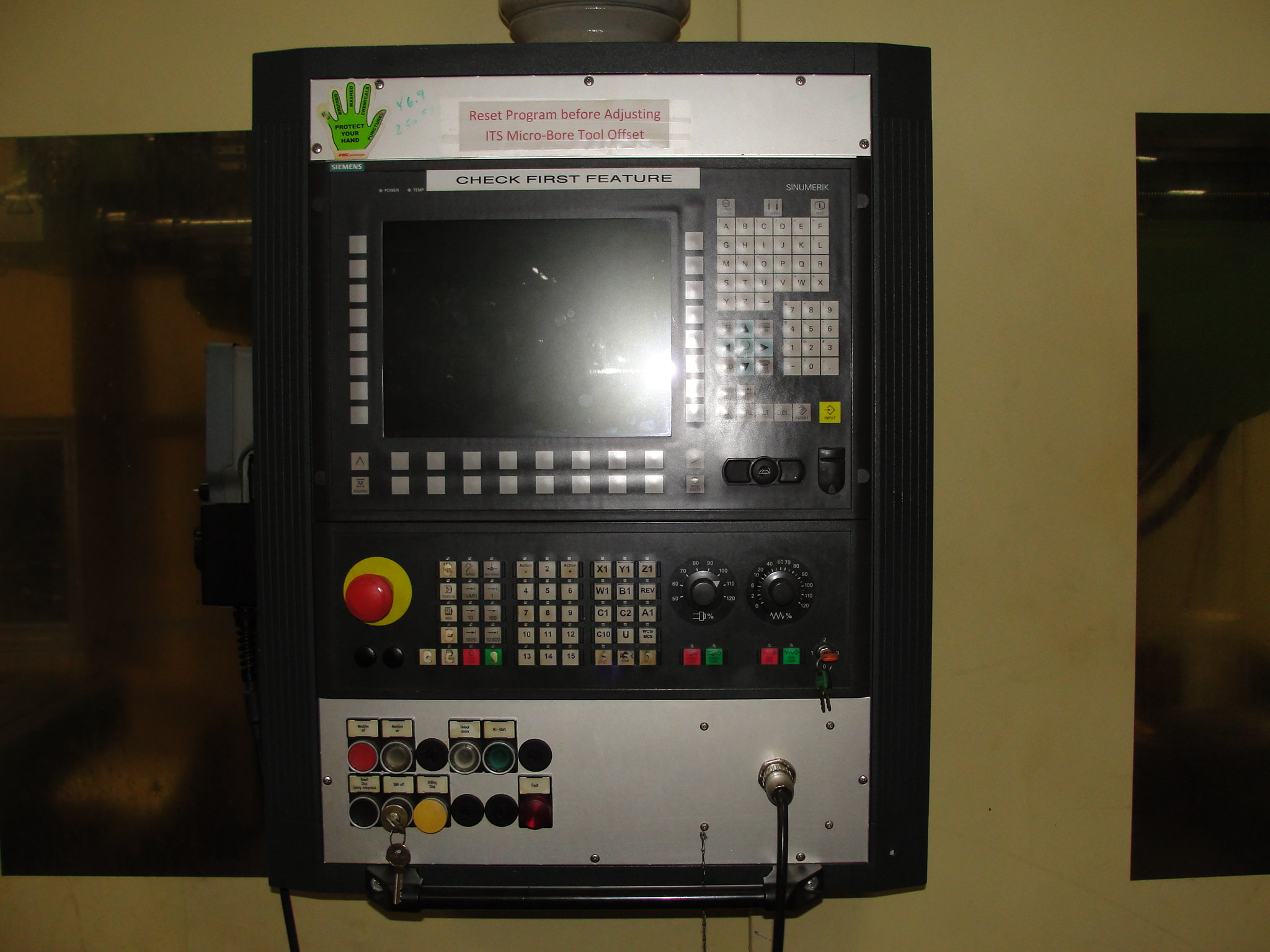

TBT BWW300 6-Axis CNC Deep Hole Drilling and Milling Center with Siemens 840D CNC Control (2005)

with;

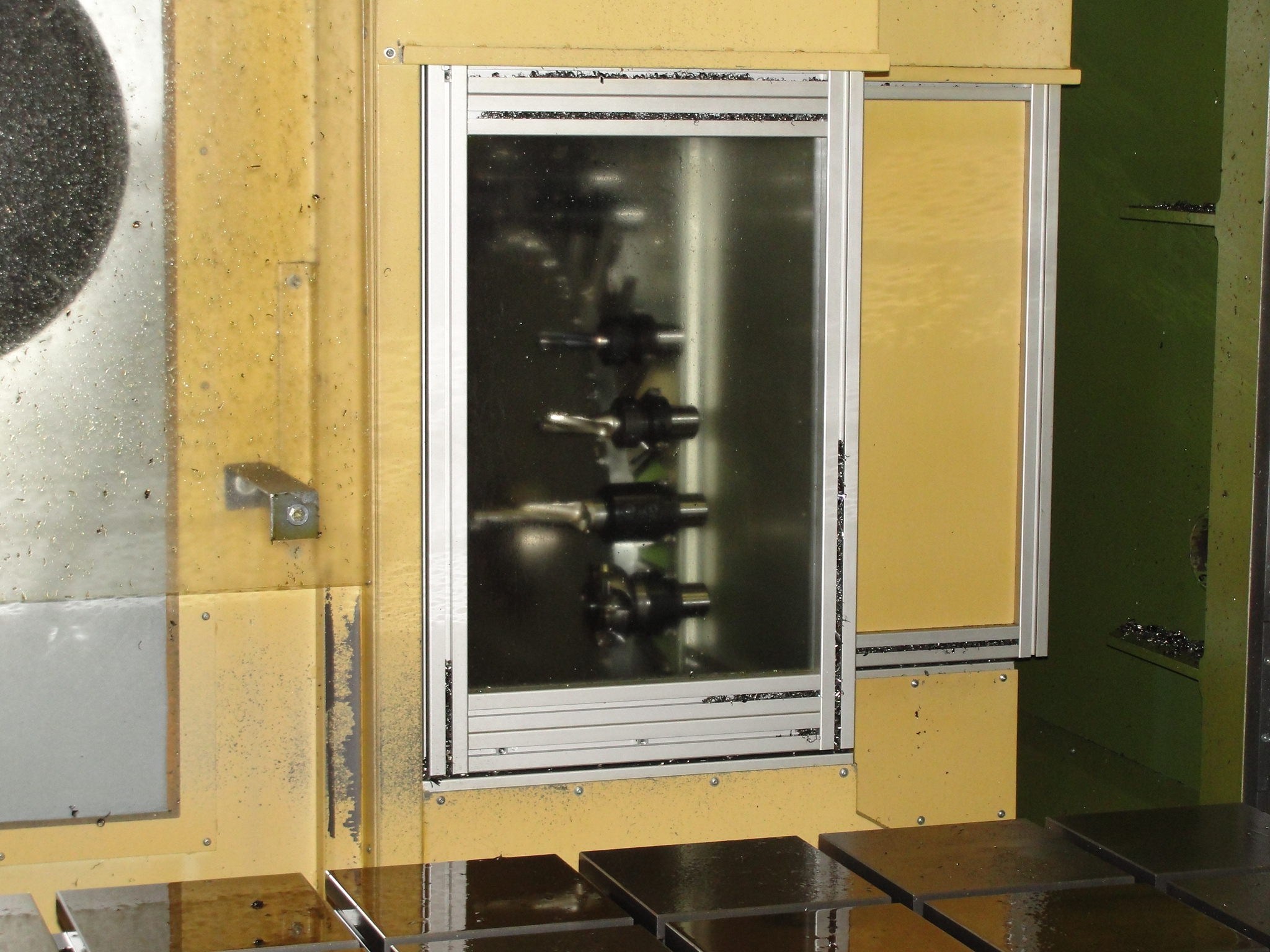

30-Position Automatic Tool Changer, Pendant Controls, Auxiliary Spindle, Rotary Indexer with 15” 3-Jaw Chuck, Renishaw Probe, Steel Enclosure for entire machine, Drill Bush Carrier, Gun Drilling Unit, Rapid Traverse Feed Drive, Dual Airflow System, Coolant Tank, High Pressure Pump, (2) Chip Conveyors, Paper Filtration Separation Unit, Centrifugal Chip Separator, Programmable Hydraulic Steady Rest, TBT Universal Grinding Machine, Switchgear Cabinet, Hydraulic Unit, Control Desk and Large Quantity of TBT Gun Drill Tooling and Spare Parts

Features:

Gun Drilling, BTA STS Drilling, Indexable Drilling, Counterboring, Tapping, Milling

Capacity:

Gun Drilling Max. Diameter: 60mm
Max Drilling Depth: 2000mm
Counterboring Max. Diameter: 118mm
BTA STS Drilling Max Diameter: 80mm
Drilling-Indexable Max Diameter: 70mm
Spindle Speeds: 1 – 8000rpm
Aux Spindle – Spindle Speeds: 1 – 4000rpm

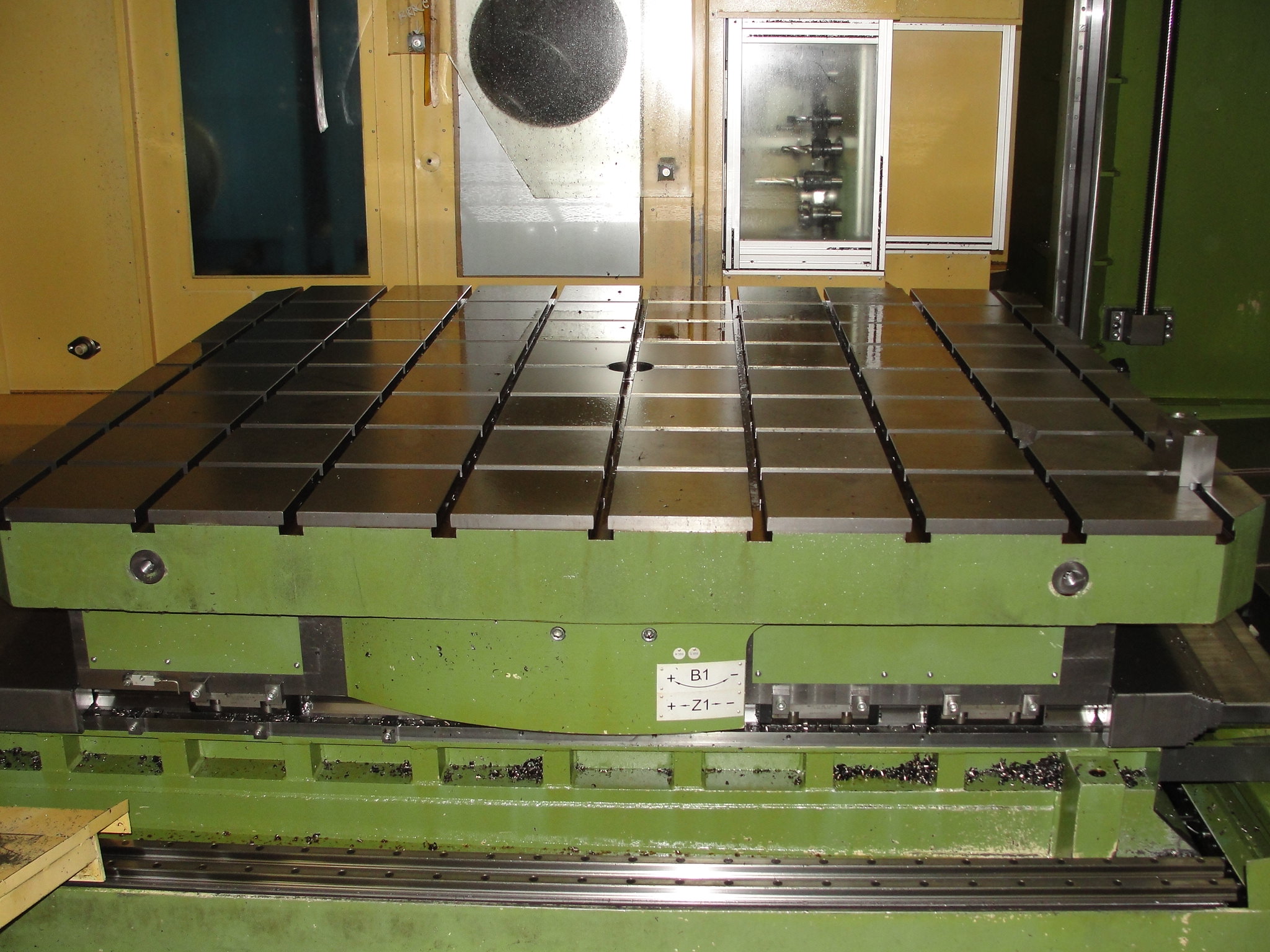

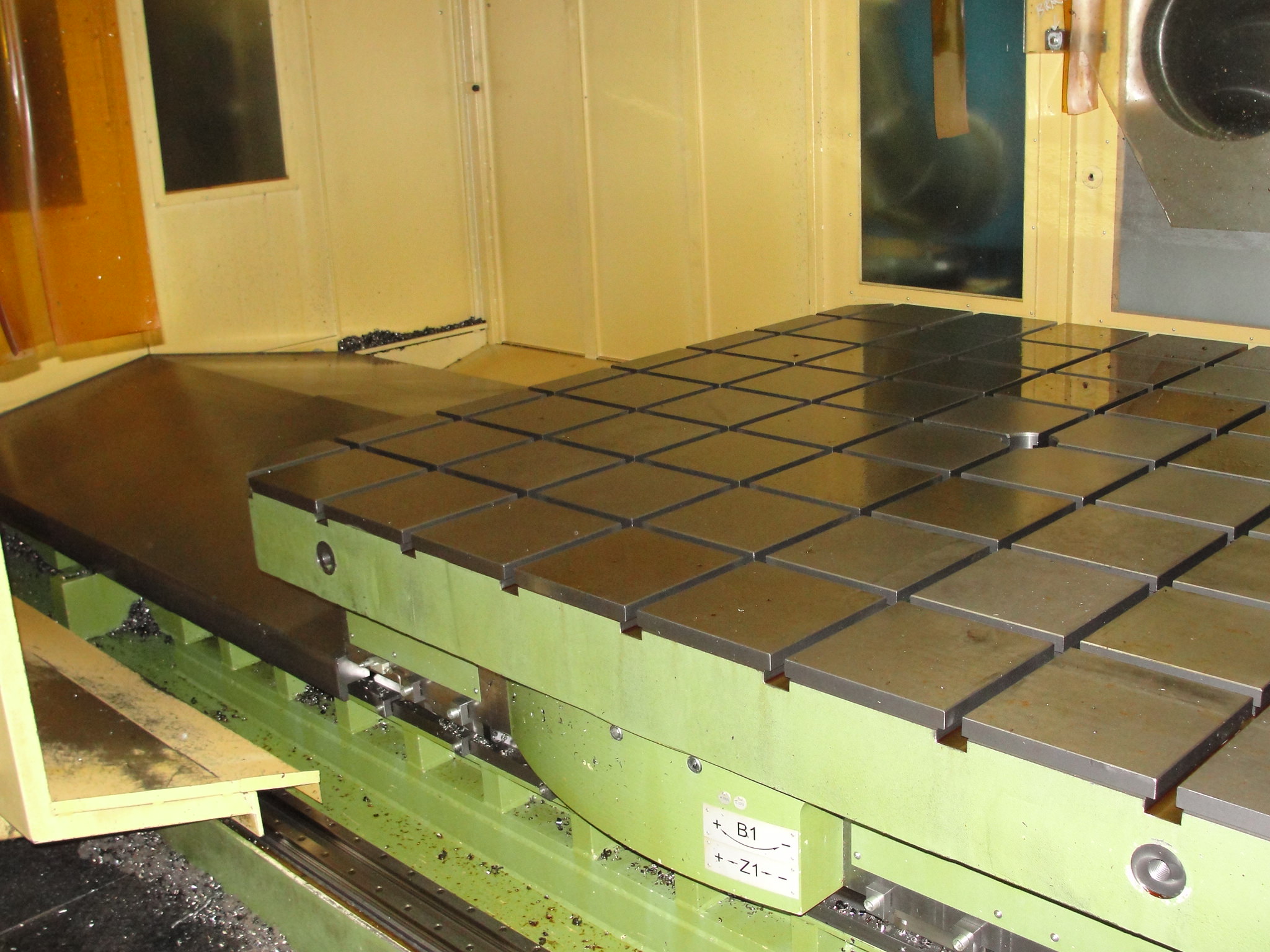

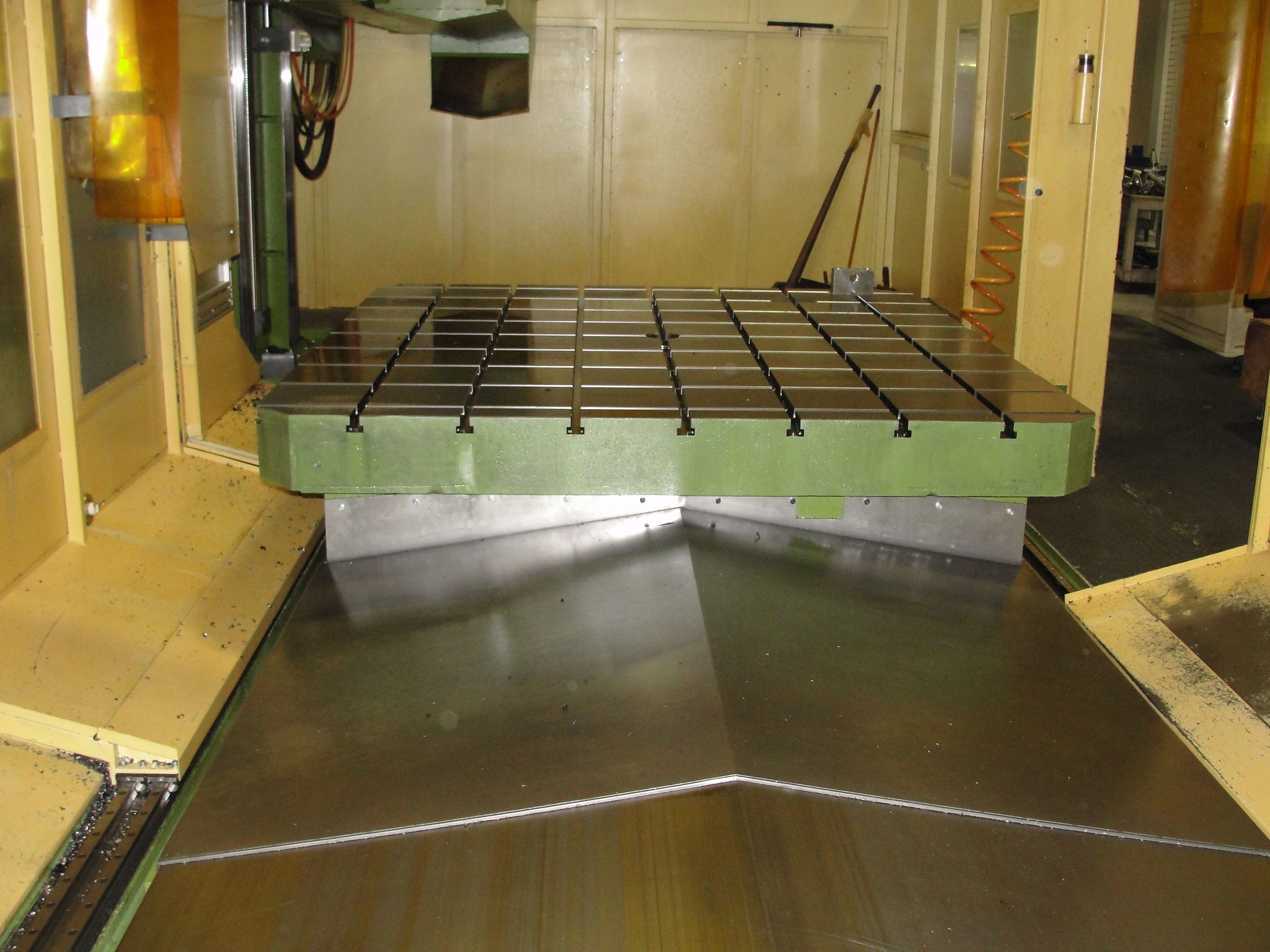

Rotary B-Axis Table Size: 2200mm x 2000mm
Approx. Floor Space: 9754mm x 10211mm
Electrics: 480/3/60

Travels:

X-Aixs Horizontal Colum Travel: 3000mm
Y-Axis Vertical Head Travel: 1500mm
W-Axis Contacting Travel: 2600mm
Z-Axis Drill Cross Slide Travel: 1000mm
A-Axis Drill Angle: +25/-10 degrees
B-Axis Rotary Table: 360,000 positions
C-Axis Rotary Indexer: 360,000 positions

Please Note: This Item is located in Houston, Texas, USA.  Unfortunately there are no loading facilities available. Dismantling and Loading will be at the cost of the purchaser.
