Lot 100: Mazak Integrex E-650-H Multi-Tasking CNC Turning/Milling/Boring Centre

Ends:
Wednesday 16 Dec 2015 15:10 PM GMT
Time Left:
Auction Finished
You must login to be able to bid
Increment: £ 1,000
Bids: 27
Buyer's premium: 16%
VAT: 20%
Make: Mazak

Video

Full Lot Description

THIS ITEM HAS BEEN PURCHASED BY THE BUY IT NOW OPTION

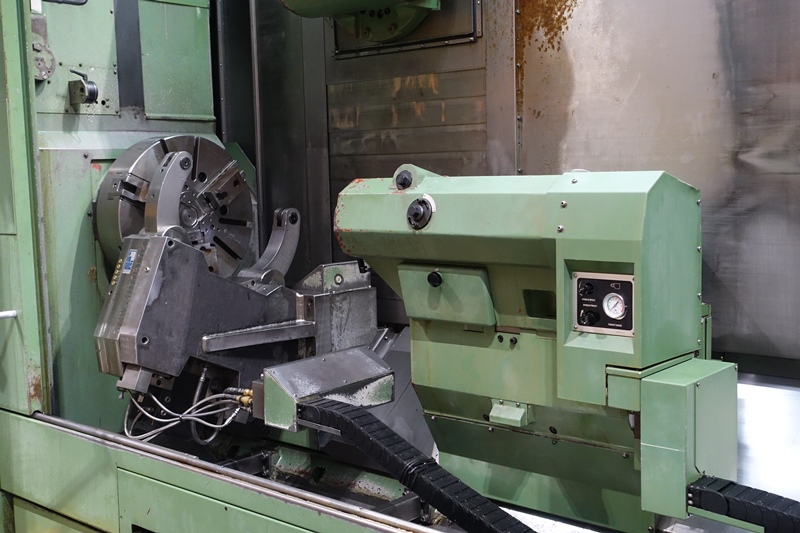

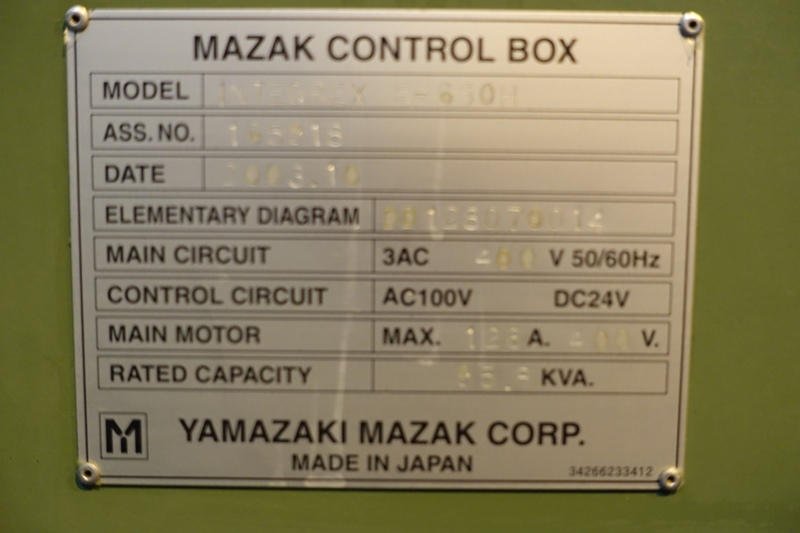

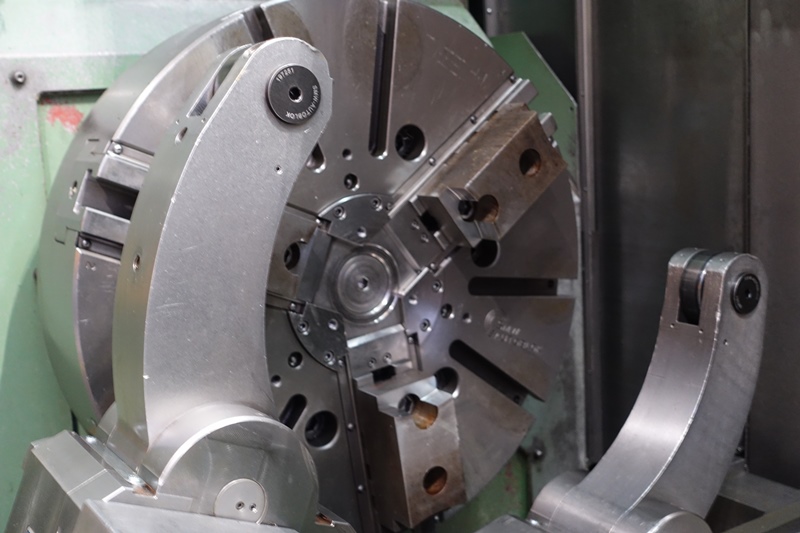

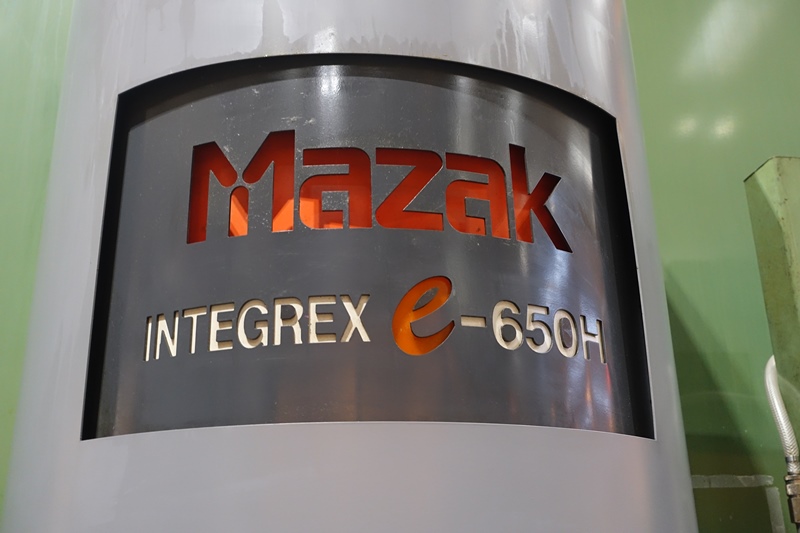

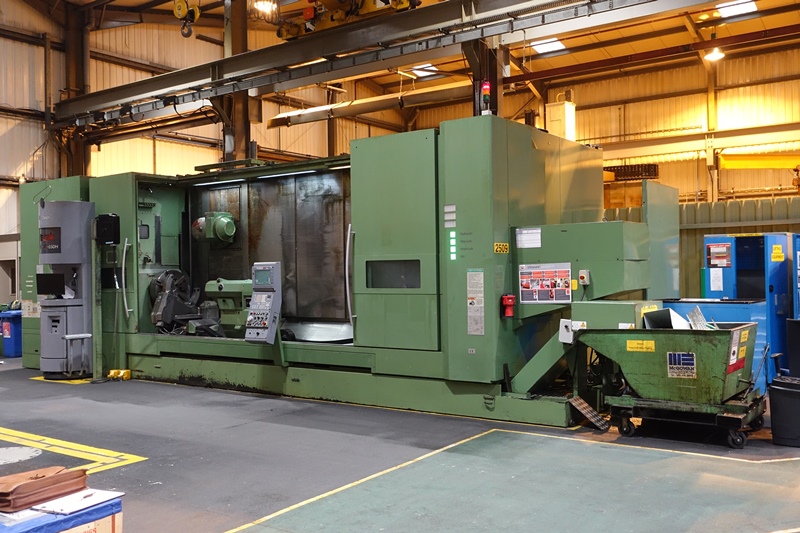

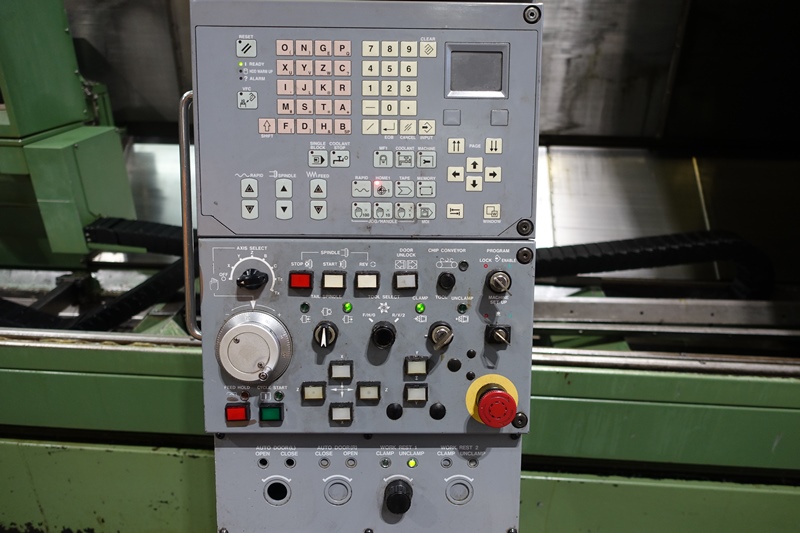

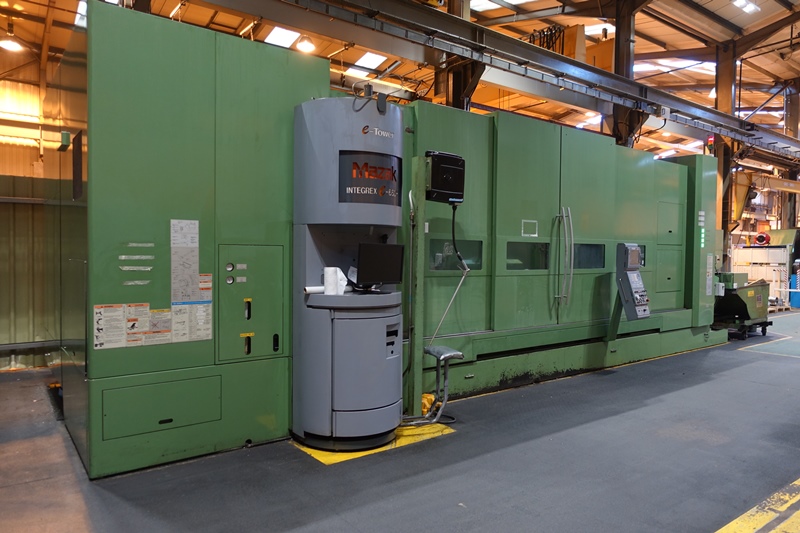

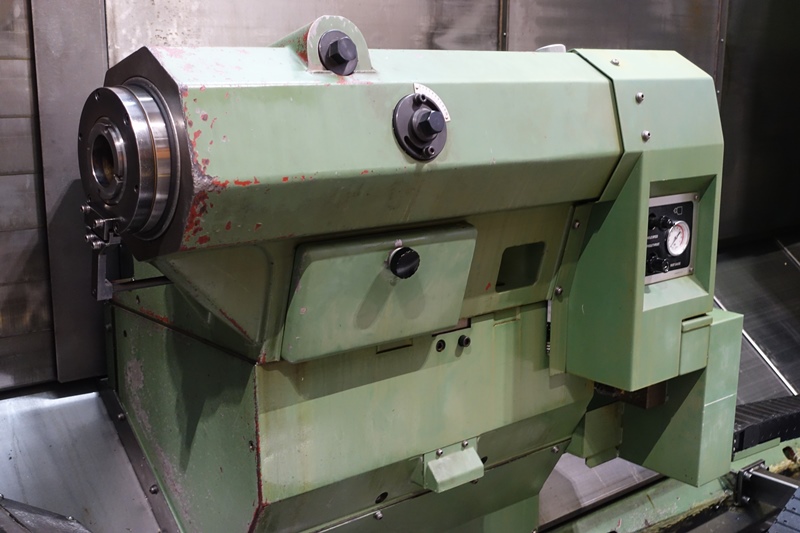

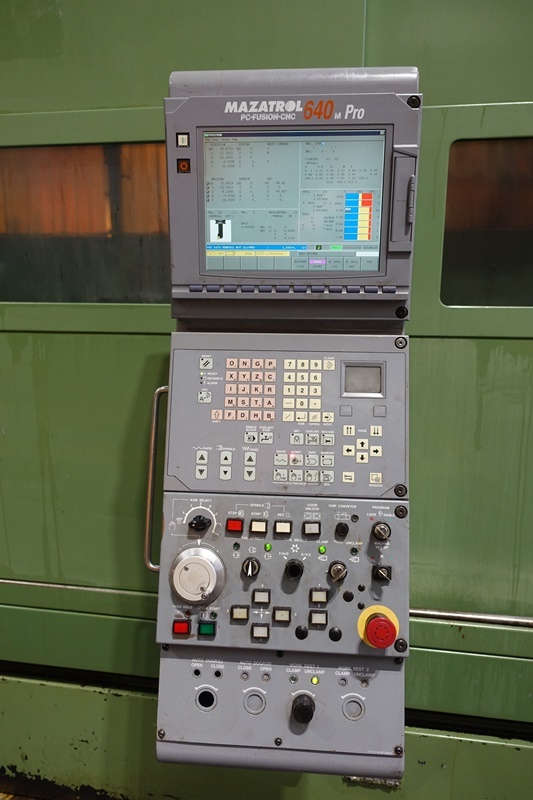

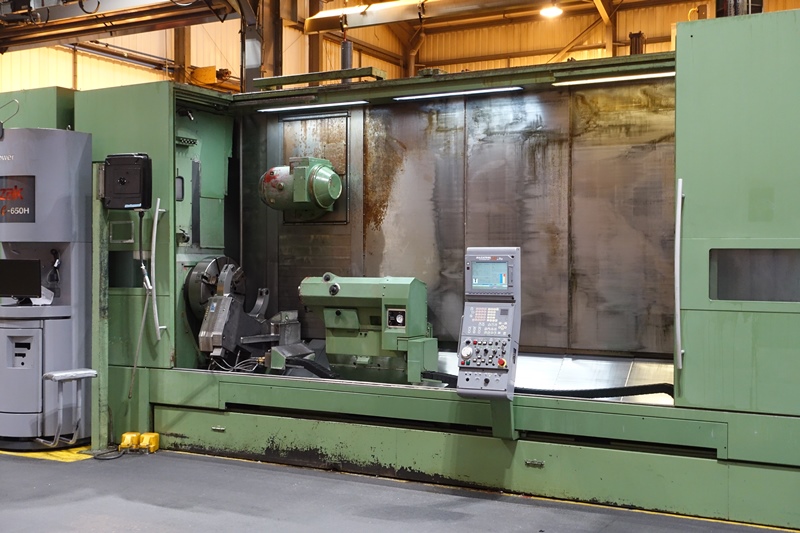

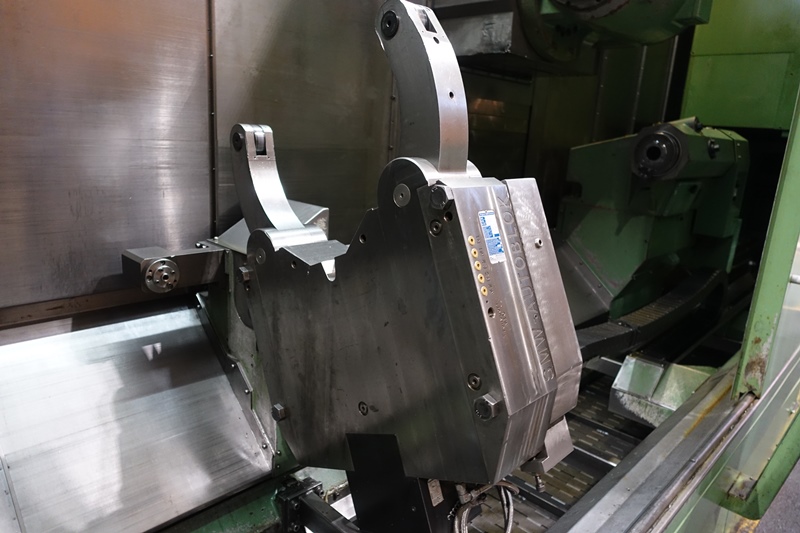

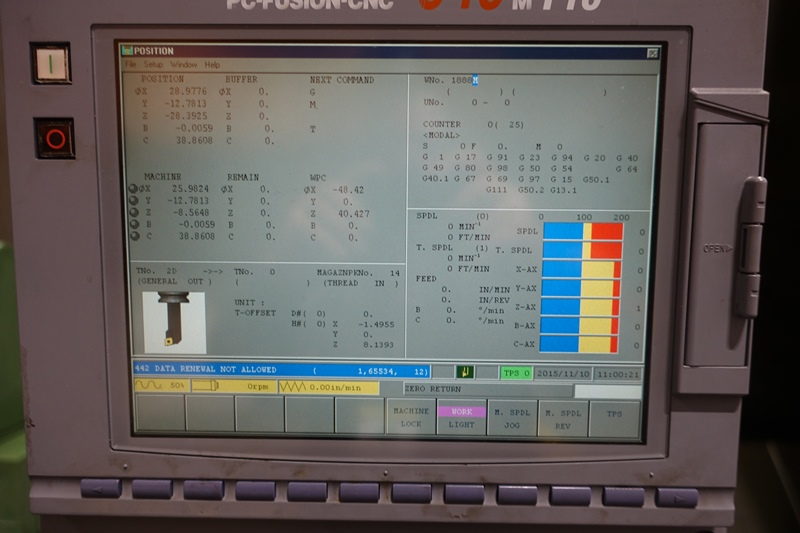

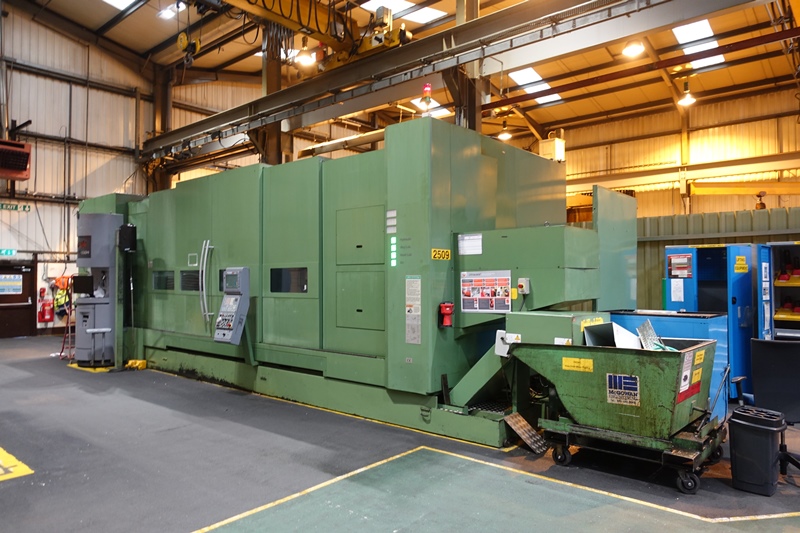

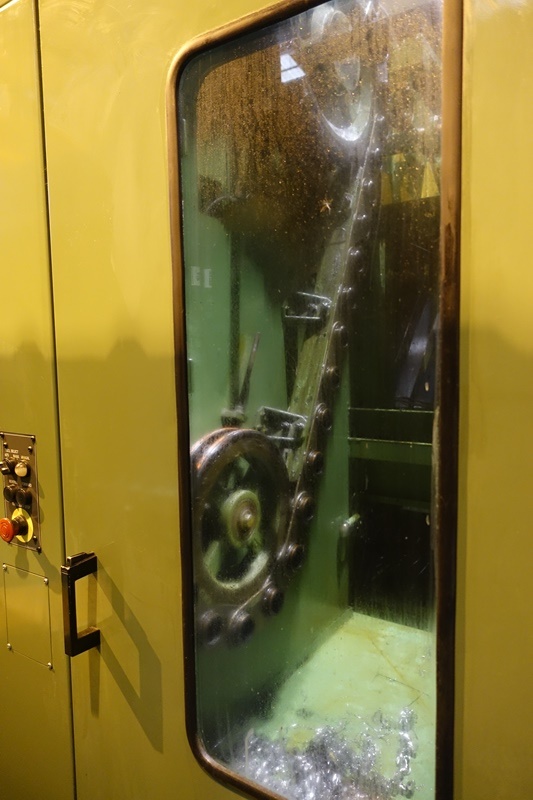

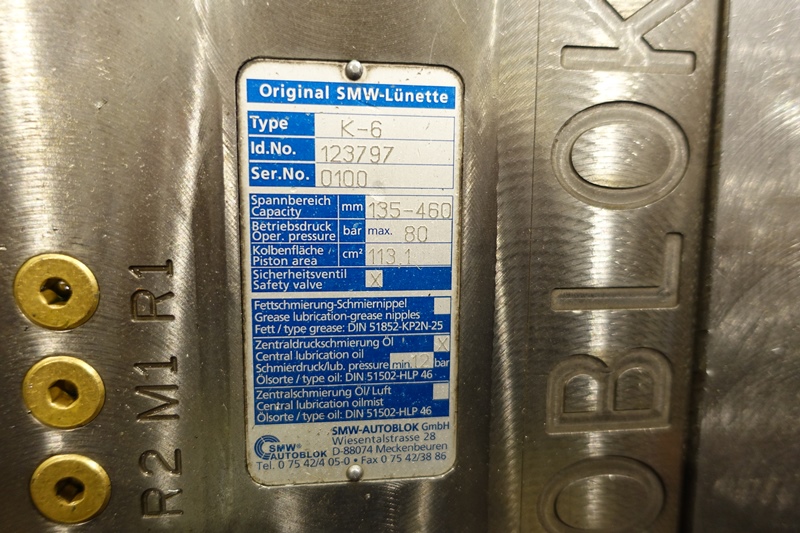

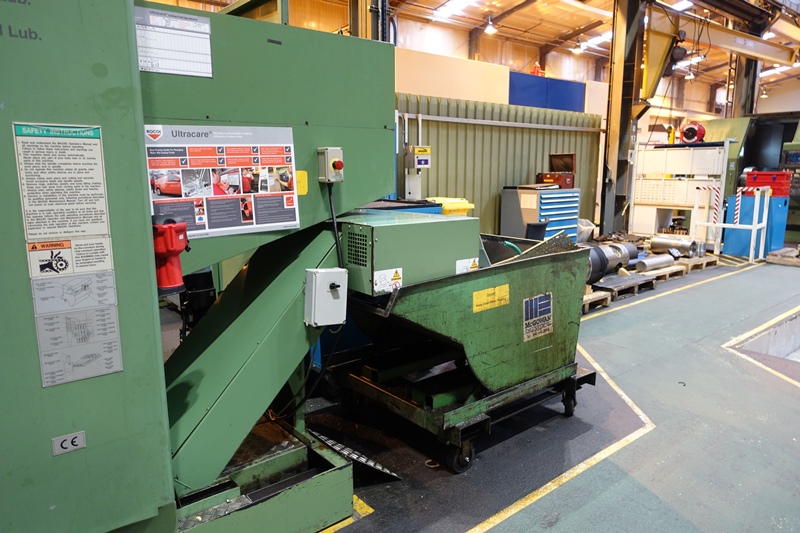

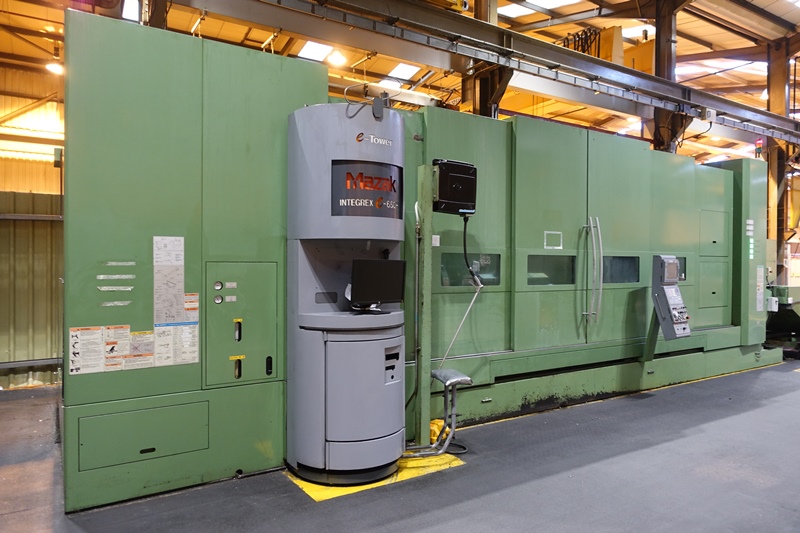

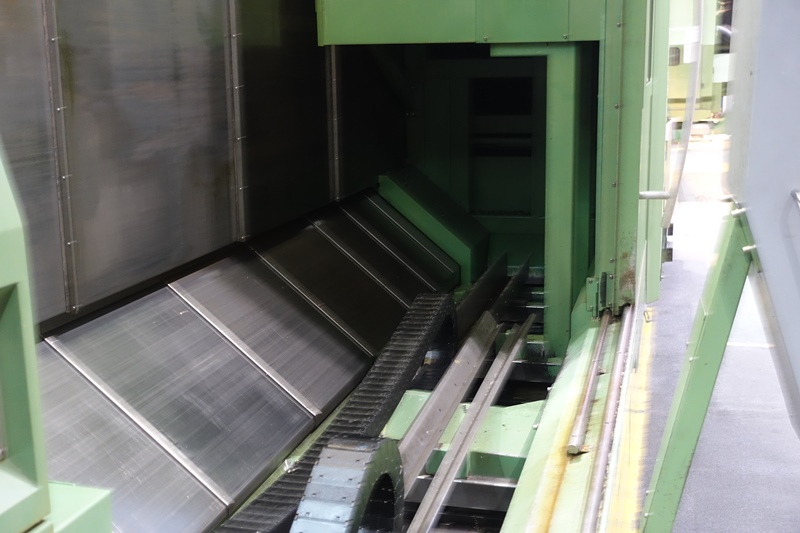

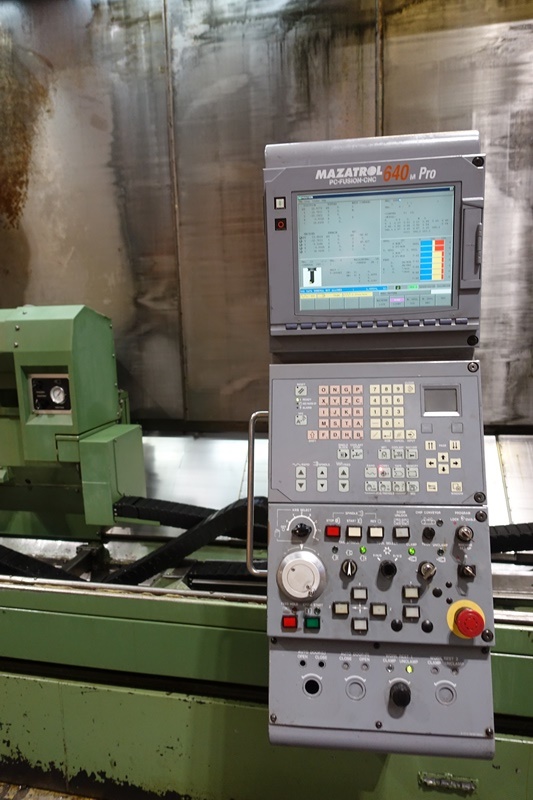

Mazak Integrex E-650-H Multi-Tasking CNC Turning/Milling/Boring Centre with Mazatol 640 M Pro Fusion Control, 920mm Swing, 4000mm Cutting Length, 630mm Hydraulic 3-Jaw Chuck, Operation 5 Axis X-Y-Z-B-C, Tool Taper Type MAS BT50, Heavy Duty Hydraulic Tailstock, Tool Probe, Tool Changer 40 Pocket Carousel ATC, Boring Bar Loader Station 3-Pocket, Coolant, Swarf Conveyor, Steady SMW Autoblok Ref M2R3R2MIRI. S/No. 165818 (2003)

The 60 HP Main Turning Spindle has full ‘C’ Axis 0.0001 degree operation up to 1600 RPM Spindle Speeds.

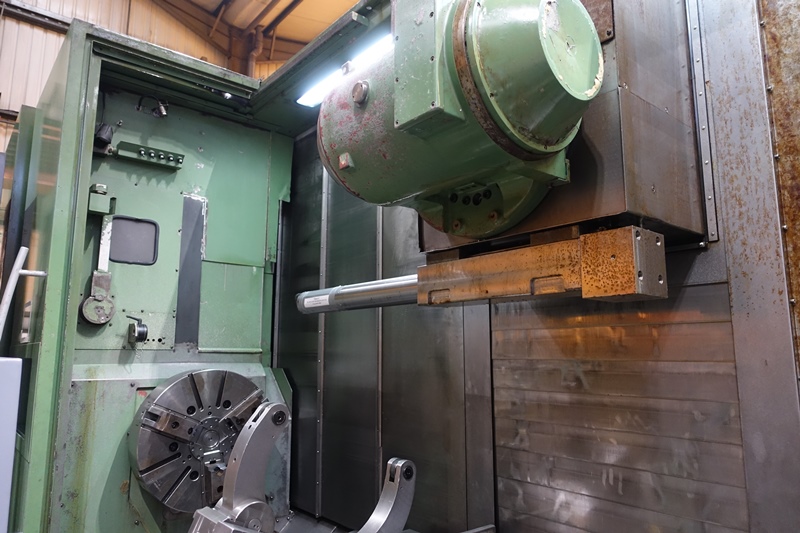

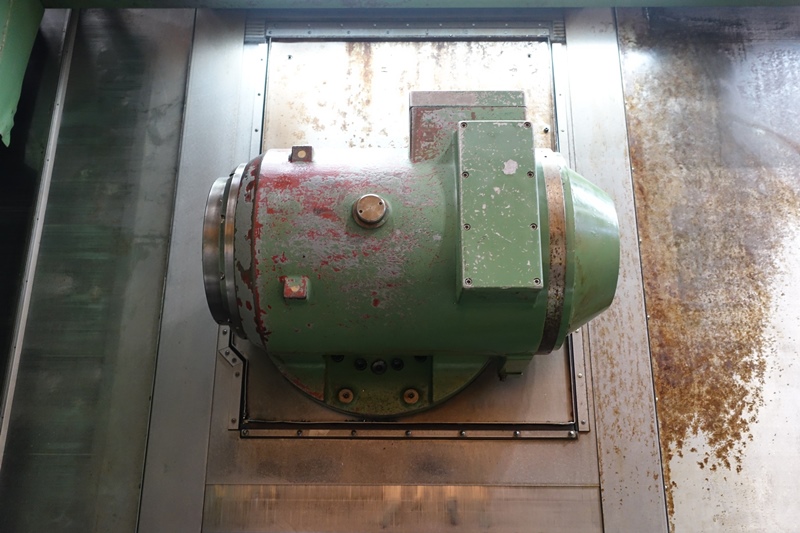

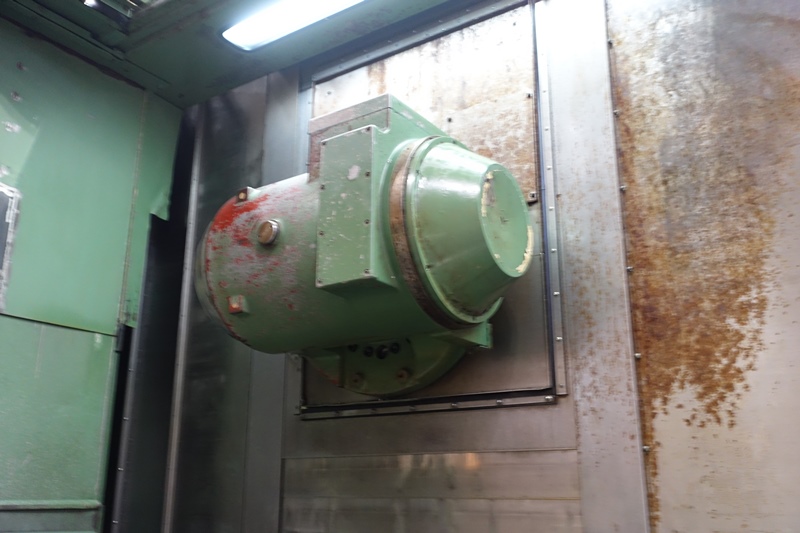

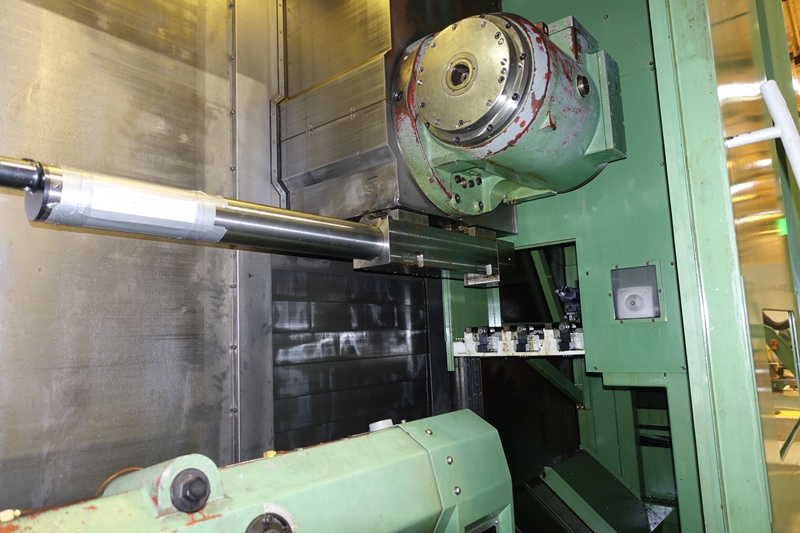

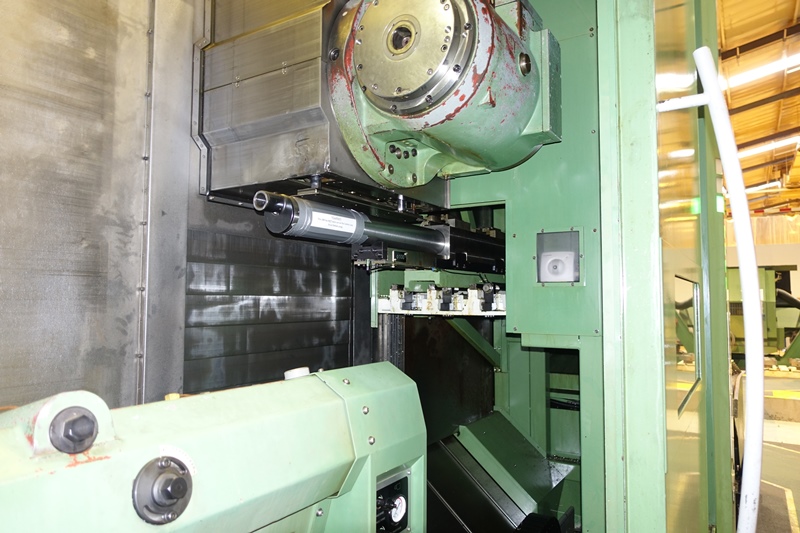

The 50 HP Indexing ‘B’ Axis Spindle with 240 degree travel range positions in 0.0001 degree increments completes the 5 Axis contouring operation with speeds up to 10,000 RPM.

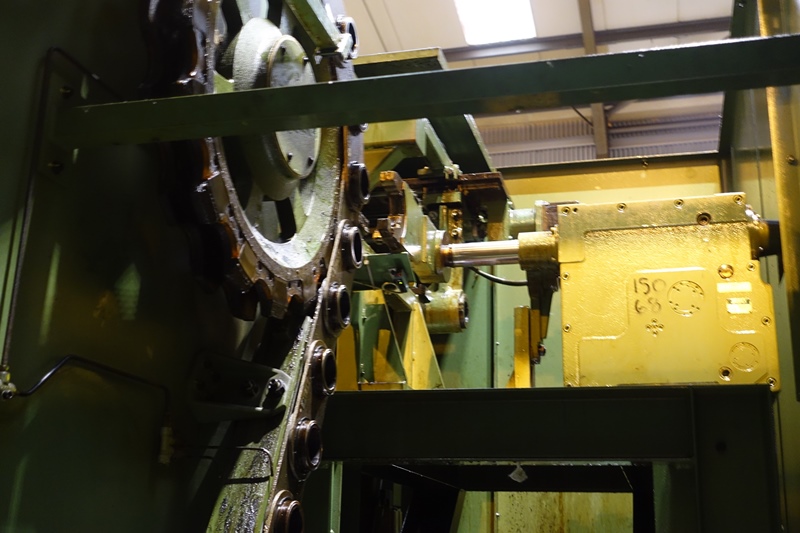

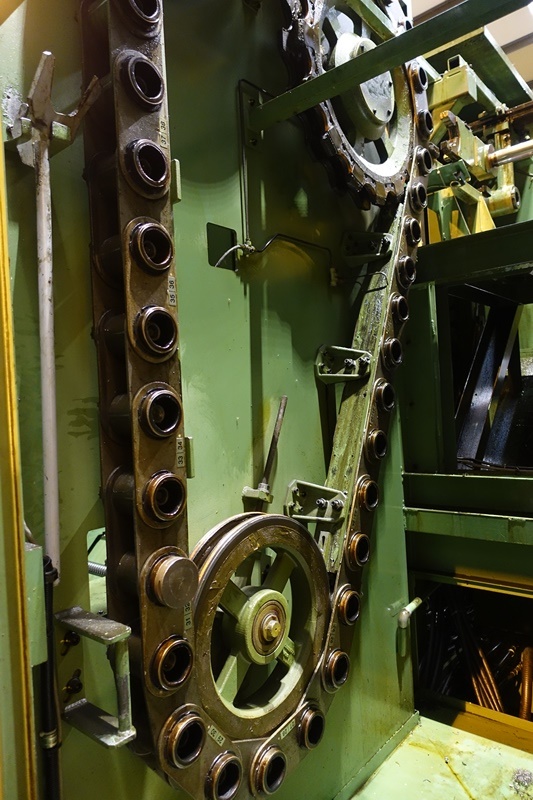

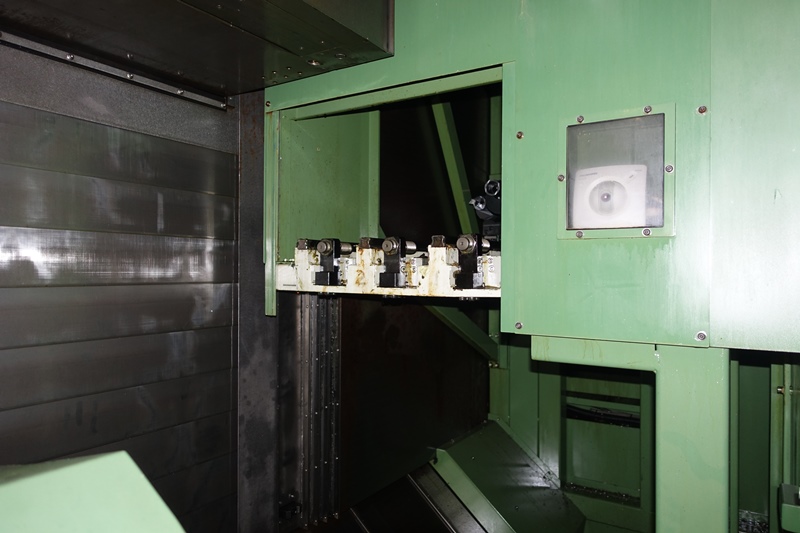

The ‘B’ Axis movement automatically supplies tools from the 40-Position ATC and Boring Bars from the 3 Pocket Boring Bar Stocker.

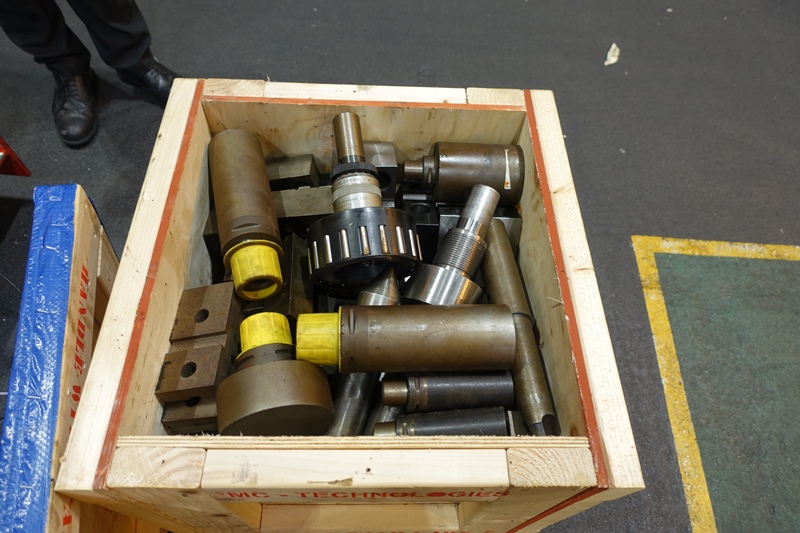

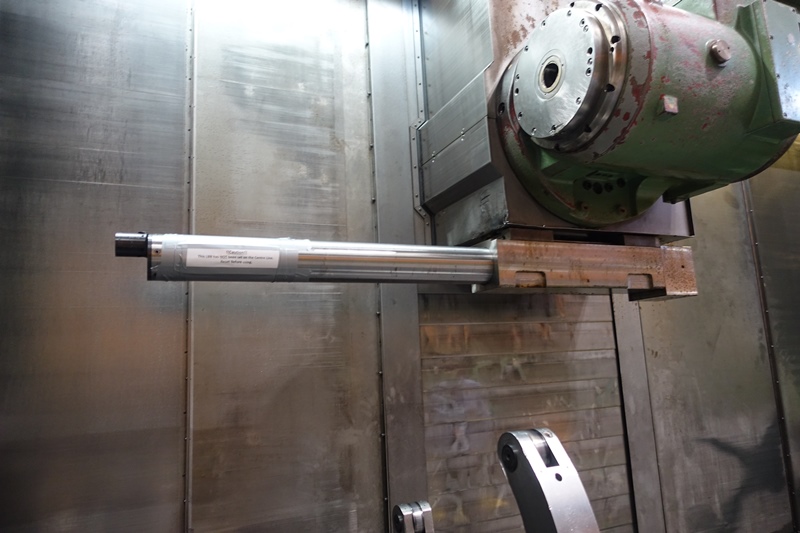

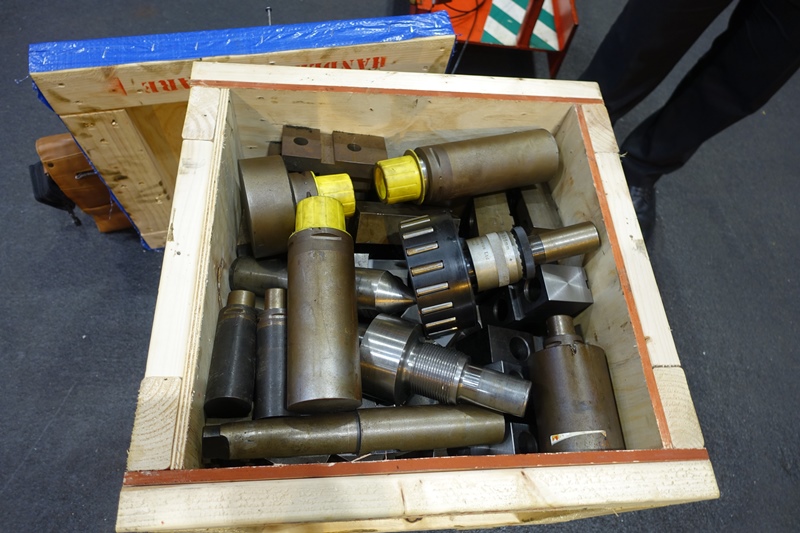

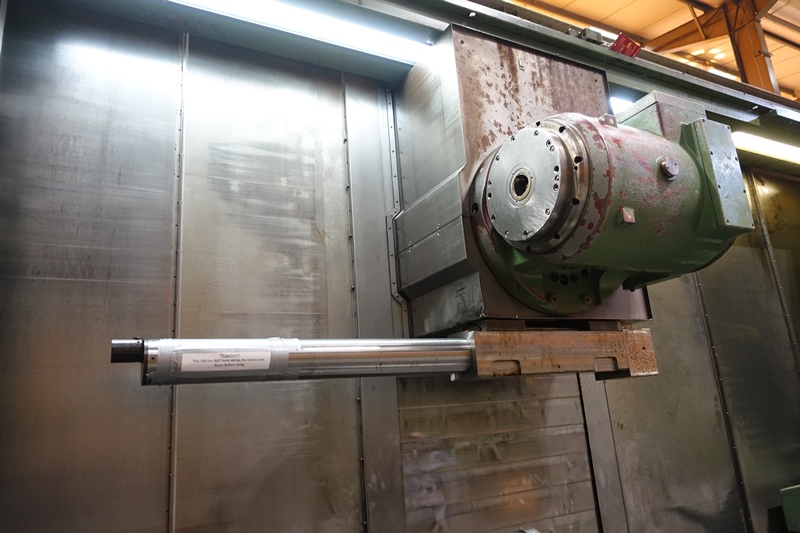

Comprehensive Tooling Package available including 2 boring bars 1 x 80mm x 800mm long and 1 x 100mm x 990mm long.

Interlock guarding.

Please Note: This Item is located in Scotland

Location: This Item is located in Scotland

Clearance Dates - Due to the Christmas break the removal dates for these items will be as follows:

Up until Thursday 17th December 2015

And then from:-

4th January 2016 to 14th January 2016

(There will be no clearance on site between 18th December 2015 and 3rd January 2016 inclusive)
