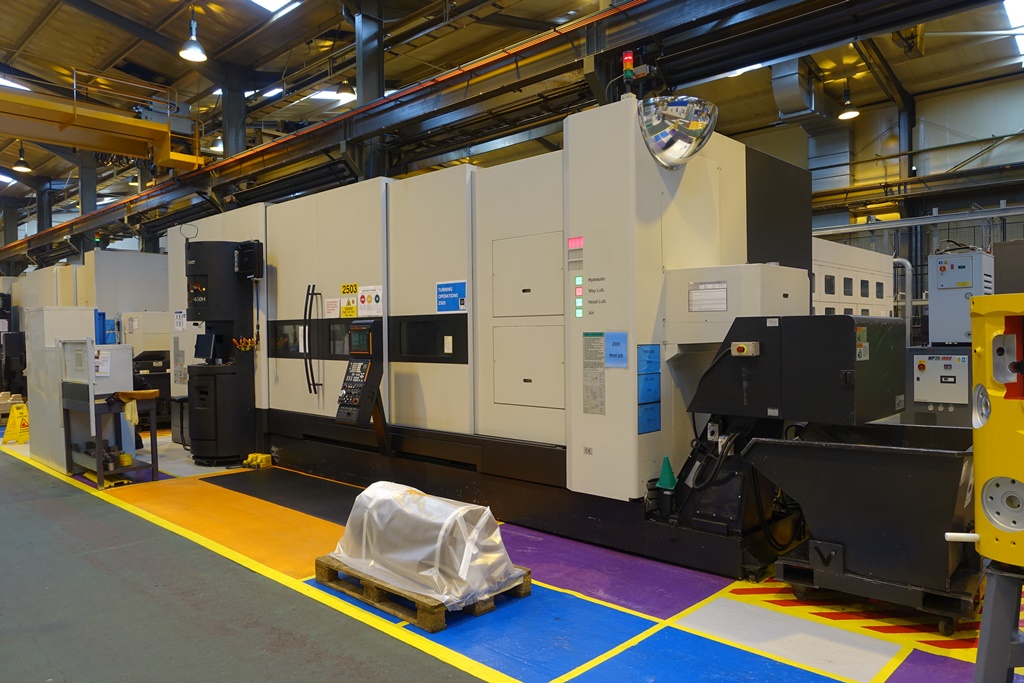

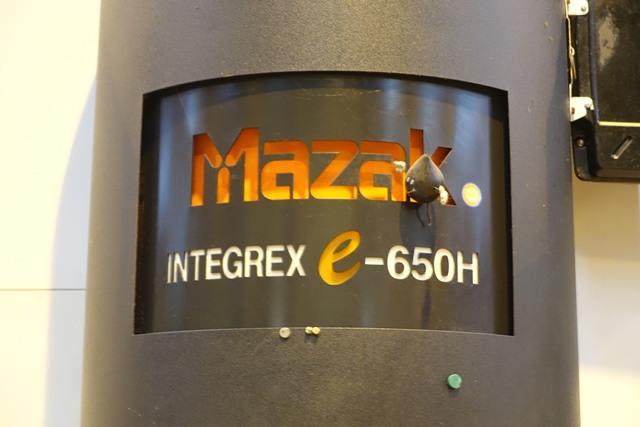

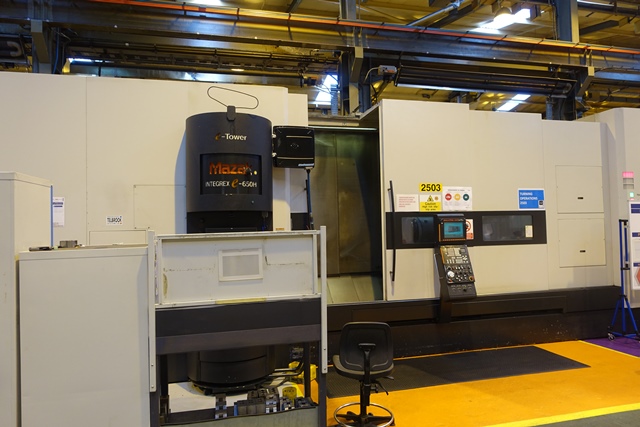

Lot 200: Mazak Integrex E-650-H Multi Tasking 5-Axis CNC Turning / Milling / Boring Centre
| Make: | Mazak |
|---|
Video

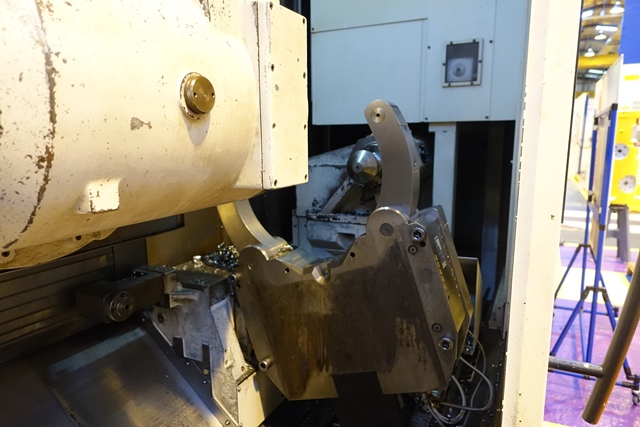

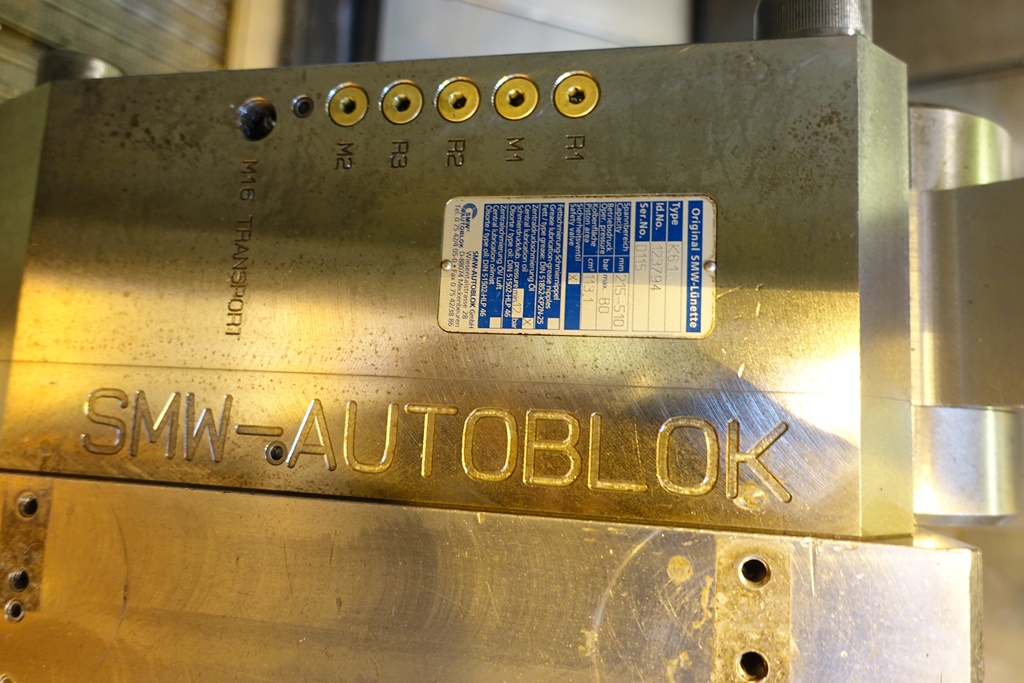

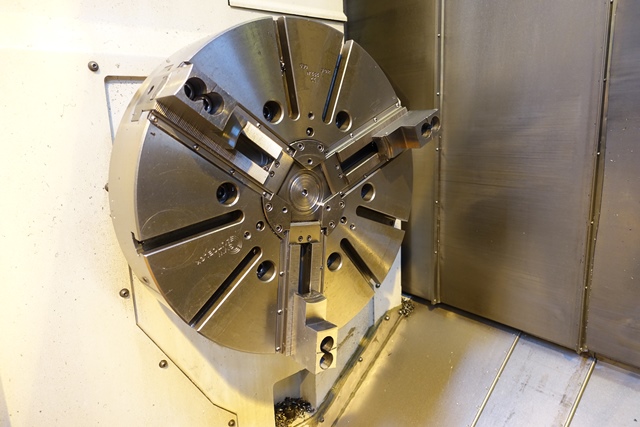

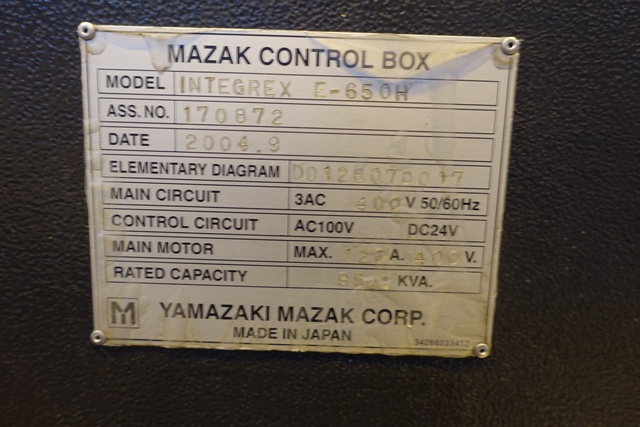

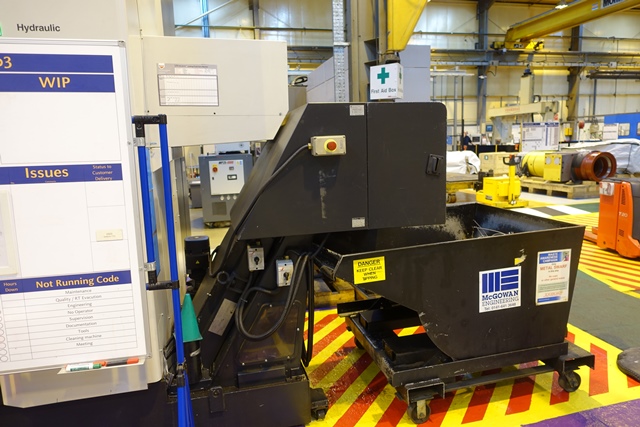

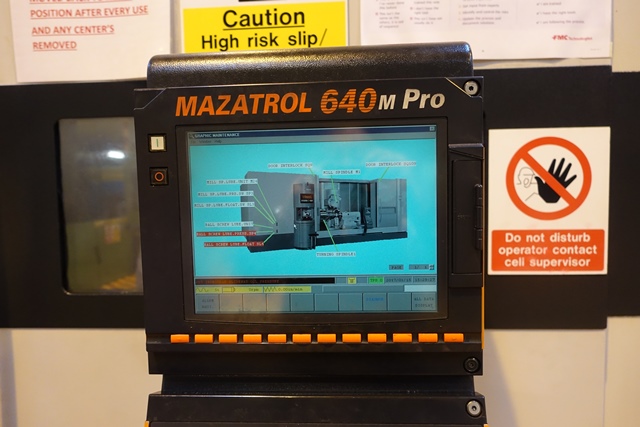

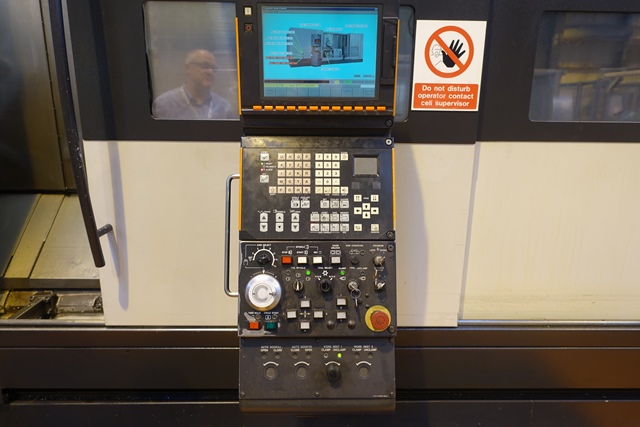

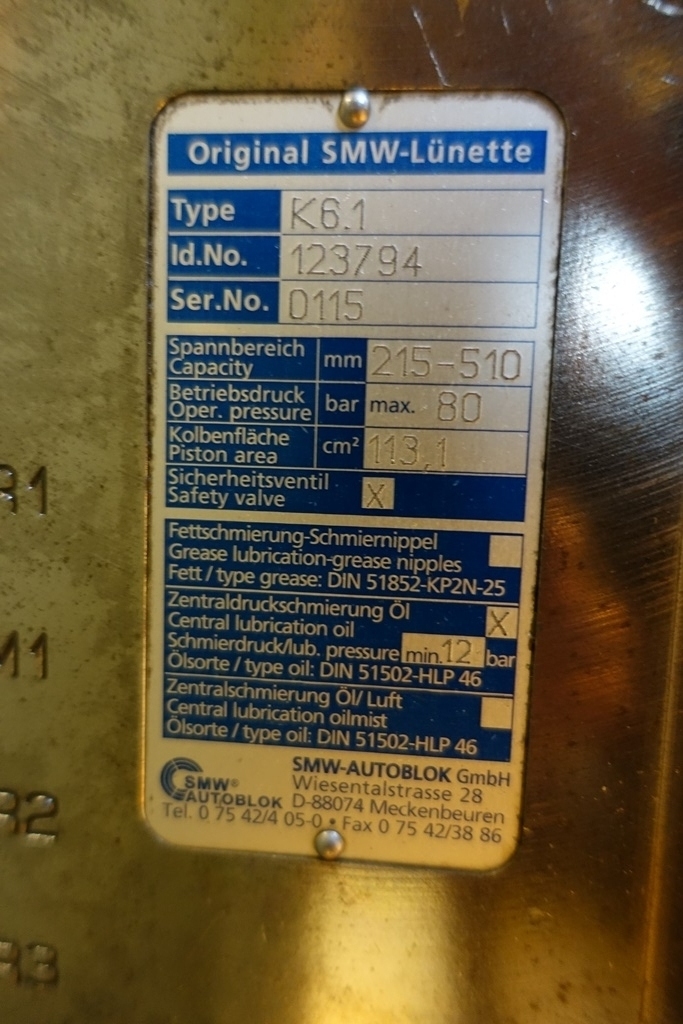

Mazak Integrex E-650-H Multi Tasking 5-Axis CNC Turning / Milling / Boring Centre with Mazatrol 640 M Plus Control, Operation 5 axis X –Y – Z – B – C, Swing 920 mm (36”), Cutting length 3000 mm, Hydraulic 3 Jaw Chuck 630 mm (24”) , Hole through Spindle 170 mm, Unsupported component weight 1 Ton, Supported component weight (steady tailstock) 3 Ton, Tool Taper type Capto C8, Heavy Duty Hydraulic Tailstock, Tool Probe, Tool Changer 80 Pocket Carousel ATC, Boring Bar Automatic Loader Station – 3 Pocket, Coolant, Motorised Swarf Conveyor, Steady – S M W Autoblok, S/No. 170872 (2004)

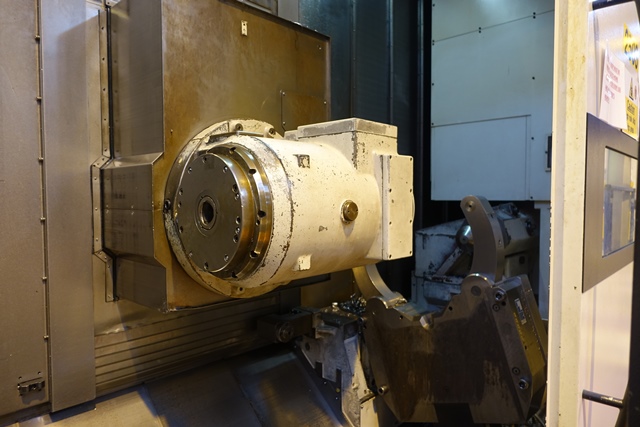

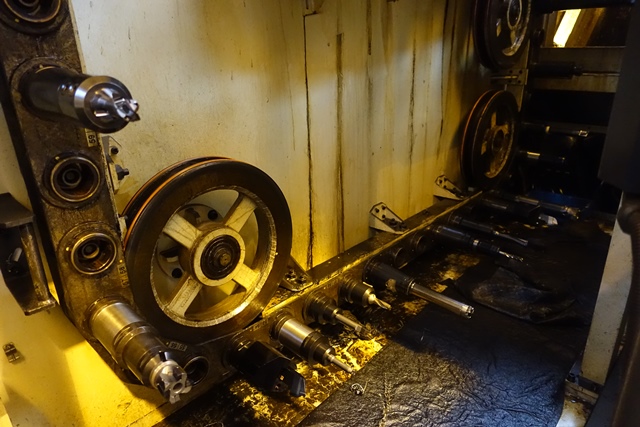

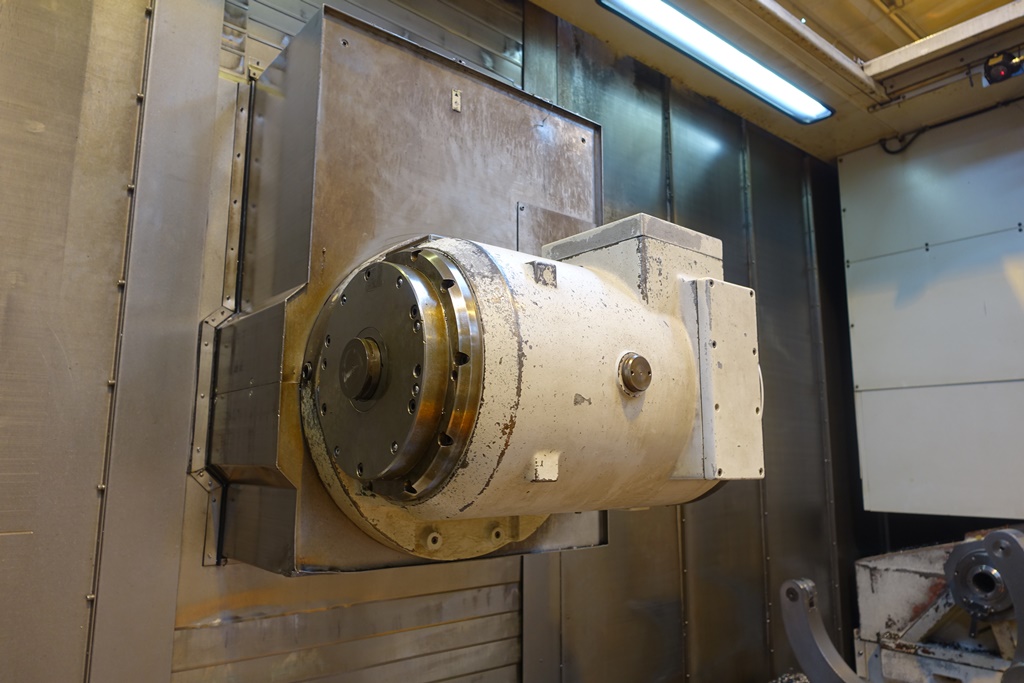

The 60 HP main turning spindle has full 'C' Axis 0.0001 degree operation up to 1600 rpm spindle speeds. The 50 HP indexing 'B' Axis spindle with 240 degree travel range positions in 0.0001 degree increments completes the 5 Axis. Contouring operation with speeds up to 10,000 rpm. The 'B' axis movement automatically supplies tools from the 80 position ATC and boring bars from the 3 pocket bar stocker station. One Boring Bar would be available for the boring bar load station. No additional tooling. Interlock guarding
Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on-site. Dismantling and Loading will be at the cost of the purchaser.
