Hurco VMX24S Vertical Machining Centre with Hurco Ultimax Control, Table size 760mm x 510mm, 24 ATC, BT 40 Tooling, 8000rpm, Travel X=610mm Y= 508mm Z= 610mm, Coolant Tank. S/No. H-2S061 (2004)

Location: This lot is located in Burton-on-Trent. A charge of £350 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Kitamura JigCentre 7 CNC Machining Centre. Serial No. 50274 with Fanuc System 11m CNC Control (Tape), Table Working Area 1500mm x 800mm, Load Capacity 2000kg, Travels X Axis 1100mm, Y Axis 850mm, Z Axis 460mm, Spindle Speeds 60 - 6000rpm, 30 Tool ATC, BT40 Spindle Taper, Rapid Feeds X & Y 12,000mm/min, Z 9,000mm/min, Cutting Feeds 0 - 5000mm/min, Tsudakoma Powered Rotary Table (300 Ø), Machine Weight 8300kg

Location: This lot is located in Birmingham, UK. A charge of £450 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Bridgeport VMC560/22 Vertical Machining Centre, S/No. 35149 (1994) with Heidenhain Control, 22 Position ATC. Country of Origin: United Kingdom, Qty of BT40 Tool Holders. Country of Origin: United Kingdom

Location: This lot is located in Burton-on-Trent, UK. A charge of £250 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Colchester CNC 500. S/No. M501599

Location: This lot is located in Burton-on-Trent, UK. A charge of £300 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Emco Turn 342 CNC Lathe with Fanuc OT Control, 2 Axis, 125mm Collet Chuck, 8 Tool Turret. S/No. RSG E2ES 002 S, Run Time 3241 Hours, Sameca Bar Feed Type SAM65. S/No. M062103 (1992) includes Autoblok Chuck, Selection of Tooling & Collets. Country of Origin: Austria

Location: This lot is located in Birmingham, UK. A charge of £200 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Dean Smith & Grace Type 13 - 1SB Lathe, Overhead Guards, Swivel Toolpost Turrret, 30" Travel, 6" Swing Over Bed, 6 DI Camlok (No Chuck), Spindle Speeds 16.8 - 750rpm (High & Low), Screw Cutting Chart. S/No. 31613 1 - 58. Country of Origin: United Kingdom

Location: This lot is located in Burton-on-Trent. A charge of £100 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Dean Smith & Grace 2413 x 90 CNC Philips 3580 Lathe. S/No. 42268 (10/1990), 24inch Swing, 13inch Over Saddle, 150inch between Centres, 2 x Fixed Steady’s, 530mm Steel 4 Jaw Chuck with t-slots – Swedish made - SCA Skand Chuckfabriks Tyringe, Data in/out configured, Post Processor available to program from CAM systems, Full Original Manuals (operating and programming), Electrical Drawings, Newly Upgraded LCD Screen, New cabinet Fan, New Keyboard, Dickson Tool Post with Holders, Coolant Tank/Pump

Favretto TC160 Surface Grinding Machine. S/No. 585 (1975), Longitudinal (x): 1600mm, Vertical (z): 650mm, Cross Table (y): 575mm, Table: Surface: 1600 x 500mm, Translation speed: 2-40.

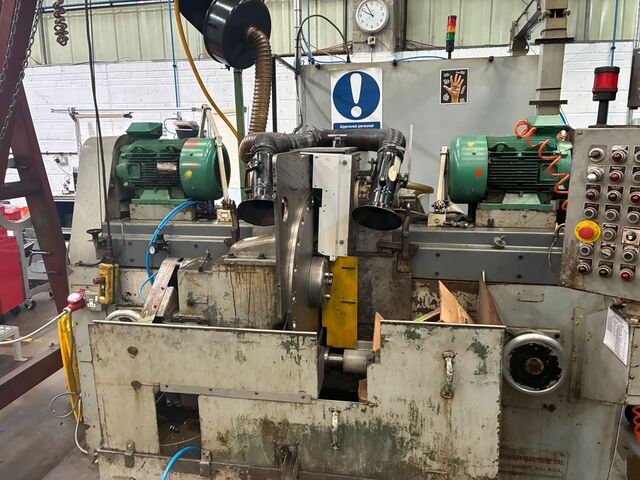

Gardner SDG3 Horizontal Double-disc Grinder with Heidemhain CNC Control, Brand New Grinding Discs, Approximate machine weight ~20,000–25,000lbs (9,000–11,000kg), Swing Arm Dresser, Machine Manuals (Current Grinding Hobs on the machine are not included)

Grinding Wheel Diameter - 26" (660mm) or 30" (762mm), Size capacity: 26"–30" depending on model, Abrasive usable thickness: ~3" typical, Maximum Opening between Wheels: ~15" (some listings) to 19¼" (≈490 mm)

Feed boxes rebuilt with new worm gears 2022, Rotary carrier gearbox refurbished in 2016, New motors and inverters fitted for asymmetrical grinding 2020,  Spindles and dresser unit rebuilt 2022/2023, Linear scales added in 2017, New set of guide plates provided, Guide plates adjusters re-bored and refurbished.

Please Note: This lot is located in Braintree, Essex. UK. Unfortunately there are no suitable loading available for this lot, dismantling and loading will be at the cost of the purchaser.

Gardner DSG12. E Grinder, 2 x Grinding Hubs, Airtonics Control Gauge Auto Size Gauging System, Rotary Carrier, Hydraulic Pump, Swinger Dresser, Recently new Grinding wheels, No coolant pump, Serial No. 915.2, Including Machine Manuals.

Grinding wheel diameter - 12" (305mm) (model designation “12”), Abrasive wheel thickness: Typically 2"–3" usable (varies by setup), Maximum opening between wheels: Approx. 6"–8" (typical for this class size)

Spindle rebuild in 2016

Please Note: This lot is located in Braintree, Essex. UK. Unfortunately there are no suitable loading available for this lot, dismantling and loading will be at the cost of the purchaser.

Van Norman No. 45M Precision Bearing Grinder with Siemens Simatic HMI Control Interface, 1.2m Wide, x 1m Depth x 2.4m Tall, Ideal for Bearing manufacturing and cylindrical, centreless, external grinding, Control panel recently rewired. S/No. 23912

Grinding Capability -Interchangeable grinding head configuration, Diameter and face grinding capability, Angle approach grinding for increased application flexibility, Suitable for precision bearing grinding applications, FilterMist extraction system, Interlock safety system, Machine manuals included

Please Note: This Lot is located in Coventry, UK. Unfortunately there is no suitable loading available for this lot, dismantling and loading will be at the cost of the purchaser.
