2713 - Citizen, Miyano & Star CNC Turning Centres no longer required by Key Precision & Others

Engineering

Auction ends on

2018-10-18 15:00:00.0
Add to calendar

Time left

Bidding ended

Auction description

Location: Lots 1 & 2, 2A, 2B are located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Lots 3, 3A & 4, 4A are located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.

Buyers premium

Buyers Premium will be charged at 16.00%.

VAT

Value added tax will be charged at 20.00%.

Viewing times

Viewing will be available by appointment only with the Auctioneer. Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com

The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences

Please tick the box below and press confirm


* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Notice to purchasers

Final payment date

2018-10-22 17:00:00.0

Final clearance date

2018-11-01 17:00:00.0

Shipping agents

Storage contractors

Lots 1-10 of 11

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
Preview image
Ends:
18 Oct 2018 15:50:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
37
Buyers premium:
16.00%
VAT rate:
20.00%

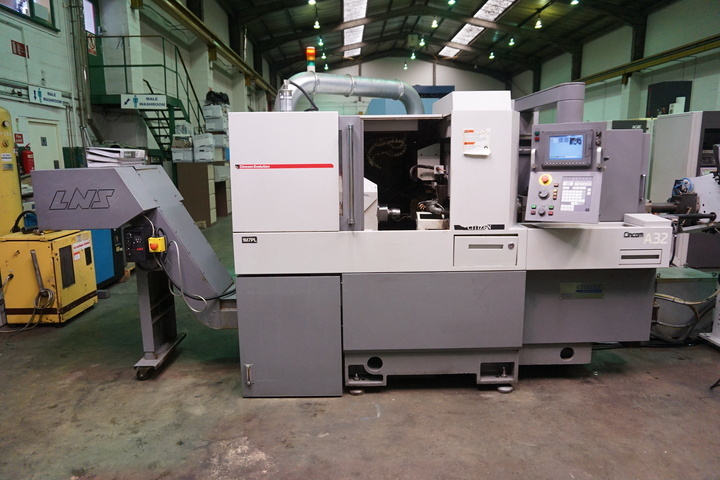

Lot 1: Citizen A32 Sliding Head Turning Centre

Citizen A32 VII PL 7 Axis Sliding Head CNC Turning Centre with Mitsubishi CNC Control System, Main and Sub Spindle speeds 8000rpm, Driven Tools maximum 5000rpm, maximum Turning diameter 32mm, maximum Turning length 320mm, 6 Turning and 4 Cross Driven Stations on Gang Tool Post, 4 Position Tool Post for Front and Back Drilling, 5 Position Tool Post for Back Working on Sub Spindle, C axis on Main and Sub Spindle 0.001 degrees, Iemca Boss 332 E/R Barfeed (2012), Absolent ODF 1000 Oilmist Filter System, Coolblast CB510 High Pressure Coolant System, Swarf Conveyor, Parts Conveyor. S/No. V54139 (09/2011)

Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing ...

Preview image
Ends:
18 Oct 2018 16:10:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
12
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 2: Miyano ABX64SY Turning Centre

Miyano ABX-64SY 8 Axis CNC Turning Centre with Fanuc 31i-A CNC Control System, Maximum Spindle speeds, Main spindle 4000rpm, Sub Spindle 5000rpm, Milling/Rotary Driven Tools 6000rpm, Axis travels X1=175mm Z1=500mm X2=190mm Z2=500mm Y2= 80mm (+/-40) C1/C2=360 Degrees (0.001) B=635mm, Twin 12 Station Turrets all positions driven, Maximum Bar capacity 64mm, Tool Presetter, Parts catcher and parts conveyor, Swarf conveyor, IEMCA Master 880mp Barfeed (2010) S/No. 4SSY0080 (2008) (Installed New in 2010)

Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

*: Combination of lots 2, 2A & 2B

Preview image
Ends:
18 Oct 2018 16:10:00 BST
Time left:
Bidding ended
Increment:
£50
Bids:
3
Buyers premium:
16.00%
VAT rate:
20.00%

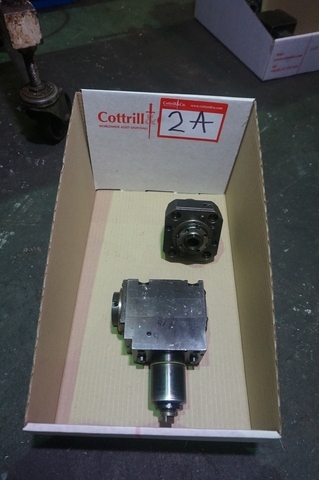

Lot 2A: Horizontal & Vertical Live Tooling

Horizontal & Vertical Live Tooling

Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.



Please note this lot is also offered as a combination lot

*: Combination of lots 2, 2A & 2B

Preview image
Ends:
18 Oct 2018 16:10:00 BST
Time left:
Bidding ended
Increment:
£50
Bids:
3
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 2B: Horizontal & Vertical Live Tooling

Horizontal & Vertical Live Tooling

Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.



Please note this lot is also offered as a combination lot

*: Combination of lots 2, 2A & 2B

Preview image
Ends:
18 Oct 2018 16:10:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
44
Buyers premium:
16.00%
VAT rate:
20.00%

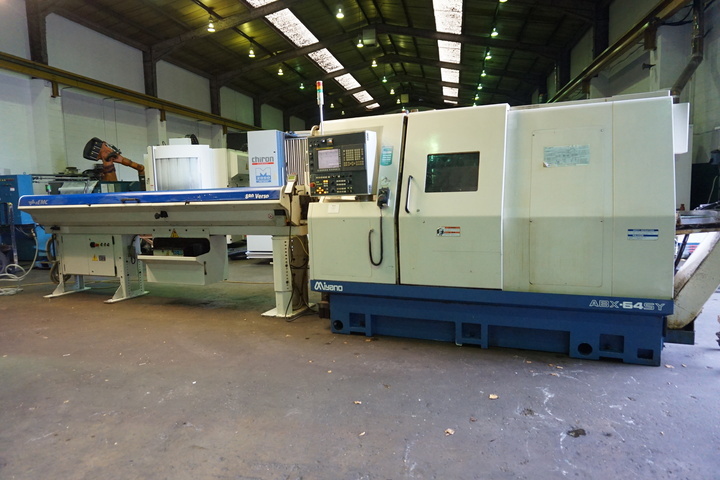

Lot *: Combination of lots 2, 2A & 2B

Combination of lots 2, 2A & 2B

Miyano ABX-64SY 8 Axis CNC Turning Centre with Fanuc 31i-A CNC Control System, Maximum Spindle speeds, Main spindle 4000rpm, Sub Spindle 5000rpm, Milling/Rotary Driven Tools 6000rpm, Axis travels X1=175mm Z1=500mm X2=190mm Z2=500mm Y2= 80mm (+/-40) C1/C2=360 Degrees (0.001) B=635mm, Twin 12 Station Turrets all positions driven, Maximum Bar capacity 64mm, Tool Presetter, Parts catcher and parts conveyor, Swarf conveyor, IEMCA Master 880mp Barfeed (2010) S/No. 4SSY0080 (2008) (Installed New in 2010)

and

Horizontal & Vertical Live Tooling

and

Horizontal & Vertical Live Tooling

Please Note: These lots are located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and ...

Preview image
Ends:
18 Oct 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
5
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 3: Star SV32 Sliding 9 Axis CNC Lathe

Star SV32 Sliding 9 Axis CNC Lathe with Fanuc 16iT Control System, Maximum Spindle speed 7000rpm (main and sub spindle) Head Stock travel 300mm (Z) 10 Station Rear Turret (B E and Y Axis Travel) 4 Turning and 3 Cross Driven positions on Platten (A and X Axis travel) C Axis on Main and Subspindle 0.001 degree, with JBS Flexible Guide Bush, Swarf Conveyor, Filtermist Extraction, Noble Fire Suppression, FMB 5-42 Turbo Barfeed. S/No. 191 (2001)

Please Note: This lot is located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.



Please note this lot is also offered as a combination lot

*: Combination of Lots 3 & 3A

Preview image
Ends:
18 Oct 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
4
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 3A: Star 32 Collets and Bushes

Star 32 Collets and Bushes

Please Note: This lot is located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

*: Combination of Lots 3 & 3A

Preview image
Ends:
18 Oct 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
18
Buyers premium:
16.00%
VAT rate:
20.00%

Lot *: Combination of Lots 3 & 3A

Combination of Lots 3 & 3A

Star SV32 Sliding 9 Axis CNC Lathe with Fanuc 16iT Control System, Maximum Spindle speed 7000rpm (main and sub spindle) Head Stock travel 300mm (Z) 10 Station Rear Turret (B E and Y Axis Travel) 4 Turning and 3 Cross Driven positions on Platten (A and X Axis travel) C Axis on Main and Subspindle 0.001 degree, with JBS Flexible Guide Bush, Swarf Conveyor, Filtermist Extraction, Noble Fire Suppression, FMB 5-42 Turbo Barfeed. S/No. 191 (2001)

and

Star 32 Collets and Bushes

Please Note: These lots are located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.



Lots in this combination

Lot # Description
Preview image
Ends:
18 Oct 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
10
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 4: Star SV32 Sliding 9 Axis CNC Lathe

Star SV32 Sliding 9 Axis CNC Lathe with Fanuc 16iT Control System, Maximum Spindle speed 7000rpm (main and sub spindle) Head Stock travel 300mm (Z) 10 Station Rear Turret (B E and Y Axis Travel) 4 Turning and 3 Cross Driven positions on Platten (A and X Axis travel) C Axis on Main and Subspindle 0.001 degree with JBS Flexible Guide Bush, Swarf Conveyor, Filtermist Extraction, Noble Fire Suppression, FMB 5-42 Turbo Barfeed. S/No. 192 (2001)

Please Note: This lot is located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

*: Combination of Lots 4 & 4A

Preview image
Ends:
18 Oct 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
3
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 4A: Star 32 Collets and Bushes

Star 32 Collets and Bushes

Please Note: This lot is located in Blyth, Northumberland. Unfortunately, there are no loading facilities available, dismantling and loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

*: Combination of Lots 4 & 4A
