2688 - Mazak CNC Lathes & Machining Centres, Okomoto and Magerle Grinders previously used by Precision Ceramics & Others

Engineering

Auction ends on

2018-07-25 15:00:00.0
Add to calendar

Time left

Bidding ended

Auction description

Please Note: These lots are located in Birmingham, Gloucester and West Sussex. Please see individual lots for loading information.

Buyers premium

Buyers Premium will be charged at 16.00%.

VAT

Value added tax will be charged at 20.00%.

Viewing times

Viewing will be available by appointment only with the Auctioneer. Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com

The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences

Please tick the box below and press confirm


* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Notice to purchasers

Final payment date

2018-07-27 17:00:00.0

Final clearance date

2018-08-09 17:00:00.0

Shipping agents

Storage contractors

Lots 1-10 of 11

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
Preview image
Ends:
25 Jul 2018 16:20:00 BST
Time left:
Bidding ended
Increment:
£250
Bids:
22
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 1: Mazak Integrex 300SY CNC Multi Tasking Milling/Turning Centre

Mazak Integrex 300SY CNC Multi Tasking Milling/Turning Centre with Mazatrol PC Fusion 640 Control System, Axis Travels X=580mm Y=210mm Z=1137mm, Z2=1110mm C Axis on Main and Sub Spindle 0.001 Degrees, B Axis, Main and Sub Spindle 35-3500rpm, Milling Spindle 15-6000rpm, Distance Between Chucks 1200mm, 40 Station ATC, Rapid Feedrates X/Z 30m/min, Y 15m/min, 75mm Spindle Bore, Fitted with B210 Kitagawa Chucks on Main and Sub Spindles, Through Tool Coolant, Swarf Conveyor, Tool Presetter, Renishaw Probe Interface (Please Note: No Probe) S/No. 152795 (12/2000)

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 15:20:00 BST
Time left:
Bidding ended
Increment:
£250
Bids:
19
Buyers premium:
16.00%
VAT rate:
20.00%

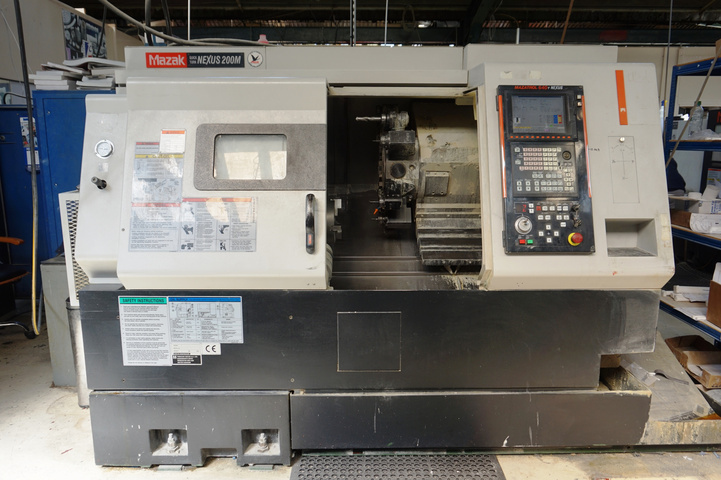

Lot 2: Mazak Nexus QTN 200M CNC Turning Centre

Mazak Nexus QTN 200M CNC Turning Centre with Mazatrol 640T Nexus Control System, Axis Travels X=230mm Z=580mm C=360 Degrees (0.001), Maximum Spindle Speed 6000rpm, Maximum Milling Spindle Speed 5000rpm, 12 Station Turret, Tool Presetter. S/No. 175804 (2005) (Please Note: No Swarf Conveyor)

Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 16:00:00 BST
Time left:
Bidding ended
Increment:
£250
Bids:
24
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 3: Mazak Super Quick Turn 15MS Mark II CNC Turning Centre

Mazak Super Quick Turn 15MS Mark II CNC Turning Centre, Mazatrol T Plus Control System, Axis Travels X=180mm Z=600mm C=0.001 Degrees, Main Spindle 5000rpm, Sub Spindle 6000rpm, Milling 3000rpm, 12 Station Turret, Tool Presetter, Parts Catcher, Swarf Conveyor. S/No.121467 (1996)

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.



Preview image
Ends:
25 Jul 2018 16:30:00 BST
Time left:
Bidding ended
Increment:
£1000
Bids:
43
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 4: Okamoto PRG8DXNC CNC Ring Grinder

Okamoto PRG8DXNC CNC Ring Grinder with Fanuc 21i-TB Control, Electromagnetic Chuck dia - 800mm, Effective disa 752mm, Max Swing 950mm dia, Chuck to Top of Wheel (355mm dia) Chuck Inclination Angle +/- 3 degrees, max load capacity 250kgs, Table Speed 15 to 150rpm, Traverse Travel 550mm, Vertical Travel 310mm, Feed Increment 0.0001mm, - 60 to 250mm, Grinding Wheel dimensions 305 dia, 50, 127mm Bore, Grinding Wheel Speed 1,800rpm, 7kw Power - Bedatec Coolant Filtration Unit. S/No. 8036 (2007)

Please Note: This lot is located in West Sussex and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.



Preview image
Ends:
25 Jul 2018 16:20:00 BST
Time left:
Bidding ended
Increment:
£500
Bids:
26
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 5: Magerle MGC-80-65 5 Axis Creep Feed CNC Grinder

Magerle MGC-80-65 5 Axis Creep Feed CNC Grinder Type with Siemens Sinumerik Control. S/No. 100733

Please Note: This lot is located in Birmingham. Loading is available to a suitable vehicle at a cost of £750.  Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 16:00:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
12
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 6: (2) Z Driven Tool Holders for Mazak SQT 15 MS

(2) Z Driven Tool Holders for Mazak SQT 15 MS

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle, blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 16:00:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
9
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 7: (1) Double Driven Tool Holder, (1) Driven Tapping Tool Holder for Mazak SQT 15 MS

(1) Double Driven Tool Holder, (1) Driven Tapping Tool Holder for Mazak SQT 15 MS

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle, Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 16:00:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
11
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 8: (1) X Driven Tool Holder (1) Z Driven Tool Holder for Mazak SQT 15 MS

(1) X Driven Tool Holder (1) Z Driven Tool Holder for Mazak SQT 15 MS

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle, Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 16:10:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
12
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 9: (2) Driven Tapping Tool Holders for Mazak SQT 15 MS

(2) Driven Tapping Tool Holders for Mazak SQT 15 MS

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Preview image
Ends:
25 Jul 2018 15:40:00 BST
Time left:
Bidding ended
Increment:
£25
Bids:
6
Buyers premium:
16.00%
VAT rate:
20.00%

Lot 10: (1) Driven Tapping Tool Holders for Mazak SQT 15 MS

(1) Driven Tapping Tool Holders for Mazak SQT 15 MS

Please Note: This lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
