2484 - CNC Turning & Machining Centres formerly used by RQT Precision Engineering Ltd in Administration
Auction Description
Mazak Integrex 400-IV S Multi-Tasking Machining Centre with Mazatrol Matrix Control system, Mazak FH68004 axis Twin Pallet Horizontal Machining Centre with Mazatrol 640M Control system, Doosan VC630-5A 5-axis Vertical Machining Centre with Heidenhain 530i Control System.
Viewing times
Viewing is available by appointment only with the Auctioneer
Please contact our UK Office on: +44 (0) 121 328 2424 or our
Italian Office on + 39 0732 677 063 or email info@cottandco.it
Auction Ends:
Tuesday 26 Apr 2016 at 03:00 PM BST
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Final payment date
Thursday 28 Apr 2016 at 05:00 PM BST
Final clearance date
Thursday 12 May 2016 at 05:00 PM BST
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Please Note: Lots 1 & 3 have been decomissioned and moved to Birmingham where they will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
Please Note: Lot 2 has been decomissioned and moved to Gloucester where it will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
You must log in to be able to bid
Auction Ends:
Tuesday 26 Apr 2016 at 03:00 PM BST
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Final payment date
Thursday 28 Apr 2016 at 05:00 PM BST
Final clearance date
Thursday 12 May 2016 at 05:00 PM BST
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Lots 1 to 3 of 3
Lot 1: Mazak Integrex 400-IV S Multi-Tasking Turning Centre with Mazatrol Matrix Control system
Mazak Integrex 400-IV S Multi-Tasking Turning Centre with Mazatrol Matrix Control System, 40-Station ATC, Swarf Conveyor, Main Spindle 3,300 RPM 30kw Power Rating, Sub Spindle 4,000 RPM 26kw Power Rating, Milling Spindle 1,200 RPM, 19kw power rating, Axis travels X = 630mm Y = 230mm Z = 1585mm B =225 degrees, Maximum turning diameter 760mm, Maximum turning length 1524mm, Distance between centres 1500mm, Fitted with 15” main Chuck, 12” sub Spindle Chuck, , Milling Spindle C5 Spindle Taper, Tool Pre-setter, S/No. 105010 (2006)
Please Note: This Item has been decomissioned and moved to Birmingham where it will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser

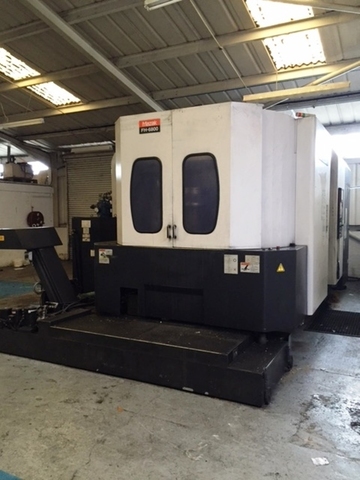

Lot 2: Mazak FH-6800 4 axis Twin Pallet Horizontal Machining Centre with Mazatrol 640MControl system
Mazak FH-6800 4 axis Twin Pallet Horizontal Machining Centre with Mazatrol 640M Control system, Maximum Spindle Speed 7000 RPM, BT 50 Spindle Taper, Axis travels X= 1050mm Y = 800mm Z = 880mm B axis 360 degree, Pallet size 630mm x 630mm, maximum weight on each Pallet 1500kg, 80 Station ATC, High Pressure Coolant System. S/No. 179881 (2005)
Please Note: This Item has been decomissioned and moved to Gloucester where it will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
Lot 3: Doosan VC630-5AX 5-axis Vertical Machining Centre with Heidenhain 530i Control System
Doosan VC630-5AX 5-axis Vertical Machining Centre with Heidenhain 530i Control System, Maximum Spindle speed 12,000 RPM, Spindle power 22kw power, ISO 40 spindle taper, Axis travels X = 650mm Y =765mm, Z = 520mm, B axis 360 degree, A axis 150 degree, Table Diameter 630mm, maximum component size on table 730mm diameter x 500mm weight on Table 500kg. Raid feedrates X and Y 40 m/min Z 36 m/min 40 Station ATC, Through Spindle Coolant, S/No. MV0043-000314 (2014 - Installed 2015)
Please Note: This Item has been decomissioned and moved to Birmingham where it will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
