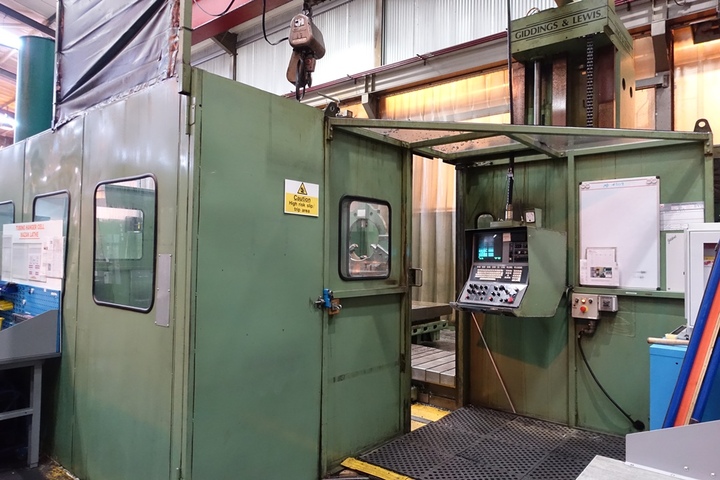

Giddings & Lewis Model G50-T Five Axis Horizontal Boring & Milling Machine with G & L 8000 B CNC Control, 60 Position ATC Tool Changer,   3-Point Capacity Steady, 75HP Main Motor, Perimeter Interlock Guarding, 130 mm Spindle dia, 914 mm Spindle travel, 14 to 3000 RPM Spindle Speeds,   A axis index table faceplate dia  800 mm  with 3 jaw chuck 25” dia, 1700 mm x 2500 mm B axis rotary table, 10,000.  Kgs B axis table load capacity, Travel X Axis = 2440mm,  Travel Y Axis = 1730mm from main table, Travel Y axis = 1520 mm from Eimeldingen table, Travel Z axis = 914 mm, Travel W Axis 1622mm * Note W axis is reduced from 1905 mm due to Eimeldingen B axis overhang. S/No.  450 – 1162 (1993) Refurbished Upgraded 2003/2004

 The machine was returned to the G & L manufacturing facility in 2003/2004 where the following work was carried out:-

·         Machine refurbishment

·         Adaption of A & B axis Eimeldingen Tables.

·         Upgrade Control to 8000 B

·         Upgrade Siemens CNC package, including new motors, drives, contactors, electric wiring, high performance hardware

·         Thru spindle flood coolant

·         Collet type drawbar

·         Ansi – BS 50 spindle

·         Steady 3 point capacity 24”

·         Adaption of Tool changer  60 positions

Machine height: - Floor mounted  5180 mm, Set in foundation  4800 mm

This machine is located in Scotland and can be inspected under power by appointment with the Auctioneers Office.
