Los 50: COMI SL2000 x 900 x 550mm Thermoforming Machine (1995)

Endet:
Verbleibende Zeit:
Aufgeld: 18%
MwSt-Satz: 22%

Susegana, Treviso, Italy

COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995) COMI SL2000 x 900 x 550mm Thermoforming Machine (1995)
Vollständige Losbeschreibung

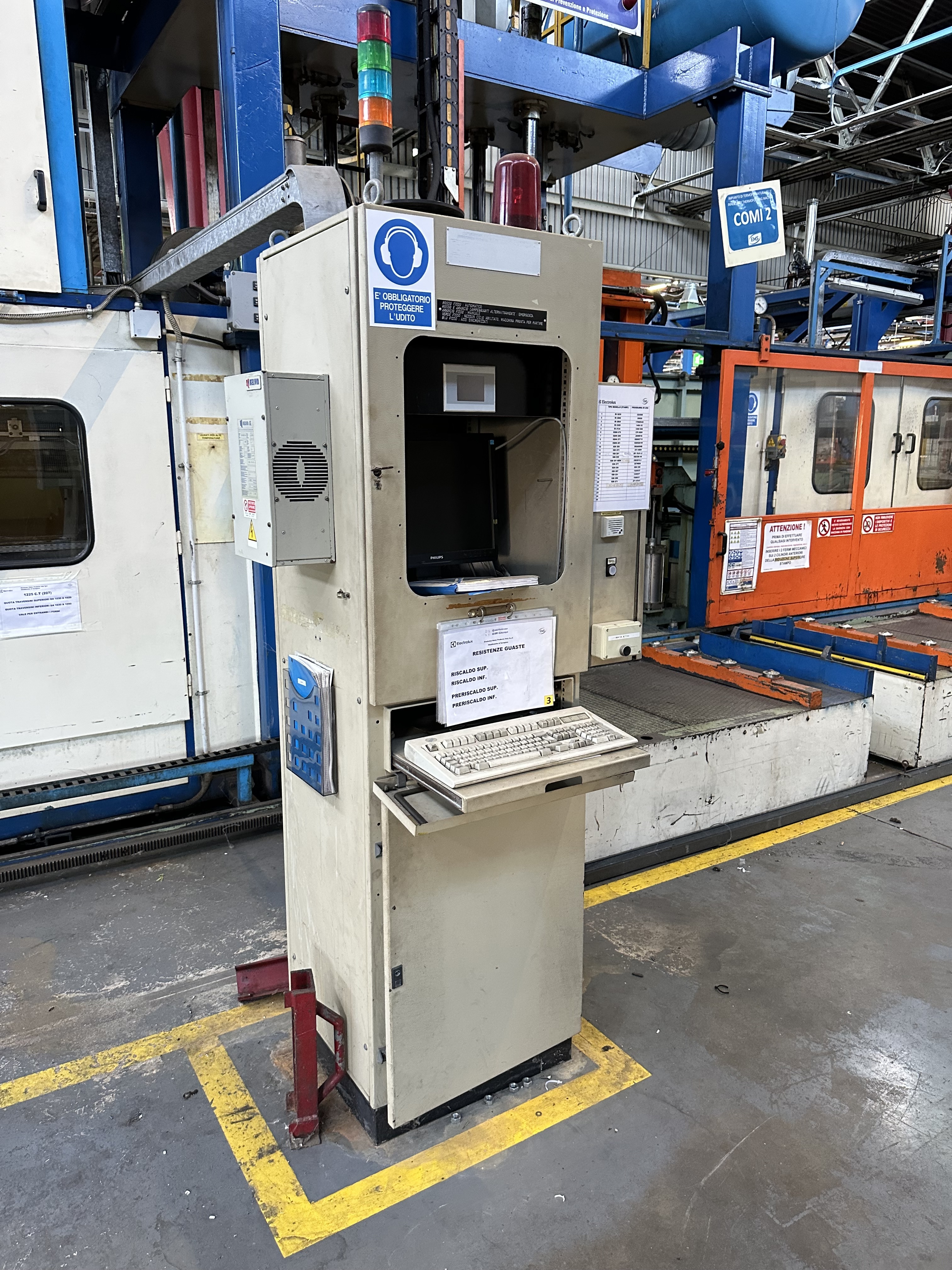

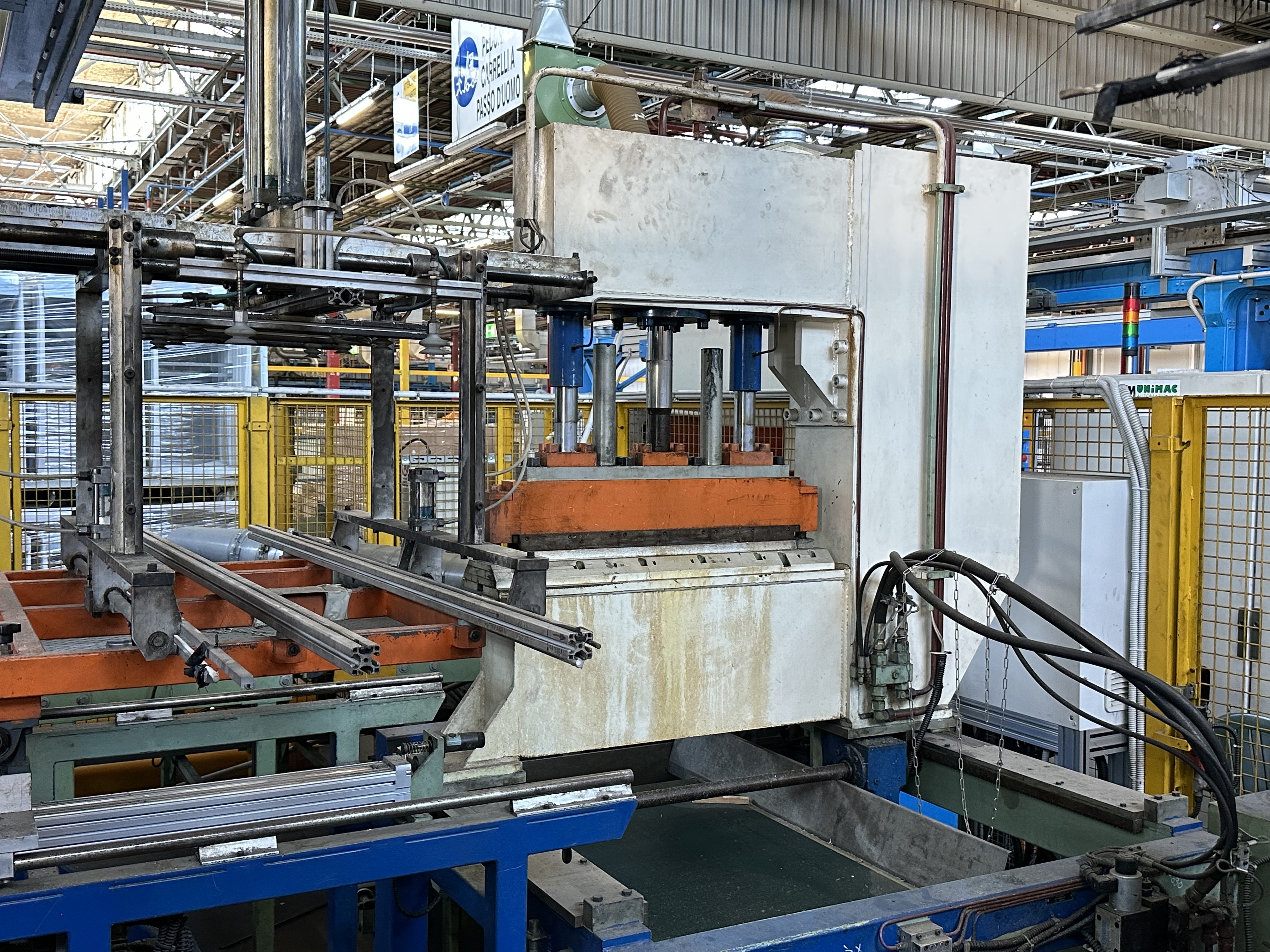

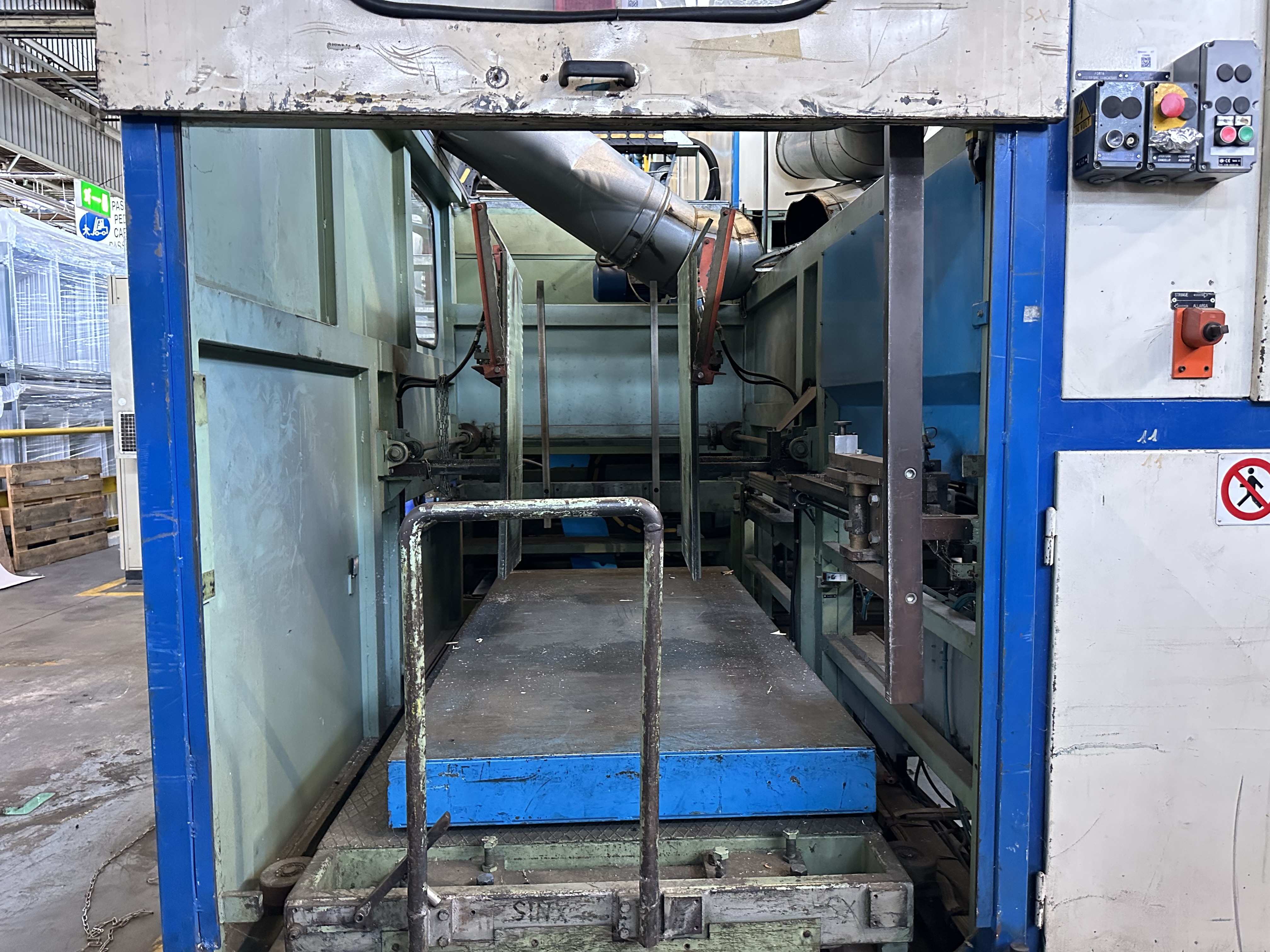

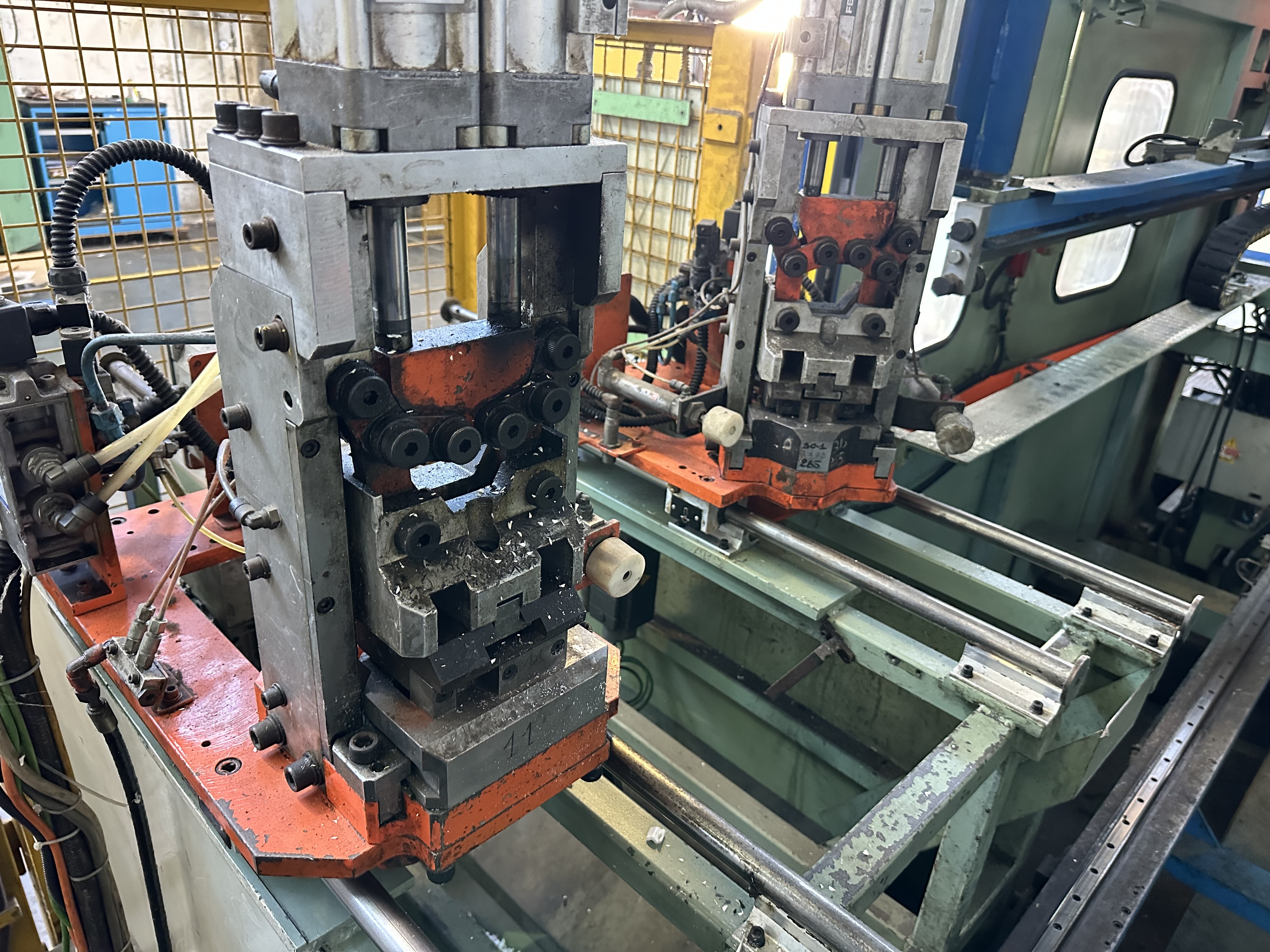

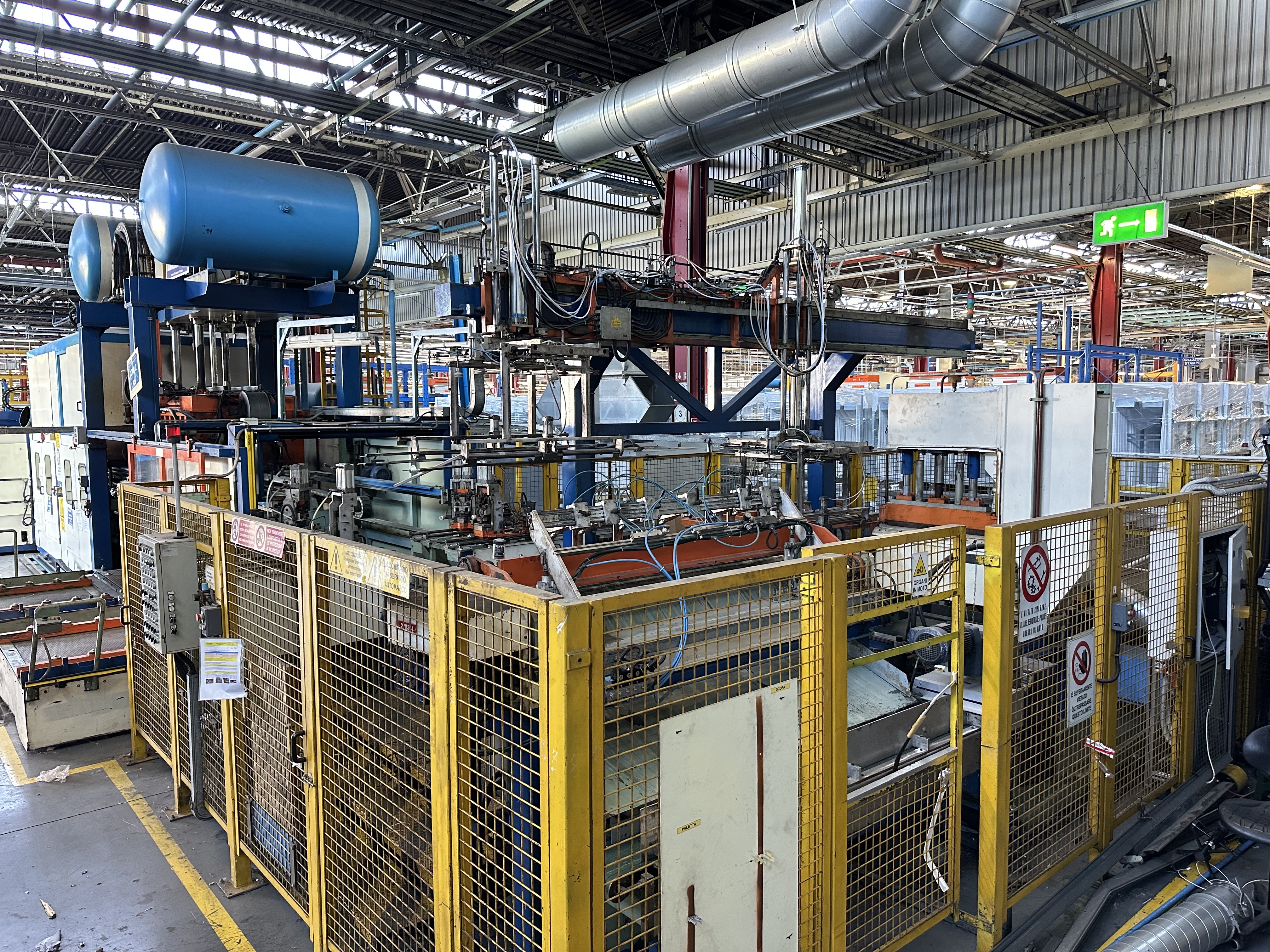

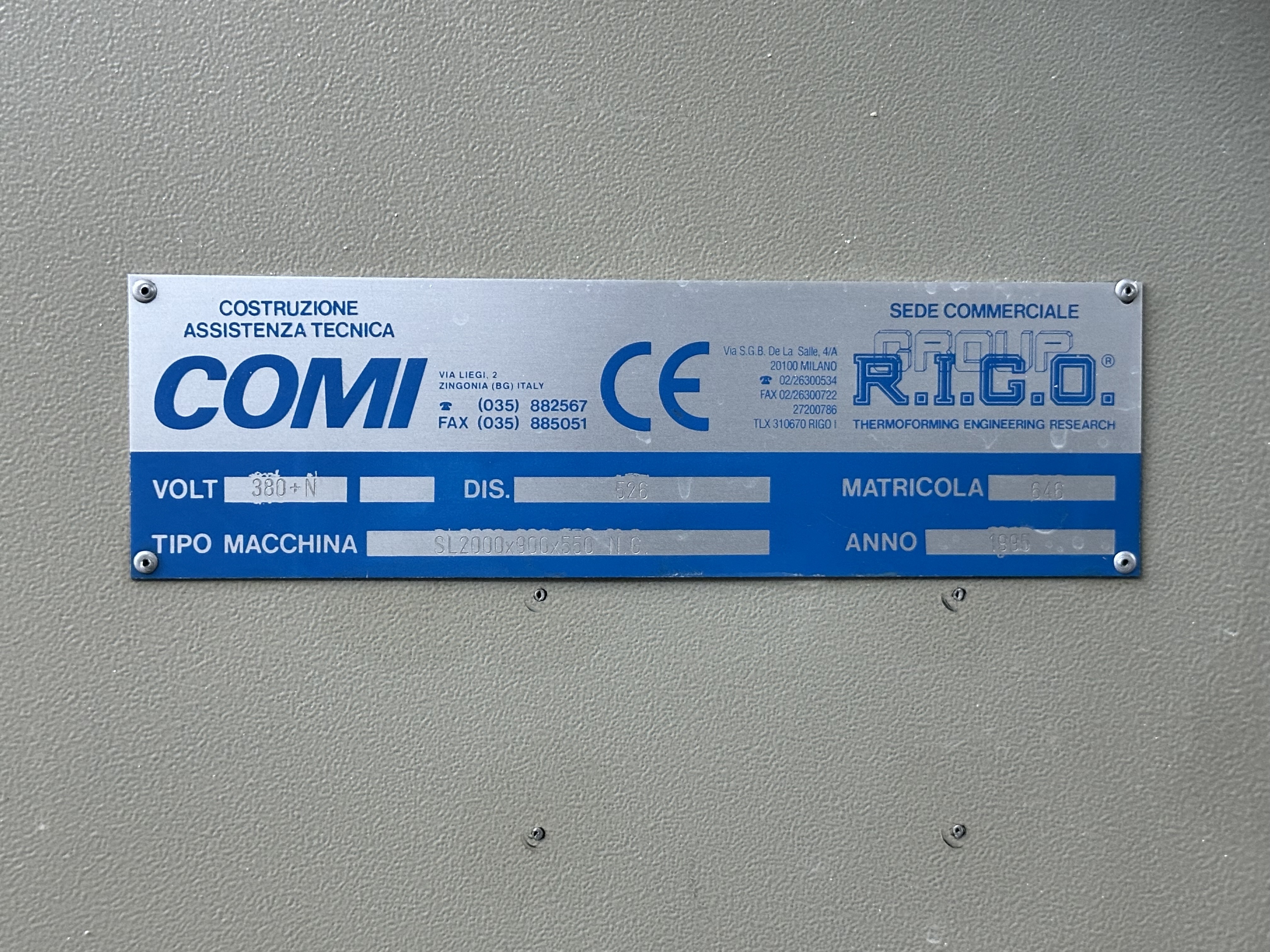

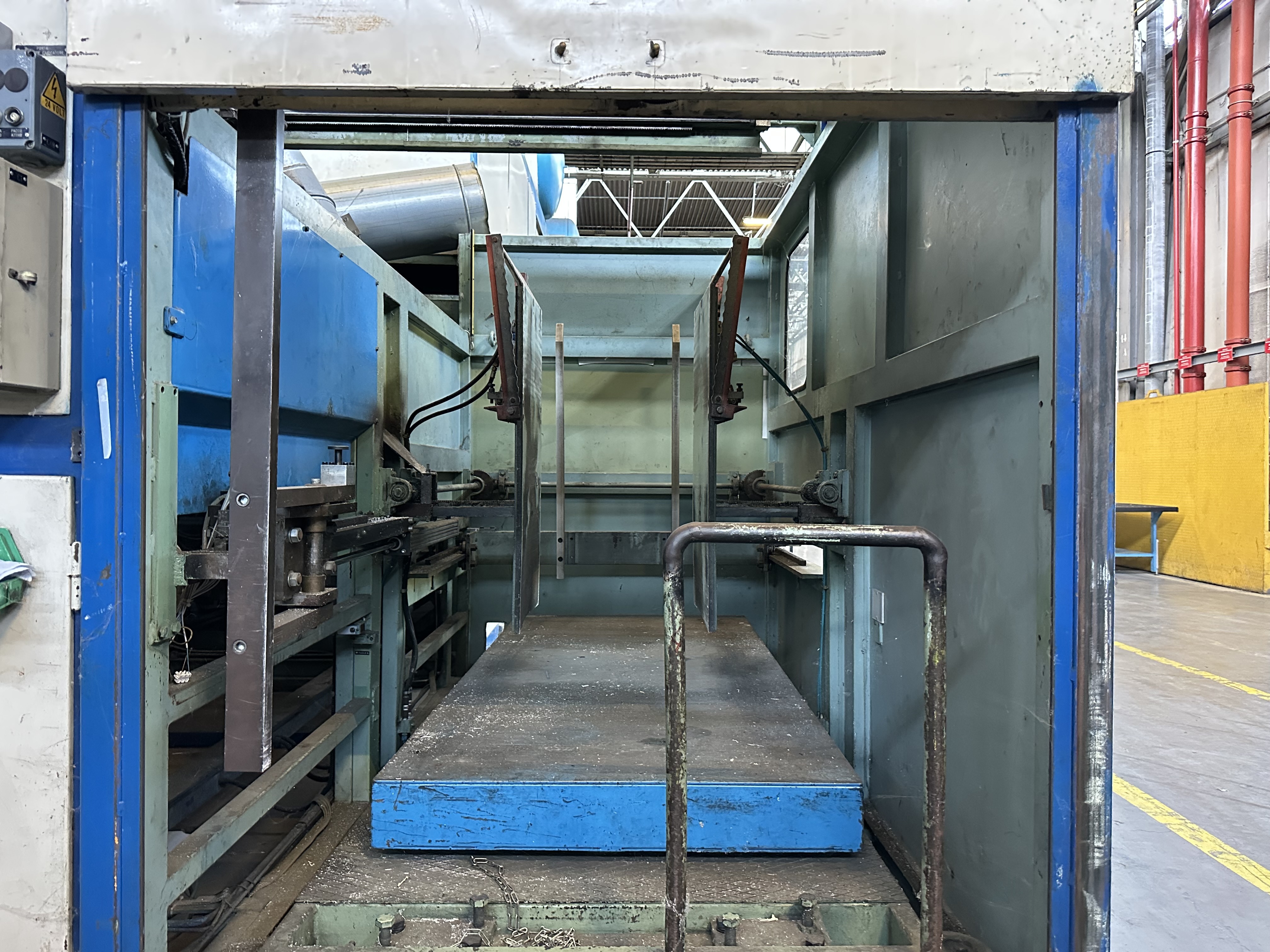

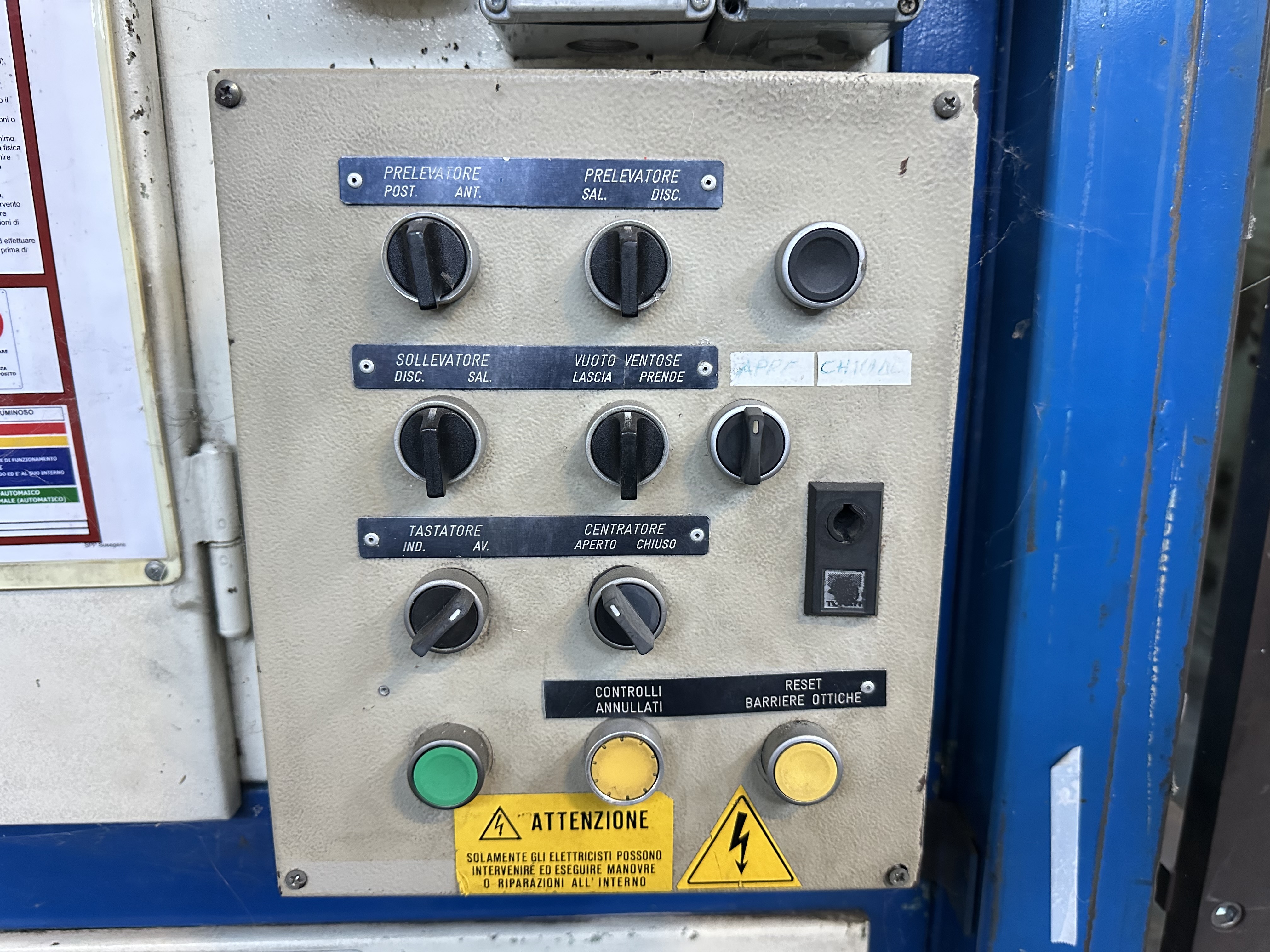

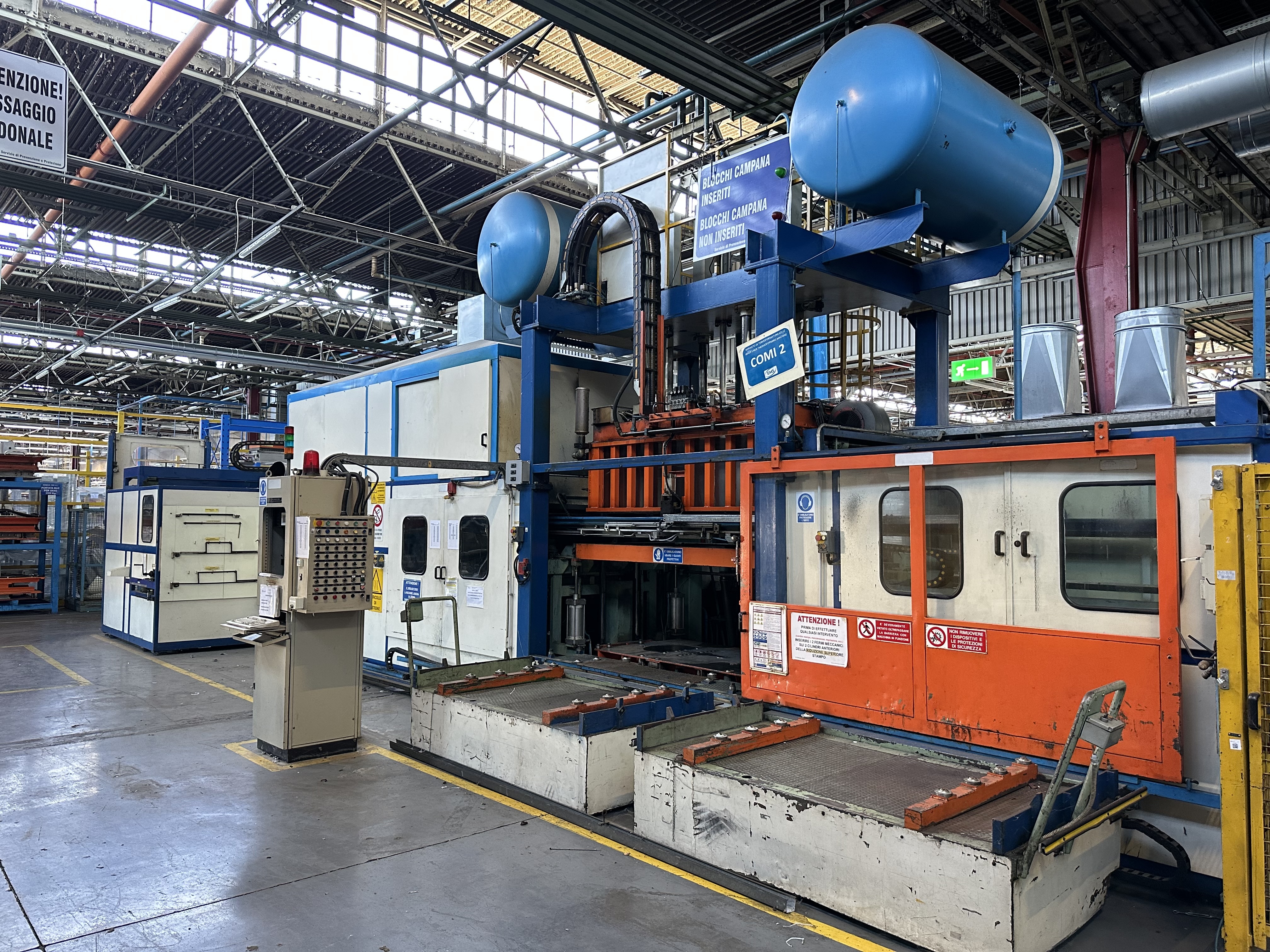

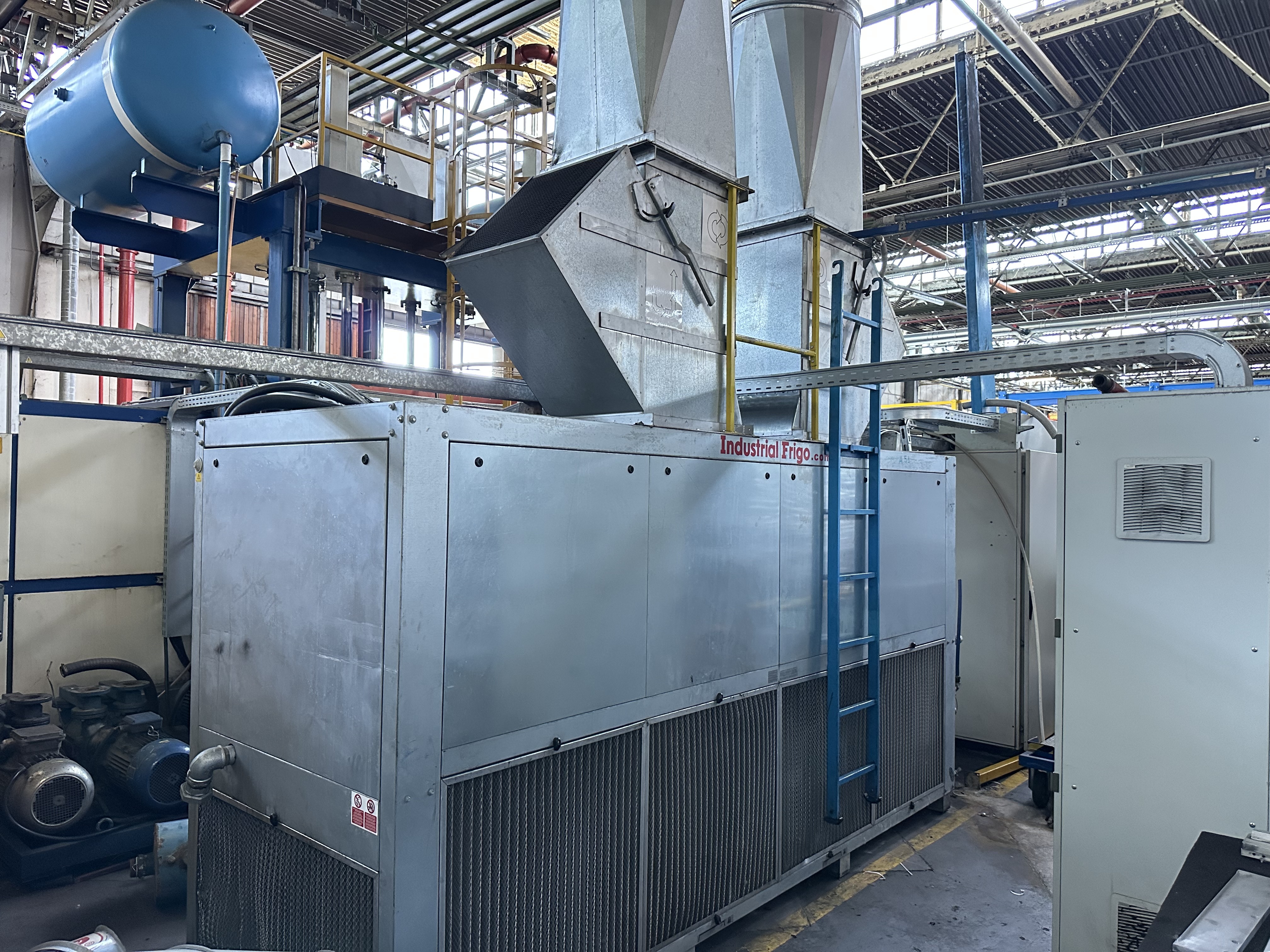

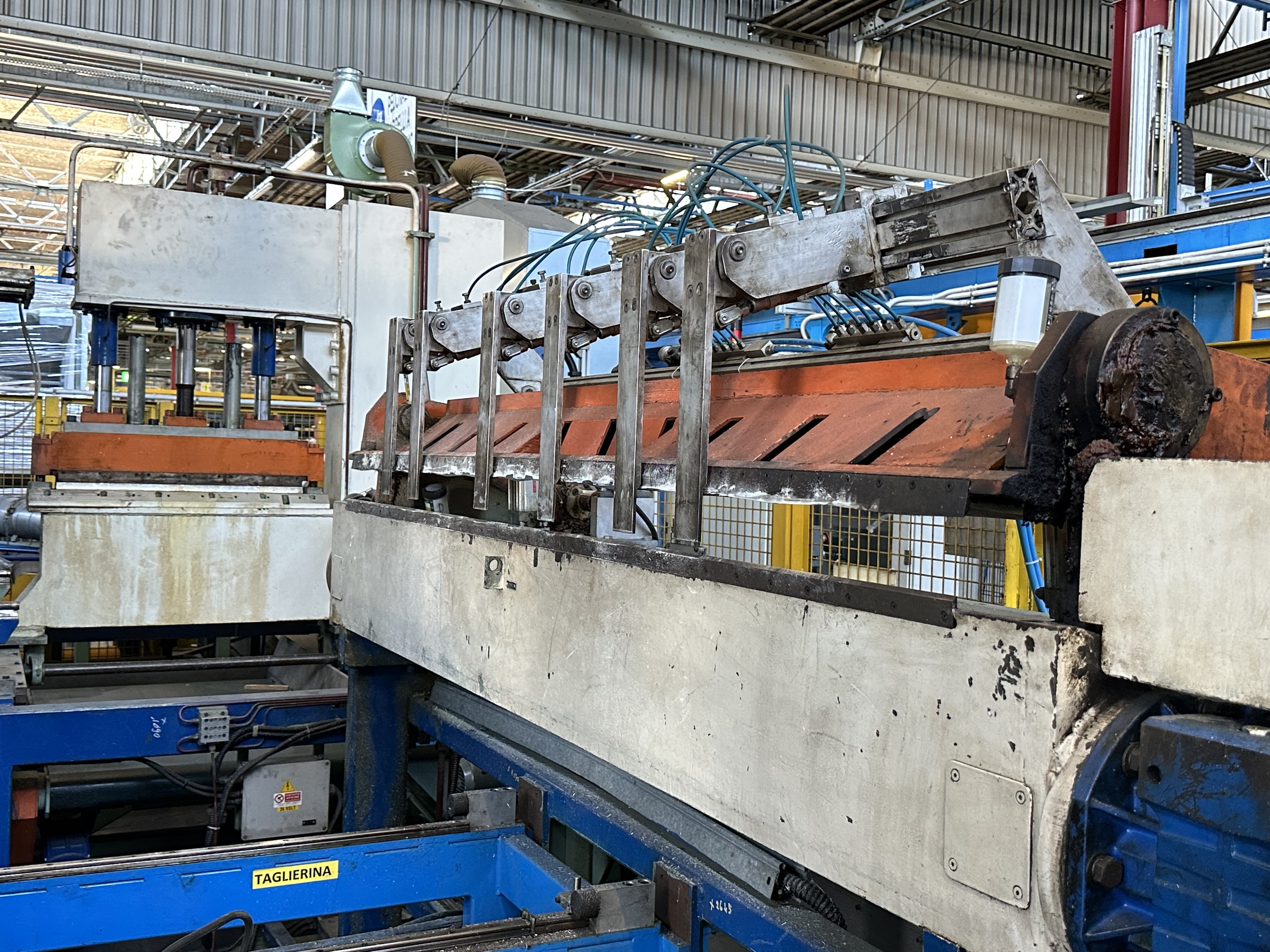

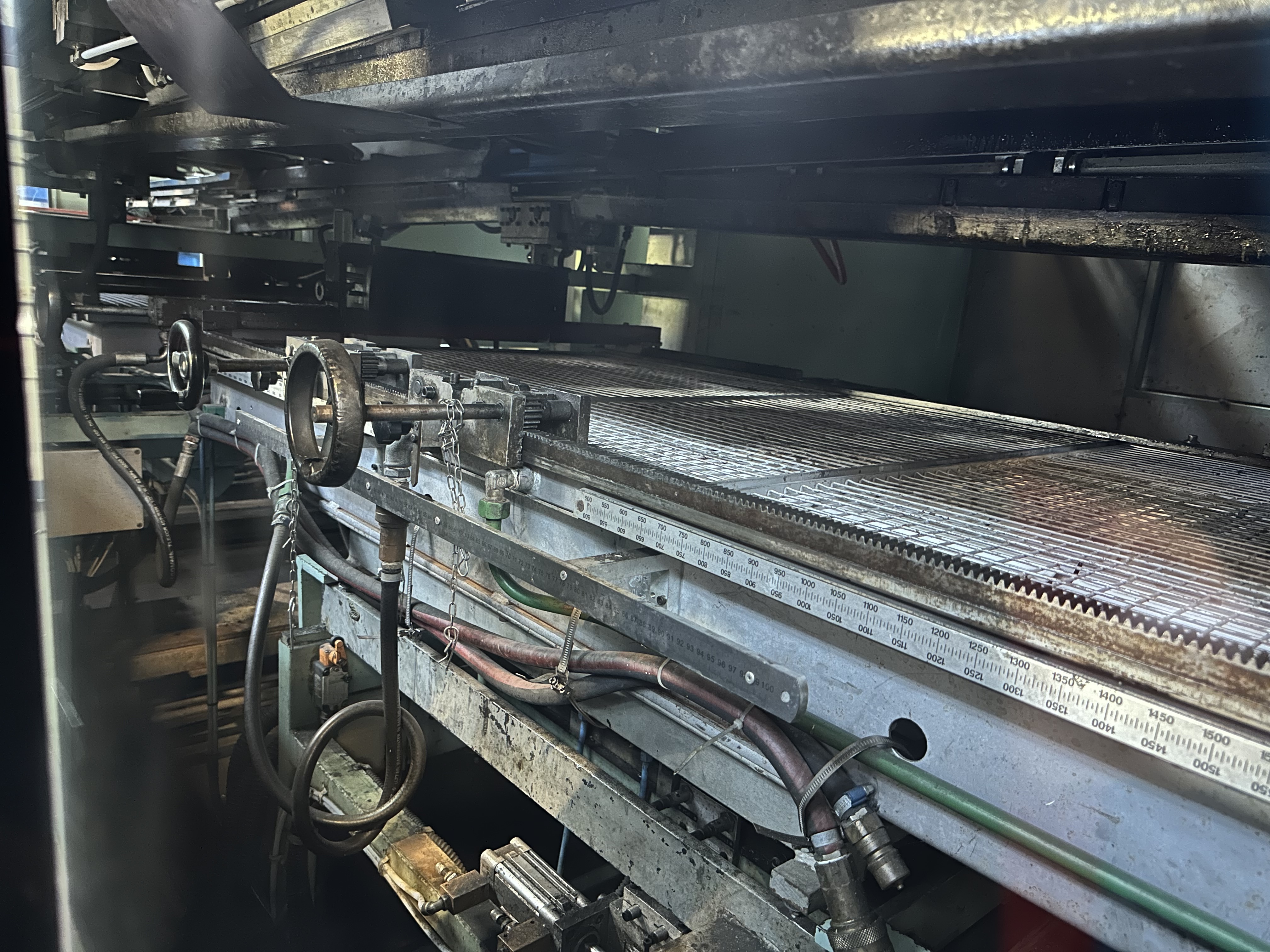

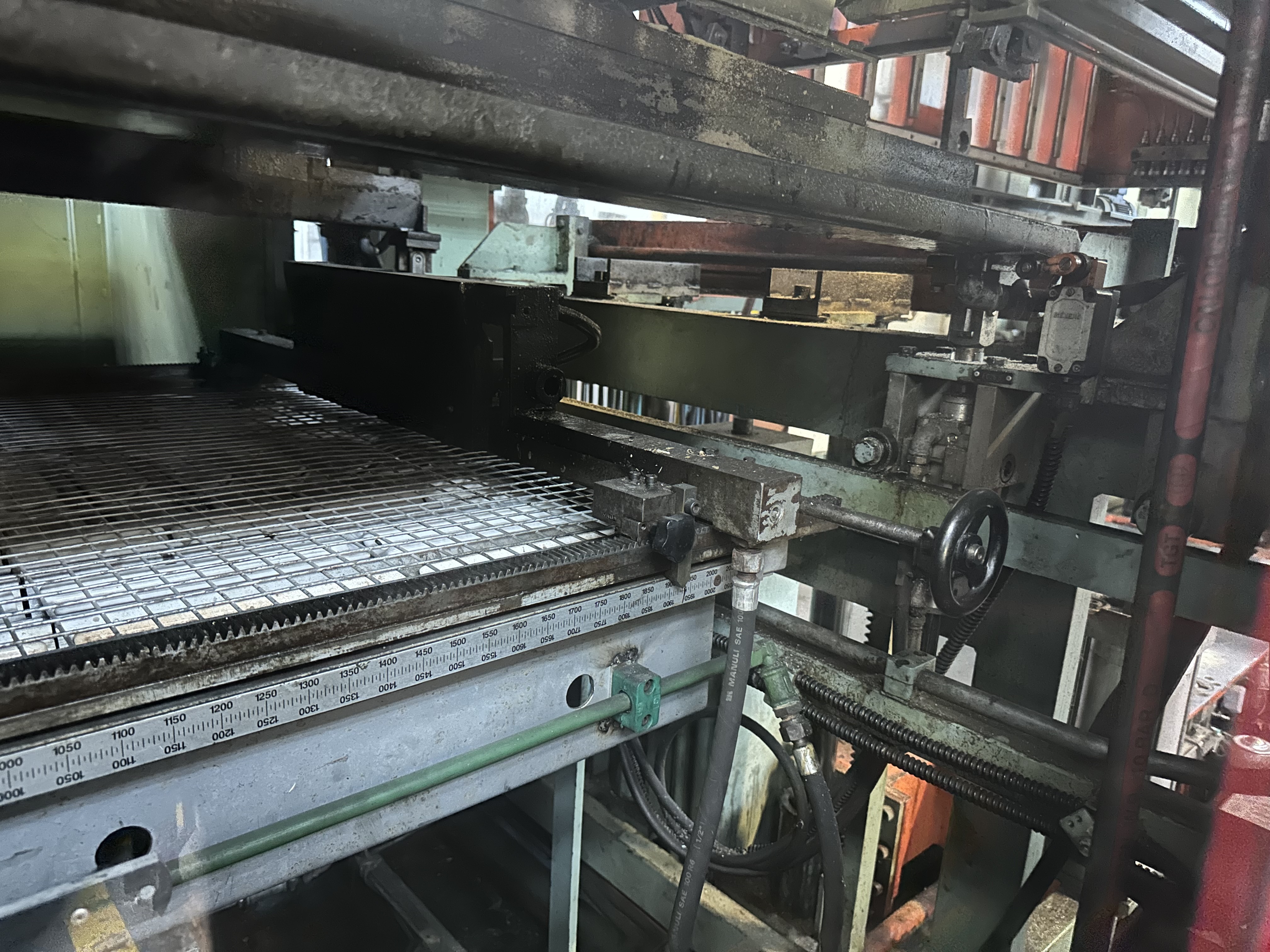

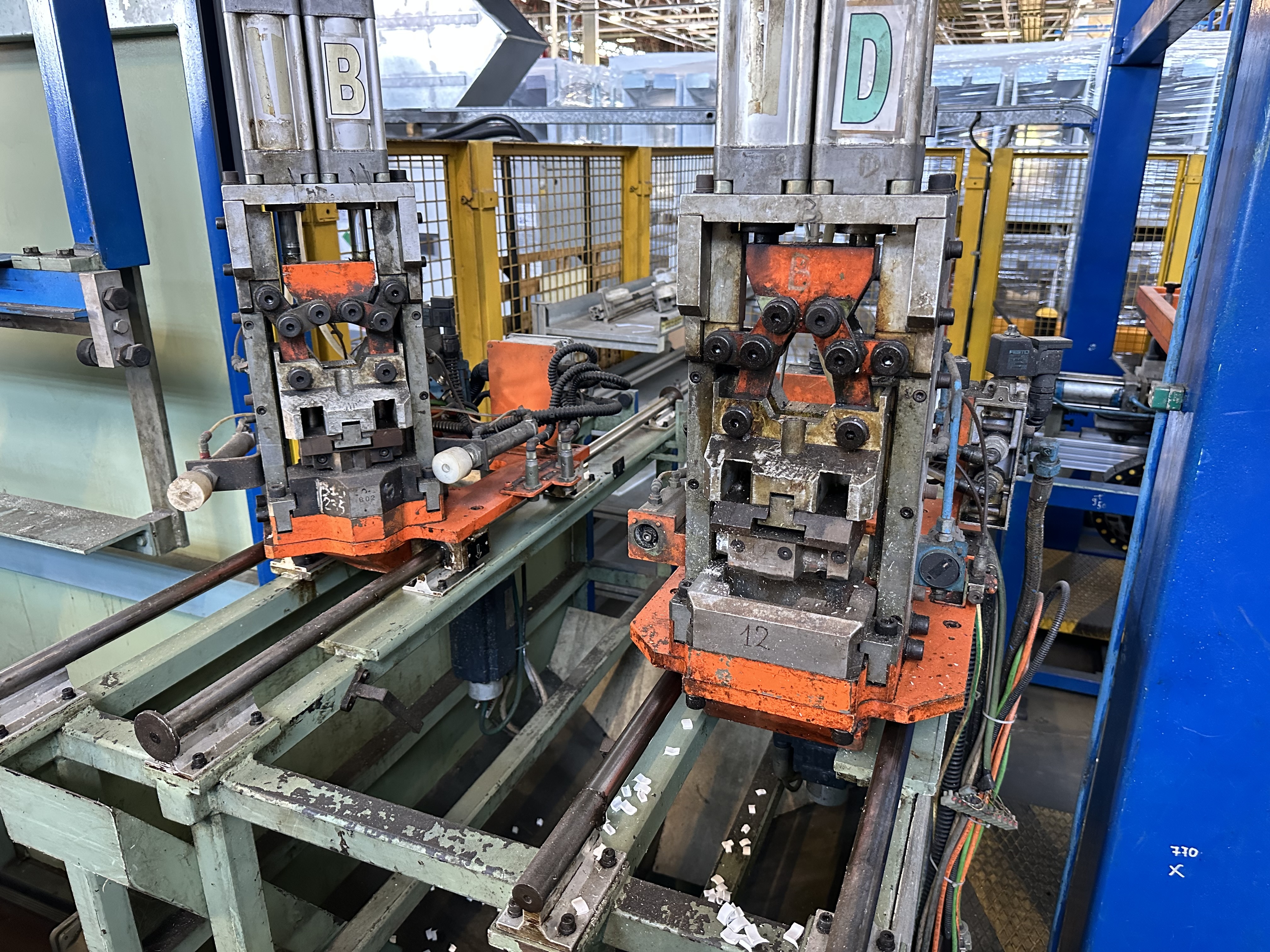

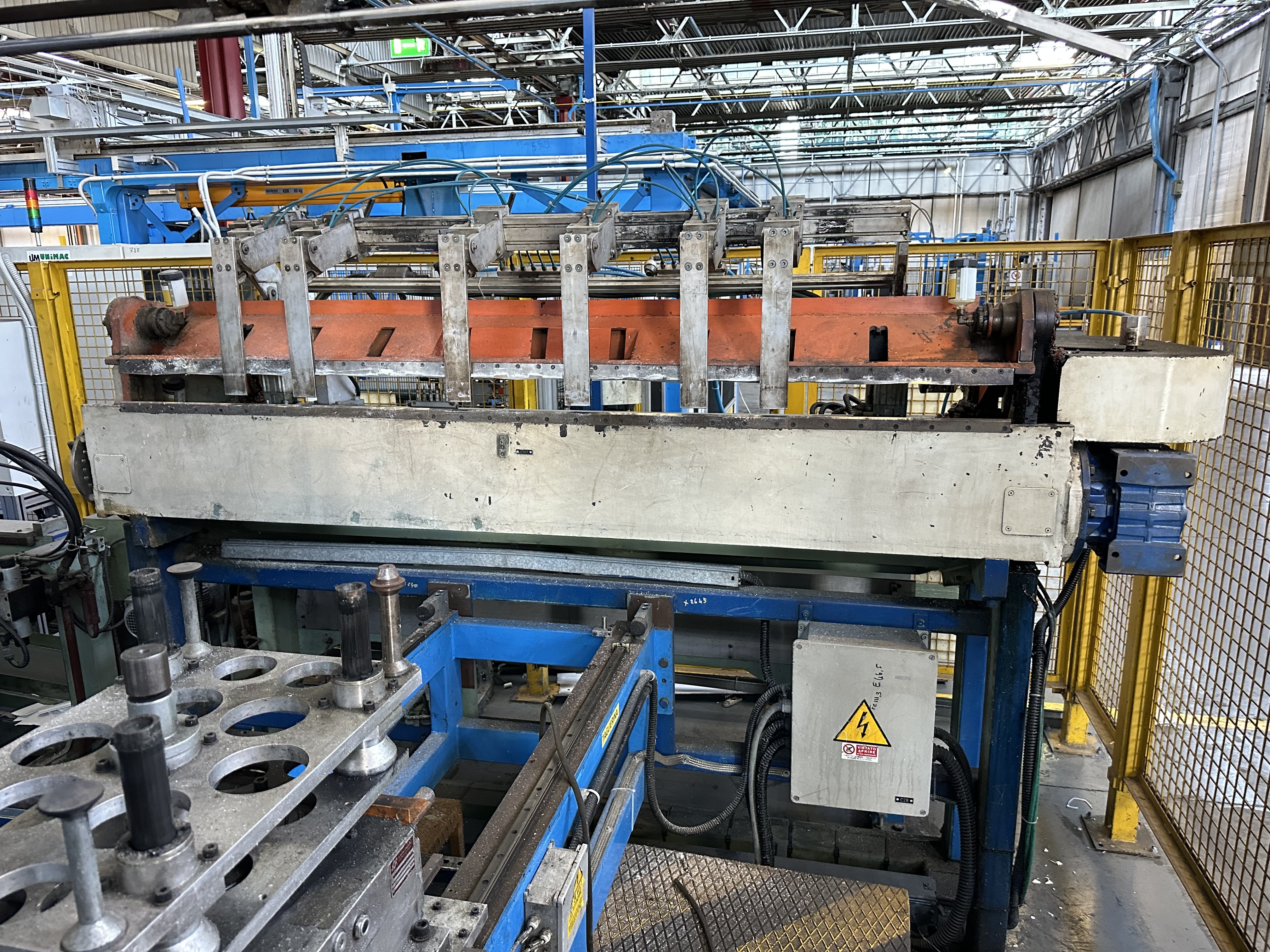

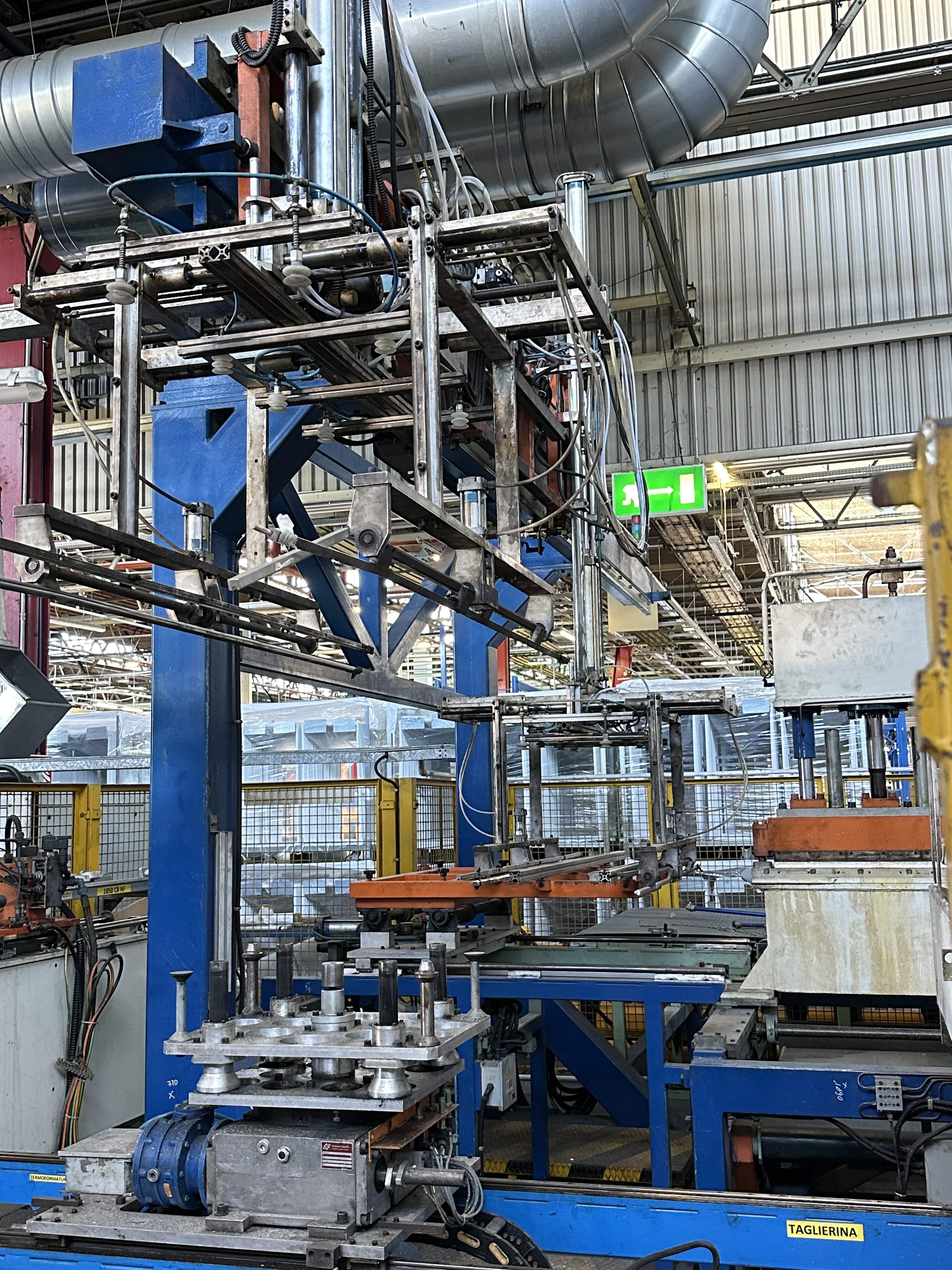

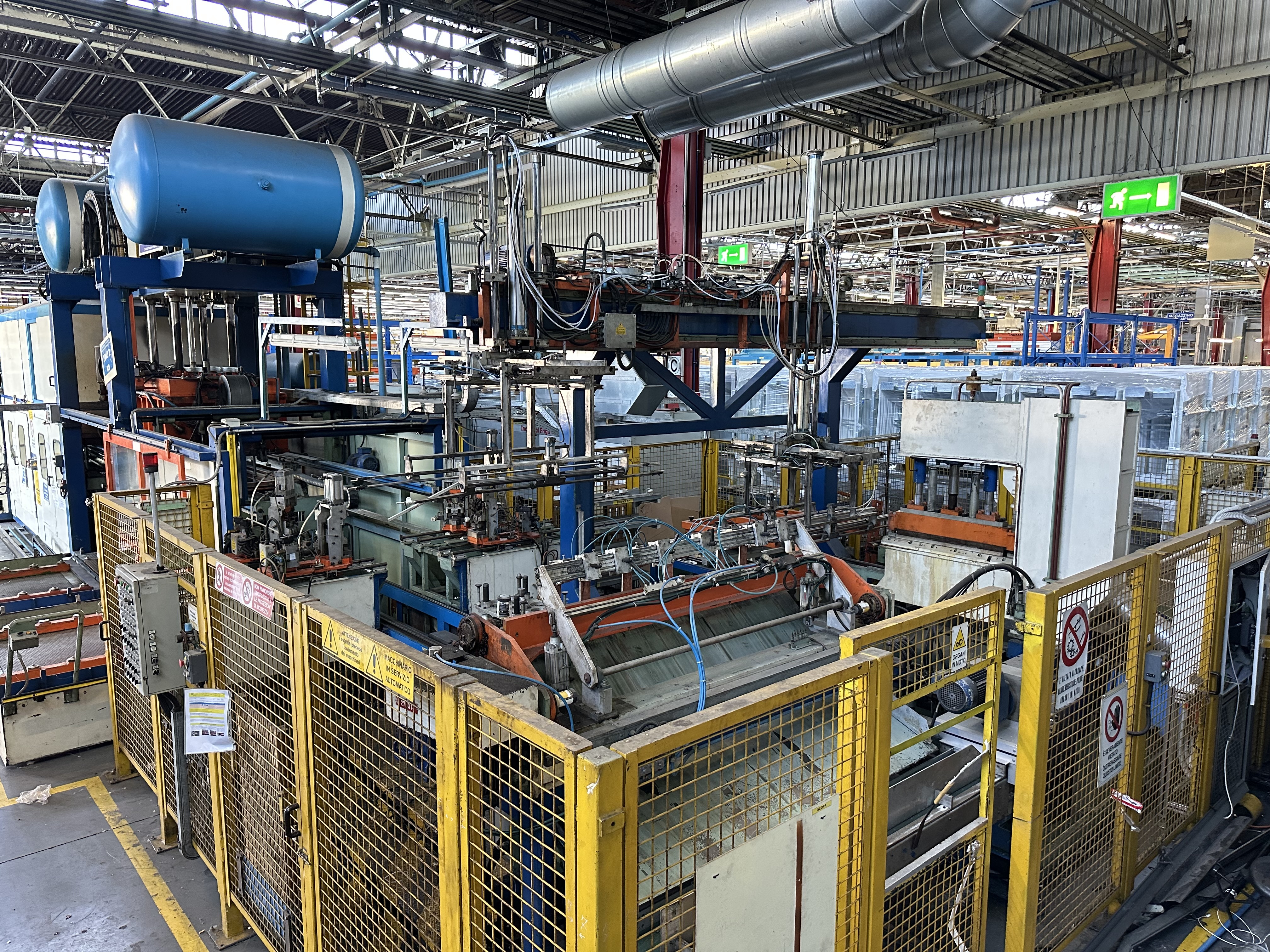

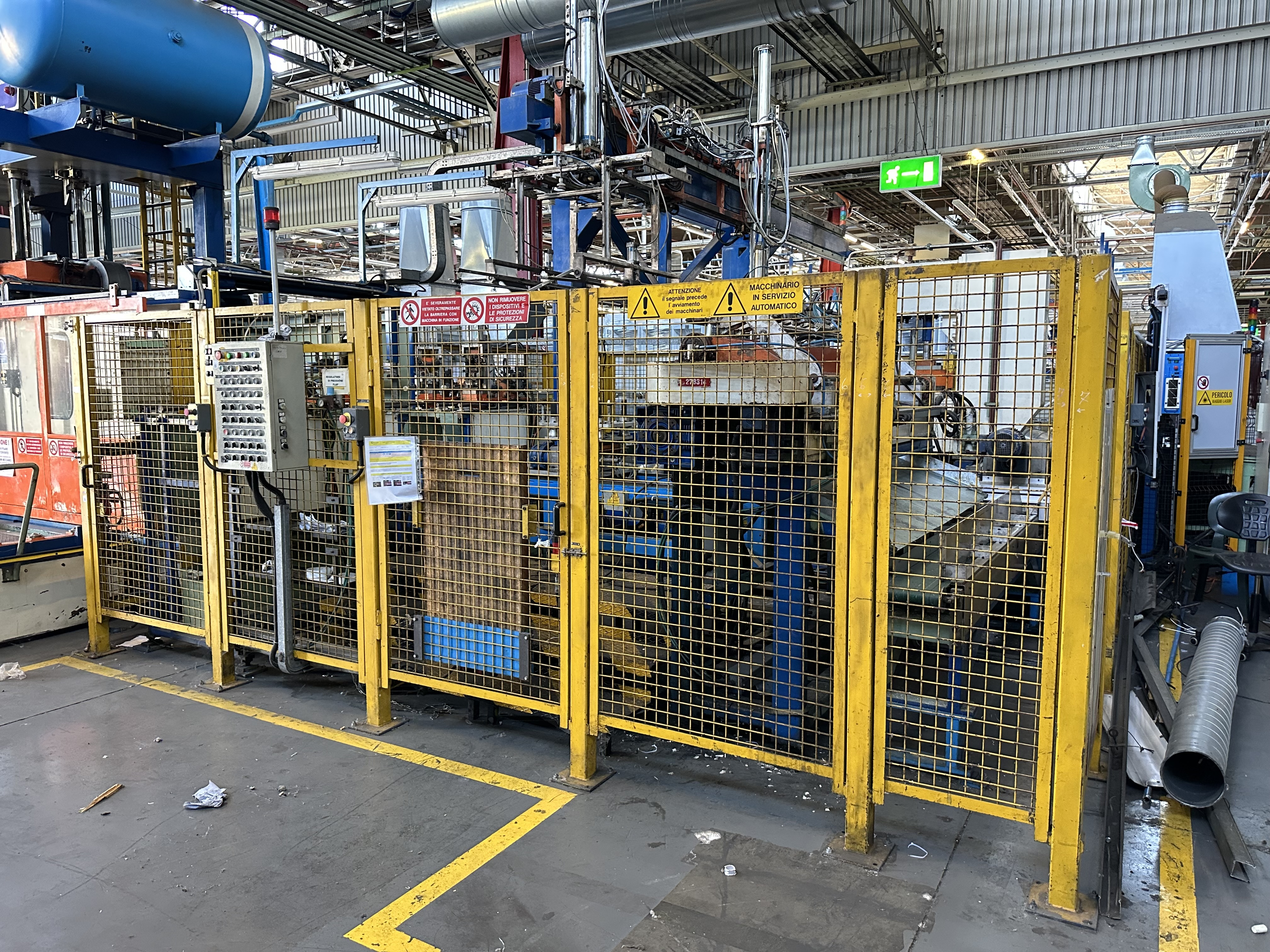

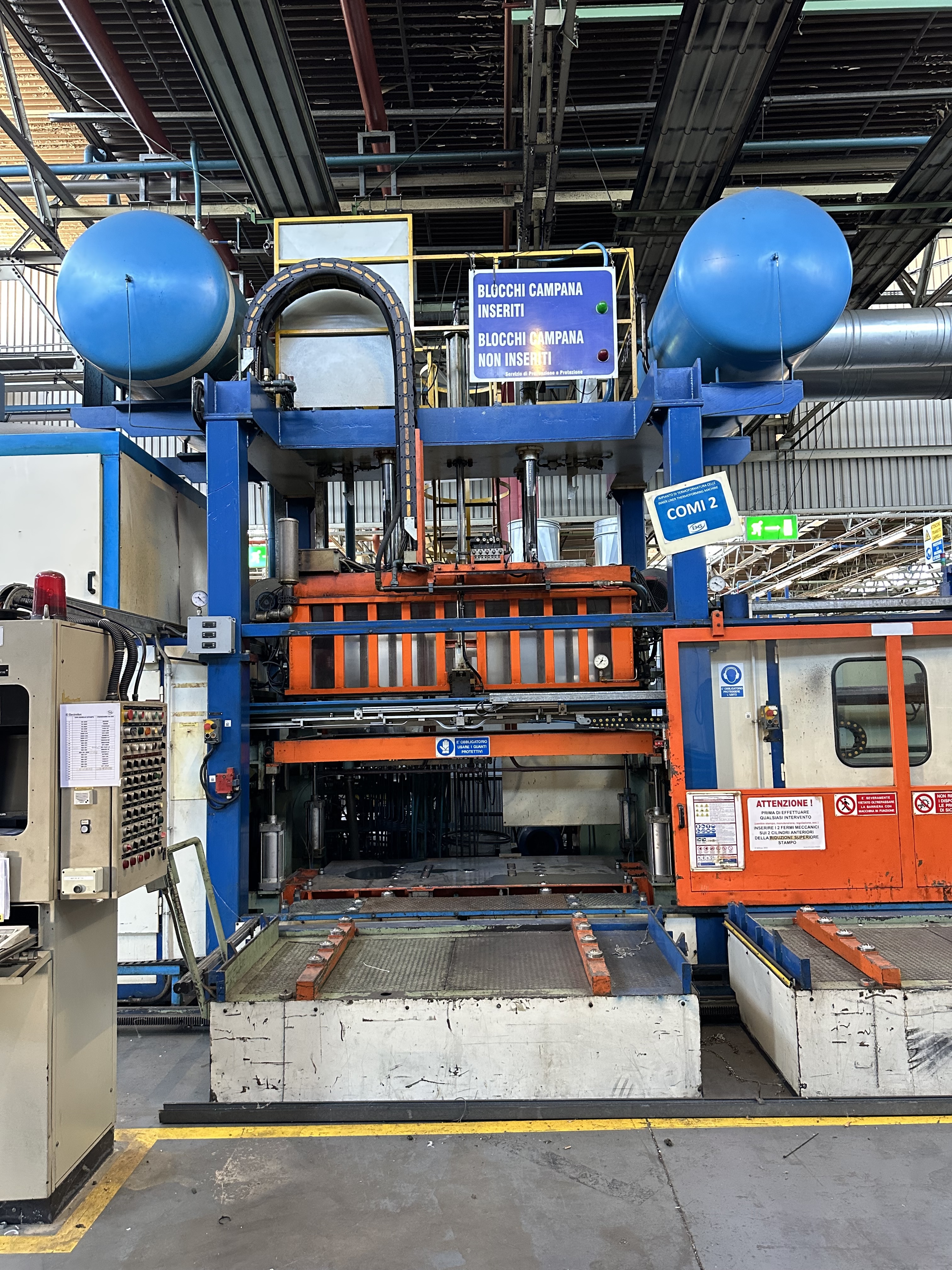

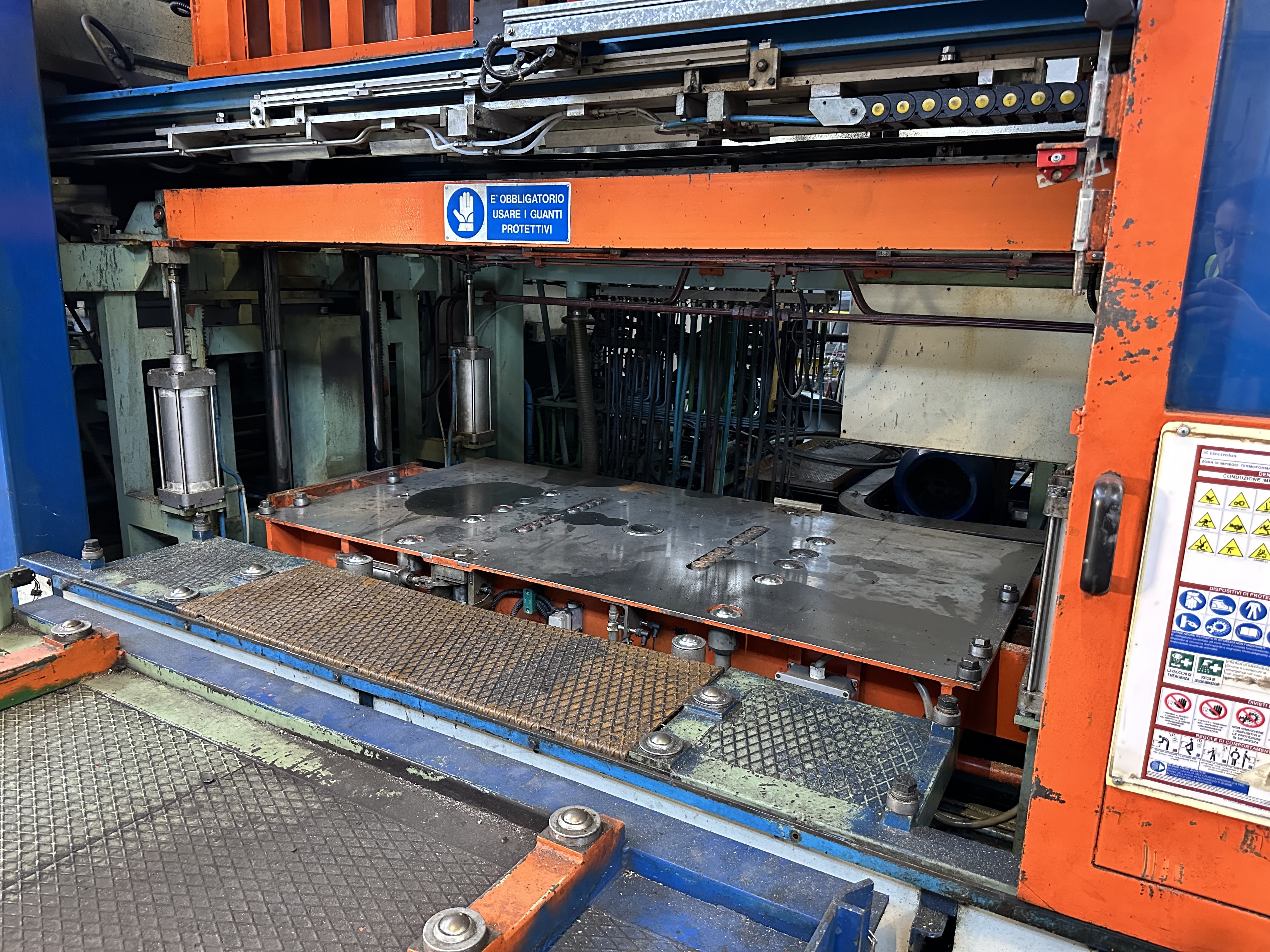

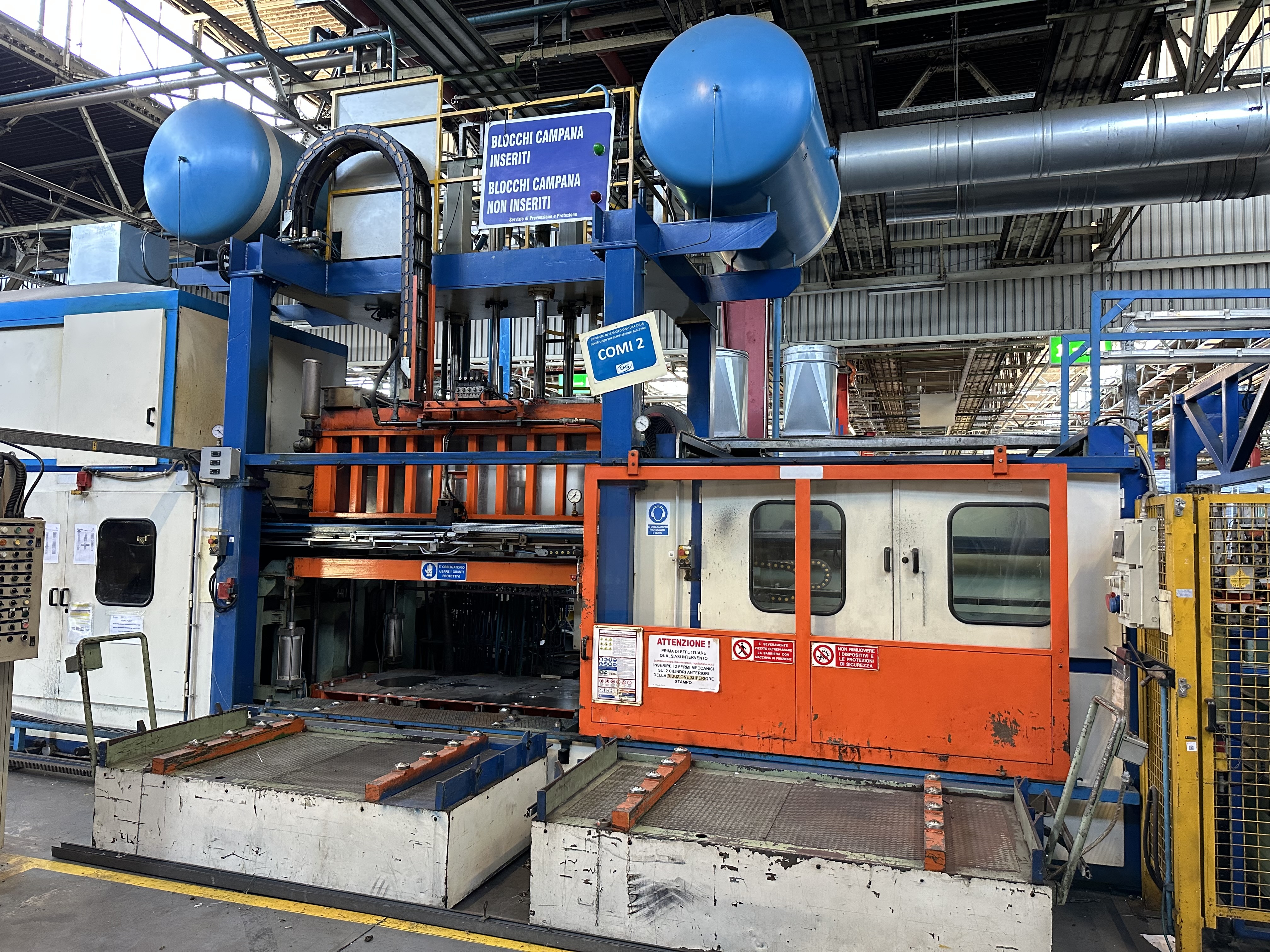

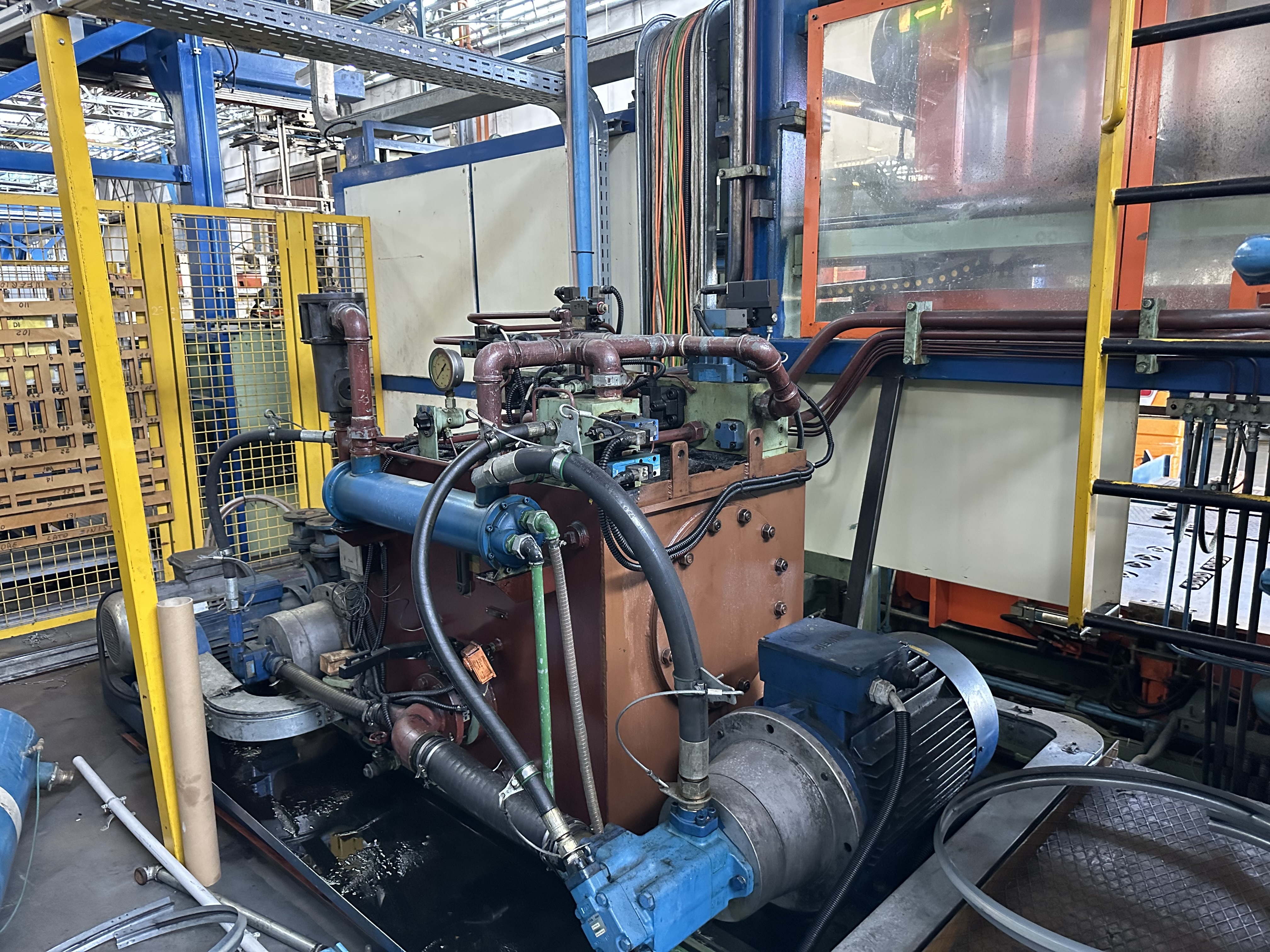

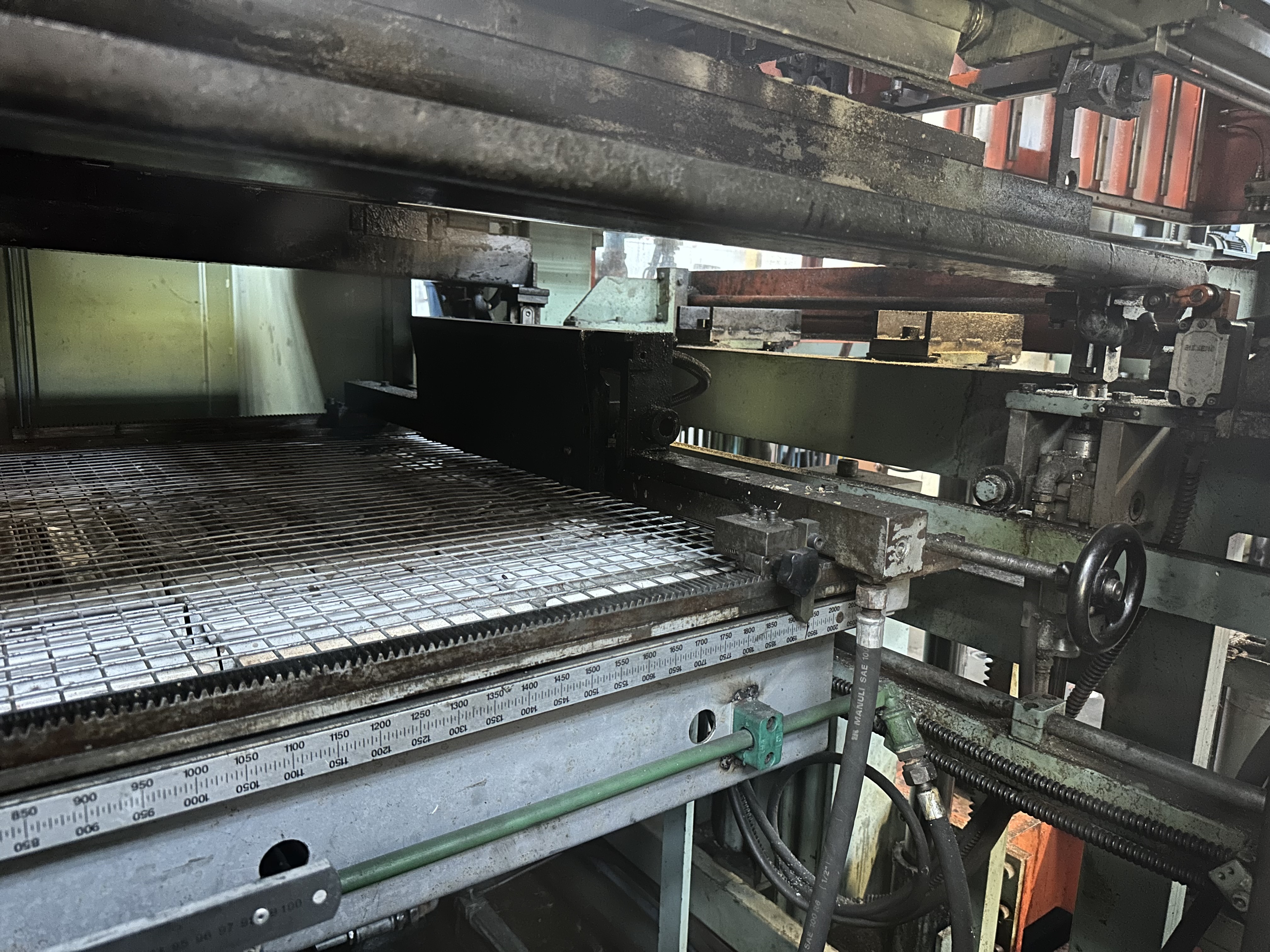

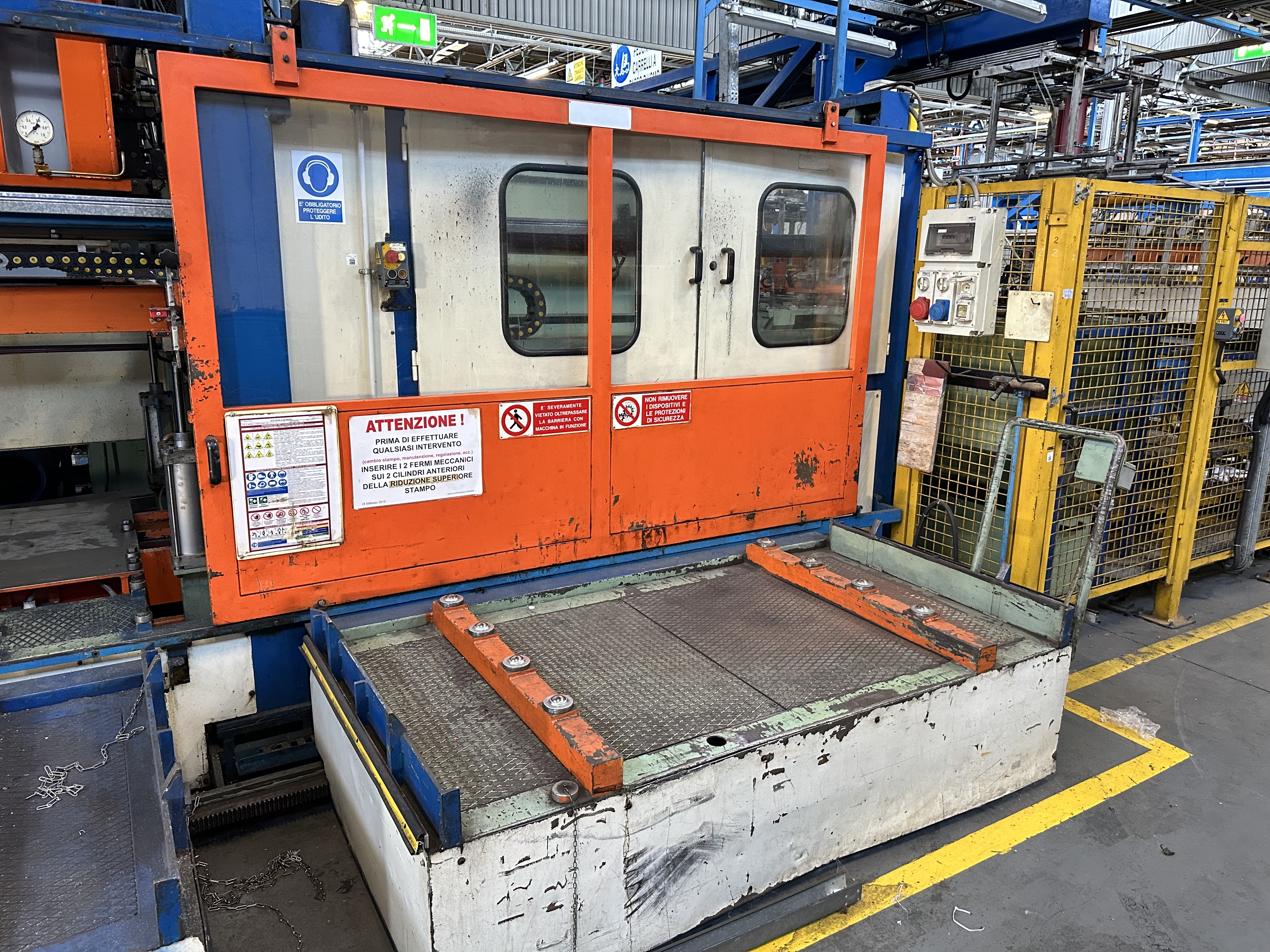

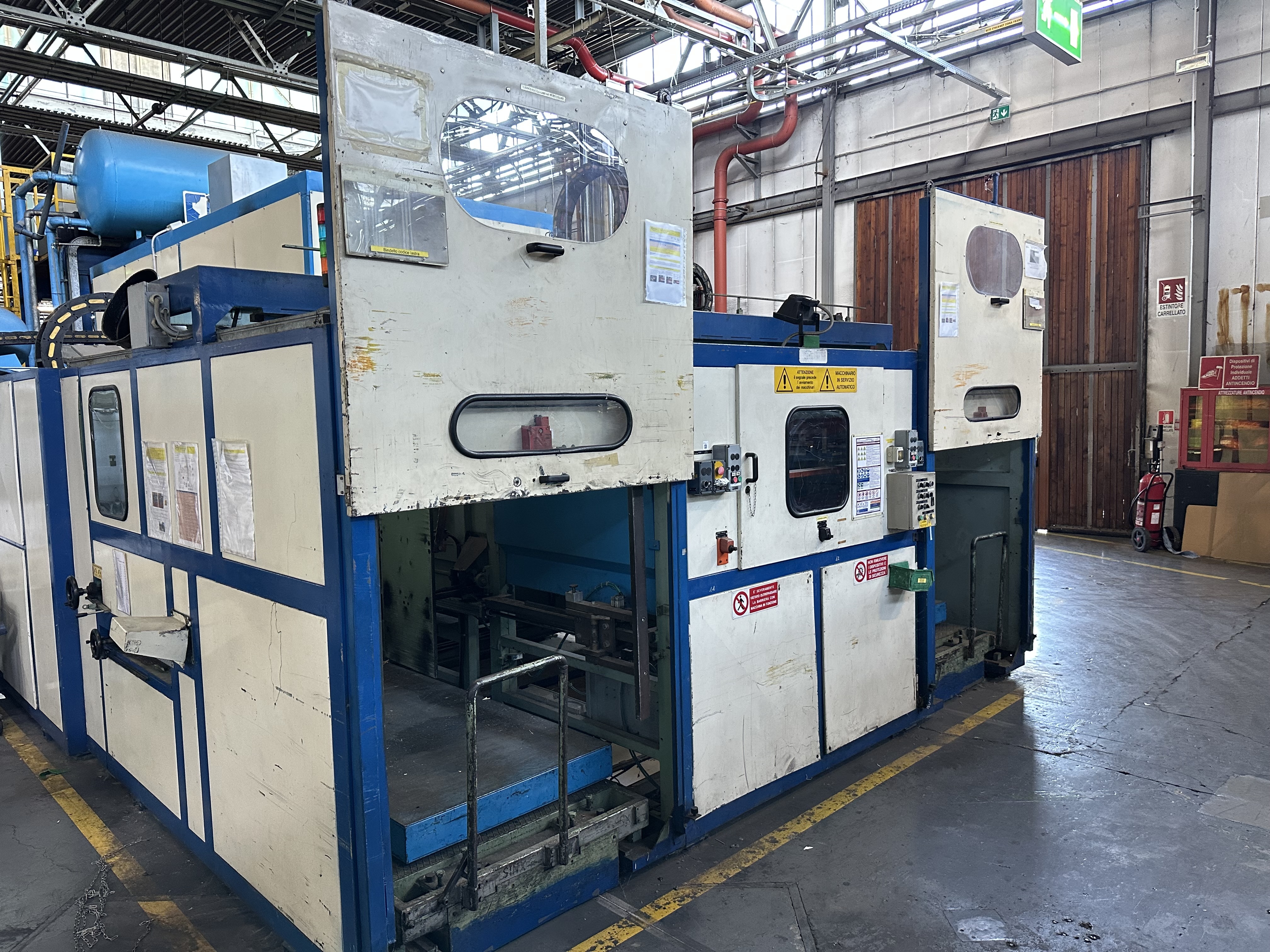

COMI SL2000 x 900 x 550mm Thermoforming Machine. S/No. 646 (1995)

TECHNICAL DATA OF THE EQUIPMENT

Max. frame inner size                       mm 2005 x 905

Scrap cutter motor power                                   kW 3

Max. tool base size                          mm 2000 x 900

Scrap conveyor motor power                             kW 0.37

Min. tool base size                            mm 700 x 500

Finished workpiece discharge belt motor power kW 0.75

Max. sheet size                                  mm 2090 x 960

Cross-cutting motor power                                 kW 0.25

Min. sheet size                                   mm 790 x 560

Cross-cut scrap conveyor motor power             kW 0.22

Max. tool height                                mm 800 (550+250)

Transfer unit motor power                                  kW 1.5

Maximum formed workpiece height   mm 550

Auxiliary units max. consumption                       kW 5.10

Max. sheet stack height                     mm 1000

Max. installed power                                         kW 375

Max. pallet height                              mm 180

Tempering unit power                                       kW 52

Upper heating power                        kW 83.3

Power consumption at 70% load                      kW 262.5

Lower heating power                        kW 71.3

Vacuum pumps capacity                                  m3/h 750 (250x3)

Upper preheating power                   kW 52

Tool vacuum tank capacity                              L 2000

Lower preheating power                   kW 46.8

Bell vacuum tank capacity                               L 2000

Oil pump motor power                      kW 19 (15+4)

Required oil quantity                                        L 600

Vacuum pump motor power             kW 23.4 (7.8x3)

Required air pressure                                       kPa 600

Sheet centering motors power          kW 0.24 (0.12+0.12)

Incoming water pressure                                 kPa 200-300

Sheet feed motor power                   kW 2.2

Max. hydraulic operating pressure                  MPa 18

Sheet feed width-adjustment motor power kW 2.2

Hydraulic operating pressure                          MPa 10

Sheet picker motor power                kW 0.37

Incoming water temperature                          °C 12-20



Location: These lots are located in Susegana, Treviso, Italy. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser.
