3492 - Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre (2011)
Artikelbeschreibung
Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre with Fanuc 31i-Model A Colour CNC Control
Seitenaufrufe
Viewing will be available by appointment only. Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com to arrange a mutually convenient time.
Auktion endet am
Käuferprovision
Es gilt ein Aufgeld von 18%.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00%.
Datum der letzten Zahlung
Endgültiges Freigabedatum
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Pre-Auction offers Encouraged
Location: These lots are located in Oldbury, West Midlands, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
UK Strategic Export Control Legislation (1st April 2024) The purchaser shall be responsible for ensuring export compliance in accordance with OEM/UK Strategic Export Controls Legislation of 1st April 2024 for goods purchased at auction. The purchaser shall also be responsible for all associated costs in obtaining measurements/accuracy checks for export classification needed for an export application. An Export License Application Fee of £350 plus VAT shall be applicable for goods requiring an export license application.
Location
Oldbury, West Midlands, UK
Gebühr für die Ausfuhr
Please Note: Should you be successful in purchasing an item and wish to Export it from the UK, a charge of £55.00 plus VAT will be automatically added to your invoice to prepare the goods and the paperwork which will require UK Export Customs Declarations. This process is now a mandatory UK export requirement from 1st January 2021. All our invoices are issued on an Incoterms EXW (Ex Works) basis.
Sie müssen sich einloggen, um bieten zu können
Lose 1-1 / 1

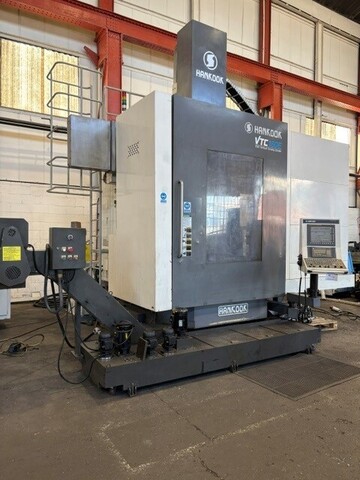

Lot 1: Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre
Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre with Fanuc 31i-Model A Colour CNC Control, Table dia. 1600mm, Maximum Swing 2000mm, Maximum Turning Dia. 2000mm, Maximum Turning Height 1400mm, Maximum Table Load 10,000kg, Horizontal Travel of Rail Head (X-axis) 1900mm, Vertical Travel of Ram (Z-axis) 900mm, Vertical Travel of Crossrail 700mm, Full C Axis 0.001 Resolution, Milling Spindle 18.5kw, Milling Spindle Speeds 30-3000rpm, Table Speeds. 0.7 to 280rpm (2 Speed Gear Box), Max Table Torque 23800 N.m, Ram Size 220mm x 220mm, Rapid Traverse (X-axis) 7,500mm/min, Rapid Traverse (Z-axis) 7,500mm/min, Cutting Feed Rate 0.001mm to 7500mm/rev, Tool Magazine 24 Station (12 Std + 12 Milling), Main Motor 45kw, Total Machine Power requirement 100KVa, Machine Size 5300mm x 4500mm, Machine Weight 34,000kg, Assorted Tool Holders. S/No. 42D09215 (2011)
* Bitte beachten Sie: - Jede Übersetzung mit Google Translate ist nicht als genaue Übersetzung garantiert und dient nur zur Orientierung. Die englische Losbeschreibung ist die übergeordnete Beschreibung und erfolgt nach bestem Wissen des Auktionators. Die Richtigkeit wird jedoch nicht garantiert und sollte vom Käufer vor Gebotsabgabe überprüft werden.
