2704 - CNC, Conventional and Toolroom Equipment no longer required due to the reorganisation of Technical Moulding Projects
Artikelbeschreibung
Hurco VMX 30T Machining Centre, Hurco VSX24 Machining Centre, Charmilles Robofil 290P Wire Eroder, Charmilles Roboform 31 Spark Eroder with Charmilles Control, Qty of 3R Tooling, Jones & Shipman 540 X Surface Grinder, Jones & Shipman 1311 Universal Cylindrical Grinder, Bryant Symons AA300/1 Polishers and Hydrovane Model 03307-200 Compressor, plus many others...
Seitenaufrufe
Viewing will be available by appointment only with the Auctioneer. Viewings are available Monday - Thursday between 9am and 3pm and Friday between 9 - 12pm. Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com prior to visiting site to confirm a viewing. Machines are under power but cannot be demonstrated.
Auktion endet am
Montag 10 Sep 2018 at 03:00 PM BST
Käuferprovision
Es gilt ein Aufgeld von 16.00%.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00%.
Datum der letzten Zahlung
Mittwoch 12 Sep 2018 at 05:00 PM BST
Endgültiges Freigabedatum
Donnerstag 27 Sep 2018 at 05:00 PM BST
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Location: These lots are located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Sie müssen sich einloggen, um bieten zu können
Auktion endet am
Montag 10 Sep 2018 at 03:00 PM BST
Käuferprovision
Es gilt ein Aufgeld von 16.00%.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00%.
Datum der letzten Zahlung
Mittwoch 12 Sep 2018 at 05:00 PM BST
Endgültiges Freigabedatum
Donnerstag 27 Sep 2018 at 05:00 PM BST
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Lose 1-10 / 30

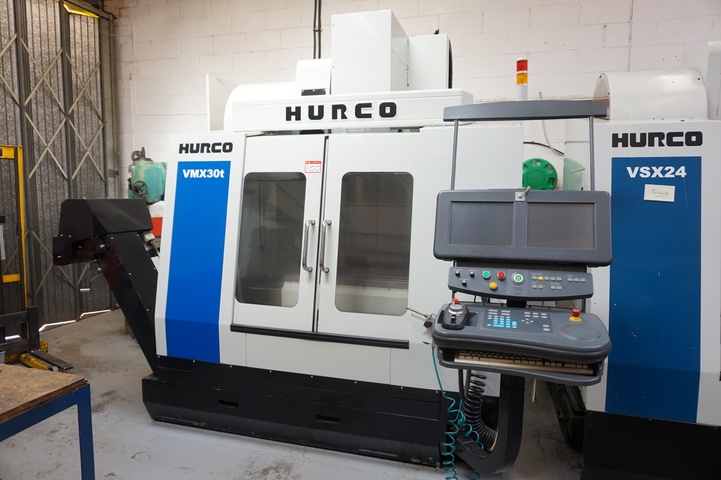

Lot 100: Hurco VMX 30T Machining Centre
Hurco VMX 30T Machining Centre with Dual Control with Graphics, Table Size 1020mm x 510mm, CAT40 Tooling, 24-Station Tool Changer, Swarf Conveyor, Spindle Chiller, 12,000rpm. S/No. H-H30838 (2012)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Bitte beachten Sie, dass dieses Los auch als Kombi-Los angeboten wird

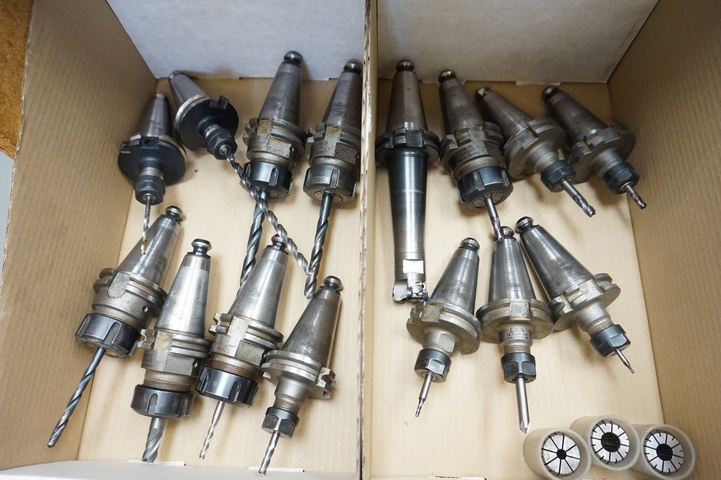

Lot 100A: Qty of CAT40 Tooling
Qty of CAT40 Tooling
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Bitte beachten Sie, dass dieses Los auch als Kombi-Los angeboten wird
Lot *: Combination of Lot 100 & 100A
Combination of Lot 100 & 100A
Hurco VMX 30T Machining Centre with Dual Control with Graphics, Table Size 1020mm x 510mm, CAT40 Tooling, 24-Station Tool Changer, Swarf Conveyor, Spindle Chiller, 12,000rpm. S/No. H-H30838 (2012)
and
Qty of CAT40 Tooling
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
2 Lose in dieser Kombination

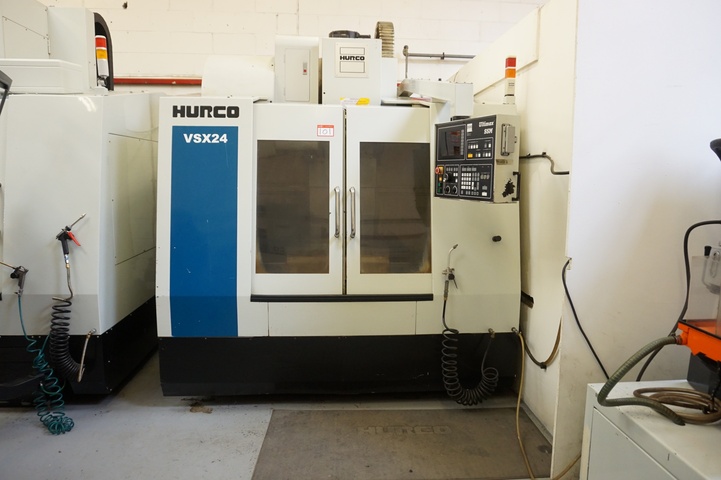

Lot 101: Hurco VSX24 Machining Centre with Ultimax SSM Control
Hurco VSX24 Machining Centre with Ultimax SSM Control, Table Size 760mm x 510mm, 10,000rpm, 24-Station Tool Changer, CAT40 Tooling. S/No. H20384 (2002)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Bitte beachten Sie, dass dieses Los auch als Kombi-Los angeboten wird

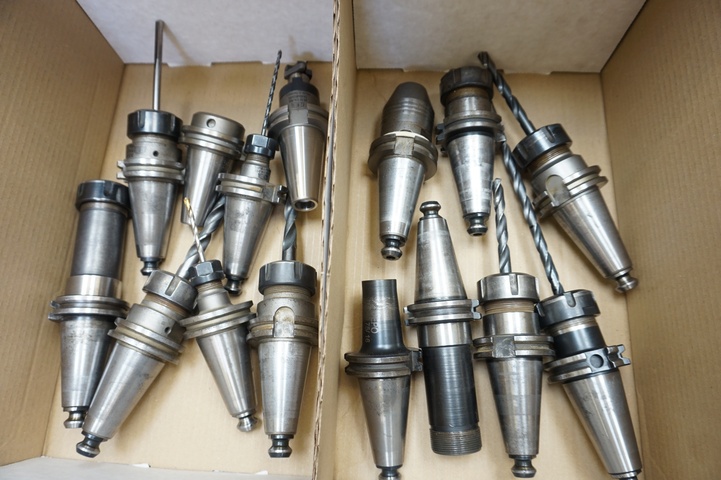

Lot 101A: Qty of CAT40 Tooling
Qty of CAT40 Tooling
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Bitte beachten Sie, dass dieses Los auch als Kombi-Los angeboten wird
Lot *: Combination of Lot 101 & 101A
Combination of Lot 101 & 101A
Hurco VSX24 Machining Centre with Ultimax SSM Control, Table Size 760mm x 510mm, 10,000 RPM, 24-Station Tool Changer, CAT40 Tooling. S/No. H20384 (2002)
and
Qty of CAT40 Tooling
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
2 Lose in dieser Kombination
Lot 102: Charmilles Robofil 290P Non-Submerged 5 Axis CNC Wire EDM
Charmilles Robofil 290P Non-Submerged 5 Axis CNC Wire EDM with Charmilles Control, 700mm x 500mm Work Surface, Auto Wire Thread, Axis Travel X = 400mm, Y = 250mm, Z = 200mm, Maximum Work Piece dimensions X = 850mm, Y = 500mm, Z = 200mm, 30o Taper Cut, Non-Submerged Cutting, Auto Wire Thread, Wire Capacity 0.1 - 0.3mm Optional Guides, Hand Box Control, CRT Screen Monitor, 3-side Clamping Frame. S/No. 925677331428 (2000)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Lot 103: Charmilles Roboform 30 CNC EDM Machine
Charmilles Roboform 30 CNC EDM Machine with Charmilles CNC Control, On board Programming, Tool Changer, Full 'C' Axis, Table Size 500mm x 400mm, Tank Size 850mm x 550mm x 350mm Depth, Magnetic Chuck 380mm x 200mm, 4 Axis CNC EDM with C Axis and 4-Station Tool Changer, Axis Travel X = 350mm, Y = 250mm, Z = 300mm, C Axis 360o, Maximum Work Piece dimensions X = 940mm, Y = 590mm, Z = 300mm, C Axis 360o, Full 4 Axis Erosion with Vector, Free and Servo Planetry, 4 Station Tool Changer, 64A Generator, Handbox Control. S/No. 75015/625122 (1997)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
Lot 104: Charmilles Roboform 31 CNC EDM machine
Charmilles Roboform 31 used CNC EDM Machine with Charmilles CNC Control, On Board Programming, 4 Axis CNC EDM, C Axis and 4 Station Tool Changer, Axis Travel X = 350mm, Y = 250mm, Z = 300mm, C Axis 360o, Maximum Work Piece dimensions, X 780mm, Y 530mm, Z 300mm, C Axis, Full 4 Axis Erosion with Vector, Free and Servo Planetry, 4 Station Tool Changer, 64A Generator, Handbox control. S/No. 9-5106/635285 (1999)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.

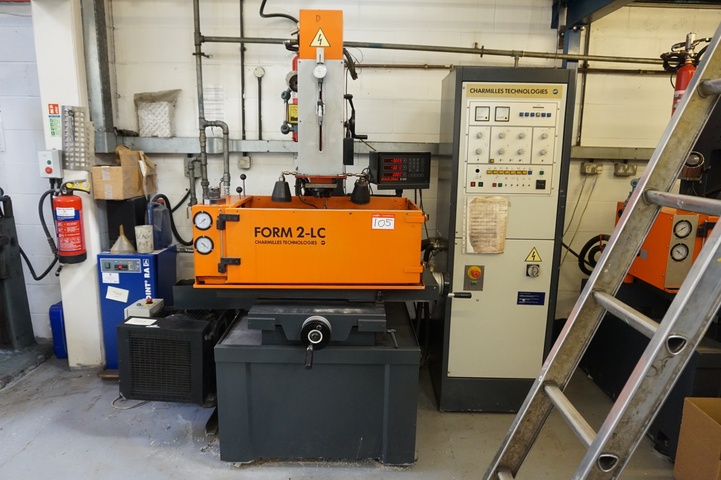

Lot 105: Charmilles Form 2-LC Spark Eroder
Charmilles Form 2-LC Spark Eroder with Anilam Z-530 DRO, Table Size 500mm x 350mm, Tank Size 750mm x 480mm x 350mm Depth, Magnetic Chuck 260mm x 130mm and 3R System Tooling. S/No. 91011057.FC (1997)
Please Note: This Lot is located in Watlington. Unfortunately, there are no loading facilities available on-site. Dismantling and loading will be at the cost of the purchaser.
