2176 - CNC Lathes and Machining Centres no longer required by Component Supplies Ltd & Others
Artikelbeschreibung
Seitenaufrufe
Viewing by Appointment only with the Auctioneer, please contact our Office on + 44 (0) 121 328 2424
Auktion endet am
Donnerstag 21 Mär 2013 at 03:00 PM GMT
Käuferprovision
Es gilt ein Aufgeld von 15.00%.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00%.
Datum der letzten Zahlung
Montag 25 Mär 2013 at 05:00 PM GMT
Endgültiges Freigabedatum
Donnerstag 4 Apr 2013 at 05:00 PM BST
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Sie müssen sich einloggen, um bieten zu können
Auktion endet am
Donnerstag 21 Mär 2013 at 03:00 PM GMT
Käuferprovision
Es gilt ein Aufgeld von 15.00%.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00%.
Datum der letzten Zahlung
Montag 25 Mär 2013 at 05:00 PM GMT
Endgültiges Freigabedatum
Donnerstag 4 Apr 2013 at 05:00 PM BST
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Lose 1-10 / 12
Lot 200: Mazak H400 Twin Pallet Horizontal Machining Centre
Mazak H-400 Twin Pallet Horizontal Machining Centre with Mazatrol M-32 Control, Twin 400 x 400mm Pallets, 1 degree Indexing, 30 ATC, Coolant. S/No. 76484 (1989)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.

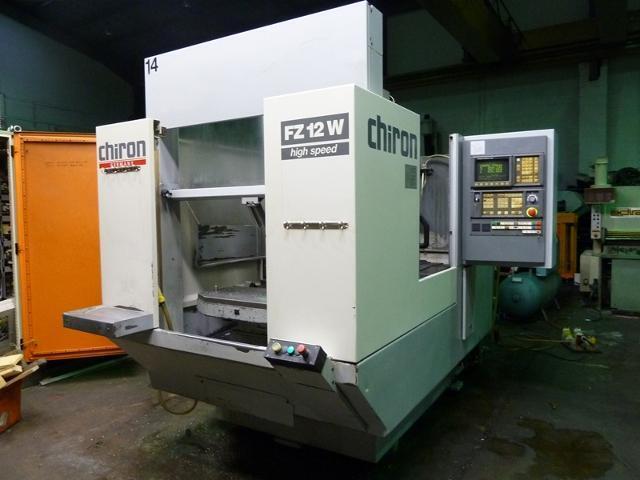

Lot 200A: Chiron FZ 12W High Speed Machining Centre
Chiron FZ 12W High Speed Machining Centre with Fanuc OM Control, 650 x 350mm Indexable Table with Knoll Swarf Conveyor. S/No. 181-76 (1995)
Please Note: Some of the Tool Change Positions on this
machine require Attention
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 201: Gildemeister Sprint 32 Linear Twin Spindle, 6 & 2 Axis Turning Centre
Gildemeister Sprint 32 Linear Twin Spindle, 6 & 2 Axis Turning Centre with Fanuc Series 160i-B Control, Max. Turning Diameter: 33mm, Max. Turning Length: 120mm, C and Y Axis to left & right hand spindles, 8,000rpm max. Spindle Speed to both Spindles, (3) Driven Tool Positions to left hand Spindle, Driven Tool Facility to Right Hand Spindle, Parts Catcher, High Pressure Coolant, Swarf Conveyor & Iemca Boss Magazine Barfeed. S/No. 2301-0145 (2003)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 202: Daewoo Puma 1500Y 4 axis Turning Centre
Daewoo Puma 1500Y 4 axis Turning Centre with Fanuc 18i-T Control, Max Swing 599mm, Max Turning dia 350mm, 550mm Machining length, 45mm Bar capacity, C-Axis, Y-Axis Travel 100mm, Spindle Speeds 60-6000rpm, 12-Station Turret with Driven Tools, Tailstock MT No.5 Equipped with FMB SL90L Magazine Bar Feed, 3-Jaw Chuck, Collet Chuck, Standard and Driven Tools, Tool Setter, Parts Catcher and Swarf conveyor. S/No. P1500Y0022 (2002)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 203: Doosan NM510 Vertical Machining Centre
Doosan NM510 Vertical Machining Centre with Fanuc Series Oi-MC Control, 4 th Axis Interface, Table Size: 1200 x 500mm, 12,000rpm BT40 Spindle, X = 1020mm, Y = 510mm, Z = 625mm, 30-Station ATC, Through Spindle Coolant, Swarf Conveyor. S/No. NM5100447 (2008))
Location: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing of the equipment however, will be at the cost and responsibility of the purchaser
Lot 204: Hitachi Seiki HiTurn 250 2-Axis CNC Lathe
Hitachi Seiki HiTurn 250 2-Axis CNC Lathe with Seicos PC Flexi Control, Max Swing 680mm, Max Turning Dia 500mm, Max machining length 500mm, Spindle Speeds 42-42000rpm, 12-Station Turret, Programmable Tailstock. S/No. ST20027E (2002)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 205: Citizen M32 Sliding Head Turning Centre
Citizen M32 Sliding Head Turning Centre with Cincom Control, Main Spindle Turning Dia 32mm, Sub-spindle turning dia 32mm, Max Machining Length 250mm, 4 x Platen Turning Tools, 4 x Platen Cross Driven Tools, 3 x Front End Work Tools (Toolpost) 3 x Back end Work Tools, 10-Station Turret with Driven Tools (Up to 40 Mountable Tools) Main Spindle Speed 8000rpm, Sub-spindle Speed 7000rpm, Driven Tool Speed 5000rpm. Equipped with parts catcher and coolant system. S/No. P12193 (2000)
Location: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing of the equipment however, will be at the cost and responsibility of the purchaser
Lot 206: Bridgeport VMC800/22 Vertical Machining Centre
Bridgeport VMC800/22 Vertical Machining Centre with Heidenhain 426 Control, 1000 x 490mm Table, X = 800mm, Y = 510mm, Z = 500mm, 22 ATC. S/No. 21057 (06/1996)
Location: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing of the equipment however, will be at the cost and responsibility of the purchaser
Lot 207: Mazak Multiplex 6200 Twin Spindle 3-Axis Turning Centre
Mazak Multiplex 6200 Twin Spindle 3-Axis Turning Centre with Mazatrol T-Plus Control, Max Swing 320mm, Max Turning Dia 210mm, Max Turning Length 350mm, Bar Capacity 52mm, C-axis 360.000 deg, Spindle Speeds 35-5000rpm, 2 x 12-Station Turrets with Driven Tools. Equipped with 3-Jaw Chucks, Standard and Driven Tools and Swarf Conveyor. S/No. 135538 (1998)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 208: Mazak VTC-20C 3 Axis Vertical Machining Centre
Mazak VTC-20C 3 Axis Vertical Machining Centre with Mazatrol M-Plus Control, Table 2000 x 510mm, X=1660mm, Y=510mm, Z=510mm, BT/CAT40 Spindle Taper, 40-7000rpm, (2) 24-Station Tool Carousels (48 Tools in Total), Central Partition for Pendulum Milling.
Location: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing of the equipment however, will be at the cost and responsibility of the purchaser
