Lot 2: WFL M35-G 1800 7 Axis Millturn

Fin:
mercredi 18 déc 2019 17:40 PM GMT
Temps restant::
Enchère termin
È necessario effettuare il login per poter fare offerte
Augmentation: £ 500
Offres: 52
Prime d'acheteur: 18%
TVA: 20%

Video

Complet Description du terrain

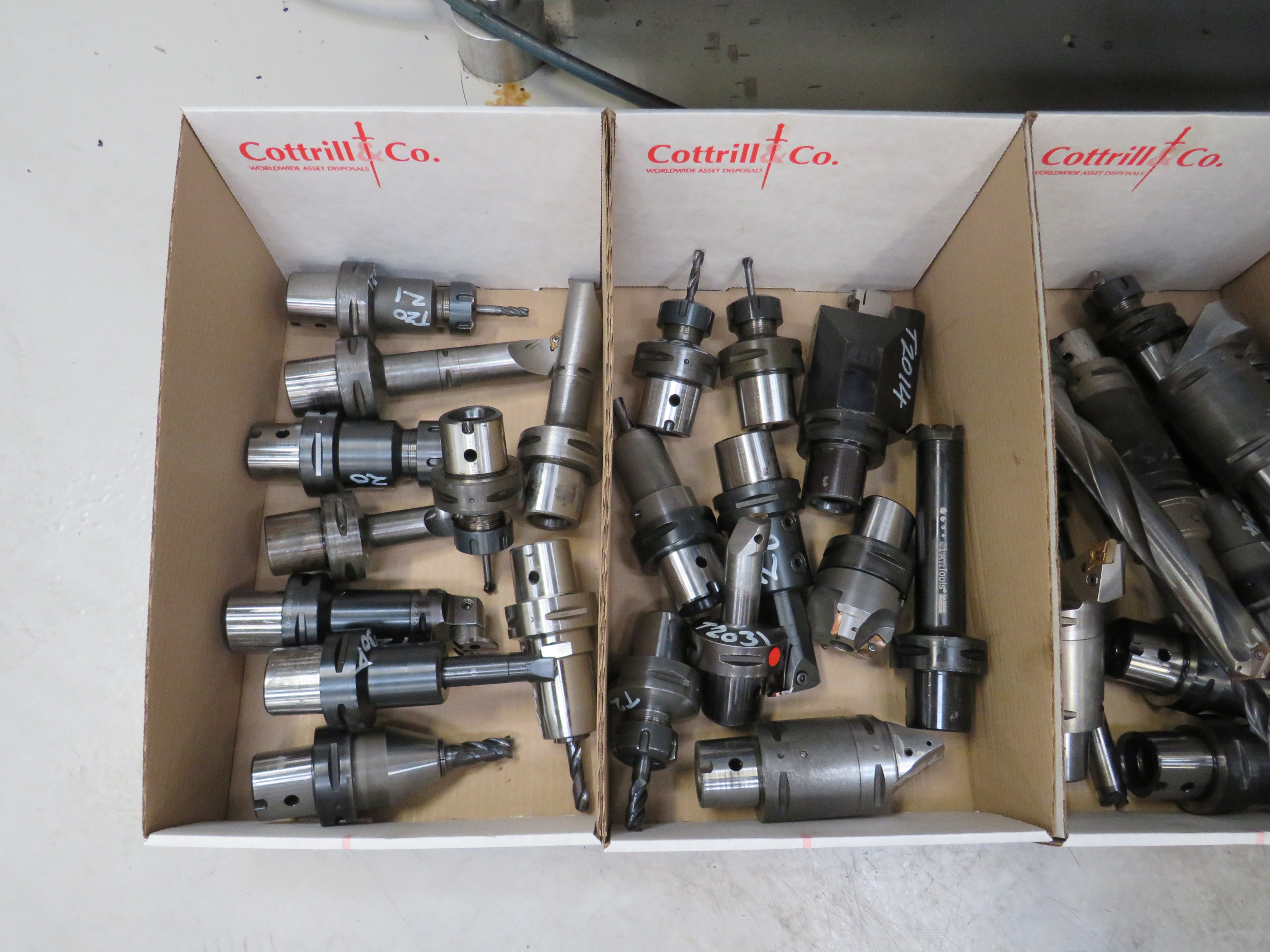

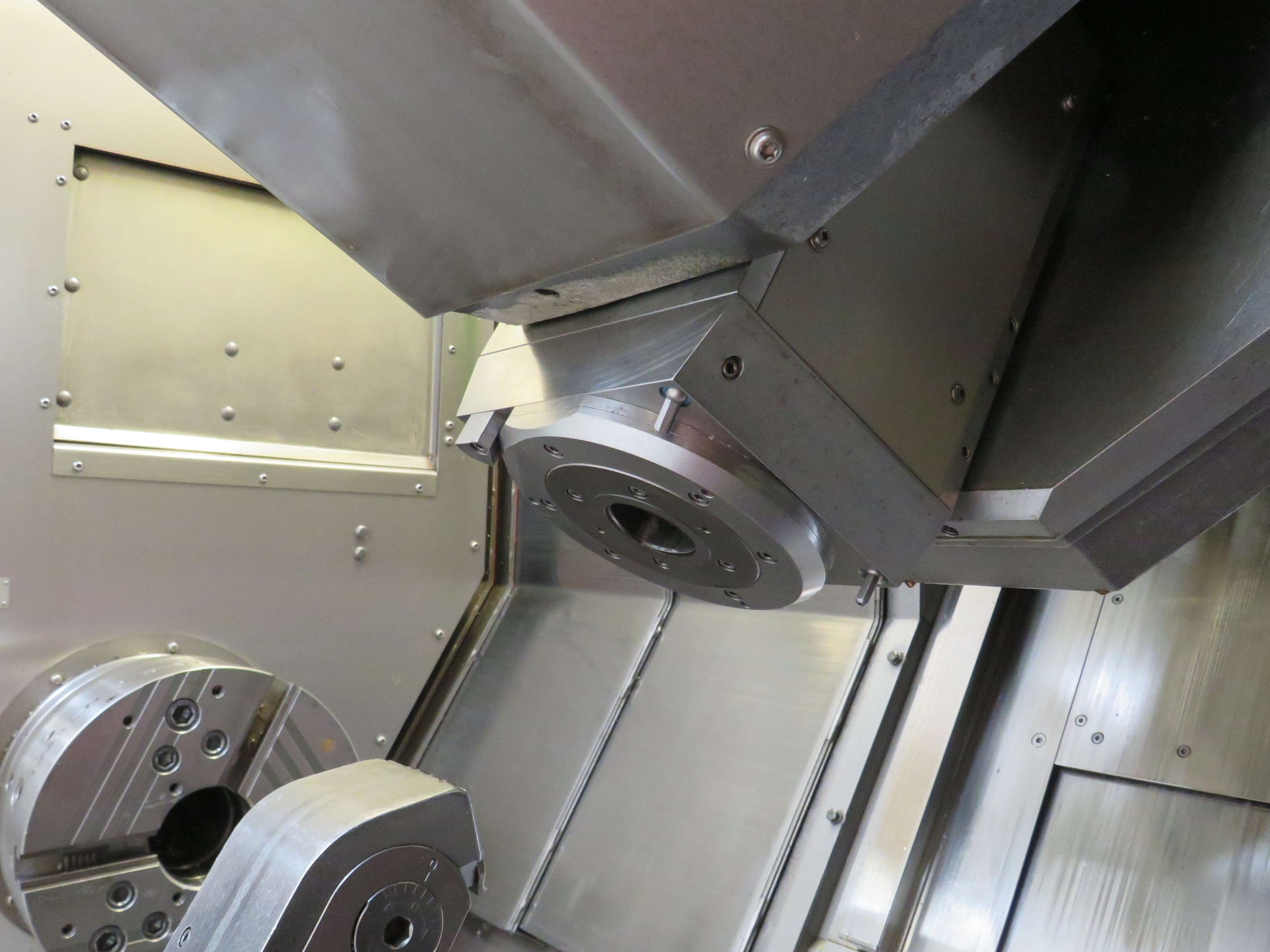

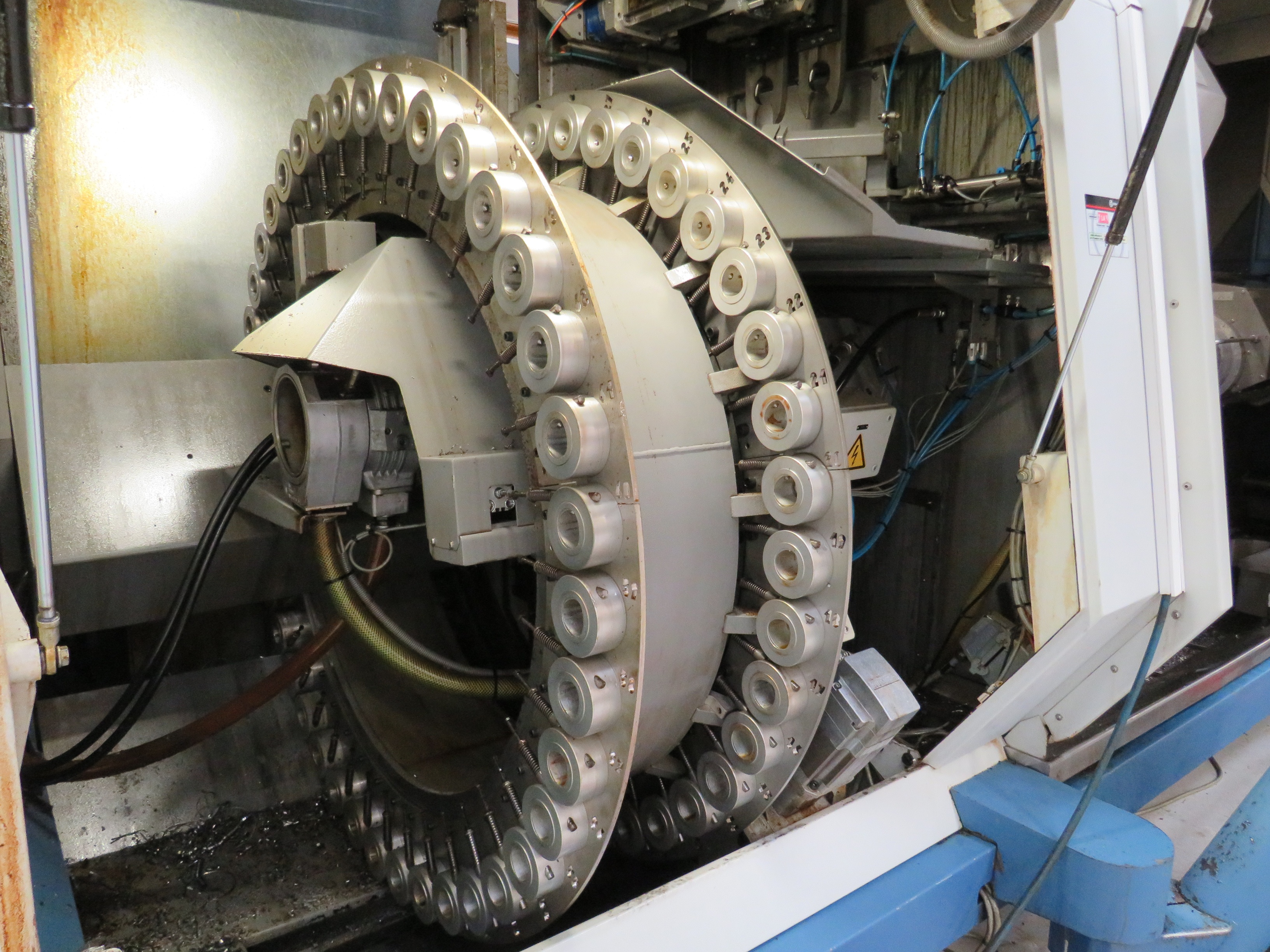

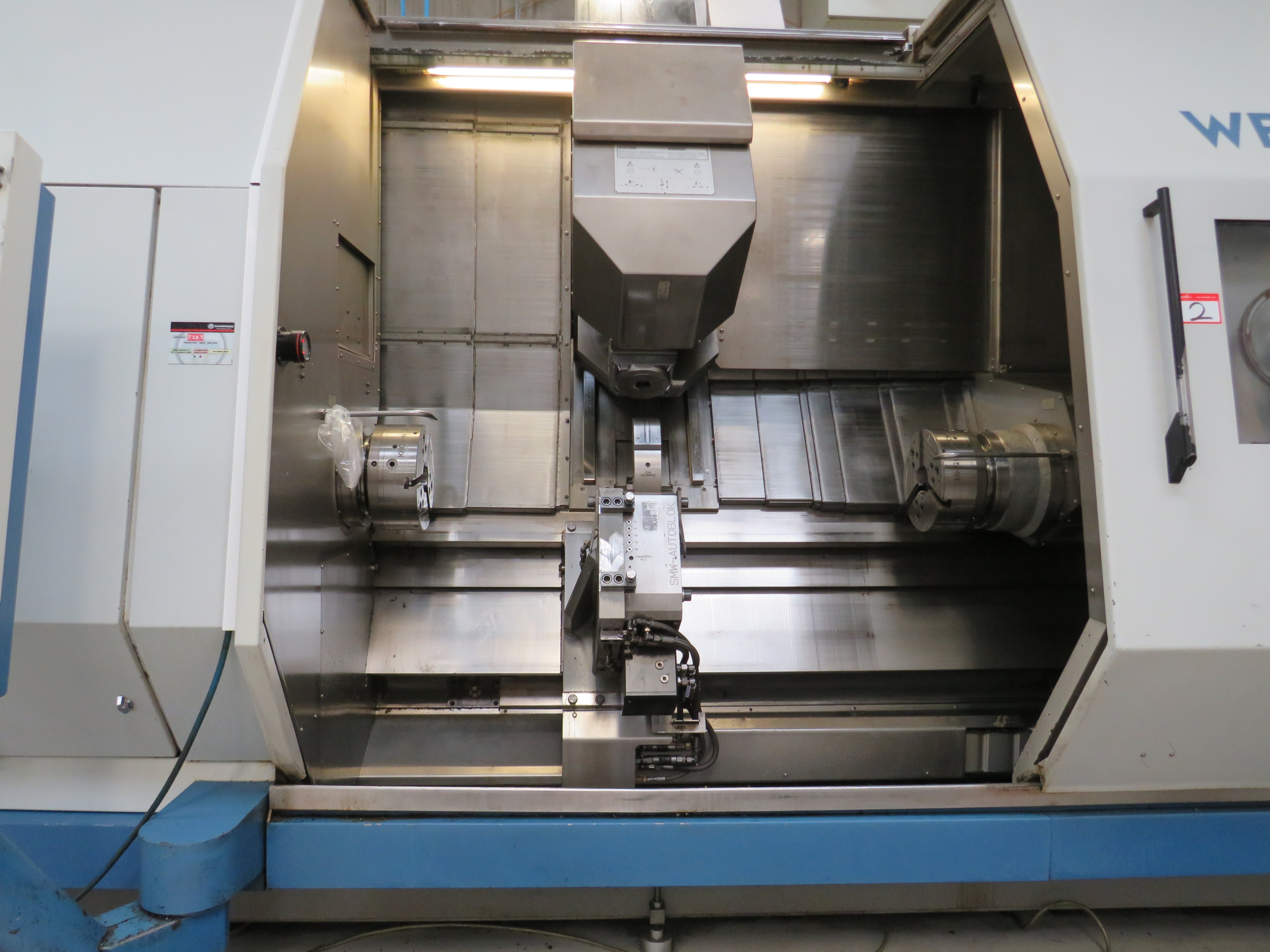

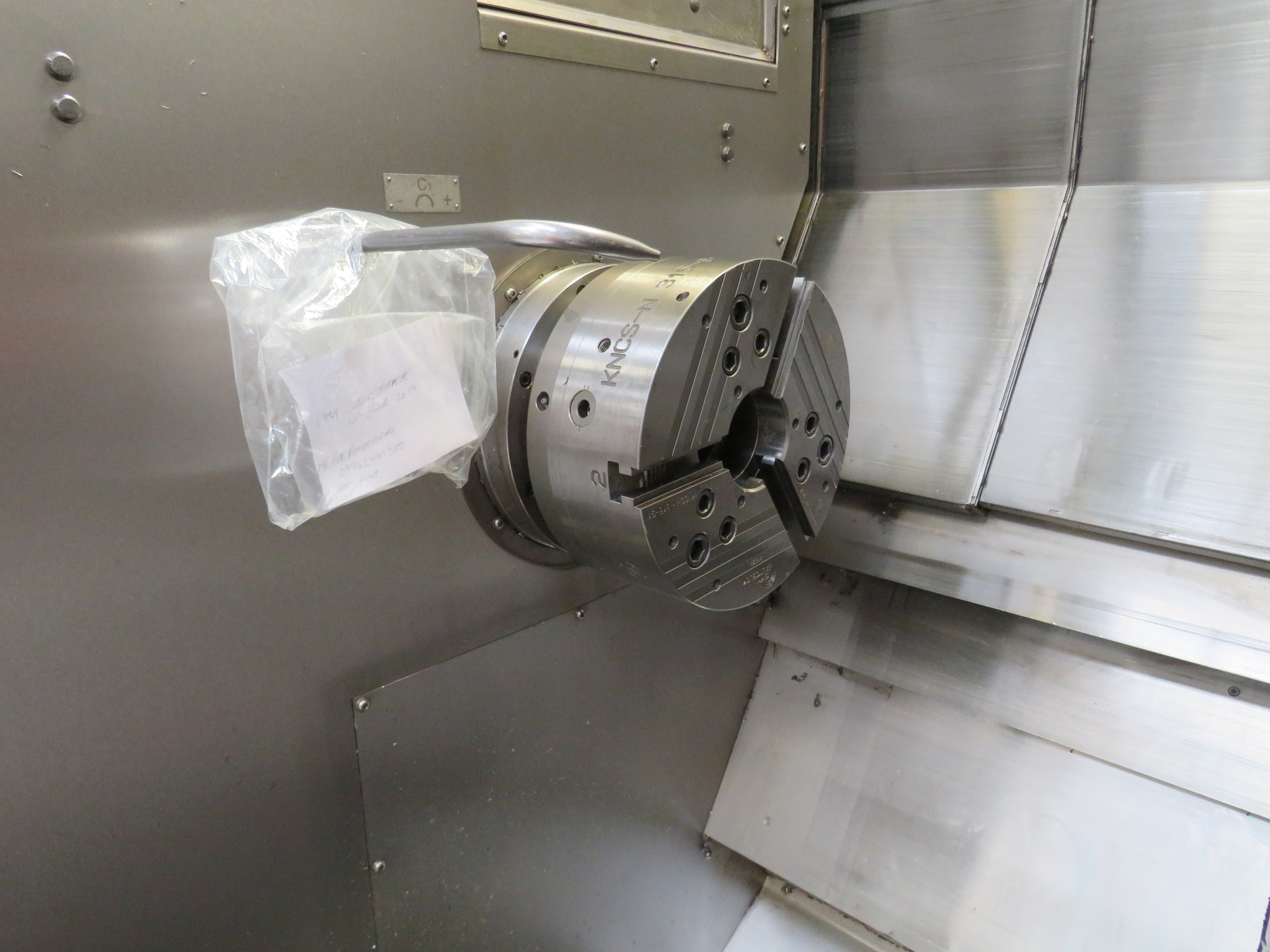

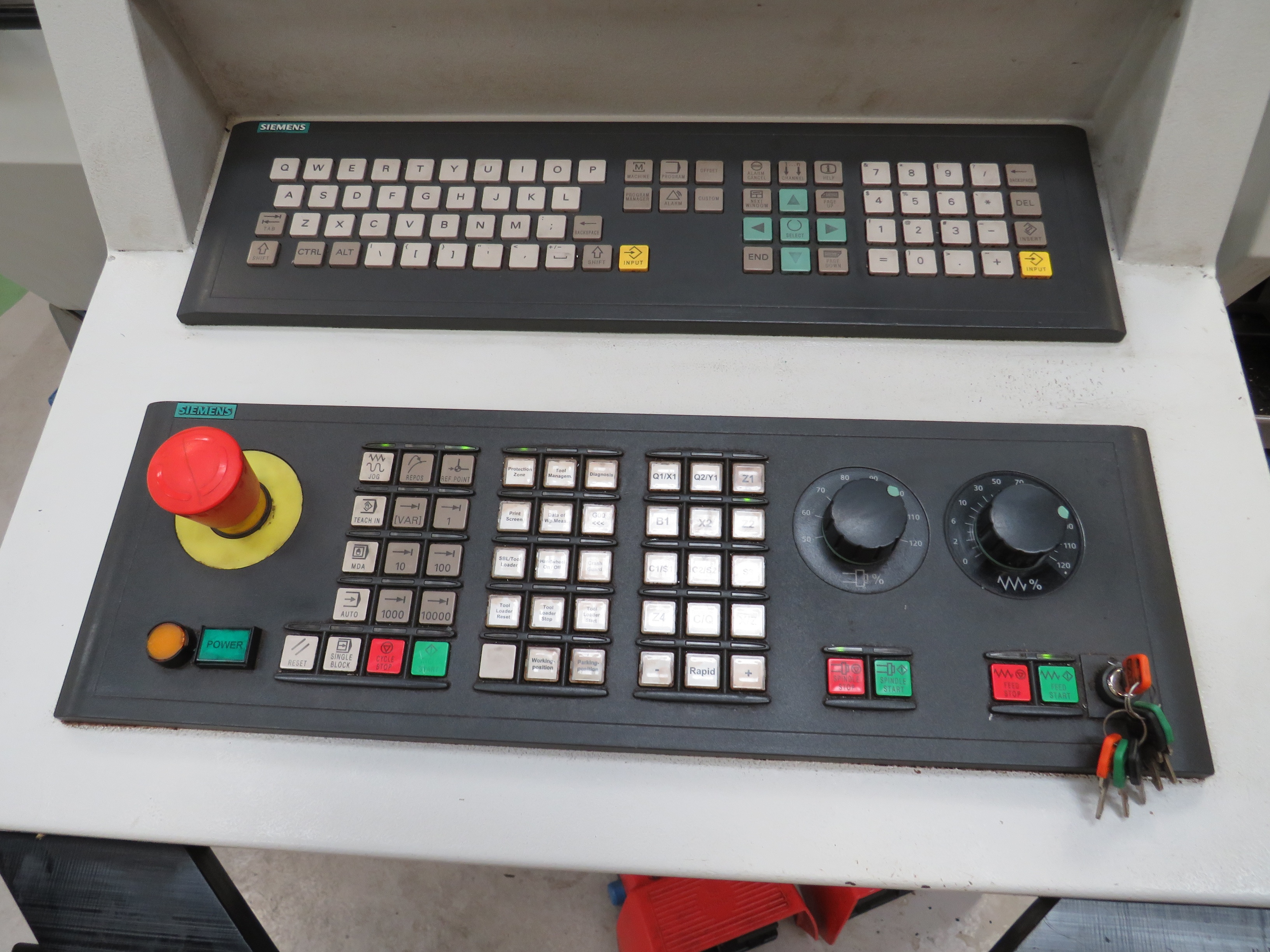

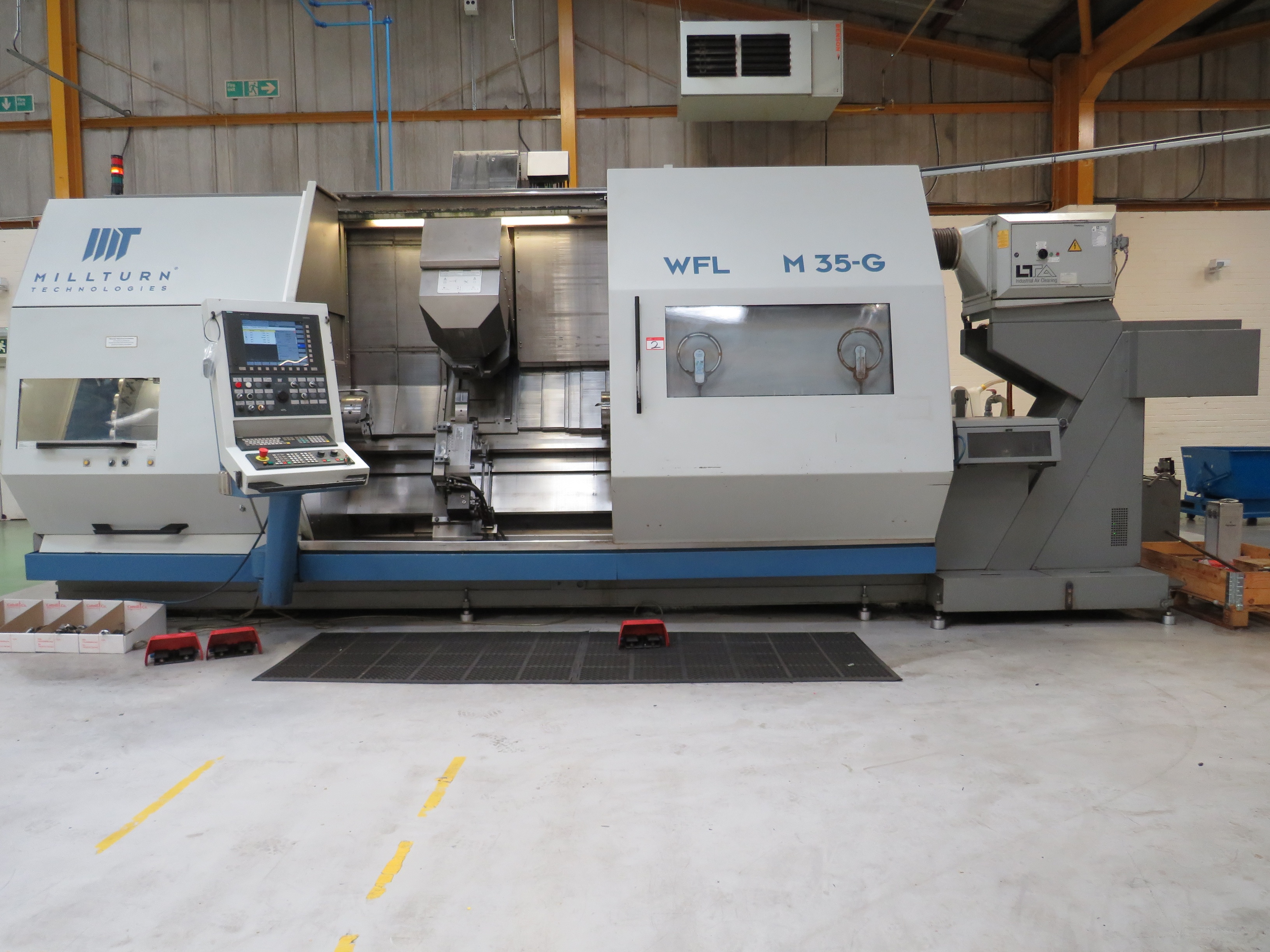

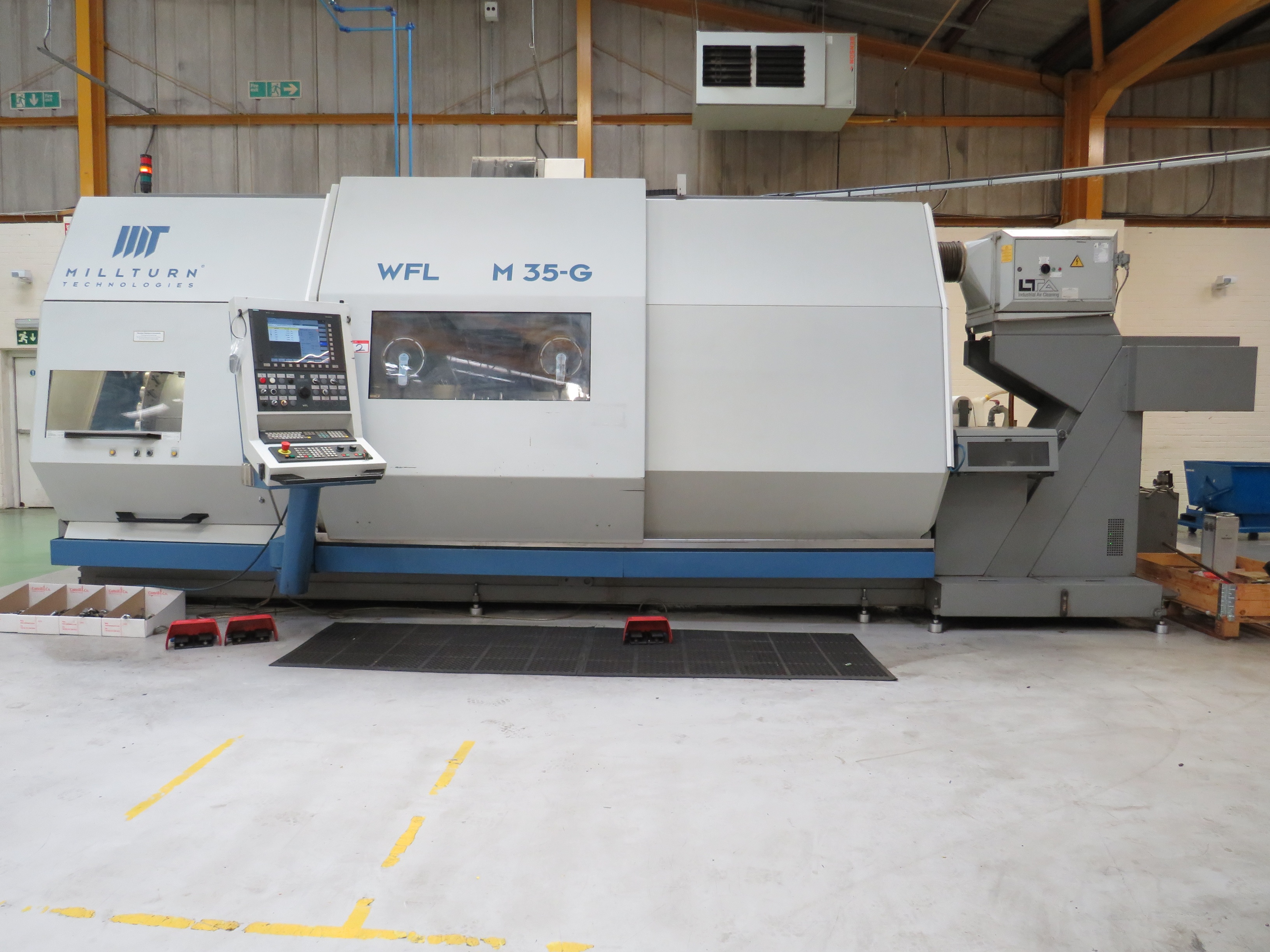

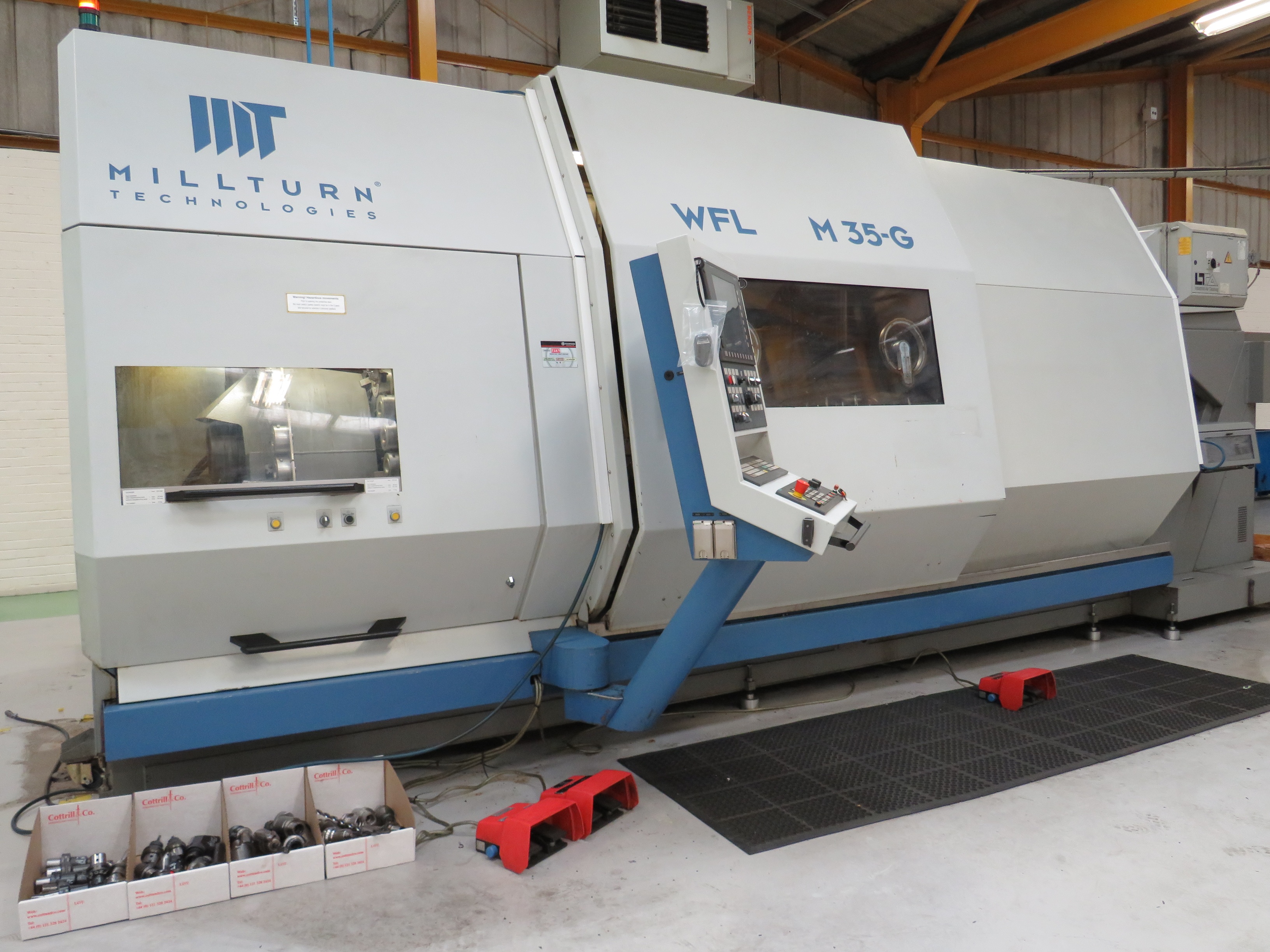

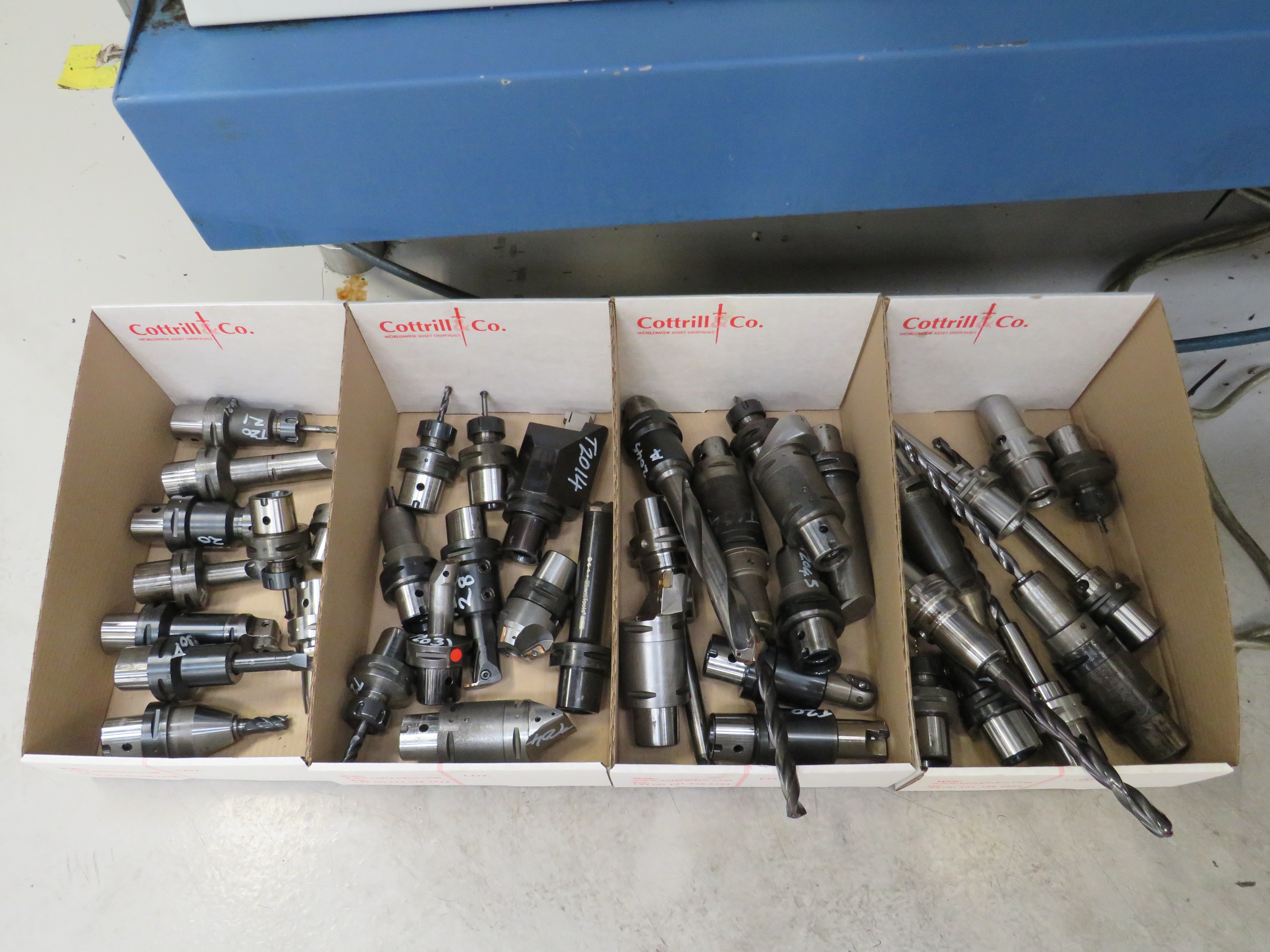

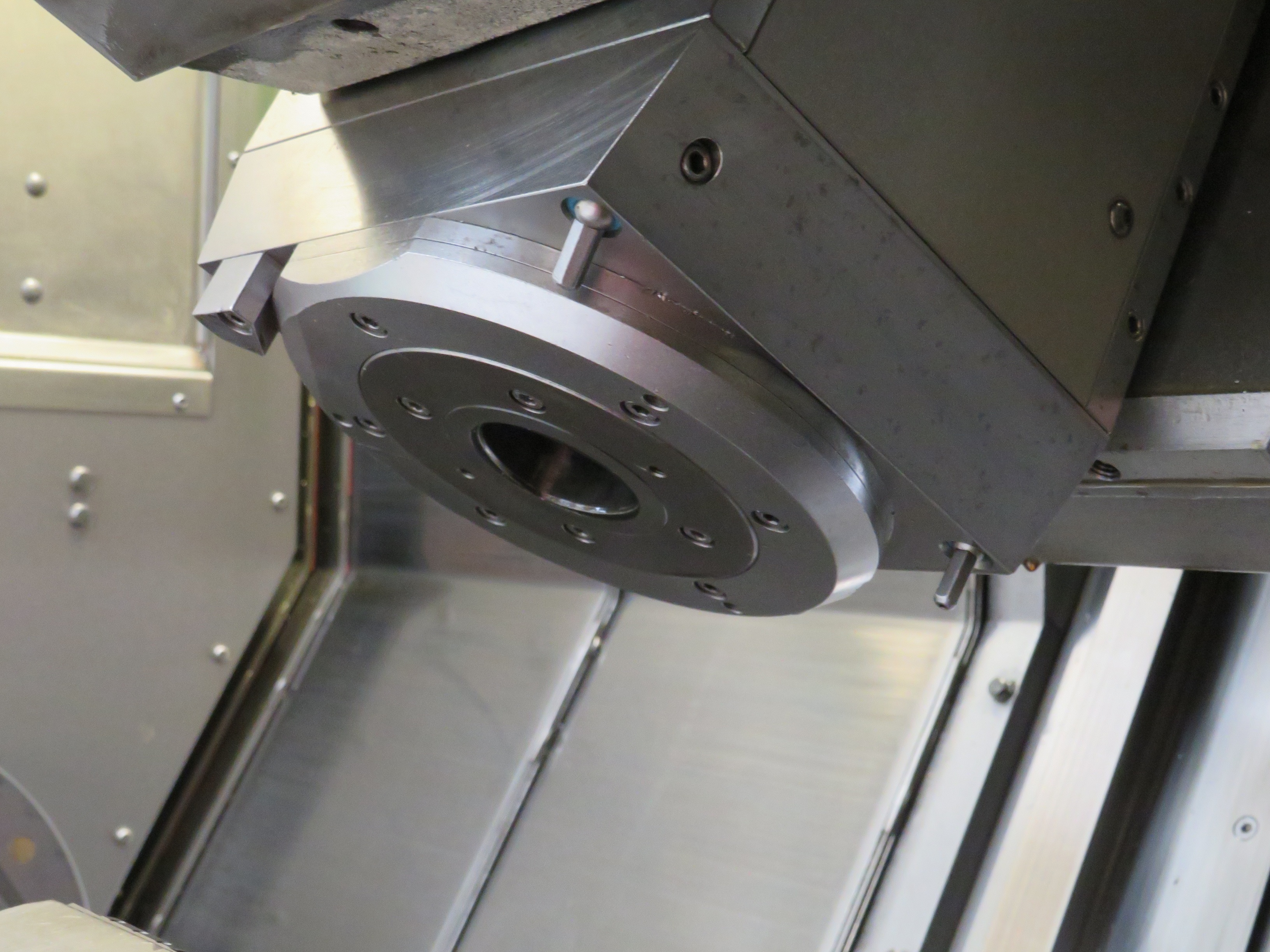

WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm,Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning speeds with Chuck 3300rpm, Turning Speed without Chuck 4000rpm, Milling Spindle Speeds 9000rpm, Complete with 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck SMW Autoblock 3 Jaw Hydraulic, Tooling Type Capto C6, Complete with 80 Position ATC, Marposs WR1 SHW 3 Point Hydraulic Steady, Model SR-5-ZSW, 45 – 310mm Capacity, Manuals, Swarf Conveyor, Swarf Skip, High Pressure Coolant, Paper Filtration Unit, Electrics 400v, 3ph, 50 Hz, Spindle Motor 29/33kw, Sub Spindle Motor 29/33kw, Milling Spindle Motor 15/20kw, Approximate Dimensions 7500 x 3700 x 2950mm, Approximate Weight 20,000kg. S/No. 34150901 (2006)

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Location: These lots are located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.


Clearance Dates - Due to the Christmas break the removal dates for these items will be from:

Monday 6th January 2020 to Thursday 16th January 2020

(There will be no clearance on site between 19th December 2019 and 3rd January 2020 Inclusive)
