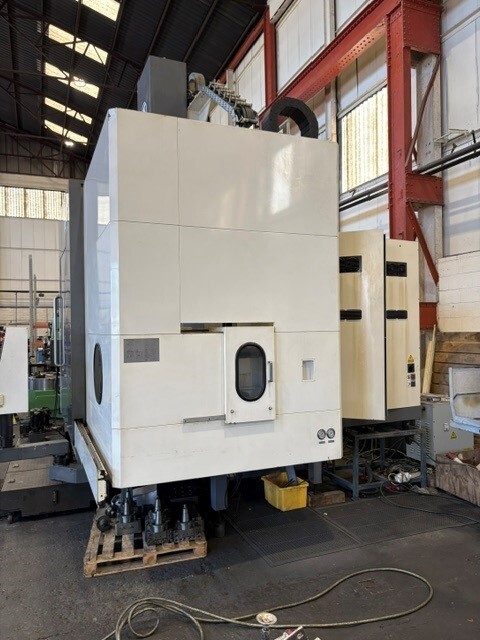

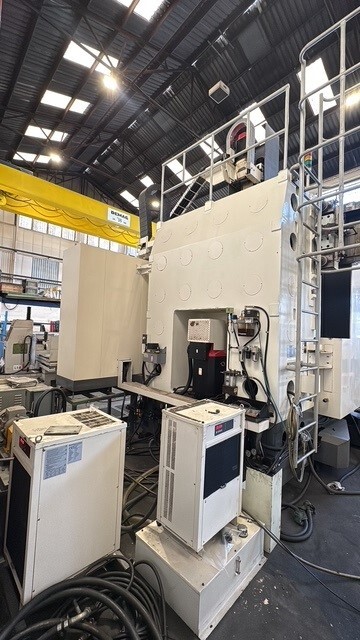

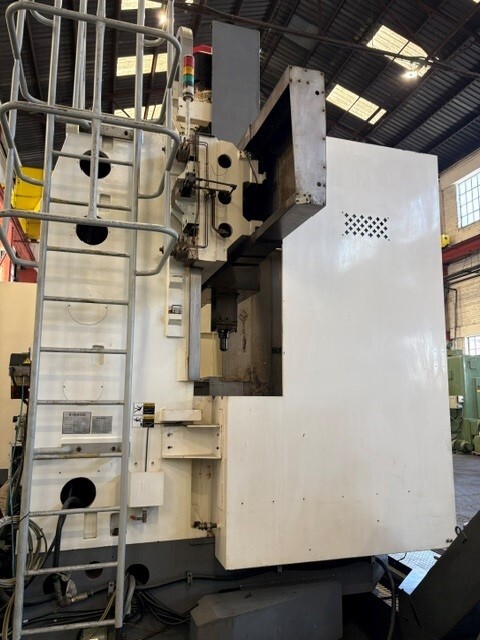

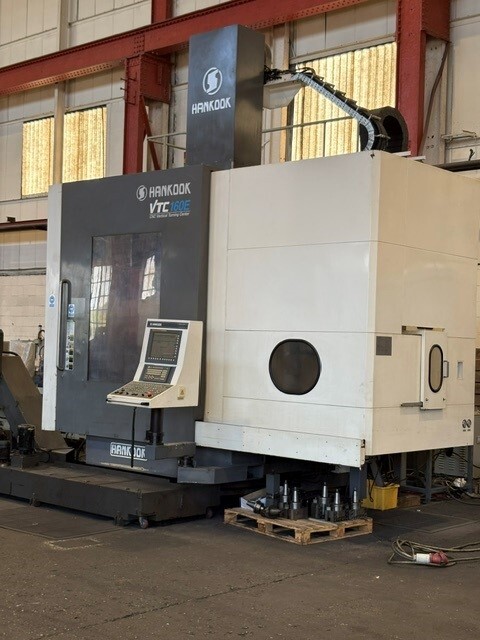

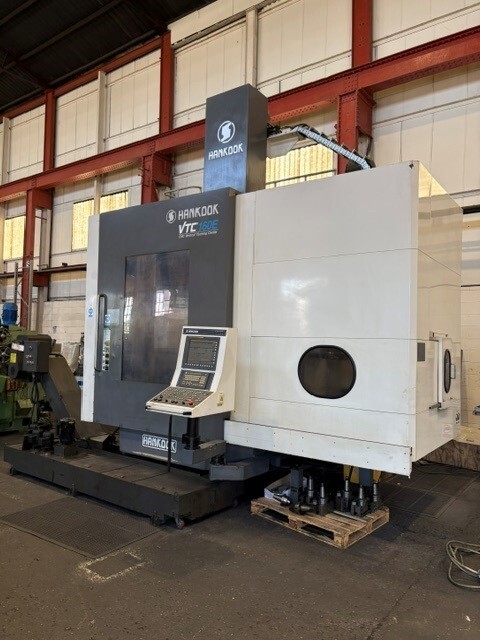

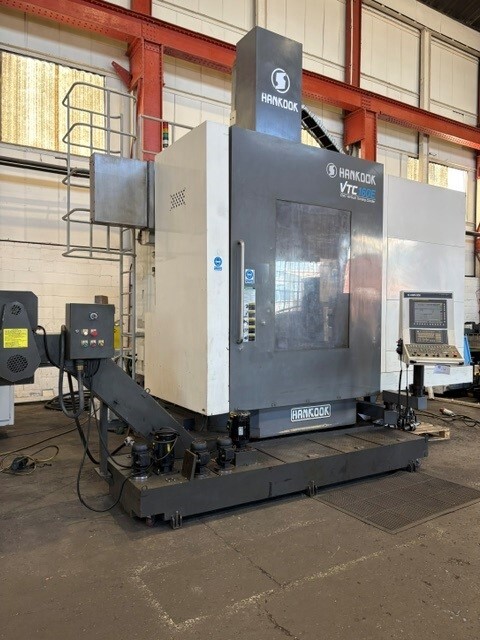

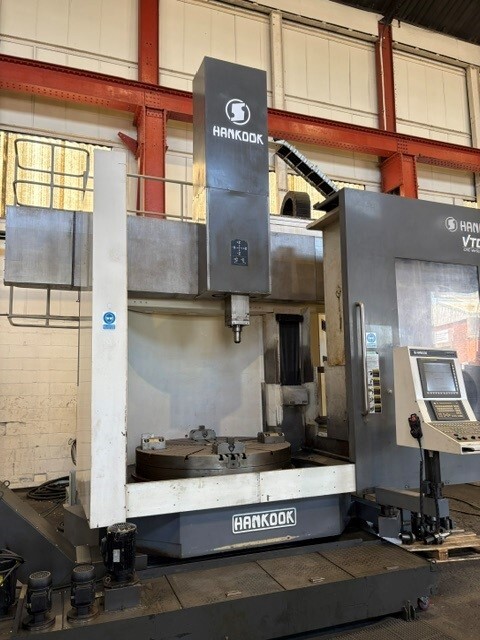

Lot 1: Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre
Oldbury, West Midlands, UK
| Make: | Hankook |
|---|---|
| Model: | VTC-160E |
| Year: | 2011 |

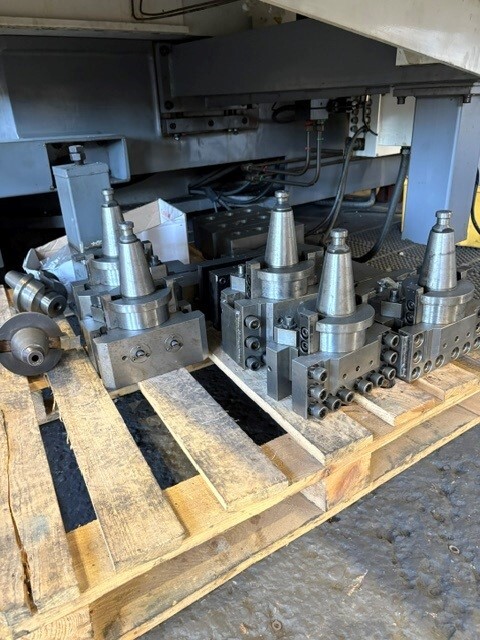

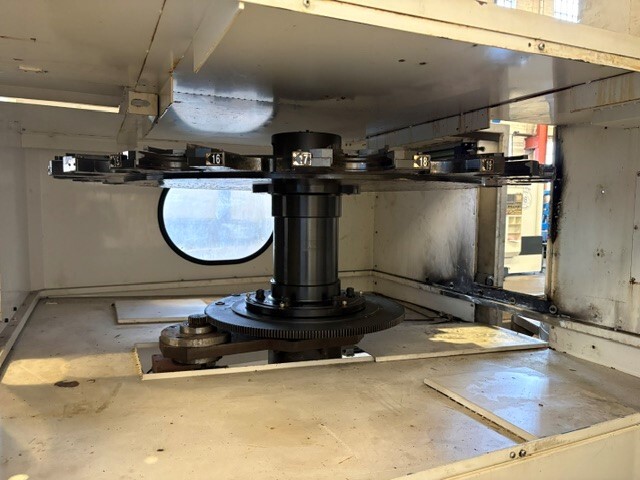

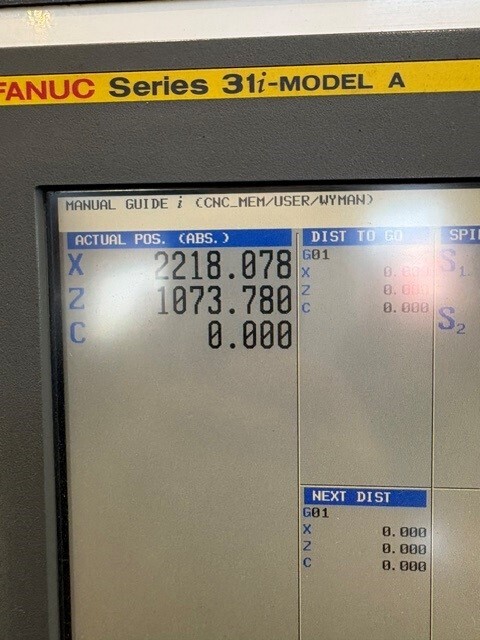

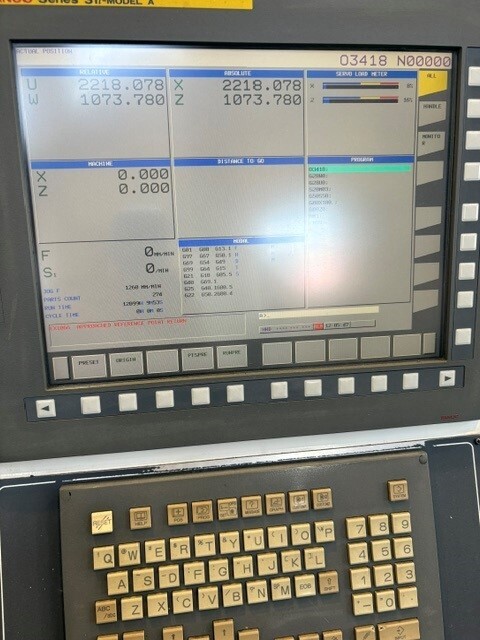

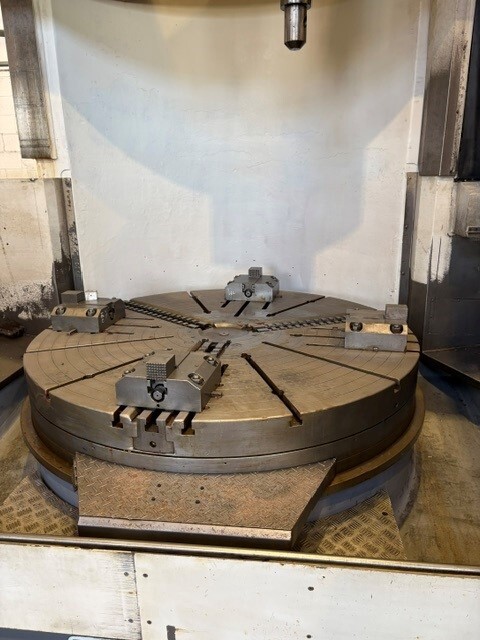

Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre with Fanuc 31i-Model A Colour CNC Control, Table dia. 1600mm, Maximum Swing 2000mm, Maximum Turning Dia. 2000mm, Maximum Turning Height 1400mm, Maximum Table Load 10,000kg, Horizontal Travel of Rail Head (X-axis) 1900mm, Vertical Travel of Ram (Z-axis) 900mm, Vertical Travel of Crossrail 700mm, Full C Axis 0.001 Resolution, Milling Spindle 18.5kw, Milling Spindle Speeds 30-3000rpm, Table Speeds. 0.7 to 280rpm (2 Speed Gear Box), Max Table Torque 23800 N.m, Ram Size 220mm x 220mm, Rapid Traverse (X-axis) 7,500mm/min, Rapid Traverse (Z-axis) 7,500mm/min, Cutting Feed Rate 0.001mm to 7500mm/rev, Tool Magazine 24 Station (12 Std + 12 Milling), Main Motor 45kw, Total Machine Power requirement 100KVa, Machine Size 5300mm x 4500mm, Machine Weight 34,000kg, Assorted Tool Holders. S/No. 42D09215 (2011)
Pre-Auction offers Encouraged
Location: These lots are located in Oldbury, West Midlands, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
UK Strategic Export Control Legislation (1st April 2024) The purchaser shall be responsible for ensuring export compliance in accordance with OEM/UK Strategic Export Controls Legislation of 1st April 2024 for goods purchased at auction. The purchaser shall also be responsible for all associated costs in obtaining measurements/accuracy checks for export classification needed for an export application. An Export License Application Fee of £350 plus VAT shall be applicable for goods requiring an export license application.
