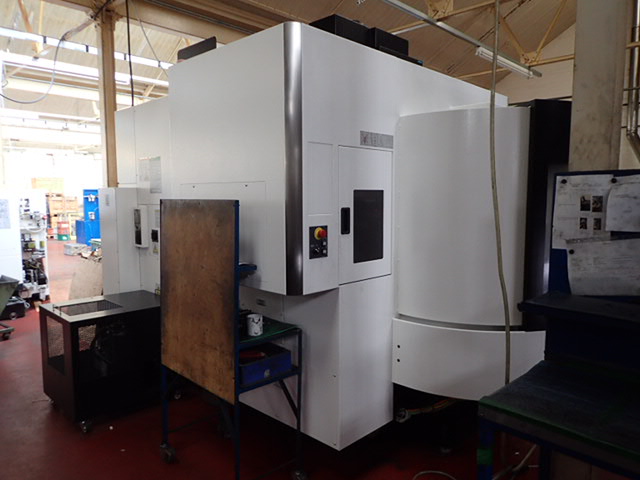

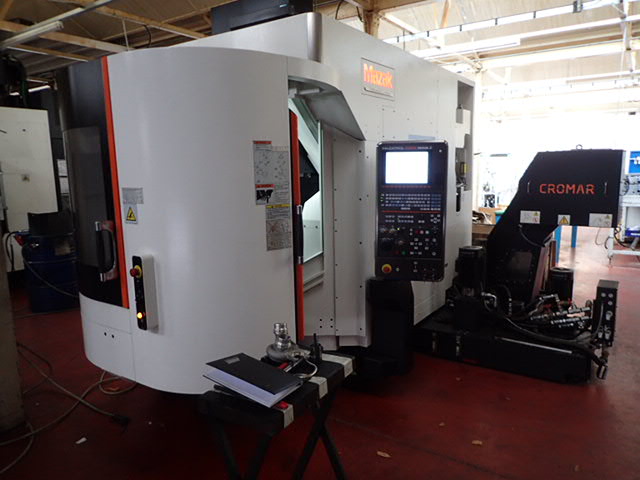

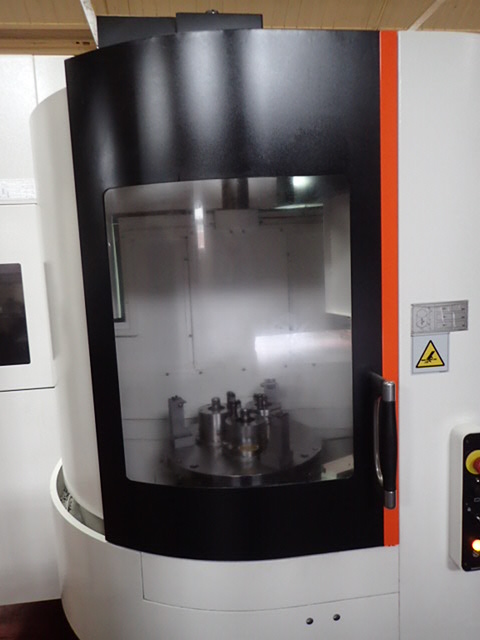

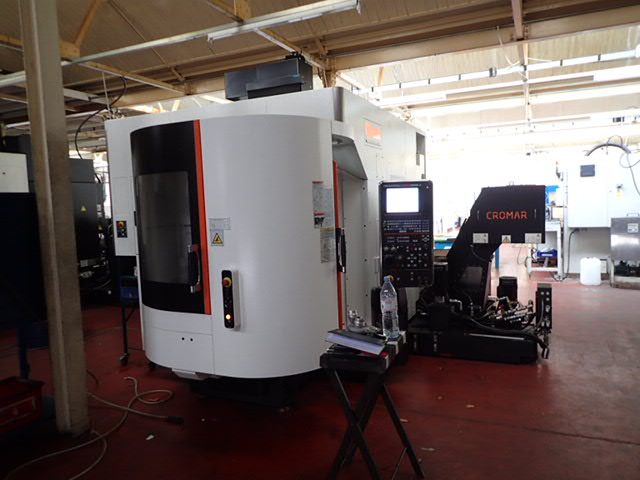

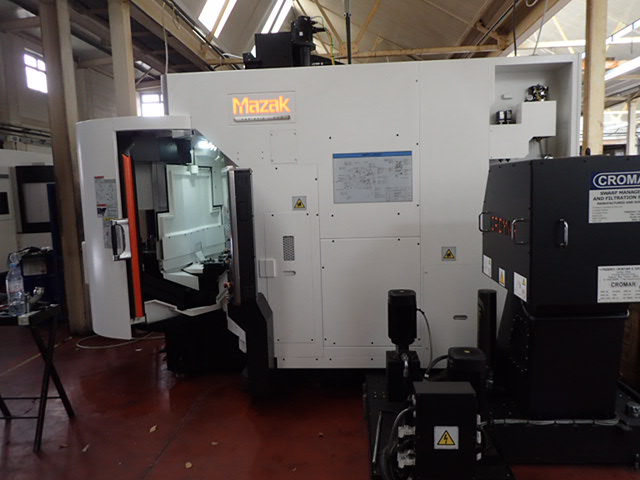

Lote 103: Mazak Variaxis J500 5-Axis Vertical Machining Centre

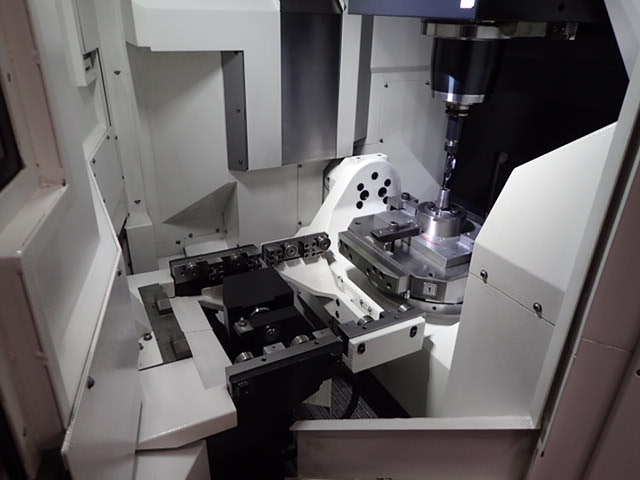

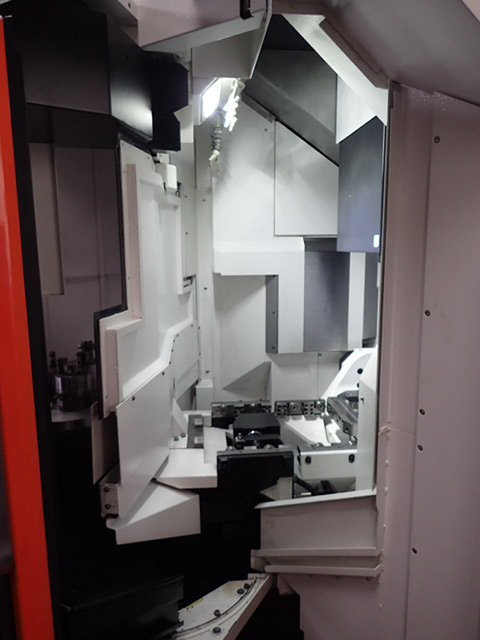

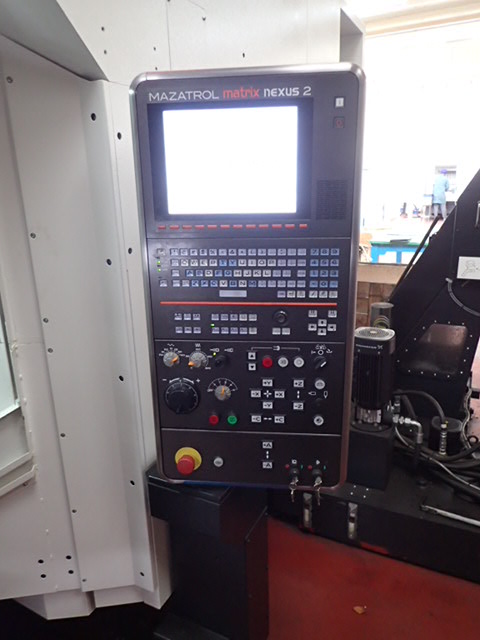

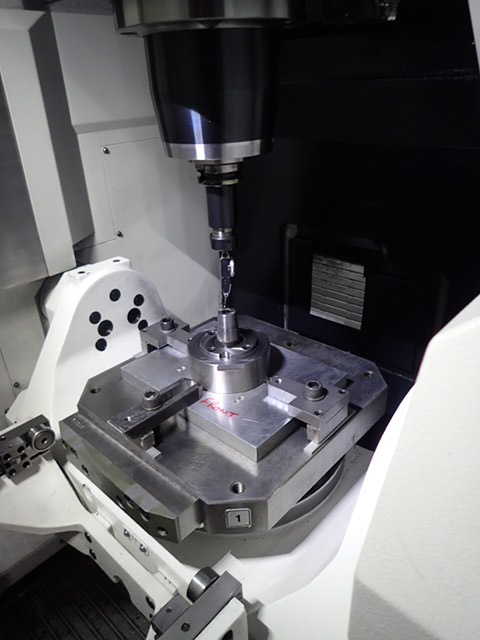

Mazak Variaxis J500 5-Axis Twin Pallet Vertical Machining Centre with Mazak Matrix 2 Control, Simultaneous 4-Axis Capabilities and A-Axis Indexing, 4+1, 12,000rpm, Through Spindle Coolant, Auto Tool Breakage Detection, 18-Station ATC, BT40, Max Work dia: 500mm, Max Work Height: 350mm, 11kw Motor, A-axis: 150 degrees, C-Axis: 360,000 degrees, X-Axis: 350mm, Y-Axis: 550mm, Z-Axis: 510mm, Swarf Conveyor, Micromag in-line Filter, Control Options:EIA, Spiral, EIA 3d comp, Rotation, Geometric, Scaling, EExt-Data I/O, Shape Comp, Thread, Inverse Time, Auto TLM, Polar coordinates input, Comparison stop, G54.1, Sync Mill Tapping, GOO Slope const, Variable 600 sets,  EIA Helical Tap Cycle, EIA Pattern Cycle, Tilted Working Plane, NC 5th-Axis, Pitch Error Comp, Power On: 5491Hrs, Auto Op: 3439Hrs, Auto Cut: 3368Hrs, Total Cut: 1263 Hrs. S/No. 264689 (2015)

Please Note: This lot is located in Sussex and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
