Combination to Include all lots:-

DEC-EL 1700mm Aluminium Coil Coating & Rotary Screen Printing Line for producing continuous graphics for line strips in use in the Leisure Industry (caravans & recreational vehicles) and architectural print finishes.  This facility is also suitable for other industries such as transport, road and general signs, cladding and interior design.

Uses 5 ton aluminium coils up to 1.2 mm thickness, roll face 1600mm, 15 metres per minute. Normal working width 600-1524 mm. Installed new in 1997 at a cost of circa £1.2 million.

Plant comprises of : BHP type 1600 CH5-S Central Drum de-coiler/ unwinder Mandrel range 483mm-533mm, Reiter OHG type CW5 SO Scissor Lift 5000kg capacity.

EMG web registration and alignment equipment, BHP Tension and in-feed rollers, Stork type 'X-Cel' Coating & Rotary Screen Printing Unit.

Overhead Gas Curing Oven with cooling chamber mounted on mezzanine floor. Stainless Steel Quenching Tank, de-moisturising and drying equipment, further tension rollers and web alignment, BHP type 1600 5RC Re-Coiler with similar mandrel range and scissor lift. Vertical screen washing tank and a compliment of screens. All associated electrical equipment and control cabinets.

Please Note: This Line is located in Hull

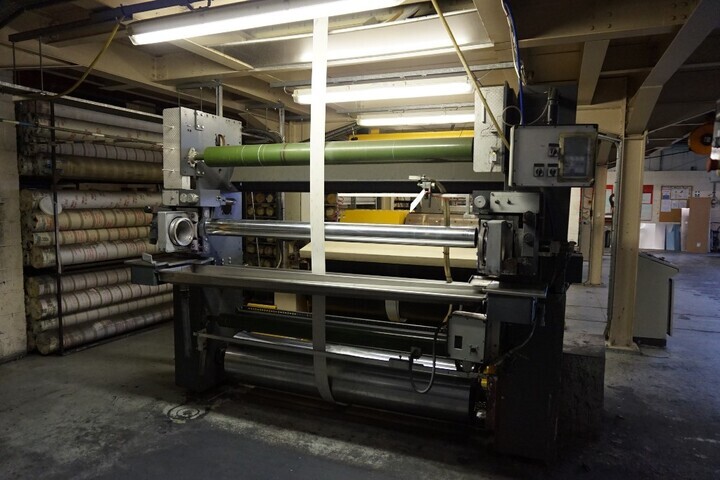

Stork type 'X-Cel 1700mm Coating & Rotary Screen Printing Unit (1997)

Please Note: This Item is located in Hull

BHP type1600 CH5-S Central Drum De-Coiler, Mandrel range 483-533 mm max coil wt 5000kg, with Reiter OHG 5,000kg scissor lift platform. S/No. CN 10035A (1997)

Please Note: This Item is located in Hull

BHP Coil Tension & in-feed pulling rollers (1997)

Please Note: This Item is located in Hull

EMG Servotechnik Registration & Alignment Equipment (1997)

Please Note: This Item is located in Hull

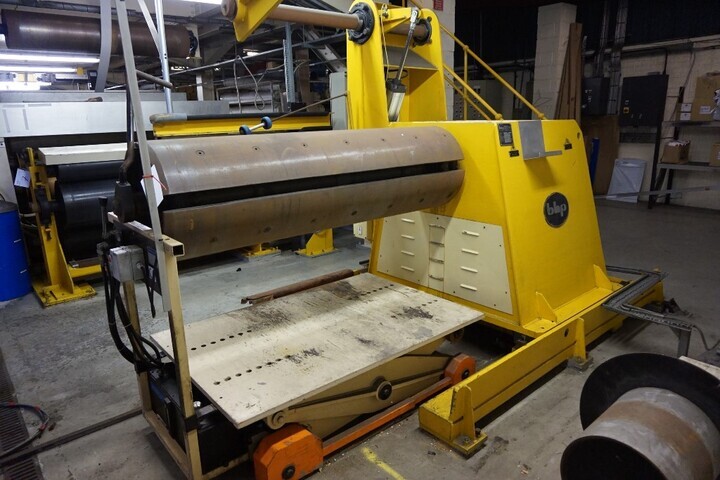

BHP Type 1600 CH5-S Central Drum Re-Coiler, Mandrel range 483-533 mm max coil wt 5,000kg, with Reiter OHG 5,000kg scissor lift platform (1997)

Please Note: This Item is located in Hull

BHP Coil Tension & in-feed pulling rollers (1997)

Please Note: This Item is located in Hull

EMG Servotechnik Registration & Alignment Equipment (1997)

Please Note: This Item is located in Hull

2m x 1.5m Stainless Steel Quenching Tank with Fosse water softening, de-moisturising and drying equipment (1997)

Please Note: This Item is located in Hull

Overhead Gas Curing Oven with Cooling Chamber & 'Eclipse Combustion' Gas burners overall body size including heater casing 9m x 4m, floor to top of exhaust duct 10m (1997)

Please Note: This Item is located in Hull
