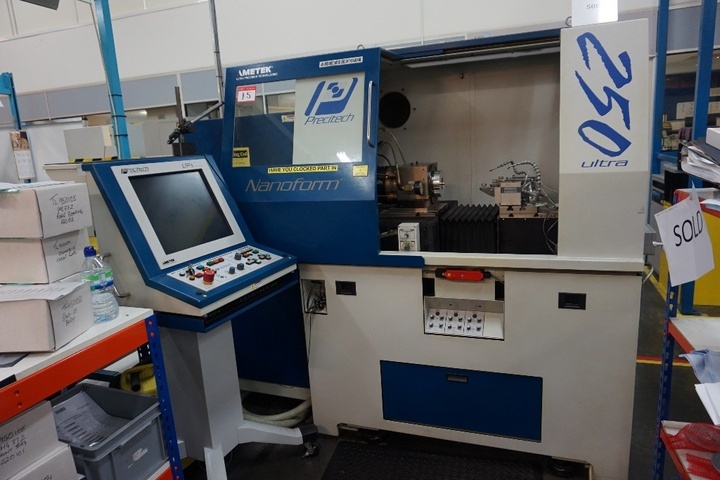

Precitech  Nanoform 250 Ultra Precision Diamond Turning Lathe with Precitech UPX CNC Control System, work Piece Balancing Software, Maximum Speed of Air Bearing Work Spindle 18000rpm, Fitted with 200mm Vacuum Chuck, Maximum Load on Spindle 27kg, Axis Travels X=220mm, Z=220mm, Maximum Feed Rate 4000mm/Min Maximum Swing 250mm, Tool Platten Dimensions 600mm x 370mm, Granite Base Construction, Vibration Isolation System, Oil Hydrostatic Machine Slides, Spray Mist Lubrication System, Fume Extraction Unit, Vacuum Unit. S/No. 2009-023 (2011)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

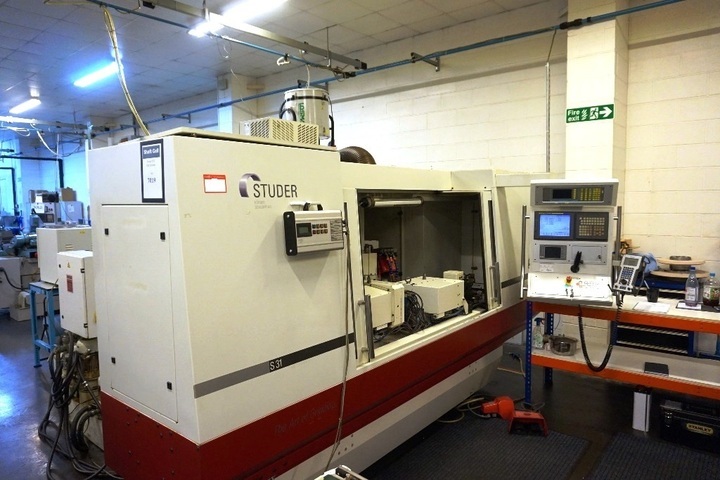

Studer S31 External Universal CNC Grinder with Ge Fanuc 21i TB Control System, Maximum Permissible Wheel Speed 50m/S, Maximum Wheel Diameter 400mm, X Axis Travel 285mm, Z Axis Travel 1150mm C&W 360 Degrees A=210 Degrees, Maximum Turning Diameter 250mm, Centre Height 175mm, Equipped with Coolant Filtration Unit, Coolant Temperature Control, Losma Fume Extraction Unit, Movomatic ES600 Gauging Unit, Dittel M5000 Balancing Unit. S/No. 030.0427 (2006) Series /07

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

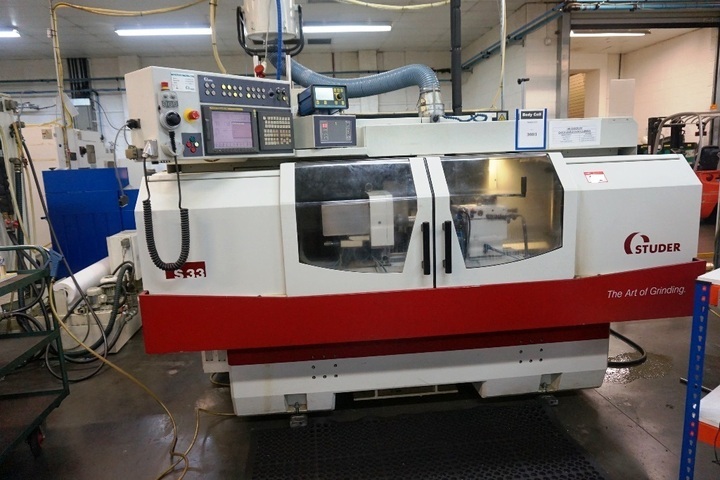

Studer S33 External Universal CNC Grinder with Ge Fanuc 21i TB Control System, Maximum Permissible Wheel Speed 50m/S, Maximum Wheel Diameter 500mm, X Axis Travel 580mm, Z Axis Travel 805mm, Rapid Feed Rates X 5m/min, Z 10m/min, Centre Height 175mm, Maximum Turning Diameter 250mm with Coolant Filtration, Losma Fume Extraction Unit. S/No. 27.0139 (2004)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

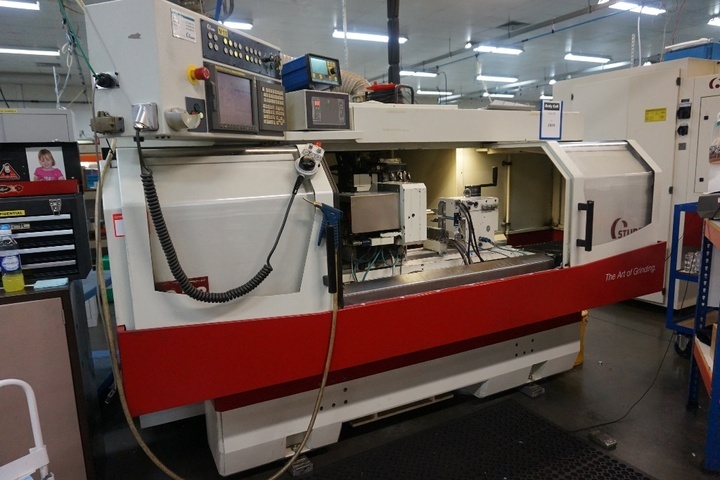

Studer S33 External Universal CNC Grinder with Ge Fanuc 21i Tb Control System, Maximum Permissible Wheel Speed 50m/S, Maximum Wheel Diameter 500mm, X Axis Travel 580mm, Z Axis Travel 805mm, Rapid Feed Rates X 5m/min, Z 10m/min, Centre Height 175mm, Maximum Turning Diameter 250mm with Coolant Filtration, Losma Fume Extraction Unit, Novomatic ES124 Gauging Unit (Senstronic 2). S/No. 27.0137 (2004)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Studer S21 Lean CNC Grinding Machine with Ge Fanuc 21i Control System C Axis Control to Grind Out of Round Shapes (Squares, Oval etc and Thread Grinding Feature) Maximum Pheriperal Spindle rpm 50m/s, Maximum Internal Grinding Spindle rpm (tbc) Maximum Axis Travels X=254mm Z=483mm Wheel Head = 210 Degrees (-15/+195), Maximum Work Piece Speed 1000rpm, CNC Controlled 1 Degree Twin Wheel Universal Swivelling Head, Distance between Centres 400mm, Maximum Grinding Wheel Diameter 400mm, Maximum Work Piece Load 30kg.  Auto Wheel Balancing Unit, Movomatic Gauging Unit. S/No.028.0011 A0.002

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Studer S36 External Universal CNC Grinder with Ge Fanuc 16t Control System, Maximum Permissible Wheel Speed 45m/S, Maximum Wheel Diameter 500mm, X Axis Travel 260mm, Z Axis Travel 650mm, Distance Between Centres 1000mm, Centre Height 175mm, Maximum Turning Diameter 250mm with Coolant Filtration, Fume Extraction Unit. S/No. 020.0688.90.084 (1999)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Studer S20 Universal Manual Cylindrical Grinder Series 170, Maximum Spindle Speed 35m/S, Centre Height 100mm, Distance between Centres 650mm, Work Head Angle Manual Adjustment 15 Degrees, Table Angle Manual Adjustment 15 Degrees, Sony Dro, Coolant Filtration, Internal Attachment Facility (Note No Internal Attachments). S/No. 015-2011 (2004)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

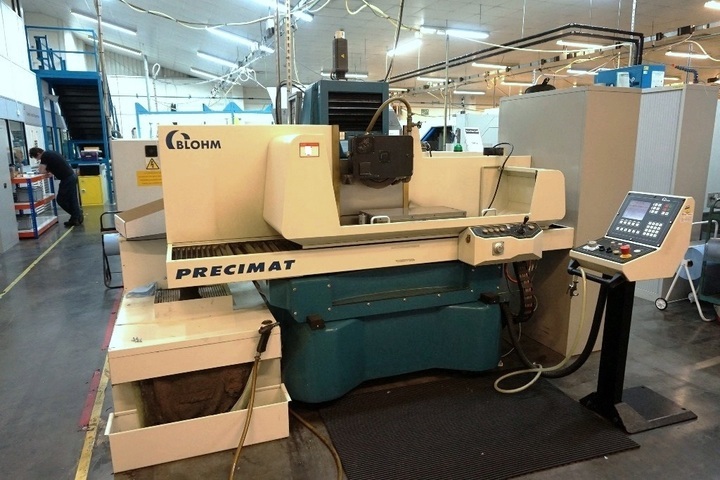

Blohm Precimat 306 CNC Surface Grinder, Blohm CNC Control System, Maximum Permissible Wheel Speed 50m/S, Axis Travels: X Axis Travel 700mm, Y Axis Travel 450mm, Z Axis Travel 450mm, Table Size 1000mm X 300mm, Wagner Magnetic Surface Chuck Dimensions 600mm x 300mm with Coolant Filtration Unit. S/No. 15274 (2004)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

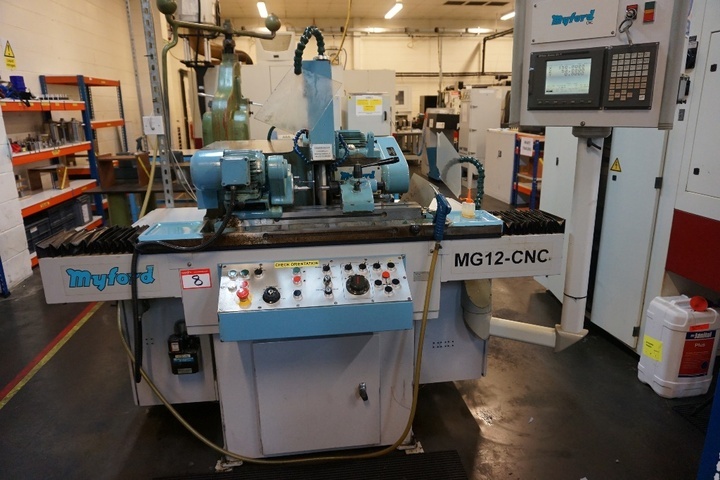

Myford MG 12 CNC Cylindrical Grinder with Ge Fanuc 21i T Control System, Workhead Maximum Spindle Speed 2500rpm, Work Wheel Speed 50-900rpm, Maximum Wheel Diameter 300mm, Table Travel 350mm, Rapid Feed Rates 5m/min, Workhead Travel 100mm, Distance Between Centres 250mm, Centre Height 60mm, Coolant Filtration. S/No. CNC 170750 (2001)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

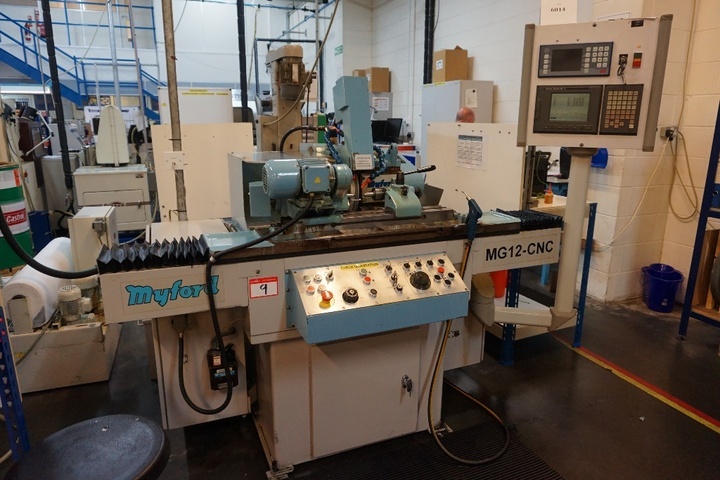

Myford MG12 CNC Cylindrical Grinder Ge Fanuc 21i T Control System, Workhead Maximum Spindle Speed 2500rpm, Work Wheel Speed 50-900rpm, Maximum Wheel Diameter 300mm, Table Travel 350mm, Rapid Feed Rates 5m/min, Workhead Travel 100mm, Distance between Centres 250mm, Centre Height 60mm, Fitted with Marposs MP5 Gauging, Coolant Filtration. S/No. CNC170743 (2000)

Please Note: This lot is located in Poole, Dorset. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
