2586 - Mazak Integrex E-650-H Multi Tasking Machine, Okuma CNC Lathe & Daewoo, Mazak & Bridgeport Machining Centres no longer required by John Hyde & Others
Engineering
Asta conclusa il
Tempo residuo
Descrizione asta
Please Note: Lots 100, 101, 102, 103 are located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lot 104 is located in Stoke. Unfortunately there are no loading facilities available. Blocking and Securing will be at the cost of the Purchaser.
Lot 105 is located in Birmingham and can only be loaded to a suitable vehicle by our authorised transport. The loading fee for this lot will be £100. Blocking and securing will be at the cost of the purchaser.
Premio dell'acquirente
Il premio dell'acquirente verrà addebitato a 16.00%.
IVA
IVA applicata pari al 20.00%.
Date ispezioni
Viewing will be available by appointment only with the Auctioneer.
Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com
* Nota Bene: - Qualsiasi traduzione uttilizzando ''Google Translate'' non è garantita come una traduzione accurata ed è solo a scopo di guida. La descrizione principale del lotto è in inglese ed e data a migliore conoscenza del banditore. Tuttavia, la precisione non è garantita e deve essere verificata dall'acquirente prima di fare offerte.
Avviso ai compratori
Termine ultimo pagamento
Termine ultimo ritiro
Spedizionieri
Squadre per il carico
Dettagli Esportazione/importazione dal UK
Lotti 1-6 di 6

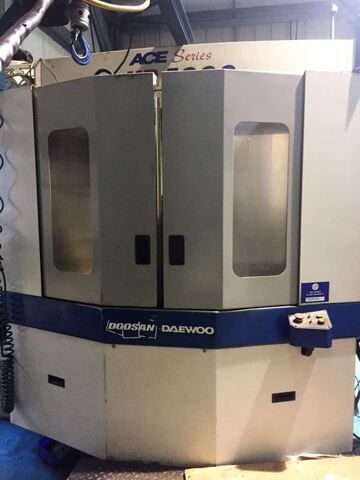

Lotto 100: Daewoo ACE-HP5000 Twin Pallet Horizontal Machining Centre
Daewoo ACE-HP5000 Twin Pallet Horizontal Machining Centre with Fanuc 18i-MB Control, Max. Spindle Speed: 14,000rpm, BT 40 Spindle Taper, X = 850mm, Y = 700mm, Z = 750mm, Rapid Feed Rate: 48m/min, Pallet Dimensions: 500 x 500mm, 60-Station ATC, Through Spindle Coolant, Renishaw NC4 Tool Presetter, Renishaw Probe Interface (please note: there is no probe included with this machine), Swarf Conveyor, Spindle Chiller. S/No. HP540065 (02/2005)
Please Note: This Item is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.

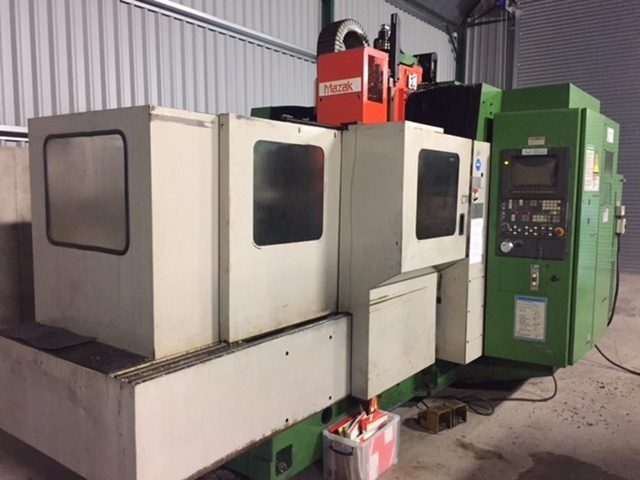

Lotto 101: Mazak AJV 32/604N Bridge Type Vertical Machining Centre
Mazak AJV 32/604N fitted with Mazatrol M32 control system. Axis travels X=1500mm Y=700mm Z=460mm. Maximum spindle speed 4000rpm. ISO40 spindle taper. 40 Station ATC. Table dimensions 1740mmx650mm. Distance between columns 800mm. Maximum load on table 1500Kg. S/No. 106449 (1993)
Please Note: This Lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.

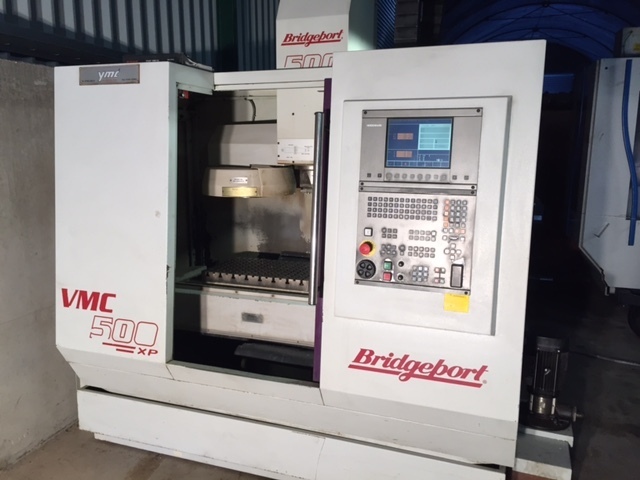

Lotto 102: Bridgeport 500 XP Vertical Machining Centre
Bridgeport 500 XP Vertical Machining Centre with Heidenhain TNC 410M Control, Max. Spindle Speed: 12,000rpm, X = 500mm, Y = 340mm, Z = 520mm, BT40 Spindle Taper, 16-Station ATC, Table Size: 360 x 830mm. S/No. 722863 (2001)
Please Note: This Lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.

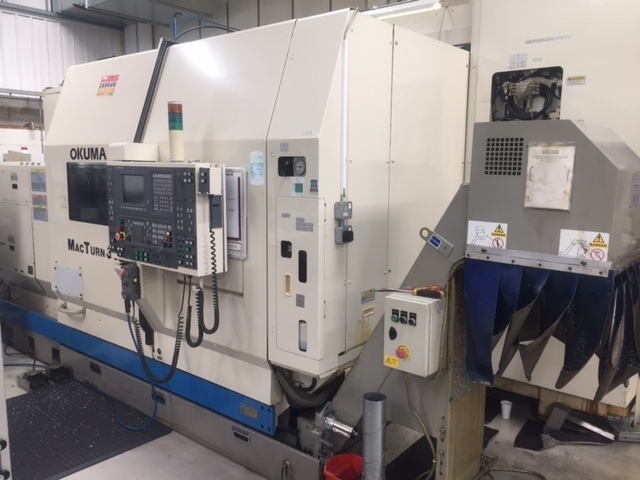

Lotto 103 : Okuma Macturn 30 Multi-Axis CNC Lathe
Okuma Macturn 30 Multi-Axis CNC Lathe with Okuma OSP 7000L Control, Swing Over Bed: 500mm, Max Turning Diameter: 500mm, Max Turning Length: 1000mm, X = 430mm, Y = 190mm, Z = 1090mm, Spindle Speeds: 45 - 4500rmp, BT40 Spindle Taper, 62mm Spindle Bore, Rapid Feed Rates X=20m/min Z=25m/min Y=12m/min, 80 Station ATC, Swarf Conveyor, Renishaw Probe Interface and Probe, Coolant Filtaration, Imeca Barfeed, 3 Jaw Chuck, (2) Collet Chucks, Tailstock. S/No. 0017 (5/1999)
Please Note: This Lot is located in Gloucester and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lotto 104: Mazak Integrex e-650H Multi-tasking Turning/Milling Centre
Mazak Integrex e-650H Multi-tasking Turning/Milling Centre, with Mazatrol pc-fusion-cnc 640m Pro Control System, Maximum Spindle Speed 1400rpm, Maximum Milling Spindle Speed 10000rpm, (1200rpm chuck limitation), BT50 spindle taper, Axis Travels X=1025mm Y=605mm Z=2105mm C=360 degrees (0.0001), B=240 degrees (+210/-30), Rapid feed rates X/Y/Z=40m/min, Maximum Swing 920mm, Programable tailstock, Quill travel 160mm, 170mm spindle bore, Distance between centers 2300mm, 80 station ATC, 450mm 3 Jaw chuck, Swarf conveyor, Through Spindle Coolant, Absolent ODF1000 filter Mist Unit, Swarf Skip, Renishaw mp700 probe. S/No. 159928 (7/2002)
Please Note: This Item is located in Stoke. Unfortunately there are no loading facilities ...
Lotto 105: Hurco BMC 4020 SSM Vertical Machining Centre
Hurco BMC 4020 SSM Vertical Machining Centre with Ultimax CNC Control, 1250 x 510mm Table, 24-ATC, ISO 40 Taper. S/No. 912SM9100908800
Please Note: This Lot is located in Birmingham and can only be loaded to a suitable vehicle by our authorised transport. The loading fee for this lot will be £100. Blocking and securing will be at the cost of the purchaser.
