Lot 100: Giddings & Lewis Model G50-T Five Axis Horizontal Boring & Milling Machine with G & L 8000 B CNC Control
Back to auctionItem description
Giddings & Lewis Model G50-T Five Axis Horizontal Boring & Milling Machine with G & L 8000 B CNC Control, 60 Position ATC Tool Changer, 3-Point Capacity Steady, 75HP Main Motor, Perimeter Interlock Guarding, 130 mm Spindle dia, 914 mm Spindle travel, 14 to 3000 RPM Spindle Speeds, A axis index table faceplate dia 800 mm with 3 jaw chuck 25” dia, 1700 mm x 2500 mm B axis rotary table, 10,000. Kgs B axis table load capacity, Travel X Axis = 2440mm, Travel Y Axis = 1730mm from main table, Travel Y axis = 1520 mm from Eimeldingen table, Travel Z axis = 914 mm, Travel W Axis 1622mm * Note W axis is reduced from 1905 mm due to Eimeldingen B axis overhang. S/No. 450 – 1162 (1993) Refurbished Upgraded 2003/2004
The machine was returned to the G & L manufacturing facility in 2003/2004 where the following work was carried out:-
· Machine refurbishment
· Adaption of A & B axis Eimeldingen Tables.
· Upgrade Control to 8000 B
· Upgrade Siemens CNC package, including new motors, drives, contactors, electric wiring, high performance hardware
· Thru spindle flood coolant
· Collet type drawbar
· Ansi – BS 50 spindle
· Steady 3 point capacity 24”

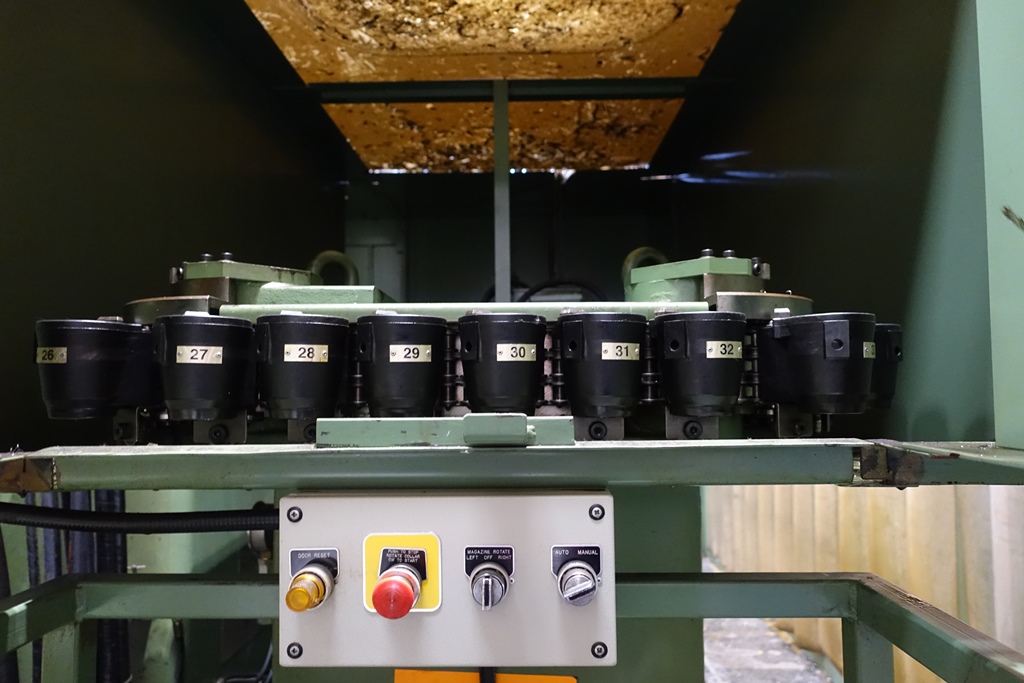

· Adaption of Tool changer 60 positions
Machine height: - Floor mounted 5180 mm, Set in foundation 4800 mm
This machine is located in Scotland and can be inspected under power by appointment with the Auctioneers Office.
