2512 - Due to Major Investment in New Equipment, CNC Crankshaft Manufacturing Machines no longer required by Triumph Motorcycles UK
In Association With
Engineering
Auction ended on
Time left
Auction description
Location: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Viewing times
Viewing is available by appointment only with the Auctioneer
Please contact our Office on: +44 (0) 121 328 2424 or email
us at: info@cottandco.com
* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
Notice to purchasers
Final payment date
Final clearance date
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Lots 1-8 of 8
Lot 1: Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe
Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32203 (1989)
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot 2: Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe
Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32272 (1990)
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot 3: HELLER RFK200/800/1 CNC Internal Crankshaft Milling Machine
HELLER RFK200/800/1 CNC Internal Crankshaft Milling Machine with Heller Unipro NC80R Control, 200mm dia x 800mm Capacity, (2) Sets Bohlerit Internal Cutters, Coolant and Swarf Conveyor, S/No. 43.41209 (1990). Used for milling of crankshaft pins and mains bearing shaft and webs. Full range of manuals, electrical drawings and foundation plan available.
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

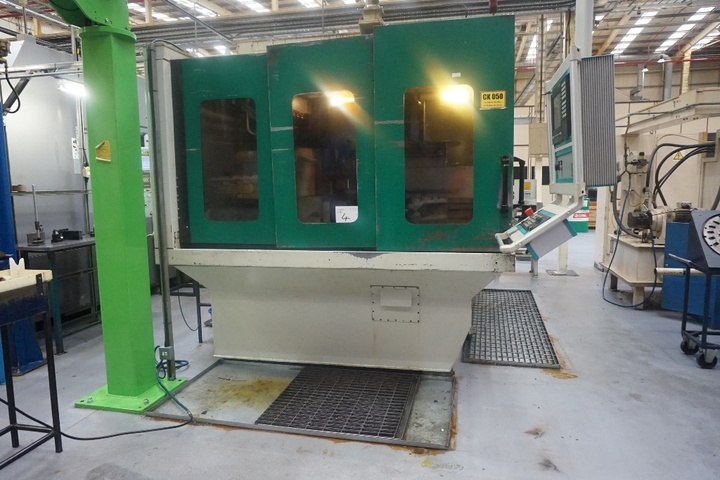

Lot 4: TBT Tiefbohrtechnik BW200-1 CNC 7 axis Deep Hole Drilling Machine
TBT Tiefbohrtechnik BW200-1 CNC 7 axis Deep Hole Drilling Machine with Siemens 840D Control. Single Spindle Single Lip Deep Hole Drilling Machine with 1000mm Stroke (W axis), max depth 900mm, min drilling dia 2mm, max drilling dia 12mm, Rapid Traverse 15m/min, Feed Traverse 10m/min, Rotary Table (C axis) 800 x 600mm with Tilting (B axis) and Swivelling (A axis W axis Stroke (Drilling Spindle) 900mm, Y axis Stroke (Vertical) 600 mm, X axis Stroke (Cross) 800mm, Z axis Stroke (Rotary Table Longt) 400mm with High Pressure Coolant System and Chip Conveyor, S/No. 106021-11 (2000). Full set of manuals and drawings available. Currently used for crankshaft oil hole drilling.
Please Note: Roller Tracking and Handling equipment ...
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot 5: Toyoda 60M GP72-63 CNC Straight Approach Cylindrical Grinder
Toyoda 60M GP72-63 CNC Straight Approach Cylindrical Grinder with Toyoda Toyopuc Control, 320mm dia x 500mm capacity, Marposs E39 auto sizing for lateral location, Marposs E78 Wheel Balancing, Diamond Roll Auto Wheel Dressing, CNK Coolant Clarifier, Mfg/No RCJ-1955, Mach/No. RC1955 (1990). Manuals and drawings available. Used for grinding of crankshaft mains bearing.
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot 6: Toyoda G32N-50N CNC Angle Approach Cylindrical Grinder
Toyoda G32N-50N CNC Angle Approach Cylindrical Grinder with Toyoda Toyopuc Control, 320mm dia x 500mm capacity, Toyoda Automatic Lateral Locator, Automatic Wheel Dressing, CNK Coolant Clarifier (used for grinding crankshaft spigot/spline end), Mfg/No LG-5324, Mach/No RC-1949 (1990). Manuals and drawings available.
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot 7: Toyoda GLA4-50M CNC Angle Approach Cylindrical Grinder
Toyoda GLA4-50M CNC Angle Approach Cylindrical Grinder with Toyoda GC32V Control, 320mm dia x 500mm capacity, Automatic Lateral Locator, Automatic Wheel Dressing, Losma Coolant Clarifier (used for grinding crankshaft taper end), Mfg/No. LG-5898-3, Mach/No. RC-6892 (1998). Manuals and drawings available.
Please Note: Roller Tracking and Handling equipment is not included.
Please Note: These Items are located in Hinckley. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here
Lot *: Combination of Lots, 1, 2, 3, 4, 5, 6, 7
Lot 1 - Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32203 (1989)
Please Note: Roller Tracking and Handling equipment is not included.
and
Lot 2 - Ernault TOYODA Type 32 CNC Crankshaft Turning Lathe with GE-Fanuc 15 T Control, 320mm Swing x 671mm Centers, 260mm Turning dia, 5000rpm, 8" SMW Autoblock Three Jaw Chuck, 12 Station VDI Turret and Tailstock, Swarf Conveyor and Coolant, S/No. 32272 (1990)
Please Note: Roller Tracking and Handling equipment is not included.
and
Lot 3 - HELLER RFK200/800/1 CNC Internal Crankshaft Milling ...
